maserati 4200 coupe (2003) front seat - guide and movement parts diagram

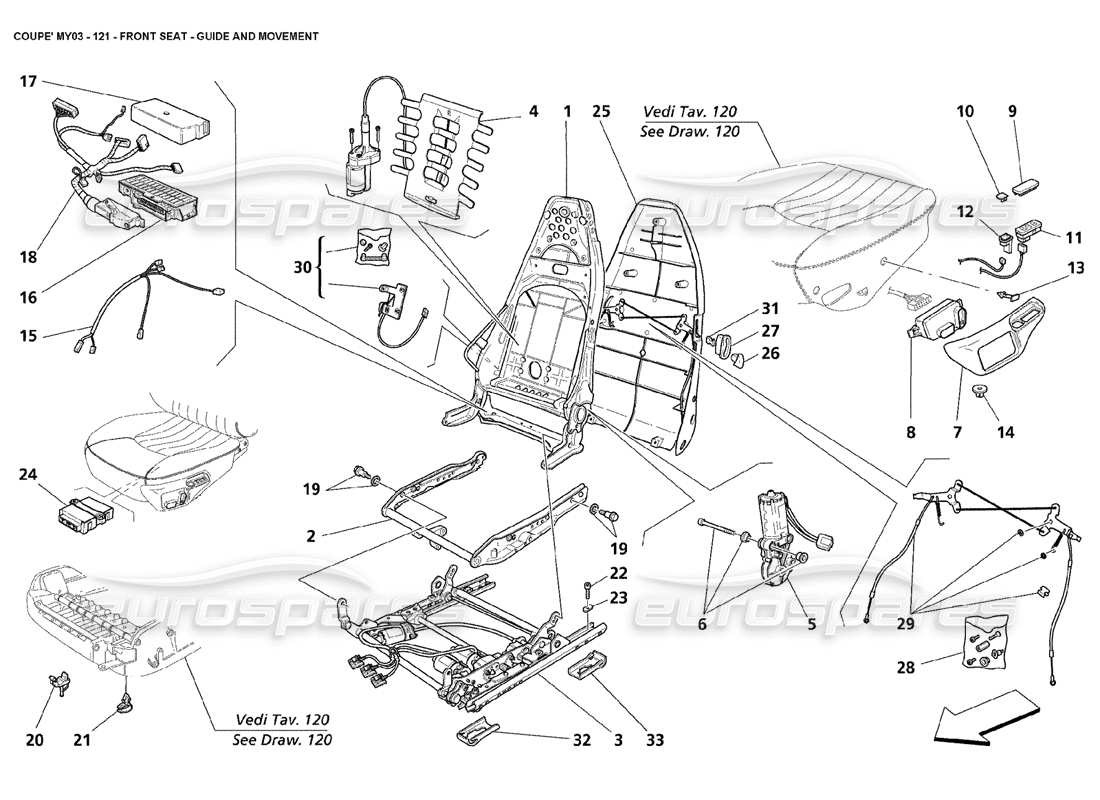

121 - Front Seat - Guide and Movement

Maserati 4200 Coupe (2003) Front Seat - Guide and Movement Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 980001142
                                                                BACKSEAT FRAME
                                                                from £307.29
                                                                from £307.29
                                                                # 002
                                                                MPN: 980001177
                                                                LH CUSHION FRAME
                                                                from £94.47
                                                                from £94.47
                                                                This part replaces part number 980001145
                                                                # 002
                                                                MPN: 980001178
                                                                RH CUSHION FRAME
                                                                from £95.39
                                                                from £95.39
                                                                This part replaces part number 980001146
                                                                # 003
                                                                MPN: 980001111
                                                                PILOT SEAT MOVEMENT
                                                                from £1,217.13
                                                                from £1,217.13
                                                                # 003
                                                                MPN: 980138112
                                                                PASSENGER SEAT MOVEMENT
                                                                from £2,045.09
                                                                from £2,045.09
                                                                # 004
                                                                MPN: 386900100
                                                                LOMBAR ADJUST
                                                                from £123.94
                                                                from £123.94
                                                                # 005
                                                                MPN: 386900402
                                                                PASSENGERS BACKSEAT ADJUST ENGINE
                                                                from £124.54
                                                                from £124.54
                                                                # 005
                                                                MPN: 386901402
                                                                PILOT BACKSEAT ADJUST ENGINE
                                                                from £275.56
                                                                from £275.56
                                                                # 006
                                                                MPN: 386900403
                                                                ENGINE FIXINGS
                                                                from £37.56
                                                                from £37.56
                                                                # 007
                                                                MPN: 66710400
                                                                RH SEAT CARTER
                                                                from £7.30
                                                                from £7.30
                                                                This part replaces part number 66711800 - and 1 more. Click to view details
                                                                # 007
                                                                MPN: 66710700
                                                                LH SEAT CARTER
                                                                from £13.89
                                                                from £13.89
                                                                This part replaces part number 66712900
                                                                # 008
                                                                MPN: 386900223
                                                                LH SEAT MOVEMENT CONTROL JOYSTICK
                                                                from £87.27
                                                                from £87.27
                                                                # 008
                                                                MPN: 386900224
                                                                RH SEAT MOVEMENT CONTROL JOYSTICK
                                                                from £82.79
                                                                from £82.79
                                                                # 009
                                                                MPN: 980001124
                                                                PLUG FOR MEMORIES BUTTON
                                                                from £5.57
                                                                from £5.57
                                                                # 010
                                                                MPN: 980001123
                                                                PLUG FOR HEATER BUTTON
                                                                from £5.09
                                                                from £5.09
                                                                # 011
                                                                MPN: 386901225
                                                                MEMORIER BUTTON PANEL
                                                                from £59.47
                                                                from £59.47
                                                                # 012
                                                                MPN: 386901226
                                                                HEATHER CONTROL BUTTON
                                                                from £12.68
                                                                from £12.68
                                                                # 013
                                                                MPN: 386900404
                                                                CARTER FIXING CLIP
                                                                from £11.28
                                                                from £11.28
                                                                # 014
                                                                MPN: 386900405
                                                                CARTER FIXING NUT
                                                                from £3.24
                                                                from £3.24
                                                                # 015
                                                                MPN: 980001117
                                                                PILOT SEAT CABLE
                                                                from £72.76
                                                                from £72.76
                                                                # 015
                                                                MPN: 980138113
                                                                PASSENGER SEAT CABLE
                                                                - Valid for GD
                                                                from £267.61
                                                                from £267.61
                                                                # 015
                                                                MPN: 980138114
                                                                PASSENGER SEAT CABLE
                                                                - Not for GD
                                                                from £267.61
                                                                from £267.61
                                                                # 016
                                                                MPN: 980001115
                                                                PILOT SIDE MEMORIES CONTROL UNIT
                                                                from £908.71
                                                                from £908.71
                                                                # 017
                                                                MPN: 980001116
                                                                PILOT SIDE CONTROL UNIT COVER
                                                                from £32.38
                                                                from £32.38
                                                                # 018
                                                                MPN: 980001129
                                                                PILOT SIDE MEMORY CABLE
                                                                - Not for GD
                                                                from £565.51
                                                                from £565.51
                                                                # 018
                                                                MPN: 980001130
                                                                PILOT SIDE MEMORY CABLE
                                                                - Valid for GD
                                                                from £320.00
                                                                from £320.00
                                                                # 019
                                                                MPN: 980001023
                                                                PILOT SEAT MOVEMENT FIXING KIT
                                                                from £72.81
                                                                from £72.81
                                                                # 020
                                                                MPN: 386900406
                                                                CLIP
                                                                from £5.09
                                                                from £5.09
                                                                # 021
                                                                MPN: 386900407
                                                                CLIP
                                                                from £6.42
                                                                from £6.42
                                                                # 022
                                                                MPN: 376900302
                                                                SCREW
                                                                from £4.24
                                                                from £4.24
                                                                # 023
                                                                MPN: 386900302
                                                                ELASTIC PLATE
                                                                from £0.77
                                                                from £0.77
                                                                # 024
                                                                MPN: 386900200
                                                                EASY ENTRY CONTROL STATION
                                                                Supersession
                                                                Supersession
                                                                # 025
                                                                MPN: 66710000
                                                                SEAT BACK PANEL
                                                                from £201.31
                                                                from £201.31
                                                                # 026
                                                                MPN: 980138109
                                                                SEAT RELEASE LEVER
                                                                from £3.63
                                                                from £3.63
                                                                # 027
                                                                MPN: 980138108
                                                                SEAT RELEASE LEVER PLATE
                                                                from £45.56
                                                                from £45.56
                                                                # 028
                                                                MPN: 980138111
                                                                PANEL FIXING KIT
                                                                from £56.34
                                                                from £56.34
                                                                # 029
                                                                MPN: 980138110
                                                                SEAT RELEASE CABLE KIT
                                                                from £61.59
                                                                from £61.59
                                                                # 030
                                                                MPN: 386900309
                                                                KIT FOR LH EASY ENTRY MICROSWITCH
                                                                Supersession
                                                                Supersession
                                                                # 030
                                                                MPN: 386900310
                                                                KIT FOR RH EASY ENTRY MICROSWITCH
                                                                Supersession
                                                                Supersession
                                                                # 031
                                                                MPN: 386900313
                                                                CLIP
                                                                from £2.85
                                                                from £2.85
                                                                # 032
                                                                MPN: 388100472
                                                                FRONT SHIELD FOR FRONT SEAT GUIDE
                                                                from £5.50
                                                                from £5.50
                                                                # 033
                                                                MPN: 388100474
                                                                REAR SHIELD FOR FRONT SEAT GUIDE
                                                                from £4.81
                                                                from £4.81
