126 - Tunnel - Framework and Accessories

Maserati 4200 Coupe (2003) Tunnel - Framework and Accessories Parts Diagram

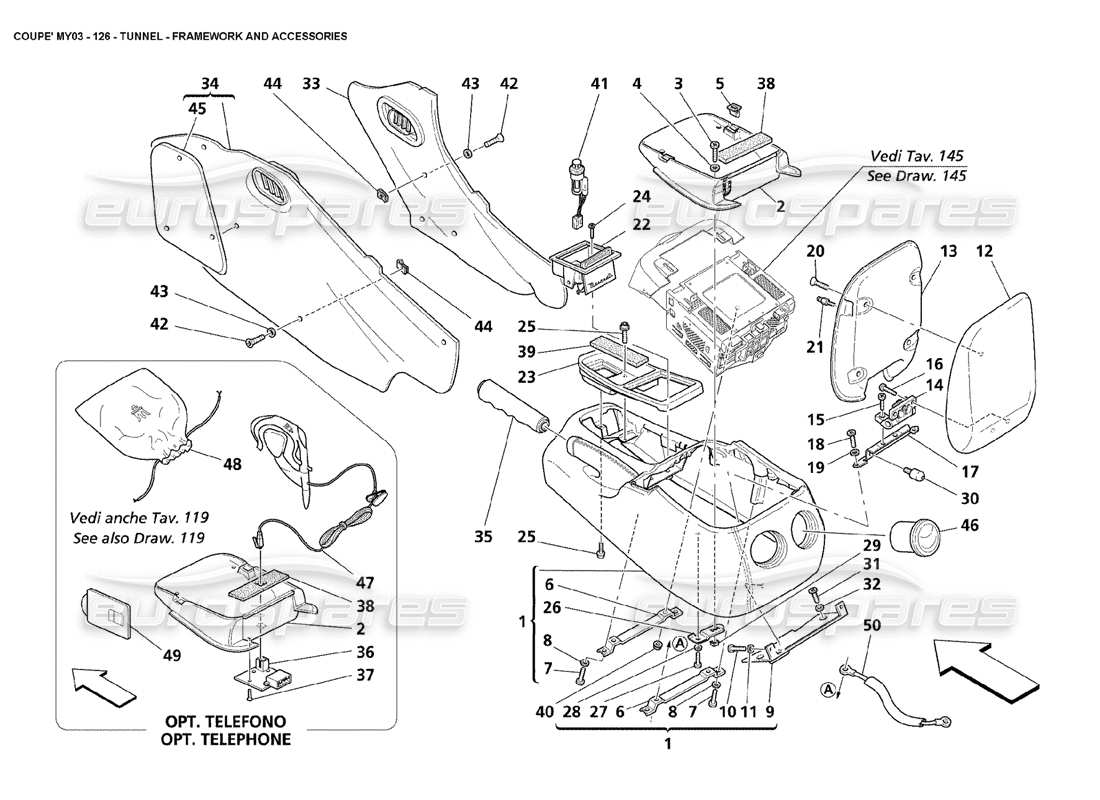

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 661370..
                                                                  COMPLETE TUNNEL COVER CONSOLE
                                                                  - For order specify car number
                                                                  Supersession
                                                                  Supersession
                                                                  # 002
                                                                  MPN: 66240900
                                                                  CONTAINER BOX
                                                                  - Standard
                                                                  from £77.75
                                                                  from £77.75
                                                                  # 002
                                                                  MPN: 66724100
                                                                  CONTAINER BOX
                                                                  - Optional - Telephone - Not for USA, CDN and J
                                                                  Supersession
                                                                  Supersession
                                                                  # 003
                                                                  MPN: 13274014
                                                                  SCREW
                                                                  from £3.54
                                                                  from £3.54
                                                                  # 004
                                                                  MPN: 12637824
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 005
                                                                  MPN: 66498900
                                                                  CLIP
                                                                  from £1.59
                                                                  from £1.59
                                                                  # 006
                                                                  MPN: 66060100
                                                                  BRACKET
                                                                  from £4.28
                                                                  from £4.28
                                                                  # 007
                                                                  MPN: 13273811
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 008
                                                                  MPN: 12637824
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 009
                                                                  MPN: 388300403
                                                                  BRACKET
                                                                  from £5.23
                                                                  from £5.23
                                                                  # 010
                                                                  MPN: 15901501
                                                                  SCREW
                                                                  from £0.54
                                                                  from £0.54
                                                                  # 011
                                                                  MPN: 12639924
                                                                  WASHER
                                                                  from £0.87
                                                                  from £0.87
                                                                  # 012
                                                                  MPN: 66772800
                                                                  UPPER GLOVE BOX SHUTTER
                                                                  - For order specify car number
                                                                  from £120.75
                                                                  from £120.75
                                                                  # 013
                                                                  MPN: 66191400
                                                                  Door Frame
                                                                  Supersession
                                                                  Supersession
                                                                  # 014
                                                                  MPN: 66493600
                                                                  BOX HINGE
                                                                  from £58.68
                                                                  from £58.68
                                                                  # 017
                                                                  MPN: 66061700
                                                                  BRACKET
                                                                  from £134.10
                                                                  from £134.10
                                                                  # 018
                                                                  MPN: 13273911
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 019
                                                                  MPN: 12637824
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 020
                                                                  MPN: 13299177
                                                                  SCREW
                                                                  from £1.90
                                                                  from £1.90
                                                                  # 021
                                                                  MPN: 66498800
                                                                  PIN
                                                                  from £3.25
                                                                  from £3.25
                                                                  # 022
                                                                  MPN: 67520026
                                                                  COMPLETE FRONT ASH TRAY
                                                                  - Bordeaux color
                                                                  from £260.52
                                                                  from £260.52
                                                                  This part replaces part number 67248026
                                                                  # 022
                                                                  MPN: 67520027
                                                                  COMPLETE FRONT ASH TRAY
                                                                  - Gray color
                                                                  from £173.68
                                                                  from £173.68
                                                                  This part replaces part number 67248027
                                                                  # 023
                                                                  MPN: 67393126
                                                                  FRONT UTILTY PLATE
                                                                  - Bordeaux color
                                                                  from £270.60
                                                                  from £270.60
                                                                  # 023
                                                                  MPN: 67393127
                                                                  FRONT UTILTY PLATE
                                                                  - Gray color
                                                                  from £520.68
                                                                  from £520.68
                                                                  # 025
                                                                  MPN: 64460500
                                                                  SCREW
                                                                  from £0.61
                                                                  from £0.61
                                                                  # 026
                                                                  MPN: 66609000
                                                                  BRACKET
                                                                  from £5.23
                                                                  from £5.23
                                                                  # 027
                                                                  MPN: 13273911
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 028
                                                                  MPN: 12637824
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 029
                                                                  MPN: 14074490
                                                                  NUT WITH CAGE
                                                                  from £1.11
                                                                  from £1.11
                                                                  # 030
                                                                  MPN: 66734000
                                                                  ADJUSTMENT PIN
                                                                  from £16.50
                                                                  from £16.50
                                                                  # 031
                                                                  MPN: 13273911
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 032
                                                                  MPN: 12637824
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 033
                                                                  MPN: 675102..
                                                                  RH TUNNEL LATERAL COVER
                                                                  - Not for GD
                                                                  Supersession
                                                                  Supersession
                                                                  # 033
                                                                  MPN: 675108..
                                                                  RH TUNNEL LATERAL COVER
                                                                  - Valid for GD
                                                                  from £50.40
                                                                  from £50.40
                                                                  # 034
                                                                  MPN: 675103..
                                                                  LH TUNNEL LATERAL COVER
                                                                  - Not for GD
                                                                  Supersession
                                                                  Supersession
                                                                  # 034
                                                                  MPN: 675109..
                                                                  LH TUNNEL LATERAL COVER
                                                                  - Valid for GD
                                                                  from £50.40
                                                                  from £50.40
                                                                  # 035
                                                                  MPN: 191830
                                                                  HAND BRAKE KNOB
                                                                  - Standard
                                                                  from £61.55
                                                                  from £61.55
                                                                  This part replaces part number 388000110
                                                                  # 035
                                                                  MPN: 197105
                                                                  HAND BRAKE KNOB
                                                                  - Optional - Leather drilled
                                                                  from £111.26
                                                                  from £111.26
                                                                  # 036
                                                                  MPN: 189555
                                                                  INTIMITY BOOT DEVICE SHEETS
                                                                  - Optional - Telephone - Not for USA, CDN and J
                                                                  from £23.16
                                                                  from £23.16
                                                                  # 037
                                                                  MPN: 15901401
                                                                  SCREW
                                                                  - Optional - Telephone - Not for USA, CDN and J
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 038
                                                                  MPN: 66241000
                                                                  CARPET
                                                                  - Standard
                                                                  from £8.53
                                                                  from £8.53
                                                                  # 038
                                                                  MPN: 66728600
                                                                  CARPET
                                                                  - Optional - Telephone - Not for USA, CDN and J
                                                                  from £12.61
                                                                  from £12.61
                                                                  # 039
                                                                  MPN: 66304300
                                                                  CARPET
                                                                  from £9.16
                                                                  from £9.16
                                                                  # 041
                                                                  MPN: 373380115
                                                                  ELECTRONIC CIGAR LIGHTER
                                                                  from £19.98
                                                                  from £19.98
                                                                  # 042
                                                                  MPN: 15908807
                                                                  SCREW
                                                                  - Valid for GD
                                                                  from £1.13
                                                                  from £1.13
                                                                  # 042
                                                                  MPN: 15909977
                                                                  SCREW
                                                                  - Not for GD
                                                                  from £1.11
                                                                  from £1.11
                                                                  # 043
                                                                  MPN: 13336207
                                                                  WASHER
                                                                  - Valid for GD
                                                                  from £4.67
                                                                  from £4.67
                                                                  # 043
                                                                  MPN: 388300580
                                                                  WASHER
                                                                  - Not for GD
                                                                  from £4.67
                                                                  from £4.67
                                                                  This part replaces part number 13336207
                                                                  # 044
                                                                  MPN: 14371971
                                                                  CLIP
                                                                  - Valid for GD
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 044
                                                                  MPN: 386300326
                                                                  CLIP
                                                                  - Not for GD
                                                                  from £3.33
                                                                  from £3.33
                                                                  # 045
                                                                  MPN: 382300295
                                                                  ACCELERATOR PROTECTION PLATE
                                                                  - Not for GD
                                                                  from £57.65
                                                                  from £57.65
                                                                  # 046
                                                                  MPN: 382300802
                                                                  REAR AIR OPENING
                                                                  from £125.73
                                                                  from £125.73
                                                                  This part replaces part number 382300596
                                                                  # 047
                                                                  MPN: 193493
                                                                  BOOT INTIMITY
                                                                  - Optional - Telephone - Not for USA, CDN and J
                                                                  from £183.34
                                                                  from £183.34
                                                                  # 048
                                                                  MPN: 193495
                                                                  CASE FOR BOOT INTIMITY
                                                                  - Optional - Telephone - Not for USA, CDN and J
                                                                  from £22.07
                                                                  from £22.07
                                                                  # 049
                                                                  MPN: 193494
                                                                  ADAPTER FOR SIM CARD
                                                                  - Optional - Telephone - Not for USA, CDN and J
                                                                  from £26.08
                                                                  from £26.08
                                                                  # 050
                                                                  MPN: 199416
                                                                  GROUND CABLE
                                                                  from £4.43
                                                                  from £4.43
                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
