maserati 4200 coupe (2004) crankshaft conrods and pistons parts diagram

002 - crankshaft conrods and pistons

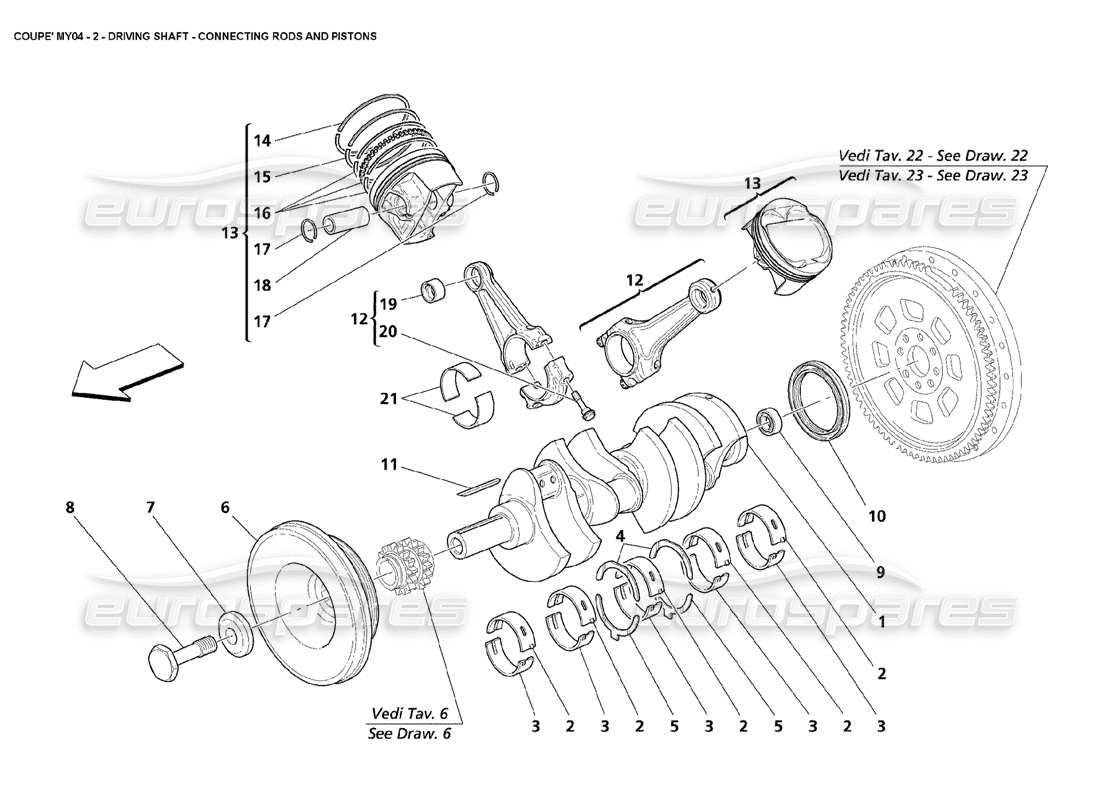

Maserati 4200 Coupe (2004) Crankshaft Conrods and Pistons Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 193169
                        crankshaft
                        from £971.90
                        from £971.90
                        # 002
                        MPN: 193000
                        UPPER HALF BEARING
                        - Blue
                        from £11.71
                        from £11.71
                        # 002
                        MPN: 193001
                        UPPER HALF BEARING
                        - Yellow
                        from £14.73
                        from £14.73
                        # 002
                        MPN: 193002
                        UPPER HALF BEARING
                        - Green - Standard
                        from £14.73
                        from £14.73
                        # 003
                        MPN: 193003
                        LOWER HALF BEARING
                        - Blue
                        from £10.45
                        from £10.45
                        # 003
                        MPN: 193004
                        LOWER HALF BEARING
                        - Yellow
                        from £11.50
                        from £11.50
                        # 003
                        MPN: 193005
                        LOWER HALF BEARING
                        - Green - Standard
                        from £11.50
                        from £11.50
                        # 004
                        MPN: 179539
                        UPPER SHIM
                        - Standard
                        from £34.28
                        from £34.28
                        # 004
                        MPN: 179540
                        UPPER SHIM
                        - 1st Oversize
                        from £42.88
                        from £42.88
                        # 004
                        MPN: 179541
                        UPPER SHIM
                        - 2nd Oversize
                        from £42.88
                        from £42.88
                        # 005
                        MPN: 179536
                        LOWER SHIM
                        - 2nd Oversize
                        from £42.88
                        from £42.88
                        # 005
                        MPN: 179537
                        LOWER SHIM
                        - 1st Oversize
                        from £42.88
                        from £42.88
                        # 005
                        MPN: 179538
                        LOWER SHIM
                        - Standard
                        from £23.09
                        from £23.09
                        # 006
                        MPN: 187469
                        torsion damper
                        from £926.08
                        from £926.08
                        # 008
                        MPN: 196216
                        SCREW FOR DAMPER FIXING
                        from £25.01
                        from £25.01
                        This part replaces part number 192005 - and 1 more. Click to view details
                        # 009
                        MPN: 103877
                        PILOT BEARING
                        not as spare part - use part number: 235062
                        from £15.20
                        from £15.20
                        This part replaces part number 235062
                        # 009
                        MPN: 235062
                        BEARING
                        (replaces: 103877)
                        Supersession
                        Supersession
                        # 011
                        MPN: 186201
                        Key
                        from £0.50
                        from £0.50
                        # 012
                        MPN: 192402
                        COMPLETE CONNECTING ROD
                        from £138.73
                        from £138.73
                        This part replaces part number 175360 which we have in stock - and 1 more. Click to view details
                        # 013
                        MPN: 187199
                        LH PISTON WITH RINGS
                        - Valid till engine Nr. 80668
                        Supersession
                        Supersession
                        This part replaces part number 187957
                        # 013
                        MPN: 198410
                        RH PISTON WITH RINGS
                        from £110.19
                        from £110.19
                        This part replaces part number 187198 - and 2 more. Click to view details
                        # 013
                        MPN: 198410
                        RH PISTON WITH RINGS
                        - Valid from engine Nr. 80669
                        from £110.19
                        from £110.19
                        This part replaces part number 187198 - and 2 more. Click to view details
                        # 013
                        MPN: 198412
                        LH PISTON WITH RINGS
                        - Valid from engine Nr. 80669
                        from £110.19
                        from £110.19
                        This part replaces part number 187199 - and 2 more. Click to view details
                        # 014
                        MPN: 175612
                        SEAL RING
                        - 1st groove
                        from £64.09
                        from £64.09
                        This part replaces part number 187955
                        # 015
                        MPN: 187201
                        SEAL RING
                        - 2nd groove
                        from £18.39
                        from £18.39
                        # 016
                        MPN: 175614
                        OIL SCRAPING RING
                        - 3nd groove
                        from £62.24
                        from £62.24
                        This part replaces part number 180022
                        # 017
                        MPN: 178890
                        STOP RING
                        from £3.23
                        from £3.23
                        # 018
                        MPN: 175367
                        PIN
                        from £38.87
                        from £38.87
                        # 019
                        MPN: 184909
                        BUSHING
                        from £22.80
                        from £22.80
                        # 020
                        MPN: 177159
                        CONNECTING ROD TIGHTENING SCREW
                        from £22.25
                        from £22.25
                        # 021
                        MPN: 188520
                        CONNECTING ROD HALF BEARING
                        - Brouwn
                        from £4.49
                        from £4.49
                        This part replaces part number 176151
                        # 021
                        MPN: 188521
                        CONNECTING ROD HALF BEARING
                        - Green - Standard
                        from £6.68
                        from £6.68
                        This part replaces part number 176150
                        # 021
                        MPN: 190265
                        CONNECTING ROD HALF BEARING
                        - Yellow
                        from £9.54
                        from £9.54
                        This part replaces part number 176152
