maserati 4200 coupe (2004) antievaporation device valid for usa and cdn parts diagram

012 - Antievaporation Device Valid for USA and CDN

Maserati 4200 Coupe (2004) Antievaporation Device Valid for USA and CDN Parts Diagram

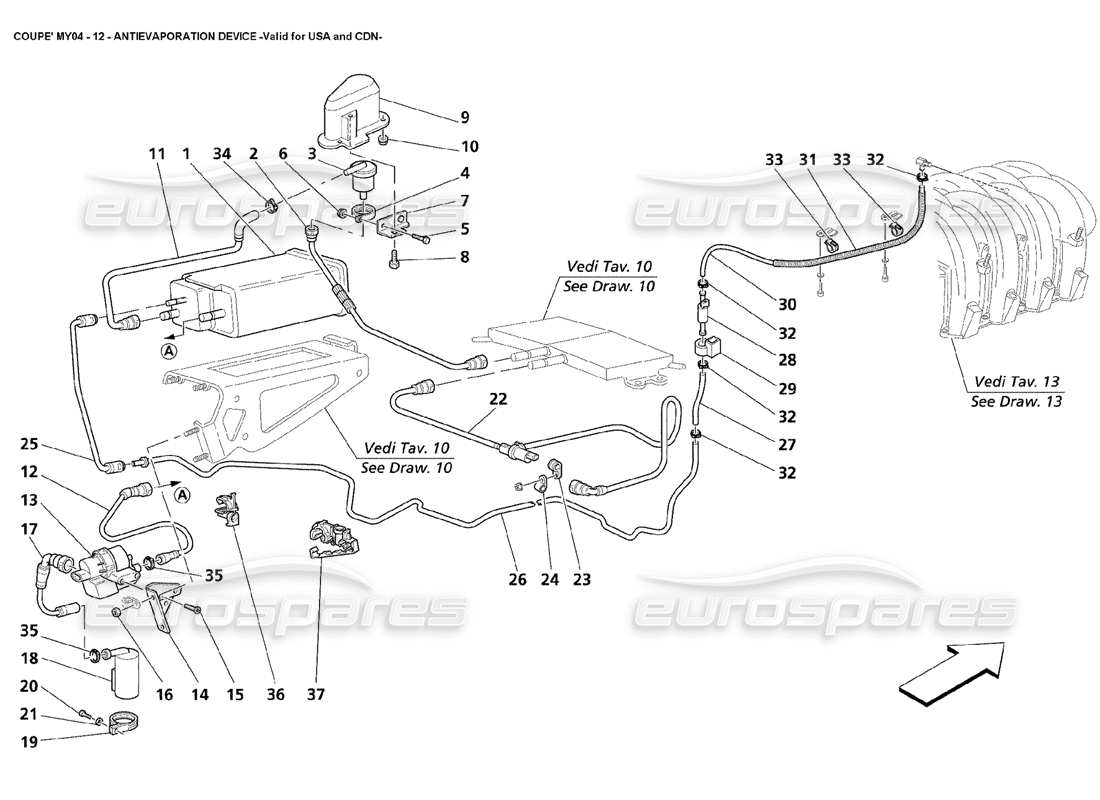

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 220074
                                                                    FUEL VAPOR FILTER
                                                                    from £61.26
                                                                    from £61.26
                                                                    This part replaces part number 212961 - and 1 more. Click to view details
                                                                    # 002
                                                                    MPN: 181705
                                                                    PIPE FROM DISAREATOR TO ROLL OVER
                                                                    from £30.45
                                                                    from £30.45
                                                                    # 003
                                                                    MPN: 180573
                                                                    ROLL OVER VALVE
                                                                    from £37.85
                                                                    from £37.85
                                                                    # 004
                                                                    MPN: 66133600
                                                                    BRACKET WITH SHEATH
                                                                    from £7.15
                                                                    from £7.15
                                                                    # 005
                                                                    MPN: 10902424
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 006
                                                                    MPN: 14084211
                                                                    NUT
                                                                    from £0.71
                                                                    from £0.71
                                                                    This part replaces part number 14084217
                                                                    # 007
                                                                    MPN: 66132900
                                                                    ROLL OVER VALVE FIXING BRACKET
                                                                    from £8.16
                                                                    from £8.16
                                                                    # 008
                                                                    MPN: 10979414
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 009
                                                                    MPN: 66294500
                                                                    ROLL OVER VALVE COVER
                                                                    from £7.87
                                                                    from £7.87
                                                                    # 010
                                                                    MPN: 14084211
                                                                    NUT
                                                                    from £0.71
                                                                    from £0.71
                                                                    This part replaces part number 14084217
                                                                    # 011
                                                                    MPN: 181707
                                                                    PIPE FROM ROLL OVER TO CANISTER
                                                                    from £17.56
                                                                    from £17.56
                                                                    # 013
                                                                    MPN: 185405
                                                                    DIAGNOSIS PUMP
                                                                    - Valid till stock exhaustion
                                                                    from £147.38
                                                                    from £147.38
                                                                    # 013
                                                                    MPN: 202968
                                                                    DIAGNOSIS PUMP
                                                                    - Valid after stock exhaustion of 185405
                                                                    from £54.60
                                                                    from £54.60
                                                                    This part replaces part number 185405
                                                                    # 014
                                                                    MPN: 182381
                                                                    DIAGNOSIS PUMP FIXING BRACKET
                                                                    from £181.32
                                                                    from £181.32
                                                                    # 015
                                                                    MPN: 15958701
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 016
                                                                    MPN: 12574211
                                                                    NUT
                                                                    from £0.71
                                                                    from £0.71
                                                                    This part replaces part number 128300060
                                                                    # 017
                                                                    MPN: 186901
                                                                    PIPE FROM PUMP TO FILTER
                                                                    from £59.35
                                                                    from £59.35
                                                                    # 019
                                                                    MPN: 66244600
                                                                    BRACKET WITH SHEATH
                                                                    from £7.15
                                                                    from £7.15
                                                                    # 021
                                                                    MPN: 12638104
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 022
                                                                    MPN: 182585
                                                                    PIERBURG VALVE COMPLETE TUBE
                                                                    from £141.98
                                                                    from £141.98
                                                                    # 023
                                                                    MPN: 10442290
                                                                    BRACKET WITH SHEATH
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 024
                                                                    MPN: 10440790
                                                                    BRACKET WITH SHEATH
                                                                    from £1.54
                                                                    from £1.54
                                                                    # 025
                                                                    MPN: 181712
                                                                    PIPE FROM CANISTER TO UNDERFLOOR
                                                                    from £17.26
                                                                    from £17.26
                                                                    # 026
                                                                    MPN: 190519
                                                                    COMPLETE UNDERFLOOR TUBE
                                                                    from £28.34
                                                                    from £28.34
                                                                    # 027
                                                                    MPN: 181703
                                                                    WASHING VALVE INLET TUBE
                                                                    from £5.89
                                                                    from £5.89
                                                                    # 028
                                                                    MPN: 180861
                                                                    WASHING VALVE
                                                                    from £52.78
                                                                    from £52.78
                                                                    # 030
                                                                    MPN: 181704
                                                                    WASHING VALVE OUTLET PIPE
                                                                    from £21.26
                                                                    from £21.26
                                                                    # 031
                                                                    MPN: 318720333
                                                                    PIPE
                                                                    - Supplied in meters - (Minimum quantity 1m. or multiples)
                                                                    from £5.12
                                                                    from £5.12
                                                                    # 032
                                                                    MPN: 13432070
                                                                    SCREW COLLAR
                                                                    from £0.48
                                                                    from £0.48
                                                                    This part replaces part number 13434670
                                                                    # 033
                                                                    MPN: 178430
                                                                    CLIP
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 034
                                                                    MPN: 13433370
                                                                    COLLAR FOR SLEEVE
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 035
                                                                    MPN: 13000390
                                                                    SCREW COLLAR
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 13121170 - and 1 more. Click to view details
                                                                    # 036
                                                                    MPN: 187840
                                                                    CLIP
                                                                    - (Quantity defined during at assembly)
                                                                    from £0.68
                                                                    from £0.68
                                                                    # 037
                                                                    MPN: 190409
                                                                    CLIP
                                                                    - (Quantity defined during at assembly)
                                                                    from £3.23
                                                                    from £3.23
