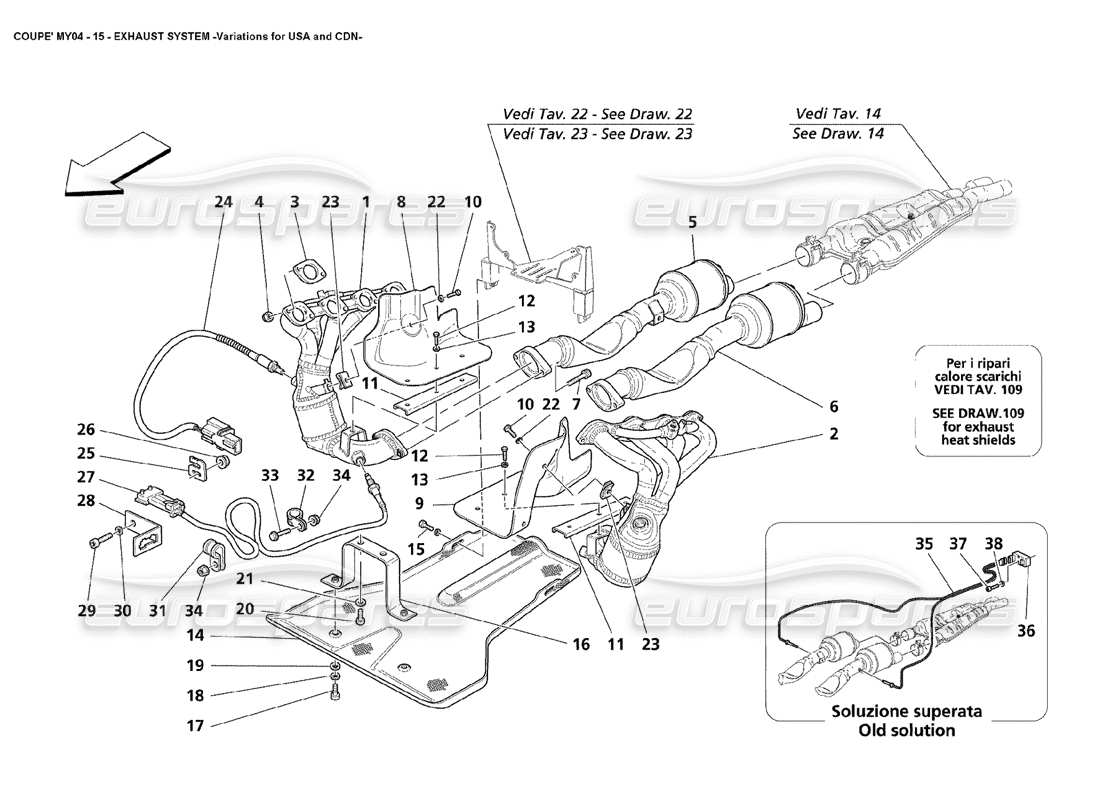

015 - Exhaust System Variations for USA and CDN
Maserati 4200 Coupe (2004) Exhaust System Variations for USA and CDN Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 188103
RH EXHAUST MANIFOLD
from £1,509.29
from £1,509.29
# 002
MPN: 188102
LH EXHAUST MANIFOLD
from £1,296.99
from £1,296.99
# 003
MPN: 182868
GASKET
- Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
from £2.85
from £2.85
# 004
MPN: 138392
NUT
from £0.73
from £0.73
# 005
MPN: 188130
RH CATALYST
- Valid for cars with thermocouples set (Pos. 35)
from £1,996.76
from £1,996.76
# 005
MPN: 199961

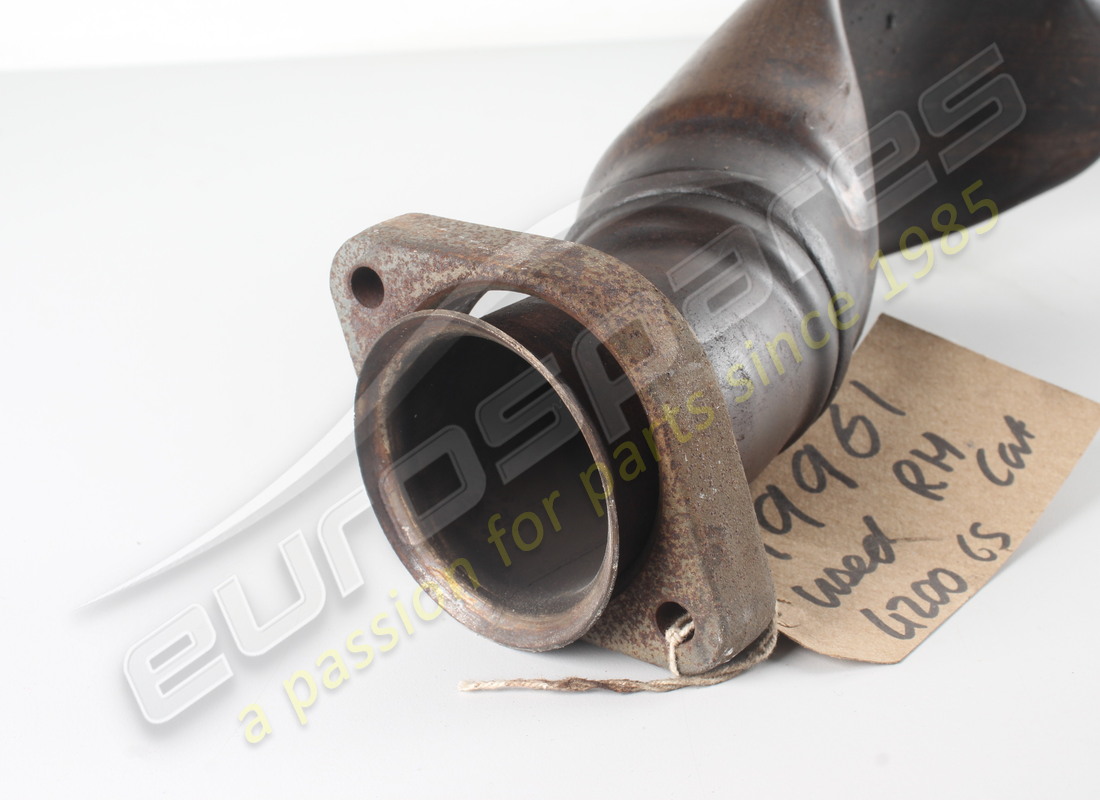

RH CATALYST
- Not for cars with thermocouples set (Pos. 35)
from £590.19
from £590.19
# 006
MPN: 188131
LH CATALYST
- Valid for cars with thermocouples set (Pos. 35)
from £1,996.76
from £1,996.76
# 006
MPN: 199962
LH CATALYST
- Not for cars with thermocouples set (Pos. 35)
from £560.03
from £560.03
# 007
MPN: 195285
SCREW
from £7.73
from £7.73
This part replaces part number 14306934
# 008
MPN: 190192
RH UNDERMOTOR SHIELD
from £12.76
from £12.76
# 009
MPN: 190122
LH UNDERMOTOR SHIELD
from £12.76
from £12.76
# 010
MPN: 10902124
SCREW
from £0.53
from £0.53
# 011
MPN: 191320
BRACKET
from £11.82
from £11.82
# 012
MPN: 10902124
SCREW
from £0.50
from £0.50
# 013
MPN: 12620474
WASHER
from £0.47
from £0.47
# 014
MPN: 190270
UNDER EXHAUST SHIELD
from £222.59
from £222.59
# 015
MPN: 10902024
SCREW
from £0.53
from £0.53
This part replaces part number 010902024
# 016
MPN: 190271
BRACKET
from £31.38
from £31.38
# 017
MPN: 14305724
SCREW
from £0.53
from £0.53
# 018
MPN: 12639724
WASHER
from £0.54
from £0.54
# 019
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601270
# 020
MPN: 16043224
SCREW
from £0.53
from £0.53
# 021
MPN: 14496524
WASHER
from £0.53
from £0.53
# 022
MPN: 12639724
WASHER
from £0.54
from £0.54

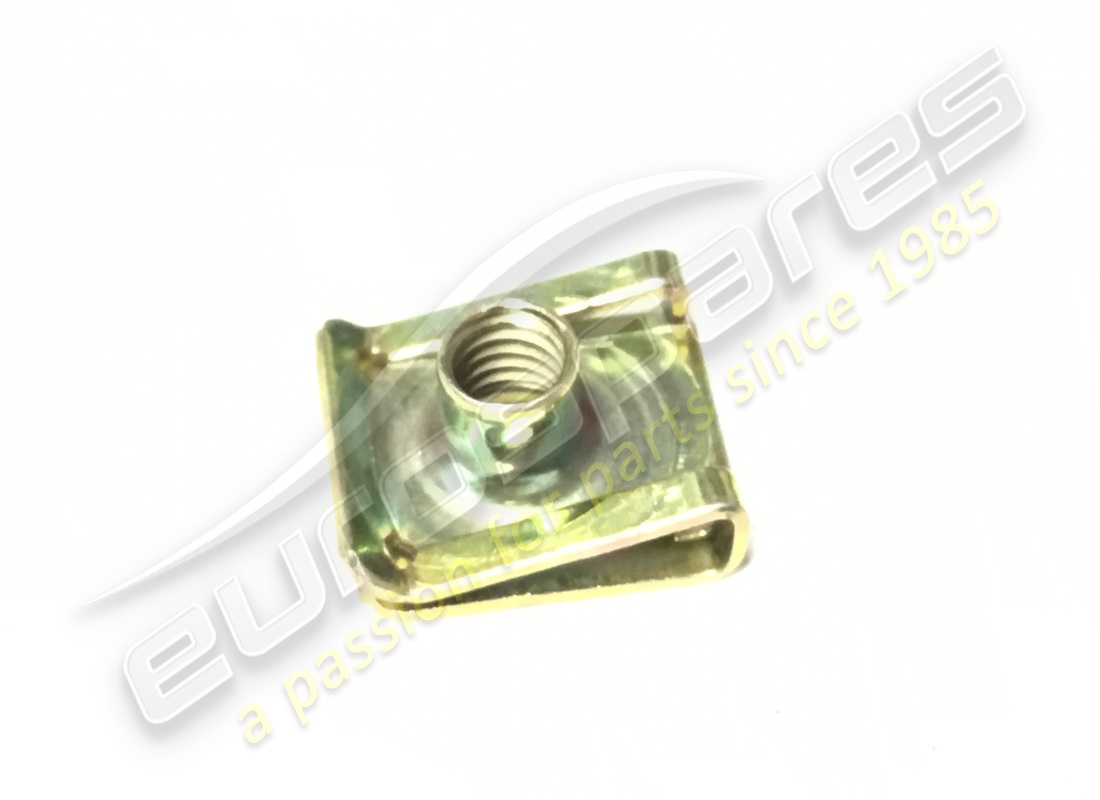

# 023
MPN: 66704600
CLIP
from £1.93
from £1.93
# 024
MPN: 182837
FRONT LAMBDA FEELER
from £137.60
from £137.60
# 025
MPN: 175856
CONNECTORS FIXING BRACKET
from £1.17
from £1.17
This part replaces part number 155752
# 026
MPN: 67190100
NUT
from £1.08
from £1.08
# 027
MPN: 191412
REAR LAMBDA FEELER
from £106.94
from £106.94
# 028
MPN: 178366
CONNECTORS FIXING BRACKET
from £2.32
from £2.32
# 029
MPN: 14305724
SCREW
from £0.53
from £0.53
# 030
MPN: 11197774
WASHER
from £0.54
from £0.54
# 031
MPN: 10441590
BRACKET WITH SHEATH
from £0.53
from £0.53
# 032
MPN: 67190200
BRACKET WITH SHEATH
from £1.33
from £1.33
# 033
MPN: 16296924
SCREW
from £0.53
from £0.53
# 034
MPN: 67190100
NUT
from £1.08
from £1.08
# 035
MPN: 184926
THERMOCOUPLES SET
- Old solution
from £261.66
from £261.66
# 036
MPN: 187866
CATALYSTS CONTROL STATION
- Old solution
from £171.08
from £171.08
# 037
MPN: 15958407
SCREW
- Old solution
from £0.85
from £0.85
# 038
MPN: 10519304
WASHER
- Old solution
from £0.85
from £0.85
This part replaces part number 14496304
