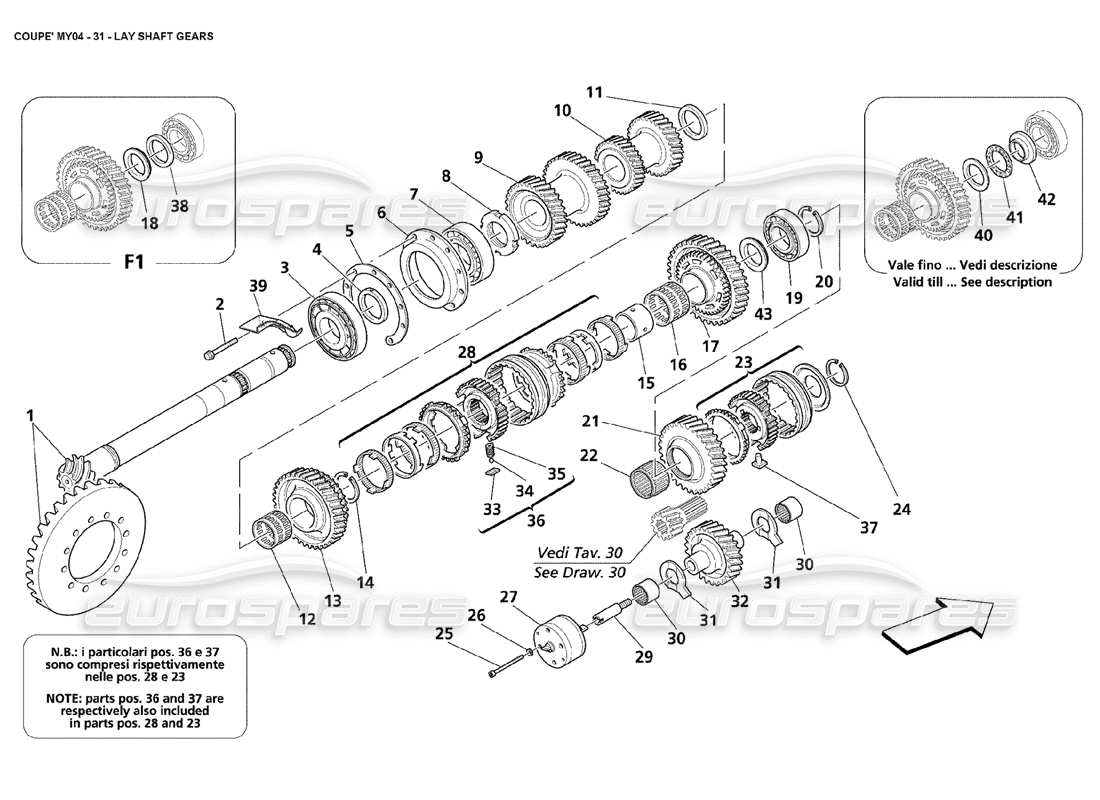

031 - Lay Shaft Gears

Maserati 4200 Coupe (2004) Lay Shaft Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 185679
                                                      COMPLETE BEVEL SET
                                                      from £599.91
                                                      from £599.91
                                                      # 002
                                                      MPN: 16287731
                                                      SCREW
                                                      from £1.11
                                                      from £1.11
                                                      # 003
                                                      MPN: 185022
                                                      ROLLER BEARING
                                                      from £87.48
                                                      from £87.48
                                                      # 004
                                                      MPN: 185045
                                                      REGISTER RING
                                                      - Thickness mm. 7,10
                                                      from £17.93
                                                      from £17.93
                                                      # 004
                                                      MPN: 185046
                                                      REGISTER RING
                                                      - Thickness mm. 6,85 - Possible fitting
                                                      from £17.93
                                                      from £17.93
                                                      # 004
                                                      MPN: 185047
                                                      REGISTER RING
                                                      - Thickness mm. 6,60 - Possible fitting
                                                      from £17.93
                                                      from £17.93
                                                      # 005
                                                      MPN: 185042
                                                      REGISTER RING
                                                      - Thickness mm. 2,8
                                                      from £5.66
                                                      from £5.66
                                                      # 005
                                                      MPN: 185043
                                                      REGISTER RING
                                                      - Thickness mm. 2,5 - Possible fitting
                                                      from £9.79
                                                      from £9.79
                                                      # 005
                                                      MPN: 185044
                                                      REGISTER RING
                                                      - Thickness mm. 2,2 - Possible fitting
                                                      from £15.15
                                                      from £15.15
                                                      # 006
                                                      MPN: 185020
                                                      BEARING SUPPORT
                                                      from £77.22
                                                      from £77.22
                                                      # 007
                                                      MPN: 185021
                                                      ROLLER BEARING
                                                      from £77.51
                                                      from £77.51
                                                      # 009
                                                      MPN: 182287
                                                      3RD AND 4TH DRIVEN GEAR
                                                      from £227.21
                                                      from £227.21
                                                      # 010
                                                      MPN: 182288
                                                      5TH AND 6TH DRIVEN GEAR
                                                      from £163.17
                                                      from £163.17
                                                      # 011
                                                      MPN: 183974
                                                      RING
                                                      - Thickness mm. 4,30
                                                      from £18.57
                                                      from £18.57
                                                      # 011
                                                      MPN: 185038
                                                      RING
                                                      - Thickness mm. 3,95 - Possible fitting
                                                      from £17.93
                                                      from £17.93
                                                      # 011
                                                      MPN: 185039
                                                      RING
                                                      - Thickness mm. 3,60 - Possible fitting
                                                      from £17.93
                                                      from £17.93
                                                      # 012
                                                      MPN: 184014
                                                      ROLLER CAGE
                                                      from £10.49
                                                      from £10.49
                                                      # 013
                                                      MPN: 182293
                                                      COMPLETE PINION FOR 2ND GEAR
                                                      - Valid for F1
                                                      from £151.28
                                                      from £151.28
                                                      # 013
                                                      MPN: 198263
                                                      COMPLETE PINION FOR 2ND GEAR
                                                      - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
                                                      from £167.25
                                                      from £167.25
                                                      # 013
                                                      MPN: 208626
                                                      COMPLETE PINION FOR 2ND GEAR
                                                      - Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
                                                      from £184.78
                                                      from £184.78
                                                      # 014
                                                      MPN: 183976
                                                      FLEXIBLE RING
                                                      - Thickness mm. 2,10
                                                      from £6.73
                                                      from £6.73
                                                      # 014
                                                      MPN: 185036
                                                      FLEXIBLE RING
                                                      - Thickness mm. 1,85 - Possible fitting
                                                      from £19.67
                                                      from £19.67
                                                      # 014
                                                      MPN: 185037
                                                      FLEXIBLE RING
                                                      - Thickness mm. 1,60 - Possible fitting
                                                      from £23.95
                                                      from £23.95
                                                      # 015
                                                      MPN: 183971
                                                      BUSHING
                                                      from £43.35
                                                      from £43.35
                                                      # 016
                                                      MPN: 184016
                                                      ROLLER CAGE
                                                      from £12.61
                                                      from £12.61
                                                      # 017
                                                      MPN: 182299
                                                      COMPLETE PINION FOR 1ST GEAR
                                                      - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
                                                      from £351.87
                                                      from £351.87
                                                      # 017
                                                      MPN: 182299
                                                      COMPLETE PINION FOR 1ST GEAR
                                                      - Valid for F1
                                                      from £351.87
                                                      from £351.87
                                                      # 017
                                                      MPN: 208625
                                                      COMPLETE PINION FOR 1ST GEAR
                                                      - Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
                                                      from £378.35
                                                      from £378.35
                                                      # 018
                                                      MPN: 183972
                                                      RING
                                                      - Thickness mm. 5,10 - Valid for F1
                                                      from £43.14
                                                      from £43.14
                                                      # 018
                                                      MPN: 185040
                                                      RING
                                                      - Thickness mm. 4,85 - Possible fitting - Valid for F1
                                                      from £23.32
                                                      from £23.32
                                                      # 018
                                                      MPN: 185041
                                                      RING
                                                      - Thickness mm. 4,60 - Possible fitting - Valid for F1
                                                      from £20.61
                                                      from £20.61
                                                      # 019
                                                      MPN: 184020
                                                      ROLLER BEARING
                                                      from £79.50
                                                      from £79.50
                                                      # 020
                                                      MPN: 184042
                                                      FLEXIBLE RING
                                                      from £6.92
                                                      from £6.92
                                                      # 021
                                                      MPN: 199534
                                                      COMPLETE PINION FOR REVERSE GEAR
                                                      from £433.47
                                                      from £433.47
                                                      # 022
                                                      MPN: 184018
                                                      ROLLER CAGE
                                                      from £15.73
                                                      from £15.73
                                                      # 023
                                                      MPN: 326260
                                                      REVERSE GEAR COMPLETE SYNCHRONIZER
                                                      from £1,215.62
                                                      from £1,215.62
                                                      This part replaces part number 193439
                                                      # 024
                                                      MPN: 184041
                                                      FLEXIBLE RING
                                                      from £2.55
                                                      from £2.55
                                                      # 025
                                                      MPN: 14303624
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      # 026
                                                      MPN: 10571379
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      # 027
                                                      MPN: 182279
                                                      COMPLETE OIL PUMP
                                                      from £346.24
                                                      from £346.24
                                                      # 028
                                                      MPN: 185164
                                                      1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                      - Valid for F1
                                                      from £737.44
                                                      from £737.44
                                                      # 028
                                                      MPN: 198267
                                                      1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                      - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
                                                      from £352.78
                                                      from £352.78
                                                      # 028
                                                      MPN: 208627
                                                      1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                      - Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
                                                      from £622.26
                                                      from £622.26
                                                      # 029
                                                      MPN: 182415
                                                      PIN
                                                      from £46.47
                                                      from £46.47
                                                      # 030
                                                      MPN: 184017
                                                      ROLLER CASING
                                                      from £4.88
                                                      from £4.88
                                                      # 031
                                                      MPN: 183975
                                                      RING
                                                      from £14.04
                                                      from £14.04
                                                      # 032
                                                      MPN: 199532
                                                      IDLE GEAR FOR REVERSE
                                                      from £463.85
                                                      from £463.85
                                                      # 033
                                                      -
                                                      PAD FOR SYNCHRONIZER
                                                      # 034
                                                      -
                                                      BALL
                                                      # 035
                                                      -
                                                      SPRING FOR BALL
                                                      # 036
                                                      MPN: 188320
                                                      PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT
                                                      - Valid for F1
                                                      from £6.75
                                                      from £6.75
                                                      # 036
                                                      MPN: 195991
                                                      PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT
                                                      - Not for F1
                                                      from £11.12
                                                      from £11.12
                                                      This part replaces part number 194029
                                                      # 037
                                                      MPN: 193440
                                                      PADS/SYNCHRO REVERSE GEAR KIT
                                                      from £2.32
                                                      from £2.32
                                                      This part replaces part number 193484
                                                      # 038
                                                      MPN: 182326
                                                      SPACER
                                                      - Valid for F1
                                                      from £39.65
                                                      from £39.65
                                                      # 039
                                                      MPN: 185713
                                                      OIL CONVEYOR
                                                      from £16.12
                                                      from £16.12
                                                      # 040
                                                      MPN: 196524
                                                      RING
                                                      - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
                                                      from £6.50
                                                      from £6.50
                                                      # 041
                                                      MPN: 196523
                                                      ROLLER CAGE
                                                      - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
                                                      from £14.47
                                                      from £14.47
                                                      # 042
                                                      MPN: 196509
                                                      RING
                                                      - Thickness mm. 10,60 - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
                                                      from £58.68
                                                      from £58.68
                                                      # 042
                                                      MPN: 196663
                                                      RING
                                                      - Thickness mm. 10,10 - Possible fitting - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
                                                      from £67.72
                                                      from £67.72
                                                      # 042
                                                      MPN: 196664
                                                      RING
                                                      - Thickness mm. 10,35 - Possible fitting - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
                                                      from £67.72
                                                      from £67.72
                                                      # 043
                                                      MPN: 185040
                                                      RING
                                                      - Thickness mm. 4,85 - Possible fitting - Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
                                                      from £23.32
                                                      from £23.32
                                                      # 043
                                                      MPN: 185041
                                                      RING
                                                      - Thickness mm. 4,60 - Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
                                                      from £20.61
                                                      from £20.61
