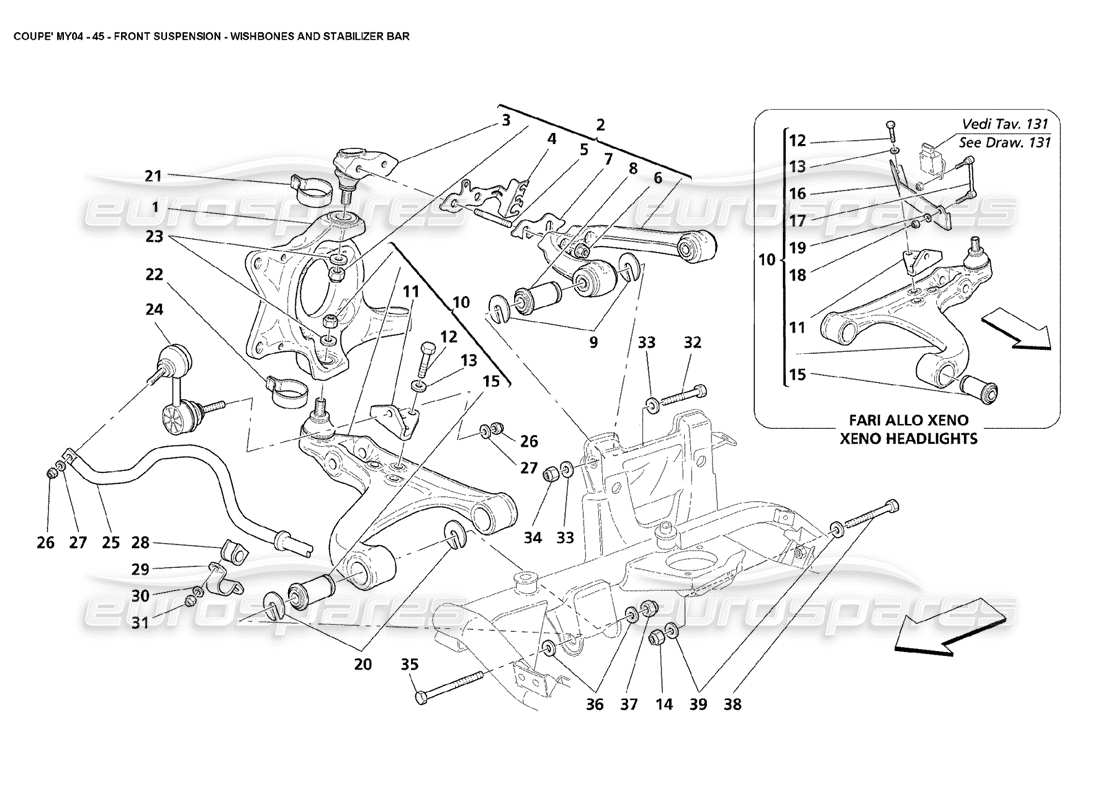

045 - Front Suspension Wishbones and Stabilizer Bar
Maserati 4200 Coupe (2004) Front Suspension Wishbones and Stabilizer Bar Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 197754
RH FRONT HUB HOLDER
from £399.00
from £399.00
# 001
MPN: 197764
LH FRONT HUB HOLDER
from £384.86
from £384.86
# 002
MPN: 194367
COMPLETE LH UPPER LEVER
from £477.75
from £477.75
# 002
MPN: 194368
COMPLETE RH UPPER LEVER
from £477.75
from £477.75
# 003
MPN: 386600129
JOINT FOR UPPER LEVER
from £178.92
from £178.92
# 004
MPN: 190691
RH CABLES SUPPORTING BRACKET
from £10.05
from £10.05
# 004
MPN: 190692
LH CABLES SUPPORTING BRACKET
from £10.97
from £10.97
# 005
MPN: 386600405
STUD
from £9.20
from £9.20
# 006
MPN: 14058521
NUT
from £1.02
from £1.02
# 007
MPN: 386600411
ADJUSTMENT TICKNESS
-MM. 0,5
from £2.85
from £2.85
# 007
MPN: 386600412
ADJUSTMENT TICKNESS
-MM. 1
from £2.85
from £2.85
# 007
MPN: 386600413
ADJUSTMENT TICKNESS
-MM. 2,5
from £2.32
from £2.32
# 008
MPN: 186493
FLANBLOC
from £75.94
from £75.94
# 009
MPN: 386600425
WASHER
- Thickness mm. 0,5
from £5.41
from £5.41
This part replaces part number 66667900
# 009
MPN: 386600426
WASHER
-Thickness mm. 0,75
from £2.32
from £2.32
# 009
MPN: 386600427
WASHER
-Thickness mm. 1
from £1.85
from £1.85
This part replaces part number 66668000
# 009
MPN: 386600428
WASHER
-Thickness mm. 1,75
from £2.32
from £2.32
# 009
MPN: 386600429
WASHER
-Thickness mm. 3
from £1.85
from £1.85
# 010
MPN: 201784
RH FRONT LOWER LEVER
Optional - Xeno headlights -
from £729.75
from £729.75
This part replaces part number 194396 - and 3 more. Click to view details
# 010
MPN: 201784
RH FRONT LOWER LEVER
Optional - Xeno headlights -
from £729.75
from £729.75
This part replaces part number 194396 - and 3 more. Click to view details
# 010
MPN: 201786
COMPLETE LH LOWER LEVER
from £1,274.17
from £1,274.17
This part replaces part number 194398
# 010
MPN: 201786
COMPLETE LH LOWER LEVER
- Standard - Valid from car Ass. Nr. 13193
from £1,274.17
from £1,274.17
This part replaces part number 194398
# 010
MPN: 201787
LH FRONT LOWER LEVER
Optional - Xeno headlights -
from £729.75
from £729.75
This part replaces part number 194397 - and 3 more. Click to view details
# 010
MPN: 201787
LH FRONT LOWER LEVER
Optional - Xeno headlights -
from £729.75
from £729.75
This part replaces part number 194397 - and 3 more. Click to view details
# 011
MPN: 186347
TORSION BAR TIE ROD SUPPORT
from £25.22
from £25.22
# 012
MPN: 16043621
SCREW
from £1.08
from £1.08
# 013
MPN: 14496524
WASHER
from £0.52
from £0.52
# 014
MPN: 386600441
NUT
from £2.45
from £2.45
# 015
MPN: 186494
FLANBLOC
from £106.03
from £106.03
# 016
MPN: 190045
BRACKET FOR FRONT POTENTIOMETER
- Valid for opt. Xeno headlights - Not for USA and CDN
from £13.60
from £13.60
# 017
MPN: 188629
TIE ROD
- Valid for opt. Xeno headlights - Not for USA and CDN
from £19.31
from £19.31
# 018
MPN: 12574215
NUT
- Valid for opt. Xeno headlights - Not for USA and CDN
from £1.23
from £1.23
# 019
MPN: 14498805
WASHER
- Valid for opt. Xeno headlights - Not for USA and CDN
from £0.54
from £0.54
# 020
MPN: 377030378
WASHER
-Thickness mm. 0,5
from £3.16
from £3.16
# 020
MPN: 377030379
WASHER
-Thickness mm. 0,75
from £3.86
from £3.86
# 020
MPN: 377030380
WASHER
-Thickness mm. 1
from £17.23
from £17.23
# 020
MPN: 377030381
WASHER
-Thickness mm. 1,75
from £3.86
from £3.86
# 020
MPN: 377030382
WASHER
-Thickness mm. 3
from £4.57
from £4.57
# 021
MPN: 386600416
JOINT UPPER PROTECTION
from £3.63
from £3.63
# 022
MPN: 160019
JOINT LOWER PROTECTION
from £3.63
from £3.63
This part replaces part number 386600419
# 023
MPN: 386600403
WASHER
from £6.04
from £6.04
# 024
MPN: 185914
RH TIE ROD FOR TORSION BAR
from £50.85
from £50.85
# 024
MPN: 185916
LH TIE ROD FOR TORSION BAR
from £50.85
from £50.85
# 025
MPN: 195320
ANTI ROLL BAR
from £166.87
from £166.87
# 026
MPN: 12575621
NUT
from £1.31
from £1.31
This part replaces part number 98095 which we have in stock
# 027
MPN: 13550421
WASHER
from £0.47
from £0.47
# 028
MPN: 195913
BAR BUFFER
from £21.30
from £21.30
# 029
MPN: 133802
PAD FASTENING PLATE
from £29.40
from £29.40
# 030
MPN: 14496524
WASHER
from £0.53
from £0.53
# 031
MPN: 104030
NUT
from £0.53
from £0.53
# 032
MPN: 15541521
SCREW
from £2.47
from £2.47
# 033
MPN: 14496721
WASHER
from £0.48
from £0.48
# 034
MPN: 15503811
NUT
from £1.08
from £1.08
# 035
MPN: 196071
SCREW
from £4.24
from £4.24
# 036
MPN: 14496825
WASHER
from £1.18
from £1.18
# 037
MPN: 15503915
NUT
from £1.63
from £1.63
# 038
MPN: 189137
SCREW
from £18.09
from £18.09
# 039
MPN: 13579861
WASHER
from £14.15
from £14.15
-part-diagram-046.webp "MASERATI 4200 COUPE (2004) REAR SUSPENSION SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 COUPE (2004) REAR SUSPENSION WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 COUPE (2004) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 COUPE (2004) SPARE WHEEL AND EQUIPMENT OPTIONAL PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 COUPE (2004) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 COUPE (2004) CURRENT GENERATORSTARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 COUPE (2004) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 COUPE (2004) BODY FRONT OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 COUPE (2004) BODY CENTRAL OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 COUPE (2004) BODY REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 COUPE (2004) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 COUPE (2004) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 COUPE (2004) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 COUPE (2004) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 COUPE (2004) REAR BUMPER PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 COUPE (2004) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 COUPE (2004) TRUNK HOOD COMPARTMENT TRIMS AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 COUPE (2004) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 COUPE (2004) INNER COVERING CENTRAL AND FRONT POST COVERING PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 COUPE (2004) INNER COVERINGS POST COVERING AND REAR MOULDING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 COUPE (2004) INNER COVERINGS REAR UNDER WINDOW PANEL PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 COUPE (2004) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 COUPE (2004) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 COUPE (2004) DOORS FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 COUPE (2004) DOORS OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 COUPE (2004) DOORS POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 COUPE (2004) GLASSES GASKETS AND INNER REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 COUPE (2004) FRONT SEAT AND SEAT BELTS PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 COUPE (2004) FRONT SEAT GUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 COUPE (2004) REAR SEAT AND SEAT BELT PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 COUPE (2004) DASHBOARD NOT FOR GD PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 COUPE (2004) DASHBOARD VALID FOR GD PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 COUPE (2004) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 COUPE (2004) TUNNEL FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 COUPE (2004) AIR-BAGS PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 COUPE (2004) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 COUPE (2004) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 COUPE (2004) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 COUPE (2004) XENO HEADLIGTHS AND HEADLIGHTS WASHER OPTIONAL PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 COUPE (2004) SHIELDS AND FINISHING PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 COUPE (2004) SHIELDS AND PROTECTIONS FOR WHEEL COMPARTMENT PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 COUPE (2004) WINDSHIELD GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 COUPE (2004) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 COUPE (2004) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 COUPE (2004) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 COUPE (2004) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 COUPE (2004) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 COUPE (2004) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 COUPE (2004) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 COUPE (2004) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 COUPE (2004) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 COUPE (2004) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 COUPE (2004) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 COUPE (2004) STEREO EQUIPMENT ACCESORIES PARTS DIAGRAM")
-part-diagram-147.webp "MASERATI 4200 COUPE (2004) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 COUPE (2004) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 COUPE (2004) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 COUPE (2004) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 COUPE (2004) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 COUPE (2004) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 COUPE (2004) TIMING TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 COUPE (2004) TIMING CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 COUPE (2004) INJECTION DEVICE IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 COUPE (2004) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 COUPE (2004) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 COUPE (2004) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 COUPE (2004) ANTIEVAPORATION DEVICE NOT FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 COUPE (2004) ANTIEVAPORATION DEVICE VALID FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 COUPE (2004) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 COUPE (2004) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 COUPE (2004) EXHAUST SYSTEM VARIATIONS FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 COUPE (2004) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 COUPE (2004) LUBRICATION SYSTEM TANK HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 COUPE (2004) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 COUPE (2004) NOURICE COOLING SYSTEM NOT FOR GD PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 COUPE (2004) NOURICE COOLING SYSTEM VALID FOR GD PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 COUPE (2004) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 COUPE (2004) CLUTCH AND CONTROLS NOT FOR F1 PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 COUPE (2004) CLUTCH AND CONTROLS VALID FOR F1 PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 COUPE (2004) PEDALS AND ELECTRONIC ACCELERATOR CONTROL NOT FOR GD PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 COUPE (2004) PEDALS AND ELECTRONIC ACCELERATOR CONTROL VALID FOR GD PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 COUPE (2004) F1 CLUTCH HYDRAULIC CONTROLS VALID FOR F1 PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 COUPE (2004) POWER UNIT AND TANK VALID FOR F1 PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 COUPE (2004) GEARBOX COVER GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 COUPE (2004) DIFFERENTIAL BOX REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 COUPE (2004) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 COUPE (2004) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 COUPE (2004) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 COUPE (2004) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 COUPE (2004) ENGINETRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 COUPE (2004) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 COUPE (2004) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 COUPE (2004) BRAKING SYSTEM NOT FOR GD PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 COUPE (2004) BRAKING SYSTEM VALID FOR GD PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 COUPE (2004) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 COUPE (2004) HANDBRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 COUPE (2004) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 COUPE (2004) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 COUPE (2004) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 COUPE (2004) FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
