maserati 4200 coupe (2004) body front outer trims parts diagram

100 - Body Front Outer Trims

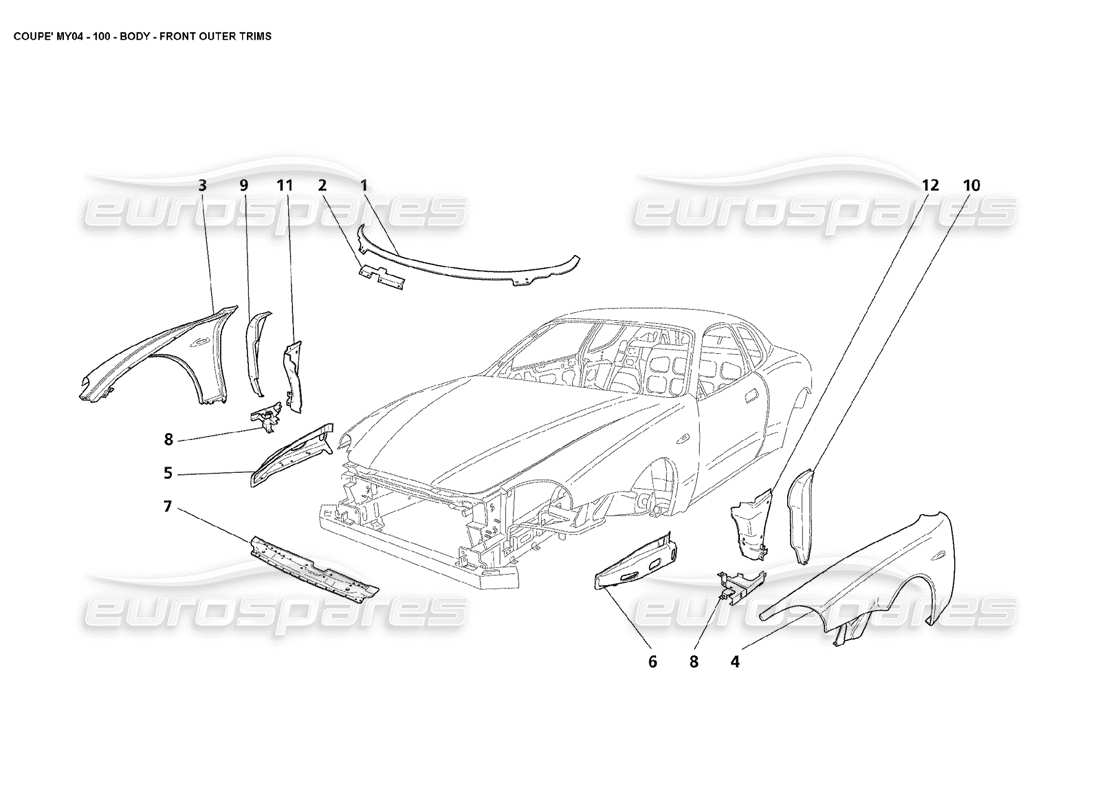

Maserati 4200 Coupe (2004) Body Front Outer Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 66736500
                    COMPLETE UNDERWINDSCREEN FRAME
                    from £208.96
                    from £208.96
                    This part replaces part number 66196200
                    # 002
                    MPN: 66414000
                    SHIELD FOR WATER FIXING PLATE
                    - Not for GD
                    from £18.68
                    from £18.68
                    # 002
                    MPN: 66726500
                    SHIELD FOR WATER FIXING PLATE
                    - Valid for GD
                    from £18.68
                    from £18.68
                    # 003
                    MPN: 66605500
                    RH COMPLETE FENDER
                    STANDARD
                    from £467.25
                    from £467.25
                    This part replaces part number 65966800 - and 1 more. Click to view details
                    # 003
                    MPN: 67813700
                    RH COMPLETE FENDER
                    - Optional - Vintage version
                    from £731.78
                    from £731.78
                    # 004
                    MPN: 65966900
                    LH COMPLETE FENDER
                    STANDARD
                    from £913.57
                    from £913.57
                    # 004
                    MPN: 67813800
                    LH COMPLETE FENDER
                    - Optional - Vintage version
                    from £1,339.29
                    from £1,339.29
                    # 005
                    MPN: 67236200
                    RH COMPLETE FRONT SPRAG
                    from £848.35
                    from £848.35
                    This part replaces part number 382500306
                    # 006
                    MPN: 67236300
                    LH COMPLETE FRONT SPRAG
                    from £848.35
                    from £848.35
                    This part replaces part number 382501305
                    # 007
                    MPN: 980001047
                    COMPLETE FRONT CROSS MEMBER
                    from £442.97
                    from £442.97
                    # 008
                    MPN: 66247000
                    BRACKET FOR LONGITUDINAL MEMBER
                    from £130.95
                    from £130.95
                    # 009
                    MPN: 382500308
                    RH FRONT FENDER LINKING
                    from £138.82
                    from £138.82
                    # 010
                    MPN: 382500307
                    LH FRONT FENDER LINKING
                    from £120.58
                    from £120.58
                    # 011
                    MPN: 980001174
                    COMPLETE RH FRONT ROD REINFORCEMENT
                    from £254.70
                    from £254.70
                    This part replaces part number 65957700
                    # 012
                    MPN: 980001173
                    COMPLETE LH FRONT ROD REINFORCEMENT
                    from £271.47
                    from £271.47
                    This part replaces part number 65957800
