maserati 4200 coupe (2004) rear bumper parts diagram

107 - REAR BUMPER

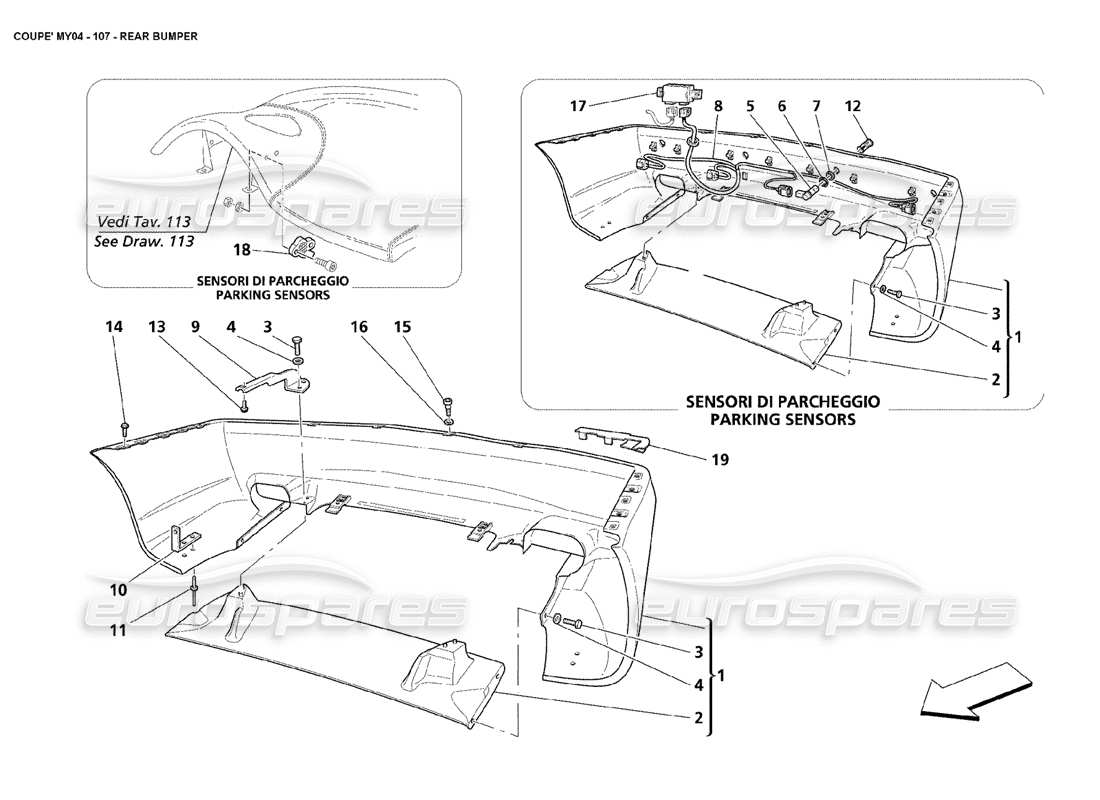

Maserati 4200 Coupe (2004) Rear Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 01
                                        MPN: 980138248

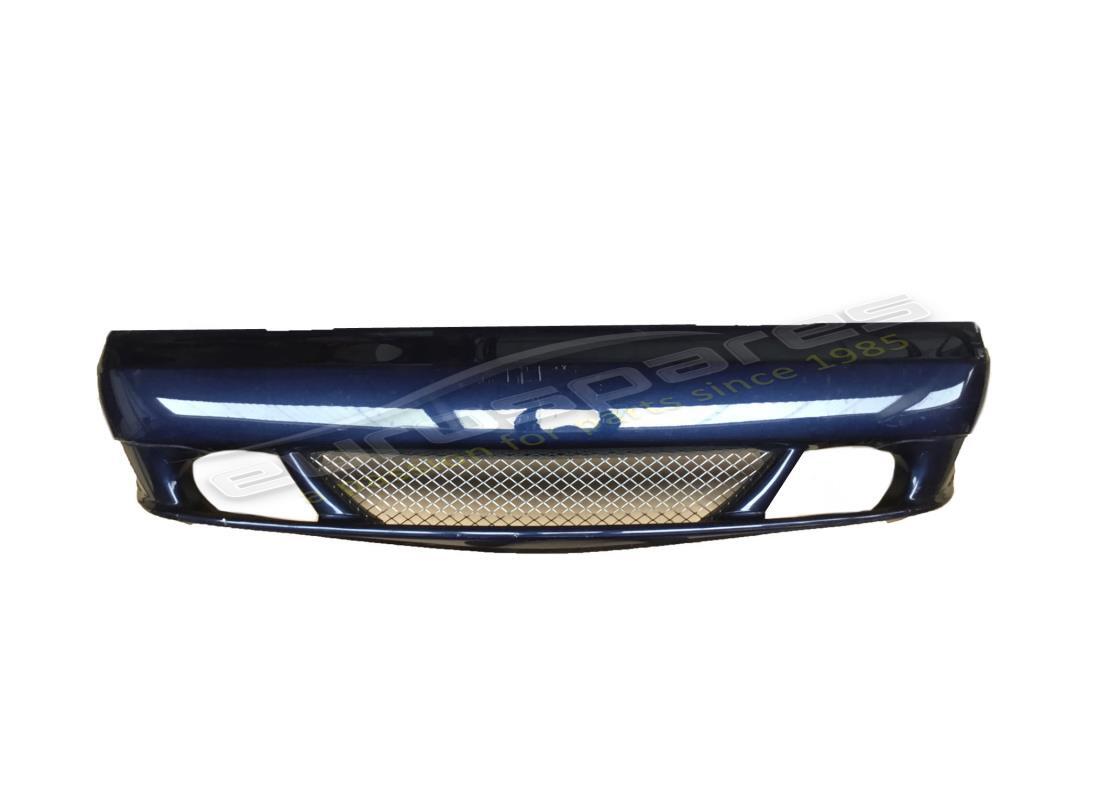

                                        COMPLETE REAR BUMPER
                                        from £888.81
                                        from £888.81
                                        # 01
                                        MPN: 980138249
                                        COMPLETE REAR BUMPER
                                        from £600.00
                                        from £600.00
                                        # 01
                                        MPN: 980138250
                                        COMPLETE REAR BUMPER
                                        from £1,482.55
                                        from £1,482.55
                                        # 01
                                        MPN: 980138251
                                        COMPLETE REAR BUMPER
                                        from £1,614.63
                                        from £1,614.63
                                        # 01
                                        MPN: 980138252
                                        COMPLETE REAR BUMPER
                                        from £1,033.45
                                        from £1,033.45
                                        # 01
                                        MPN: 980138253
                                        COMPLETE REAR BUMPER
                                        from £629.71
                                        from £629.71
                                        # 01
                                        MPN: 980138254
                                        COMPLETE REAR BUMPER
                                        from £1,482.55
                                        from £1,482.55
                                        # 01
                                        MPN: 980138255
                                        COMPLETE REAR BUMPER
                                        from £1,017.23
                                        from £1,017.23
                                        # 02
                                        MPN: 980138256
                                        SPOILER
                                        from £778.25
                                        from £778.25
                                        # 03
                                        MPN: 14305324
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 14305321
                                        # 04
                                        MPN: 12643724
                                        WASHER
                                        from £0.47
                                        from £0.47
                                        # 05
                                        MPN: 184929
                                        PARKING SENSOR
                                        from £129.01
                                        from £129.01
                                        # 06
                                        MPN: 187677
                                        RING NUT
                                        from £25.89
                                        from £25.89
                                        # 07
                                        MPN: 187678
                                        SPACER
                                        from £10.05
                                        from £10.05
                                        # 08
                                        MPN: 200505
                                        PARKING SENSOR CABLE
                                        from £115.76
                                        from £115.76
                                        This part replaces part number 186662 - and 1 more. Click to view details
                                        # 08
                                        MPN: 200509
                                        SIDE MARKERS AND PARKING SENSOR CABLE
                                        Supersession
                                        Supersession
                                        This part replaces part number 186663 which we have in stock
                                        # 09
                                        MPN: 68827400
                                        RH BRACKET
                                        from £151.48
                                        from £151.48
                                        # 09
                                        MPN: 68827500
                                        LH BRACKET
                                        from £151.48
                                        from £151.48
                                        # 10
                                        MPN: 66494900
                                        BRACKET
                                        from £7.73
                                        from £7.73
                                        # 11
                                        MPN: 7765139
                                        RIVET
                                        from £2.53
                                        from £2.53
                                        # 12
                                        MPN: 187679
                                        OUTER SLEEVE
                                        from £24.56
                                        from £24.56
                                        # 12
                                        MPN: 187680
                                        INNER SLEEVE
                                        from £19.01
                                        from £19.01
                                        # 13
                                        MPN: 16288321
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        # 14
                                        MPN: 7739729
                                        SCREW
                                        from £1.55
                                        from £1.55
                                        # 15
                                        MPN: 46419734
                                        SCREW
                                        Supersession
                                        Supersession
                                        # 16
                                        MPN: 312552529
                                        GASKET
                                        Supersession
                                        Supersession
                                        # 17
                                        MPN: 193437
                                        PARKING SENSOR CONTROL UNIT
                                        from £170.15
                                        from £170.15
                                        This part replaces part number 184927 - and 1 more. Click to view details
                                        # 18
                                        MPN: 223469
                                        BUZZER
                                        from £14.84
                                        from £14.84
                                        This part replaces part number 184928 - and 1 more. Click to view details
                                        # 19
                                        MPN: 382500540
                                        RH PLATE
                                        from £39.41
                                        from £39.41
                                        # 19
                                        MPN: 382500541
                                        LH PLATE
                                        from £39.41
                                        from £39.41
