maserati 4200 coupe (2004) front seat and seat belts parts diagram

120 - Front Seat and Seat Belts

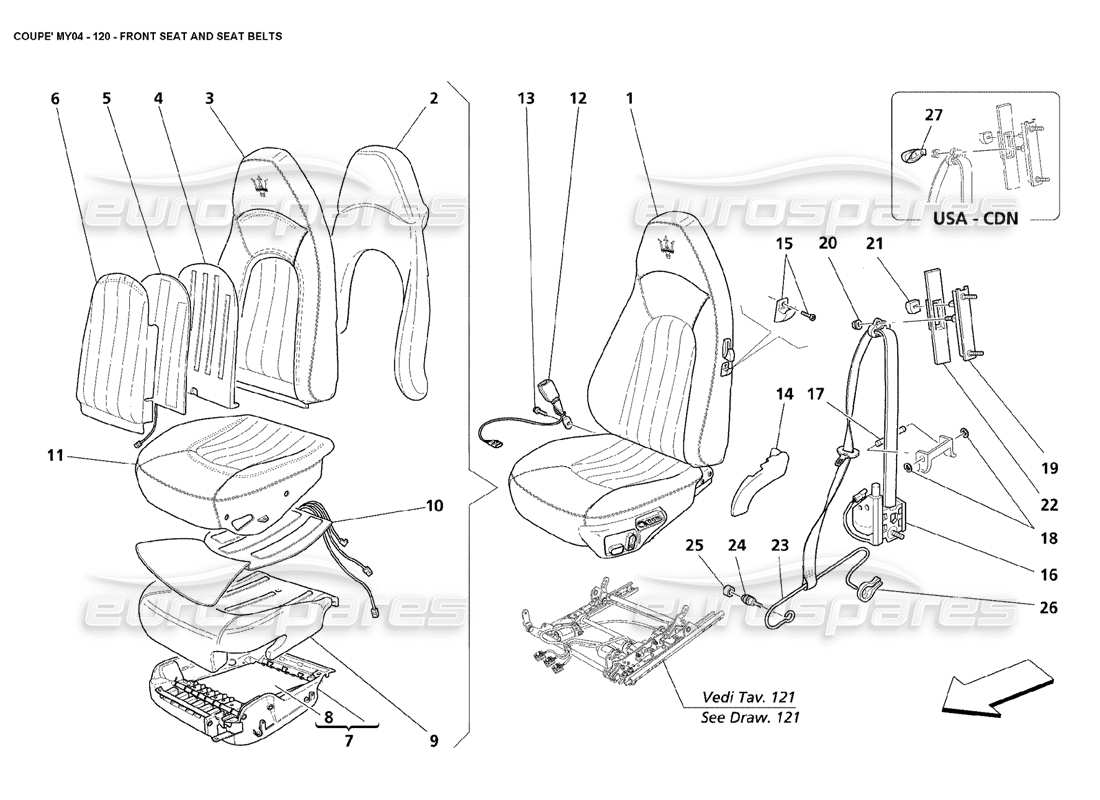

Maserati 4200 Coupe (2004) Front Seat and Seat Belts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 000
                                              MPN: 981200800
                                              COMPLETE RED INTERIOR
                                              from £3,507.26
                                              from £3,507.26
                                              This part replaces part number 9812008..
                                              # 001
                                              MPN: 675128..
                                              COMPLETE RH FRONT SEAT
                                              - Optional - Leather drilled - Valid for GD
                                              # 001
                                              MPN: 675129..
                                              COMPLETE RH FRONT SEAT
                                              - Optional - Leather drilled and heater - Valid for GD
                                              # 001
                                              MPN: 675132..
                                              COMPLETE LH FRONT SEAT
                                              - Optional - Leather drilled - Valid for GD
                                              # 001
                                              MPN: 675133..
                                              COMPLETE LH FRONT SEAT
                                              - Optional - Leather drilled and heater - Valid for GD
                                              # 001
                                              MPN: 675137..
                                              COMPLETE RH FRONT SEAT
                                              - Optional - Leather drilled - Not for GD
                                              # 001
                                              MPN: 675139..
                                              COMPLETE RH FRONT SEAT
                                              - Optional - Leather drilled and heater - Not for GD
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 675140..
                                              COMPLETE LH FRONT SEAT
                                              - Optional - Leather drilled - Not for GD
                                              # 001
                                              MPN: 675141..
                                              COMPLETE LH FRONT SEAT
                                              - Optional - Leather drilled and heater - Not for GD
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 9812007..
                                              COMPLETE LH FRONT SEAT
                                              - Standard - Not for GD
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 9812008..
                                              COMPLETE RH FRONT SEAT
                                              - Standard - Not for GD
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 9812009..
                                              COMPLETE LH FRONT SEAT
                                              - Optional - Heater - Not for GD
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 9812010..
                                              COMPLETE RH FRONT SEAT
                                              - Optional - Heater - Not for GD
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 9812017..
                                              COMPLETE LH FRONT SEAT
                                              - Standard - Valid for GD
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 9812018..
                                              COMPLETE RH FRONT SEAT
                                              - Standard - Valid for GD
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 9812019..
                                              COMPLETE LH FRONT SEAT
                                              - Optional - Heater - Valid for GD
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 9812020..
                                              COMPLETE RH FRONT SEAT
                                              - Optional - Heater - Valid for GD
                                              Supersession
                                              Supersession
                                              # 002
                                              MPN: 980138100
                                              SEATBACK PERIPHERAL PADDING
                                              from £993.05
                                              from £993.05
                                              # 003
                                              MPN: 9812000..
                                              BACKSEAT PERIPHERAL UPHOLSTERY
                                              Supersession
                                              Supersession
                                              # 004
                                              MPN: 980001118
                                              BACKSEAT CENTRAL PADDING
                                              from £58.36
                                              from £58.36
                                              # 005
                                              MPN: 980001121
                                              BACKSEAT HEATER
                                              from £52.07
                                              from £52.07
                                              # 006
                                              MPN: 9811000..
                                              BACKSEAT CENTRAL UPHOLSTERY
                                              - Not for cars with leather drilled seats
                                              Supersession
                                              Supersession
                                              # 006
                                              MPN: 9812003..
                                              BACKSEAT CENTRAL UPHOLSTERY
                                              - Valid for cars with leather drilled seats
                                              Supersession
                                              Supersession
                                              # 007
                                              MPN: 980001179
                                              COMPLETE LH CUSHION BOTTOM
                                              from £49.07
                                              from £49.07
                                              # 007
                                              MPN: 980001180
                                              COMPLETE RH CUSHION BOTTOM
                                              from £49.07
                                              from £49.07
                                              # 008
                                              MPN: 980001122
                                              CUSHION BOTTOM MEMBRANE
                                              from £31.25
                                              from £31.25
                                              # 009
                                              MPN: 980138101
                                              LH CUSHION PADDING
                                              - Valid for GD
                                              from £993.05
                                              from £993.05
                                              # 009
                                              MPN: 980138102
                                              RH CUSHION PADDING
                                              - Not for GD
                                              from £993.05
                                              from £993.05
                                              # 009
                                              MPN: 980138103
                                              LH CUSHION PADDING
                                              - Not for GD
                                              from £993.05
                                              from £993.05
                                              # 009
                                              MPN: 980138104
                                              RH CUSHION PADDING
                                              - Valid for GD
                                              from £993.05
                                              from £993.05
                                              # 010
                                              MPN: 980001120
                                              CUSHION HEATER
                                              from £123.73
                                              from £123.73
                                              # 011
                                              MPN: 9812001..
                                              LH FRONT CUSHION UPHOLSTERY
                                              - Not for cars with leather drilled seats
                                              Supersession
                                              Supersession
                                              # 011
                                              MPN: 9812002..
                                              RH FRONT CUSHION UPHOLSTERY
                                              - Not for cars with leather drilled seats
                                              Supersession
                                              Supersession
                                              # 011
                                              MPN: 9812004..
                                              LH FRONT CUSHION UPHOLSTERY
                                              - Valid for cars with leather drilled seats
                                              Supersession
                                              Supersession
                                              # 011
                                              MPN: 9812005..
                                              RH FRONT CUSHION UPHOLSTERY
                                              - Valid for cars with leather drilled seats
                                              Supersession
                                              Supersession
                                              # 012
                                              MPN: 388100336
                                              PASSENGER SEAT BELT LOCK
                                              from £47.00
                                              from £47.00
                                              # 012
                                              MPN: 388100337
                                              PILOT SEAT BELT LOCK
                                              from £104.70
                                              from £104.70
                                              # 013
                                              MPN: 386900301
                                              SCREW
                                              from £13.44
                                              from £13.44
                                              # 014
                                              MPN: 980138105
                                              LH SEAT JOINT COVER
                                              from £14.12
                                              from £14.12
                                              # 014
                                              MPN: 980138106
                                              RH SEAT JOINT COVER
                                              from £14.12
                                              from £14.12
                                              # 015
                                              MPN: 980138107
                                              LEVER PROTECTION KIT
                                              from £15.38
                                              from £15.38
                                              # 016
                                              MPN: 66310300
                                              RH ROLLER
                                              - Not for USA and CDN
                                              from £78.75
                                              from £78.75
                                              # 016
                                              MPN: 66310400
                                              LH ROLLER
                                              - Not for USA e CDN
                                              from £168.50
                                              from £168.50
                                              # 016
                                              MPN: 66310500
                                              RH ROLLER
                                              - Valid for USA and CDN
                                              from £165.97
                                              from £165.97
                                              # 016
                                              MPN: 67190800
                                              LH ROLLER
                                              - Valid for USA e CDN
                                              from £157.80
                                              from £157.80
                                              # 017
                                              MPN: 30921336
                                              DOWEL BOLT
                                              from £3.63
                                              from £3.63
                                              # 018
                                              MPN: 11087770
                                              FLEXIBLE RING
                                              from £0.69
                                              from £0.69
                                              # 019
                                              MPN: 66873400
                                              SEAT BELT REGULATOR
                                              from £9.56
                                              from £9.56
                                              # 020
                                              MPN: 388100335
                                              NUT
                                              from £1.08
                                              from £1.08
                                              # 021
                                              MPN: 388100333
                                              KNOB
                                              from £1.08
                                              from £1.08
                                              # 022
                                              MPN: 388300100
                                              SLIT SHIELD
                                              from £5.16
                                              from £5.16
                                              # 023
                                              MPN: 386100369
                                              LH HOOK BAR FOR SEAT BELT
                                              from £5.31
                                              from £5.31
                                              # 023
                                              MPN: 386100370
                                              RH HOOK BAR FOR SEAT BELT
                                              from £5.31
                                              from £5.31
                                              # 024
                                              MPN: 388100331
                                              SCREW
                                              from £9.04
                                              from £9.04
                                              # 025
                                              MPN: 388100330
                                              CAP FOR SCREW
                                              from £0.69
                                              from £0.69
                                              # 026
                                              MPN: 568100343
                                              PLATE
                                              from £1.83
                                              from £1.83
                                              # 027
                                              MPN: 67418700
                                              COVER
                                              - Valid for USA and CDN
                                              from £8.20
                                              from £8.20
                                              This part replaces part number 66663000
