122 - Rear Seat and Seat Belt

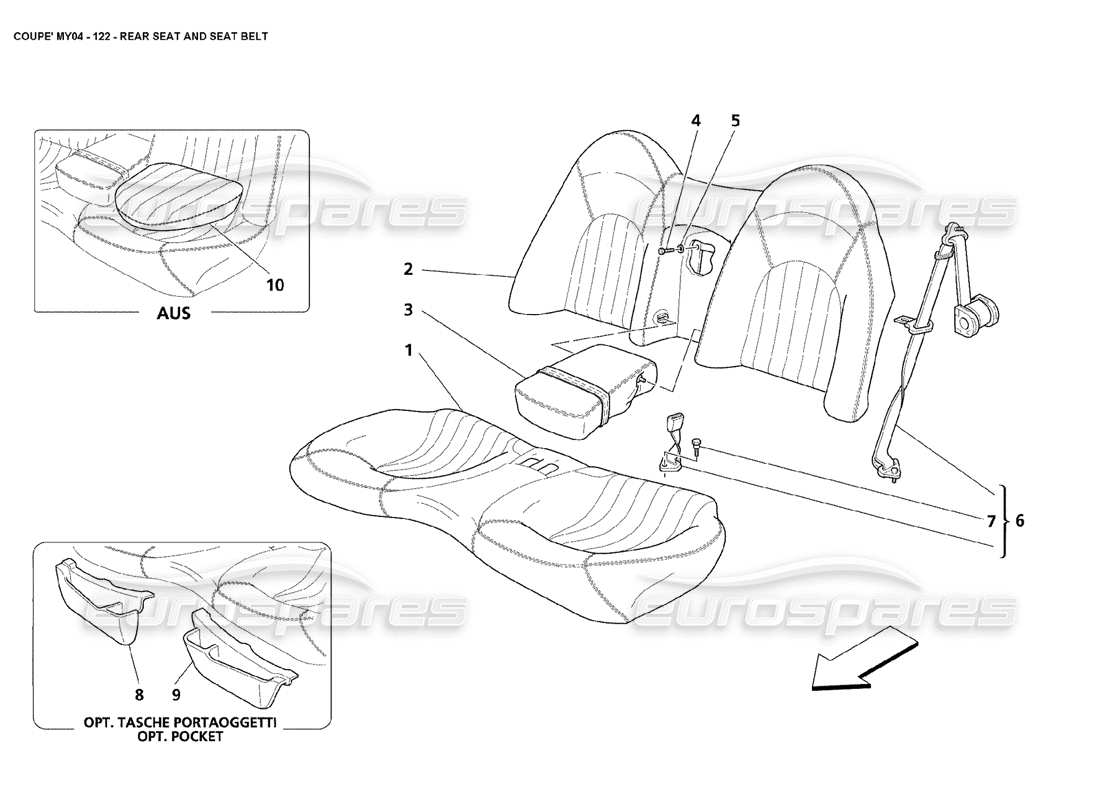

Maserati 4200 Coupe (2004) Rear Seat and Seat Belt Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 675134..
COMPLETE REAR SEAT CUSHION
- Optional - Leather drilled
Supersession
Supersession
# 001
MPN: 9812030..
COMPLETE REAR SEAT CUSHION
- Standard
Supersession
Supersession
# 002
MPN: 675135..
COMPLETE REAR SEAT BACK
- Optional - Leather drilled - REST
Supersession
Supersession
# 002
MPN: 9812031..
COMPLETE REAR SEAT BACK
- Standard
Supersession
Supersession
# 003
MPN: 9812032..
COMPLETE REAR ARM
Supersession
Supersession
# 004
MPN: 16288321
SCREW
from £0.53
from £0.53
# 005
MPN: 12646821
WASHER
from £0.53
from £0.53
# 006
MPN: 66193900
COMPLETE SEAT BELT
- Valid for USA and CDN
from £101.23
from £101.23
# 006
MPN: 66311700
COMPLETE SEAT BELT
- Not for USA and CDN
from £84.95
from £84.95
# 007
MPN: 66414600
SCREW
from £1.85
from £1.85
This part replaces part number 80521300
# 008
MPN: 388300292
RH REAR POCKET
- Optional - Pockets - Specify the color in the order
from £436.49
from £436.49
# 009
MPN: 388300293
LH REAR POCKET
- Optional - Pockets - Specify the color in the order
from £436.49
from £436.49
# 010
MPN: 675071..
CUSHION
- Valid for AUS
Supersession
Supersession
# 010
MPN: 675072..
CUSHION
- Valid for AUS
Supersession
Supersession
