maserati 4200 coupe (2004) stereo equipment accesories parts diagram

146 - Stereo Equipment Accesories

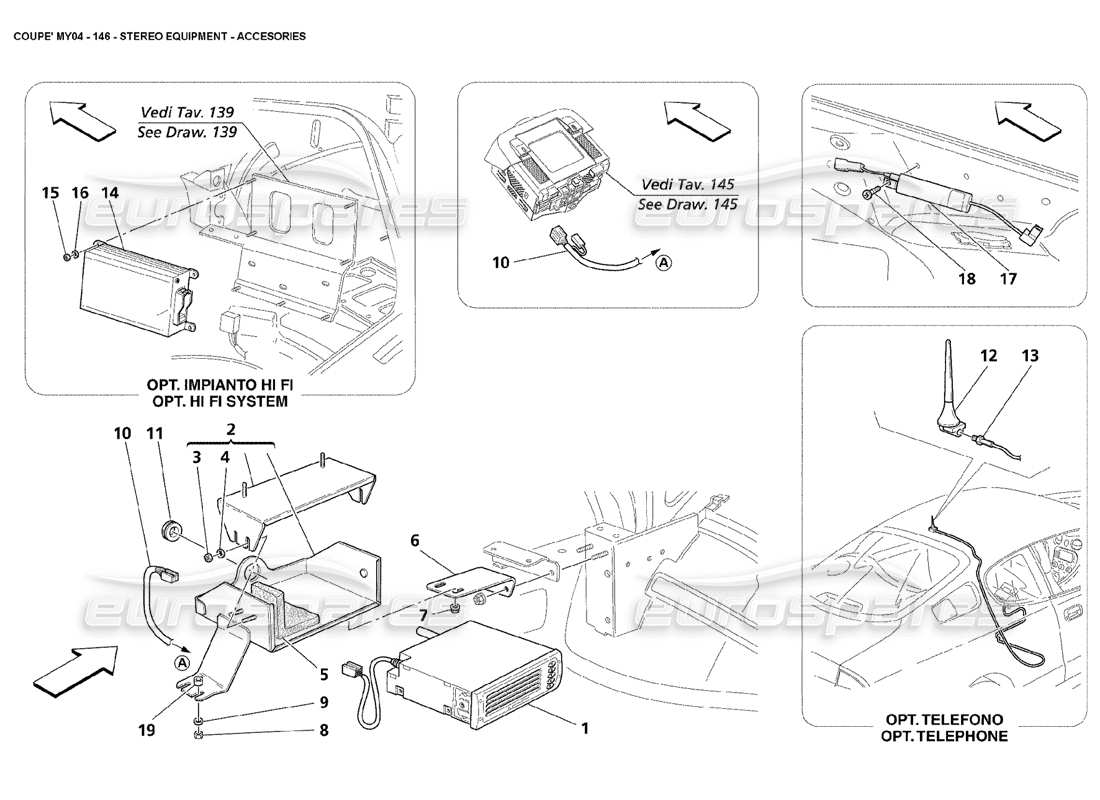

Maserati 4200 Coupe (2004) Stereo Equipment Accesories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 233649
        CD CHARGER
        - Optional - CD charger - Not for J
        from £510.69
        from £510.69
        This part replaces part number 383500140
        # 002
        MPN: 67669600
        COMPLETE CD CHARGER BRACKET
        - Optional - CD charger
        from £114.00
        from £114.00
        This part replaces part number 192912
        # 003
        MPN: 15896211
        NUT
        - Optional - CD charger
        Supersession
        Supersession
        # 004
        MPN: 13579224
        WASHER
        - Optional - CD charger - Optional - CD charger
        from £0.53
        from £0.53
        # 005
        MPN: 67116100
        ANTI VIBRATION GASKET
        from £3.63
        from £3.63
        # 006
        MPN: 67668300
        BRACKET FOR SUPPORT BOX CD CHARGER
        - Optional - CD charger
        from £8.20
        from £8.20
        # 007
        MPN: 13046111
        NUT
        - Optional - CD charger
        from £0.47
        from £0.47
        # 008
        MPN: 15896211
        NUT
        - Optional - CD charger
        Supersession
        Supersession
        # 009
        MPN: 13579224
        WASHER
        - Optional - CD charger
        from £0.53
        from £0.53
        # 010
        MPN: 201190
        CD CHARGER CABLE
        - Optional - CD charger - Not for J
        from £30.52
        from £30.52
        This part replaces part number 190278 - and 1 more. Click to view details
        # 011
        MPN: 319220361
        RUBBER
        - Optional - CD charger
        from £2.32
        from £2.32
        # 012
        MPN: 183667
        TELEPHONE ANTENNA
        - Optional - Telephone - Not for USA, CDN and J
        from £95.16
        from £95.16
        # 013
        MPN: 200653
        ANTENNA CABLE TO TELEPHONE
        - Optional - Telephone - Not for USA, CDN and J
        from £51.73
        from £51.73
        This part replaces part number 183668 which we have in stock
        # 014
        MPN: 193476
        AMPLIFIER
        - Optional - HI FI system
        from £686.22
        from £686.22
        # 015
        MPN: 15896211
        NUT
        - Optional - HI FI system
        Supersession
        Supersession
        # 016
        MPN: 13579224
        WASHER
        - Optional - HI FI system
        from £0.53
        from £0.53
        # 017
        MPN: 201458
        POSITIVE REAR WINDOW FILTER
        from £12.32
        from £12.32
        This part replaces part number 383500110 which we have in stock - and 1 more. Click to view details
        # 018
        MPN: 13273824
        SCREW
        from £1.21
        from £1.21
        # 019
        MPN: 13604015
        SPACER
        - Optional - CD charger
        from £0.53
        from £0.53
