maserati 4200 coupe (2005) air intake manifold parts diagram

013 - Air Intake Manifold

Maserati 4200 Coupe (2005) Air Intake Manifold Parts Diagram

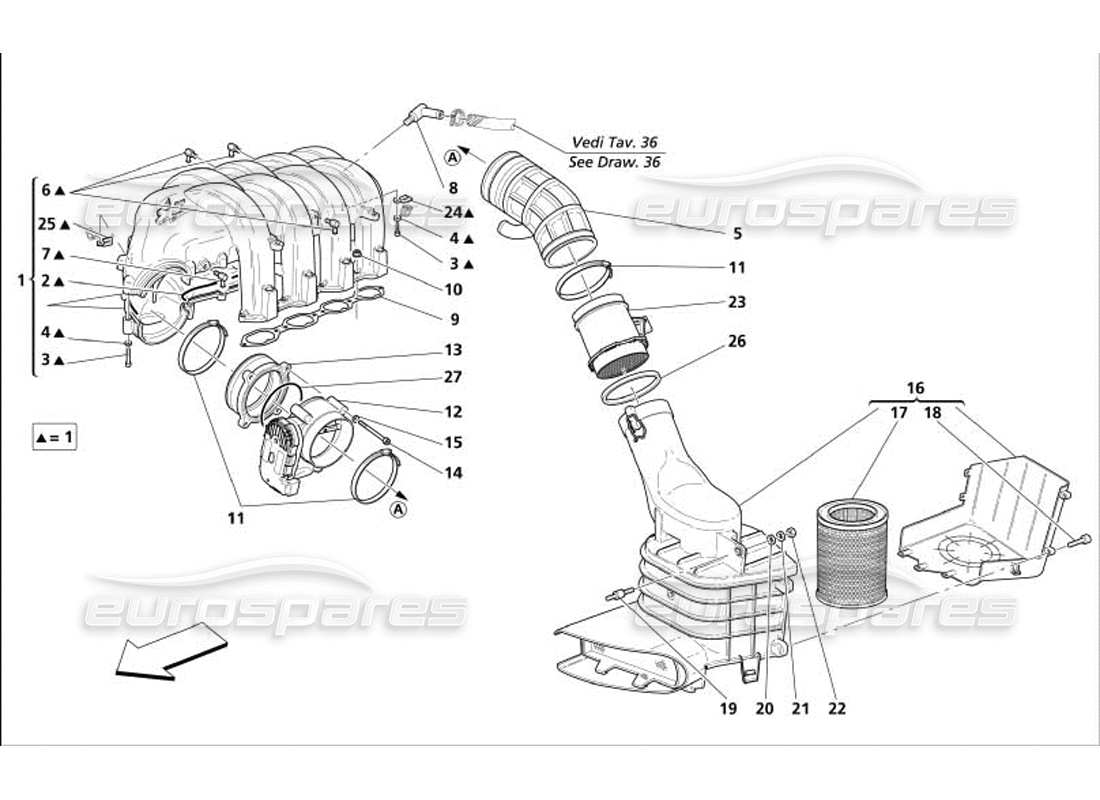

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 199039
                                                    COMPLETE SUCTION MANIFOLD
                                                    from £719.07
                                                    from £719.07
                                                    # 002
                                                    MPN: 180830
                                                    GASKET
                                                    from £15.78
                                                    from £15.78
                                                    # 003
                                                    MPN: 14305524
                                                    SCREW
                                                    M6X30
                                                    from £0.47
                                                    from £0.47
                                                    # 003
                                                    MPN: 14305824
                                                    SCREW
                                                    M6X40
                                                    from £0.47
                                                    from £0.47
                                                    # 003
                                                    MPN: 14432224
                                                    SCREW
                                                    M6X22
                                                    from £0.47
                                                    from £0.47
                                                    # 003
                                                    MPN: 14441424
                                                    SCREW
                                                    M6X20
                                                    from £1.03
                                                    from £1.03
                                                    # 004
                                                    MPN: 11197774
                                                    WASHER
                                                    from £0.52
                                                    from £0.52
                                                    # 005
                                                    MPN: 180047
                                                    SLEEVE
                                                    from £30.00
                                                    from £30.00
                                                    # 006
                                                    MPN: 128016
                                                    THREADED UNION
                                                    from £5.52
                                                    from £5.52
                                                    # 007
                                                    MPN: 174818
                                                    THREADED UNION
                                                    from £8.99
                                                    from £8.99
                                                    # 008
                                                    MPN: 124342
                                                    THREADED UNION
                                                    from £3.59
                                                    from £3.59
                                                    # 009
                                                    MPN: 219459
                                                    GASKET
                                                    Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
                                                    from £6.98
                                                    from £6.98
                                                    This part replaces part number 185824
                                                    # 010
                                                    MPN: 159601
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    # 011
                                                    MPN: 190151
                                                    CLAMP
                                                    from £1.95
                                                    from £1.95
                                                    # 013
                                                    MPN: 240262
                                                    SPACER
                                                    from £59.85
                                                    from £59.85
                                                    This part replaces part number 195206
                                                    # 014
                                                    MPN: 14305924
                                                    SCREW
                                                    from £0.51
                                                    from £0.51
                                                    This part replaces part number 14305921 - and 1 more. Click to view details
                                                    # 015
                                                    MPN: 11197774
                                                    WASHER
                                                    from £0.53
                                                    from £0.53
                                                    # 016
                                                    MPN: 196832
                                                    COMPLETE FILTER BOX
                                                    from £420.68
                                                    from £420.68
                                                    This part replaces part number 189757
                                                    # 017
                                                    MPN: 186183
                                                    AIR FILTER
                                                    from £31.04
                                                    from £31.04
                                                    # 018
                                                    MPN: 184829
                                                    SCREW
                                                    from £5.00
                                                    from £5.00
                                                    # 019
                                                    MPN: 184824
                                                    PAD
                                                    from £9.79
                                                    from £9.79
                                                    # 020
                                                    MPN: 12643724
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 021
                                                    MPN: 12544274
                                                    WASHER
                                                    from £1.90
                                                    from £1.90
                                                    # 022
                                                    MPN: 15896224
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    # 024
                                                    MPN: 190509
                                                    PIPES SUPPORTING BRACKET
                                                    from £134.10
                                                    from £134.10
                                                    # 025
                                                    MPN: 191009
                                                    PIPES SUPPORTING BRACKET
                                                    from £61.85
                                                    from £61.85
                                                    # 026
                                                    MPN: 193113
                                                    GASKET
                                                    from £5.00
                                                    from £5.00
                                                    # 027
                                                    MPN: 150302
                                                    O.R. GASKET
                                                    from £1.21
                                                    from £1.21
