014 - Exhaust System

Maserati 4200 Coupe (2005) Exhaust System Parts Diagram

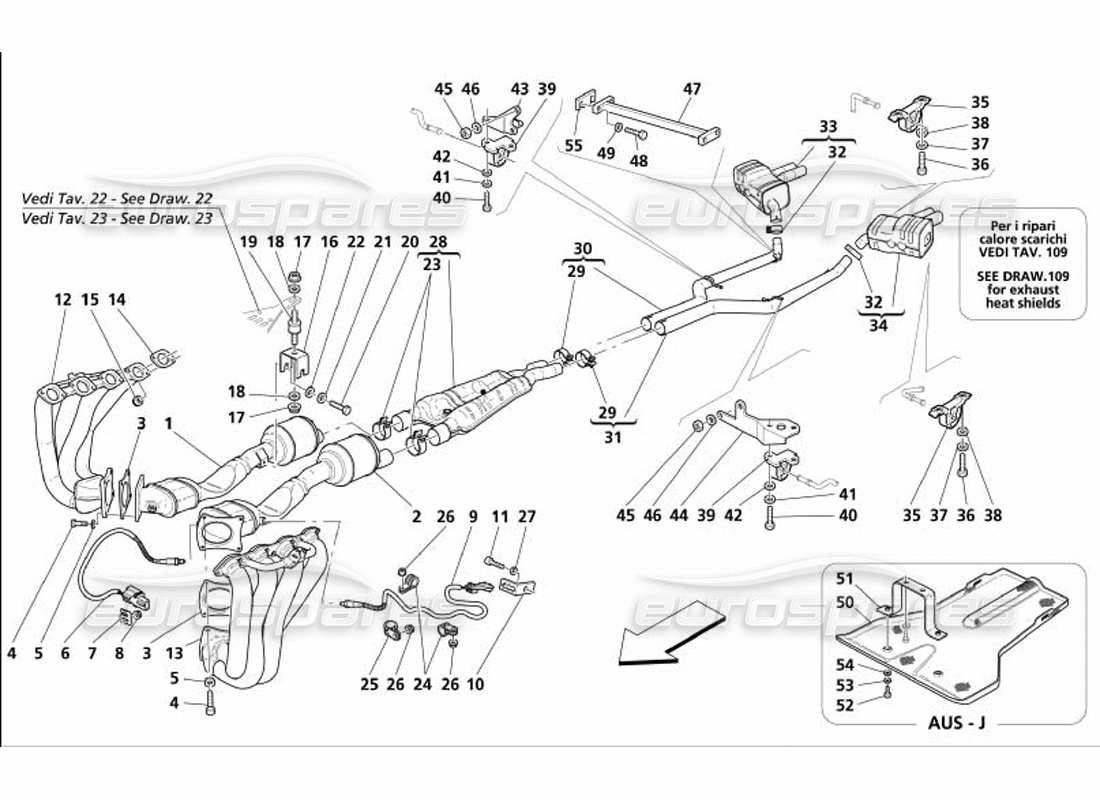

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 001
                                                                                                  MPN: 214443
                                                                                                  RH CATALYST
                                                                                                  from £1,248.80
                                                                                                  from £1,248.80
                                                                                                  This part replaces part number 199959 - and 1 more. Click to view details
                                                                                                  # 002
                                                                                                  MPN: 214444
                                                                                                  LH CATALYST
                                                                                                  from £2,270.55
                                                                                                  from £2,270.55
                                                                                                  This part replaces part number 199960
                                                                                                  # 002
                                                                                                  MPN: 214444
                                                                                                  LH CATALYST
                                                                                                  from £2,270.55
                                                                                                  from £2,270.55
                                                                                                  This part replaces part number 199960
                                                                                                  # 003
                                                                                                  MPN: 184798
                                                                                                  GASKET
                                                                                                  Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
                                                                                                  from £18.61
                                                                                                  from £18.61
                                                                                                  # 004
                                                                                                  MPN: 190213
                                                                                                  SCREW
                                                                                                  from £2.47
                                                                                                  from £2.47
                                                                                                  # 005
                                                                                                  MPN: 11193874
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 007
                                                                                                  MPN: 175856
                                                                                                  CONNECTORS FIXING BRACKET
                                                                                                  from £1.19
                                                                                                  from £1.19
                                                                                                  This part replaces part number 155752
                                                                                                  # 010
                                                                                                  MPN: 178366
                                                                                                  CONNECTORS FIXING BRACKET
                                                                                                  from £2.31
                                                                                                  from £2.31
                                                                                                  # 011
                                                                                                  MPN: 14305724
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 012
                                                                                                  MPN: 183795
                                                                                                  RH EXHAUST MANIFOLD
                                                                                                  from £1,251.13
                                                                                                  from £1,251.13
                                                                                                  # 013
                                                                                                  MPN: 183796
                                                                                                  LH EXHAUST MANIFOLD
                                                                                                  from £1,251.13
                                                                                                  from £1,251.13
                                                                                                  # 014
                                                                                                  MPN: 182868
                                                                                                  GASKET
                                                                                                  Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
                                                                                                  from £2.85
                                                                                                  from £2.85
                                                                                                  # 015
                                                                                                  MPN: 138392
                                                                                                  NUT
                                                                                                  from £0.58
                                                                                                  from £0.58
                                                                                                  # 016
                                                                                                  MPN: 187827
                                                                                                  BRACKET FOR CATALYSTS FIXING
                                                                                                  from £11.43
                                                                                                  from £11.43
                                                                                                  # 017
                                                                                                  MPN: 14048215
                                                                                                  NUT
                                                                                                  from £3.56
                                                                                                  from £3.56
                                                                                                  # 018
                                                                                                  MPN: 12625221
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 019
                                                                                                  MPN: 184333
                                                                                                  PAD
                                                                                                  from £20.15
                                                                                                  from £20.15
                                                                                                  # 020
                                                                                                  MPN: 16043324
                                                                                                  SCREW
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 021
                                                                                                  MPN: 11193874
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 022
                                                                                                  MPN: 12625224
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 12625221
                                                                                                  # 023
                                                                                                  MPN: 185307
                                                                                                  CLAMP
                                                                                                  from £15.25
                                                                                                  from £15.25
                                                                                                  This part replaces part number 173896
                                                                                                  # 024
                                                                                                  MPN: 67190200
                                                                                                  BRACKET WITH SHEATH
                                                                                                  from £1.34
                                                                                                  from £1.34
                                                                                                  # 025
                                                                                                  MPN: 10441290
                                                                                                  BRACKET WITH SHEATH
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 026
                                                                                                  MPN: 67190100
                                                                                                  NUT
                                                                                                  from £1.08
                                                                                                  from £1.08
                                                                                                  # 027
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  # 028
                                                                                                  MPN: 187826
                                                                                                  CENTRAL SILENCER
                                                                                                  from £875.88
                                                                                                  from £875.88
                                                                                                  # 029
                                                                                                  MPN: 185307
                                                                                                  CLAMP
                                                                                                  from £15.25
                                                                                                  from £15.25
                                                                                                  This part replaces part number 173896
                                                                                                  # 030
                                                                                                  MPN: 187823
                                                                                                  RH EXHAUST EXTENSION
                                                                                                  from £362.46
                                                                                                  from £362.46
                                                                                                  # 031
                                                                                                  MPN: 187824
                                                                                                  LH EXHAUST EXTENSION
                                                                                                  from £362.46
                                                                                                  from £362.46
                                                                                                  # 032
                                                                                                  MPN: 185307
                                                                                                  CLAMP
                                                                                                  from £15.25
                                                                                                  from £15.25
                                                                                                  This part replaces part number 173896
                                                                                                  # 033
                                                                                                  MPN: 184815
                                                                                                  RH REAR SILENCER
                                                                                                  from £939.75
                                                                                                  from £939.75
                                                                                                  # 034
                                                                                                  MPN: 184816
                                                                                                  LH REAR SILENCER
                                                                                                  from £972.24
                                                                                                  from £972.24
                                                                                                  # 035
                                                                                                  MPN: 184814
                                                                                                  REAR SUPPORT
                                                                                                  from £19.06
                                                                                                  from £19.06
                                                                                                  # 036
                                                                                                  MPN: 16043424
                                                                                                  SCREW
                                                                                                  from £0.48
                                                                                                  from £0.48
                                                                                                  # 037
                                                                                                  MPN: 12601374
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 038
                                                                                                  MPN: 12638524
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 039
                                                                                                  MPN: 187861
                                                                                                  ANTI-VIBRATION SUPPORT
                                                                                                  from £26.98
                                                                                                  from £26.98
                                                                                                  # 040
                                                                                                  MPN: 16043424
                                                                                                  SCREW
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  # 041
                                                                                                  MPN: 12601374
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 042
                                                                                                  MPN: 14496524
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 043
                                                                                                  MPN: 187775
                                                                                                  RH SUPPORT
                                                                                                  from £11.91
                                                                                                  from £11.91
                                                                                                  # 044
                                                                                                  MPN: 187774
                                                                                                  LH SUPPORT
                                                                                                  from £16.85
                                                                                                  from £16.85
                                                                                                  # 045
                                                                                                  MPN: 16100814
                                                                                                  NUT
                                                                                                  from £0.71
                                                                                                  from £0.71
                                                                                                  # 046
                                                                                                  MPN: 14496524
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 048
                                                                                                  MPN: 16043124
                                                                                                  SCREW
                                                                                                  from £0.26
                                                                                                  from £0.26
                                                                                                  # 049
                                                                                                  MPN: 12601374
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 050
                                                                                                  MPN: 190270
                                                                                                  UNDER EXHAUST SHIELD
                                                                                                  Valid for J and AUS andcars GB opt. japan version
                                                                                                  from £222.54
                                                                                                  from £222.54
                                                                                                  # 051
                                                                                                  MPN: 190271
                                                                                                  BRACKET
                                                                                                  Valid for J and AUS andcars GB opt. japan version
                                                                                                  from £31.37
                                                                                                  from £31.37
                                                                                                  # 052
                                                                                                  MPN: 14305724
                                                                                                  SCREW
                                                                                                  Valid for J and AUS andcars GB opt. japan version
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 053
                                                                                                  MPN: 12639724
                                                                                                  WASHER
                                                                                                  Valid for J and AUS andcars GB opt. japan version
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 054
                                                                                                  MPN: 12601274
                                                                                                  WASHER
                                                                                                  Valid for J and AUS andcars GB opt. japan version
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 12601270
                                                                                                  # 055
                                                                                                  MPN: 193098
                                                                                                  SPACER BAR THICKNESS
                                                                                                  from £2.31
                                                                                                  from £2.31
                                                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
