maserati 4200 coupe (2005) f1 clutch hydraulic controls -valid for f1- parts diagram

026 - F1 Clutch Hydraulic Controls -Valid for F1-

Maserati 4200 Coupe (2005) F1 Clutch Hydraulic Controls -Valid for F1- Parts Diagram

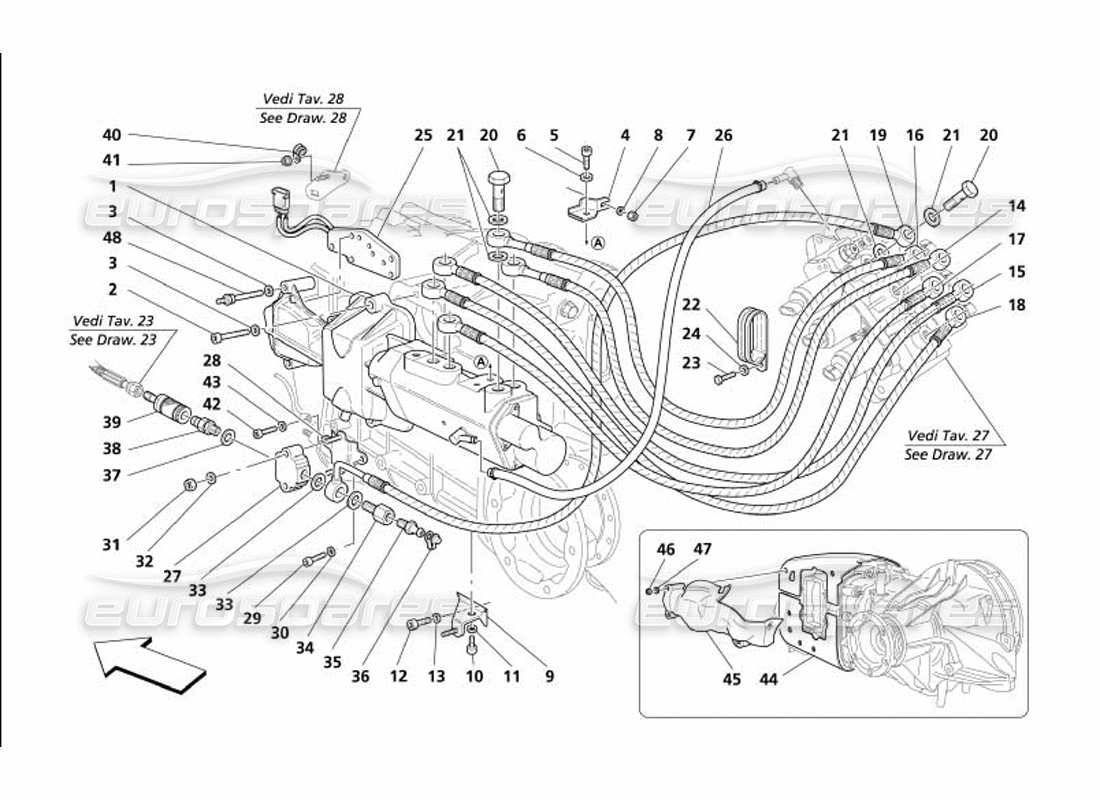

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 183064
                                                                                              COMPLETE ACTUATOR
                                                                                              from £1,837.50
                                                                                              from £1,837.50
                                                                                              # 002
                                                                                              MPN: 14305524
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 002
                                                                                              MPN: 14305624
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 003
                                                                                              MPN: 12601274
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12601270
                                                                                              # 004
                                                                                              MPN: 186776
                                                                                              ACTUATOR SUPPORT UPPER BRACKET
                                                                                              from £6.81
                                                                                              from £6.81
                                                                                              # 005
                                                                                              MPN: 14306224
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 006
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 007
                                                                                              MPN: 14048215
                                                                                              NUT
                                                                                              from £3.55
                                                                                              from £3.55
                                                                                              # 008
                                                                                              MPN: 14499424
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 009
                                                                                              MPN: 195445
                                                                                              ACTUATOR SUPPORT LOWER BRACKET
                                                                                              from £6.42
                                                                                              from £6.42
                                                                                              # 010
                                                                                              MPN: 14301924
                                                                                              SCREW
                                                                                              from £1.55
                                                                                              from £1.55
                                                                                              # 011
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 012
                                                                                              MPN: 14360024
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 013
                                                                                              MPN: 12601474
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 014
                                                                                              MPN: 185977
                                                                                              COMPLETE EV1 PIPE
                                                                                              from £297.43
                                                                                              from £297.43
                                                                                              # 015
                                                                                              MPN: 185978
                                                                                              COMPLETE EV2 PIPE
                                                                                              from £270.34
                                                                                              from £270.34
                                                                                              # 016
                                                                                              MPN: 185979
                                                                                              COMPLETE EV3 PIPE
                                                                                              from £297.43
                                                                                              from £297.43
                                                                                              # 017
                                                                                              MPN: 185980
                                                                                              COMPLETE EV4 PIPE
                                                                                              from £270.34
                                                                                              from £270.34
                                                                                              # 018
                                                                                              MPN: 185981
                                                                                              COMPLETE EV5 PIPE
                                                                                              from £270.34
                                                                                              from £270.34
                                                                                              # 019
                                                                                              MPN: 186358
                                                                                              PIPE FROM POWER UNIT TO BLOCK
                                                                                              from £210.28
                                                                                              from £210.28
                                                                                              # 020
                                                                                              MPN: 171454
                                                                                              UNION
                                                                                              from £26.41
                                                                                              from £26.41
                                                                                              # 021
                                                                                              MPN: 10261060
                                                                                              GASKET
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 274036
                                                                                              # 022
                                                                                              MPN: 186299
                                                                                              CLAMP
                                                                                              from £23.79
                                                                                              from £23.79
                                                                                              # 023
                                                                                              MPN: 14305724
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 024
                                                                                              MPN: 12601279
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 025
                                                                                              MPN: 980001158
                                                                                              SENSORS KIT
                                                                                              from £726.24
                                                                                              from £726.24
                                                                                              This part replaces part number 9800001158
                                                                                              # 026
                                                                                              MPN: 980001161
                                                                                              RECYCLE PIPE KIT
                                                                                              from £76.38
                                                                                              from £76.38
                                                                                              This part replaces part number 260538 - and 2 more. Click to view details
                                                                                              # 028
                                                                                              MPN: 185267
                                                                                              BLOCK SUPPORT BRACKET
                                                                                              from £6.42
                                                                                              from £6.42
                                                                                              # 029
                                                                                              MPN: 14305124
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 030
                                                                                              MPN: 12601274
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12601270
                                                                                              # 031
                                                                                              MPN: 15896214
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 15896211
                                                                                              # 032
                                                                                              MPN: 12601279
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 033
                                                                                              MPN: 10261060
                                                                                              GASKET
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 274036
                                                                                              # 034
                                                                                              MPN: 171630
                                                                                              UNION
                                                                                              from £20.23
                                                                                              from £20.23
                                                                                              # 035
                                                                                              MPN: 152954
                                                                                              BLEEDER SCREW
                                                                                              from £3.30
                                                                                              from £3.30
                                                                                              # 036
                                                                                              MPN: 152955
                                                                                              BOOT
                                                                                              from £3.06
                                                                                              from £3.06
                                                                                              # 037
                                                                                              MPN: 171755
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 038
                                                                                              MPN: 172965/a
                                                                                              MALE COUPLING
                                                                                              use part number : 70001184
                                                                                              # 040
                                                                                              MPN: 10441190
                                                                                              BRACKET WITH SHEATH
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 041
                                                                                              MPN: 14058411
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 042
                                                                                              MPN: 14305124
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 043
                                                                                              MPN: 12601274
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12601270
                                                                                              # 044
                                                                                              MPN: 195159
                                                                                              SILENCER SHIELD
                                                                                              from £135.10
                                                                                              from £135.10
                                                                                              # 045
                                                                                              MPN: 196900
                                                                                              SHIELD FOR ACTUATOR PROTECTION
                                                                                              from £41.70
                                                                                              from £41.70
                                                                                              # 046
                                                                                              MPN: 14058411
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 047
                                                                                              MPN: 12644478
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 048
                                                                                              MPN: 196286
                                                                                              STUD
                                                                                              from £14.58
                                                                                              from £14.58
