031 - Lay Shaft Gears

Maserati 4200 Coupe (2005) Lay Shaft Gears Parts Diagram

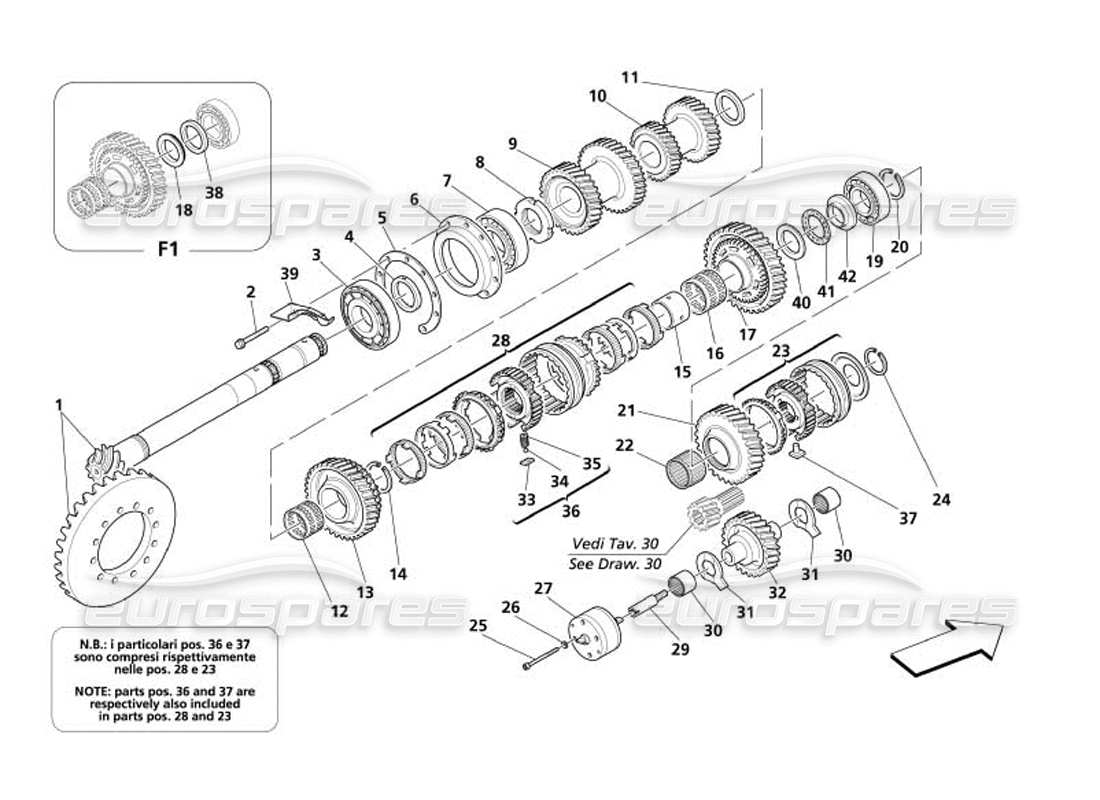

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 185679
                                                        COMPLETE BEVEL SET
                                                        from £584.52
                                                        from £584.52
                                                        # 002
                                                        MPN: 16287731
                                                        SCREW
                                                        from £1.11
                                                        from £1.11
                                                        # 003
                                                        MPN: 185022
                                                        ROLLER BEARING
                                                        from £85.24
                                                        from £85.24
                                                        # 004
                                                        MPN: 185045
                                                        REGISTER RING
                                                        Thickness mm. 7,10
                                                        from £17.93
                                                        from £17.93
                                                        # 004
                                                        MPN: 185046
                                                        REGISTER RING
                                                        Thickness mm. 6,85 - Possible fitting
                                                        from £17.93
                                                        from £17.93
                                                        # 004
                                                        MPN: 185047
                                                        REGISTER RING
                                                        Thickness mm. 6,60 - Possible fitting
                                                        from £17.93
                                                        from £17.93
                                                        # 005
                                                        MPN: 185042
                                                        REGISTER RING
                                                        Thickness mm. 2,8
                                                        from £5.66
                                                        from £5.66
                                                        # 005
                                                        MPN: 185043
                                                        REGISTER RING
                                                        Thickness mm. 2,5 - Possible fitting
                                                        from £9.79
                                                        from £9.79
                                                        # 005
                                                        MPN: 185044
                                                        REGISTER RING
                                                        Thickness mm. 2,2 - Possible fitting
                                                        from £14.76
                                                        from £14.76
                                                        # 006
                                                        MPN: 185020
                                                        BEARING SUPPORT
                                                        from £75.24
                                                        from £75.24
                                                        # 007
                                                        MPN: 185021
                                                        ROLLER BEARING
                                                        from £75.53
                                                        from £75.53
                                                        # 009
                                                        MPN: 182287
                                                        3RD AND 4TH DRIVEN GEAR
                                                        from £221.39
                                                        from £221.39
                                                        # 010
                                                        MPN: 182288
                                                        5TH AND 6TH DRIVEN GEAR
                                                        from £158.97
                                                        from £158.97
                                                        # 011
                                                        MPN: 183974
                                                        RING
                                                        Thickness mm. 4,30
                                                        from £18.57
                                                        from £18.57
                                                        # 011
                                                        MPN: 185038
                                                        RING
                                                        Thickness mm. 3,95 - Possible fitting
                                                        from £17.93
                                                        from £17.93
                                                        # 011
                                                        MPN: 185039
                                                        RING
                                                        Thickness mm. 3,60 - Possible fitting
                                                        from £17.93
                                                        from £17.93
                                                        # 012
                                                        MPN: 184014
                                                        ROLLER CAGE
                                                        from £10.28
                                                        from £10.28
                                                        # 013
                                                        MPN: 182293
                                                        COMPLETE PINION FOR 2ND GEAR
                                                        Valid for F1
                                                        from £147.39
                                                        from £147.39
                                                        # 013
                                                        MPN: 198263
                                                        COMPLETE PINION FOR 2ND GEAR
                                                        Not for F1
                                                        from £162.96
                                                        from £162.96
                                                        # 014
                                                        MPN: 183976
                                                        FLEXIBLE RING
                                                        Thickness mm. 2,10
                                                        from £6.62
                                                        from £6.62
                                                        # 014
                                                        MPN: 185036
                                                        FLEXIBLE RING
                                                        Thickness mm. 1,85 - Possible fitting
                                                        from £19.67
                                                        from £19.67
                                                        # 014
                                                        MPN: 185037
                                                        FLEXIBLE RING
                                                        Thickness mm. 1,60 - Possible fitting
                                                        from £23.34
                                                        from £23.34
                                                        # 015
                                                        MPN: 183971
                                                        BUSHING
                                                        from £43.35
                                                        from £43.35
                                                        # 016
                                                        MPN: 184016
                                                        ROLLER CAGE
                                                        from £12.61
                                                        from £12.61
                                                        # 017
                                                        MPN: 182299
                                                        COMPLETE PINION FOR 1ST GEAR
                                                        from £342.86
                                                        from £342.86
                                                        # 018
                                                        MPN: 183972
                                                        RING
                                                        Thickness mm. 5,10 - Valid for F1
                                                        from £42.03
                                                        from £42.03
                                                        # 018
                                                        MPN: 185040
                                                        RING
                                                        Thickness mm. 4,85 - Possible fitting - Valid for F1
                                                        from £23.32
                                                        from £23.32
                                                        # 018
                                                        MPN: 185041
                                                        RING
                                                        Thickness mm. 4,60 - Possible fitting - Valid for F1
                                                        from £20.61
                                                        from £20.61
                                                        # 019
                                                        MPN: 184020
                                                        ROLLER BEARING
                                                        from £77.89
                                                        from £77.89
                                                        # 020
                                                        MPN: 184042
                                                        FLEXIBLE RING
                                                        from £6.92
                                                        from £6.92
                                                        # 021
                                                        MPN: 199534
                                                        COMPLETE PINION FOR REVERSE GEAR
                                                        from £422.36
                                                        from £422.36
                                                        # 022
                                                        MPN: 184018
                                                        ROLLER CAGE
                                                        from £15.42
                                                        from £15.42
                                                        # 023
                                                        MPN: 326260
                                                        REVERSE GEAR COMPLETE SYNCHRONIZER
                                                        from £1,184.45
                                                        from £1,184.45
                                                        This part replaces part number 193439
                                                        # 024
                                                        MPN: 184041
                                                        FLEXIBLE RING
                                                        from £2.55
                                                        from £2.55
                                                        # 025
                                                        MPN: 14303624
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 026
                                                        MPN: 10571379
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 027
                                                        MPN: 182279
                                                        COMPLETE OIL PUMP
                                                        from £337.36
                                                        from £337.36
                                                        # 028
                                                        MPN: 185164
                                                        1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                        Valid for F1
                                                        from £718.52
                                                        from £718.52
                                                        # 028
                                                        MPN: 198267
                                                        1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                        Not for F1
                                                        from £343.73
                                                        from £343.73
                                                        # 029
                                                        MPN: 182415
                                                        PIN
                                                        from £45.28
                                                        from £45.28
                                                        # 030
                                                        MPN: 184017
                                                        ROLLER CASING
                                                        from £4.88
                                                        from £4.88
                                                        # 031
                                                        MPN: 183975
                                                        RING
                                                        from £14.04
                                                        from £14.04
                                                        # 032
                                                        MPN: 199532
                                                        IDLE GEAR FOR REVERSE
                                                        from £451.95
                                                        from £451.95
                                                        # 033
                                                        -
                                                        PAD FOR SYNCHRONIZER
                                                        # 034
                                                        -
                                                        BALL
                                                        # 035
                                                        -
                                                        SPRING FOR BALL
                                                        # 036
                                                        MPN: 188320
                                                        PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
                                                        Valid for F1
                                                        from £6.75
                                                        from £6.75
                                                        # 036
                                                        MPN: 195991
                                                        PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
                                                        Not for F1
                                                        from £10.84
                                                        from £10.84
                                                        This part replaces part number 194029
                                                        # 037
                                                        MPN: 193440
                                                        PADS/SYNCHRO REVERSE GEAR KIT
                                                        from £2.32
                                                        from £2.32
                                                        This part replaces part number 193484
                                                        # 038
                                                        MPN: 182326
                                                        SPACER
                                                        Valid for F1
                                                        from £38.63
                                                        from £38.63
                                                        # 039
                                                        MPN: 185713
                                                        OIL CONVEYOR
                                                        from £15.71
                                                        from £15.71
                                                        # 040
                                                        MPN: 196524
                                                        RING
                                                        Not for F1
                                                        from £6.34
                                                        from £6.34
                                                        # 041
                                                        MPN: 196523
                                                        ROLLER CAGE
                                                        Not for F1
                                                        from £14.09
                                                        from £14.09
                                                        # 042
                                                        MPN: 196509
                                                        RING
                                                        Thickness mm. 10,60 - Not for F1
                                                        from £57.17
                                                        from £57.17
                                                        # 042
                                                        MPN: 196663
                                                        RING
                                                        Thickness mm. 10,10 - Possible fitting - Not for F1
                                                        from £65.98
                                                        from £65.98
                                                        # 042
                                                        MPN: 196664
                                                        RING
                                                        Thickness mm. 10,35 - Possible fitting - Not for F1
                                                        from £65.98
                                                        from £65.98
