maserati 4200 coupe (2005) front suspension - shock absorber and brake disc parts diagram

044 - Front Suspension - Shock Absorber and Brake Disc

Maserati 4200 Coupe (2005) Front Suspension - Shock Absorber and Brake Disc Parts Diagram

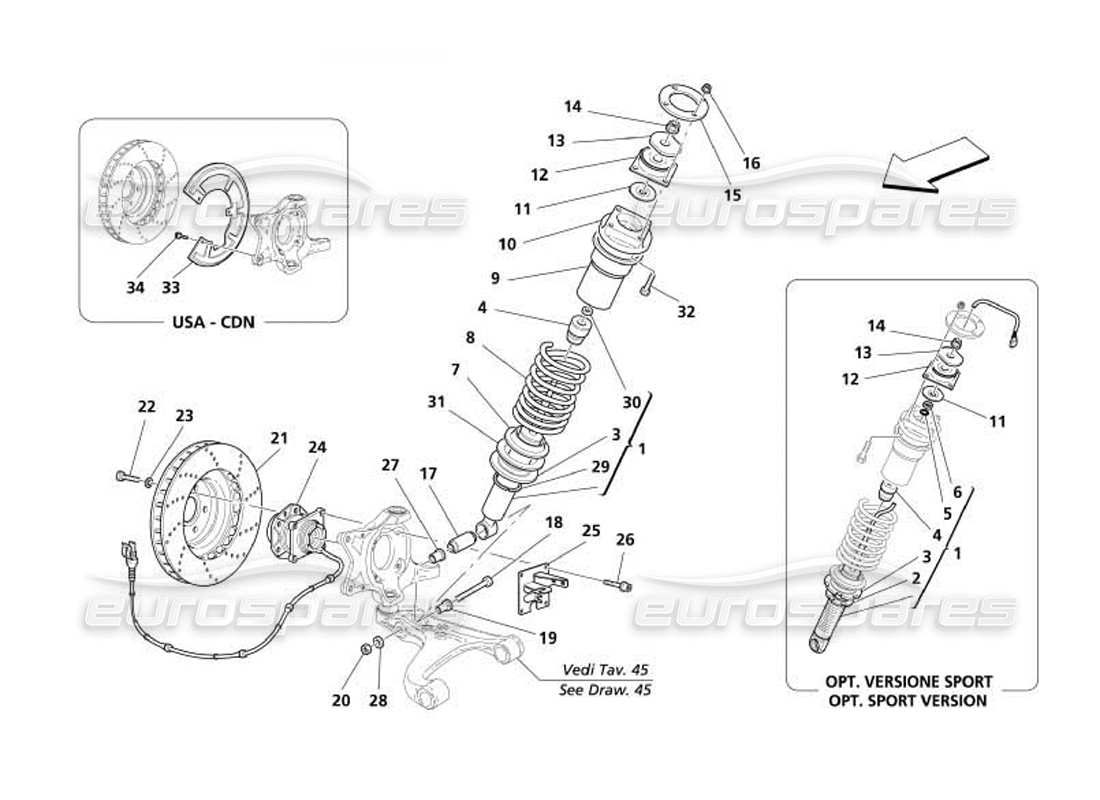

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 197641
                                        FRONT SHOCK ABSORBER
                                        Optional - Version sport
                                        from £515.79
                                        from £515.79
                                        # 001
                                        MPN: 200216
                                        FRONT SHOCK ABSORBER
                                        STANDARD
                                        from £287.75
                                        from £287.75
                                        This part replaces part number 195937 - and 1 more. Click to view details
                                        # 002
                                        MPN: 174726
                                        RING NUT
                                        Optional - Version sport
                                        from £39.49
                                        from £39.49
                                        # 003
                                        MPN: 183020
                                        LOWER SPACER
                                        Optional - Version sport
                                        from £391.43
                                        from £391.43
                                        # 003
                                        MPN: 386601380
                                        LOWER SPACER
                                        STANDARD
                                        from £65.11
                                        from £65.11
                                        # 004
                                        MPN: 197570
                                        SHOCK ABSORBER PAD
                                        from £42.99
                                        from £42.99
                                        # 005
                                        MPN: 183594
                                        FLEXIBLE RING
                                        Optional - Version sport
                                        from £22.12
                                        from £22.12
                                        # 006
                                        MPN: 183595
                                        BUSHING
                                        Optional - Version sport
                                        from £33.23
                                        from £33.23
                                        # 008
                                        MPN: 197890

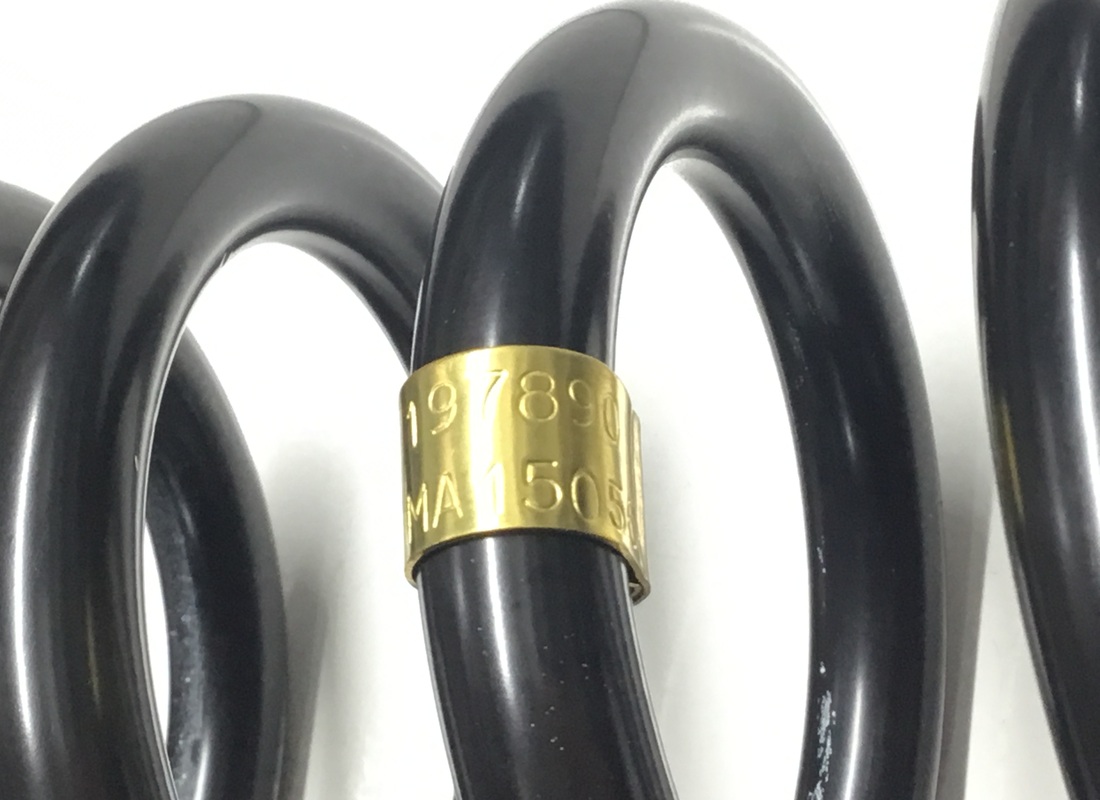

                                        SUSPENSION SPRING
                                        from £144.39
                                        from £144.39
                                        # 009
                                        MPN: 188993
                                        UPPER SPACER
                                        from £7.69
                                        from £7.69
                                        # 010
                                        MPN: 198057
                                        SPRING SUPPORT SPACER
                                        from £9.44
                                        from £9.44
                                        # 011
                                        MPN: 183016
                                        WASHER
                                        Optional - Version sport
                                        from £15.94
                                        from £15.94
                                        # 011
                                        MPN: 193235
                                        WASHER
                                        STANDARD
                                        from £3.25
                                        from £3.25
                                        # 012
                                        MPN: 183015
                                        HYPERBLOCK
                                        Optional - Version sport
                                        from £44.09
                                        from £44.09
                                        # 012
                                        MPN: 386600109
                                        HYPERBLOCK
                                        STANDARD
                                        from £83.87
                                        from £83.87
                                        This part replaces part number 114812 which we have in stock
                                        # 013
                                        MPN: 189110
                                        WASHER
                                        Optional - Version sport
                                        from £3.97
                                        from £3.97
                                        # 013
                                        MPN: 387000340
                                        WASHER
                                        STANDARD
                                        from £3.25
                                        from £3.25
                                        # 014
                                        MPN: 137826
                                        NUT
                                        STANDARD
                                        from £1.74
                                        from £1.74
                                        # 014
                                        MPN: 183417
                                        NUT
                                        Optional - Version sport
                                        Supersession
                                        Supersession
                                        # 015
                                        MPN: 198719
                                        SPACER FOR SHOCK ABSORBER
                                        THICKNESS MM. 4
                                        from £6.50
                                        from £6.50
                                        # 016
                                        MPN: 14058521
                                        NUT
                                        from £0.97
                                        from £0.97
                                        # 017
                                        MPN: 157630
                                        SILENT BLOCK BUSH
                                        from £48.50
                                        from £48.50
                                        # 018
                                        MPN: 16241234
                                        SCREW
                                        from £5.63
                                        from £5.63
                                        # 019
                                        MPN: 187059
                                        BUSHING
                                        from £8.89
                                        from £8.89
                                        # 020
                                        MPN: 14076011
                                        NUT
                                        from £4.20
                                        from £4.20
                                        # 021
                                        MPN: 387210321

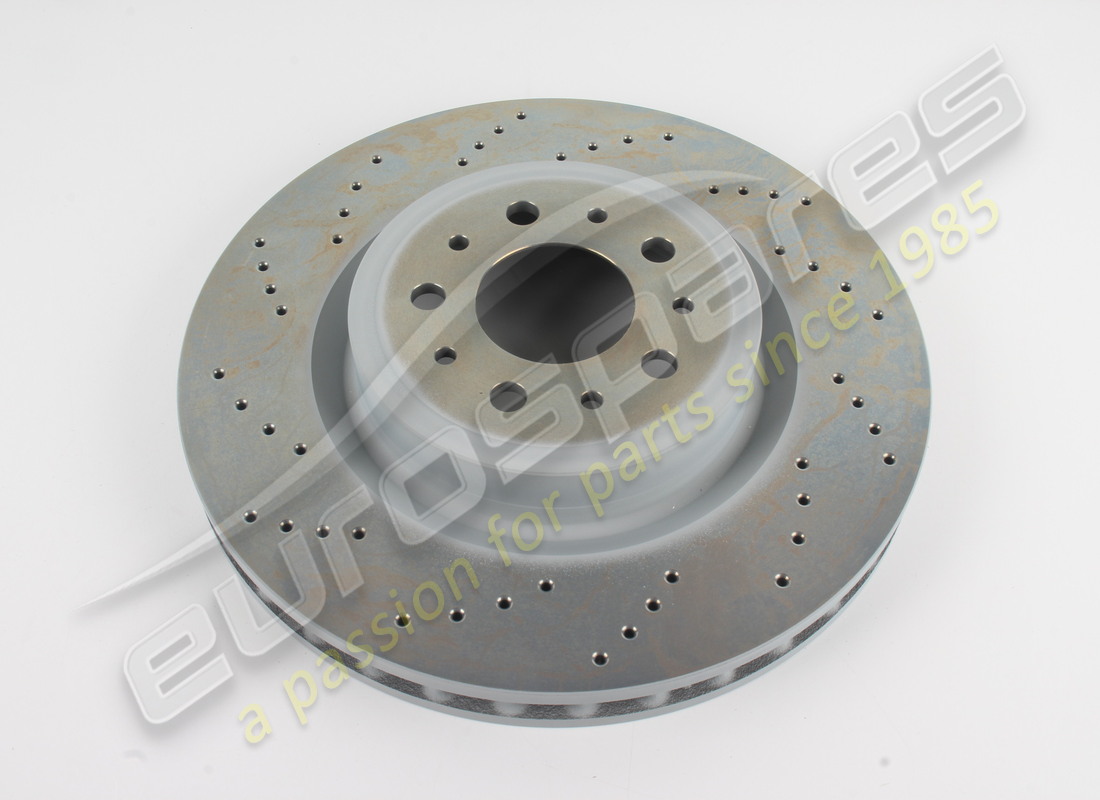

                                        FRONT BRAKE DISC
                                        from £173.84
                                        from £173.84
                                        This part replaces part number 387205321
                                        # 022
                                        MPN: 16043411
                                        SCREW
                                        from £0.88
                                        from £0.88
                                        # 023
                                        MPN: 10571779
                                        WASHER
                                        from £0.47
                                        from £0.47
                                        # 024
                                        MPN: 197064
                                        BEARING FOR WHEEL
                                        from £533.36
                                        from £533.36
                                        # 025
                                        MPN: 202758
                                        PLATE FOR LH HUB HOLDER
                                        from £38.12
                                        from £38.12
                                        # 025
                                        MPN: 202760
                                        PLATE FOR RH HUB HOLDER
                                        from £38.12
                                        from £38.12
                                        # 026
                                        MPN: 191238
                                        SCREW
                                        Supersession
                                        Supersession
                                        This part replaces part number 14308024
                                        # 027
                                        MPN: 191823
                                        BUSHING
                                        from £8.89
                                        from £8.89
                                        # 028
                                        MPN: 10738021
                                        WASHER
                                        from £0.76
                                        from £0.76
                                        # 029
                                        MPN: 386601381
                                        SPACER STOP RING
                                        STANDARD
                                        from £4.28
                                        from £4.28
                                        # 030
                                        MPN: 386600329
                                        SPACER FOR PAD SUPPORT
                                        STANDARD
                                        from £18.24
                                        from £18.24
                                        # 031
                                        MPN: 386601393
                                        THICKNESS
                                        MM. 2,5 - Standard
                                        from £3.80
                                        from £3.80
                                        # 031
                                        MPN: 386601394
                                        THICKNESS
                                        MM. 5 - Standard
                                        from £4.67
                                        from £4.67
                                        # 032
                                        MPN: 16044124
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        # 033
                                        MPN: 193730
                                        LH FRONT BRAKE DISC SHIELD
                                        Valid for USA and CDN
                                        from £20.95
                                        from £20.95
                                        # 033
                                        MPN: 193731
                                        RH FRONT BRAKE DISC SHIELD
                                        Valid for USA and CDN
                                        from £20.95
                                        from £20.95
                                        # 034
                                        MPN: 193737
                                        SCREW
                                        Valid for USA and CDN
                                        Supersession
                                        Supersession
