maserati 4200 gransport (2005) crankcase parts diagram

001 - crankcase

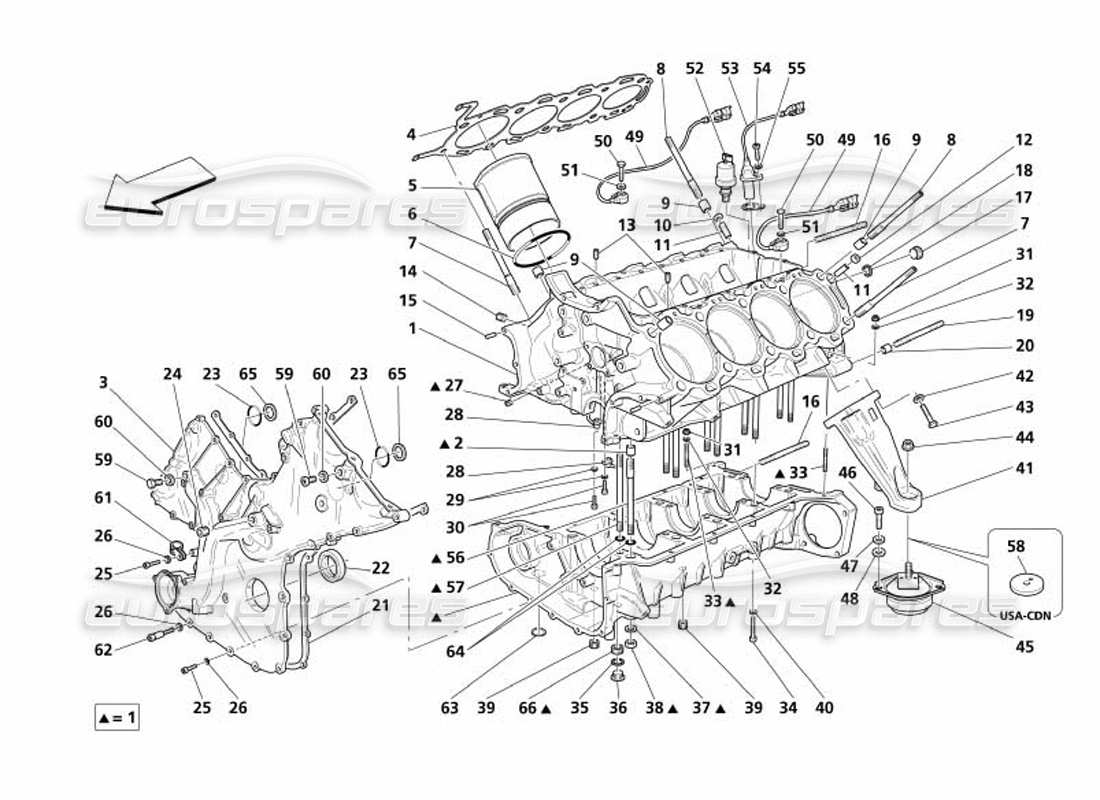

Maserati 4200 Gransport (2005) Crankcase Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 00
                                                                                                                    MPN: 736043087
                                                                                                                    COMPLETE ENGINE
                                                                                                                    from £4,995.00
                                                                                                                    from £4,995.00
                                                                                                                    # 000
                                                                                                                    MPN: 980020001
                                                                                                                    HEAD OVERHAUL GASKET KIT
                                                                                                                    Valid till stock exhaustion
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 000
                                                                                                                    MPN: 980020002
                                                                                                                    CRANKCASE GASKET KIT
                                                                                                                    Valid till stock exhaustion
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 000
                                                                                                                    MPN: 980020004
                                                                                                                    CRANKCASE GASKET KIT
                                                                                                                    Valid after stock exhaustion of 980020002
                                                                                                                    from £109.51
                                                                                                                    from £109.51
                                                                                                                    This part replaces part number 980020002
                                                                                                                    # 000
                                                                                                                    MPN: 980020006
                                                                                                                    HEAD OVERHAUL GASKET KIT
                                                                                                                    Valid after stock exhaustion of 980020001
                                                                                                                    from £55.42
                                                                                                                    from £55.42
                                                                                                                    This part replaces part number 980020001
                                                                                                                    # 001
                                                                                                                    MPN: 210160
                                                                                                                    COMPLETE CRANKCASE
                                                                                                                    from £1,779.14
                                                                                                                    from £1,779.14
                                                                                                                    # 002
                                                                                                                    MPN: 176421
                                                                                                                    CENTERING DOWEL
                                                                                                                    from £2.55
                                                                                                                    from £2.55
                                                                                                                    # 003
                                                                                                                    MPN: 221366
                                                                                                                    FRONT COVER
                                                                                                                    not available as spare parts
                                                                                                                    from £194.25
                                                                                                                    from £194.25
                                                                                                                    This part replaces part number 188710 - and 1 more. Click to view details
                                                                                                                    # 004
                                                                                                                    MPN: 184966
                                                                                                                    RH HEAD GASKET
                                                                                                                    Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
                                                                                                                    from £41.59
                                                                                                                    from £41.59
                                                                                                                    # 004
                                                                                                                    MPN: 184967
                                                                                                                    LH HEAD GASKET
                                                                                                                    Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
                                                                                                                    from £41.59
                                                                                                                    from £41.59
                                                                                                                    # 005
                                                                                                                    MPN: 190770
                                                                                                                    CYLINDER LINER
                                                                                                                    from £109.50
                                                                                                                    from £109.50
                                                                                                                    # 006
                                                                                                                    MPN: 186251
                                                                                                                    GASKET
                                                                                                                    Supplied also in the crankcasegasket revision kit (cod. 980020004)
                                                                                                                    from £1.56
                                                                                                                    from £1.56
                                                                                                                    # 007
                                                                                                                    MPN: 194754
                                                                                                                    STUD
                                                                                                                    from £4.33
                                                                                                                    from £4.33
                                                                                                                    # 008
                                                                                                                    MPN: 194755
                                                                                                                    STUD
                                                                                                                    from £4.33
                                                                                                                    from £4.33
                                                                                                                    # 009
                                                                                                                    MPN: 185360
                                                                                                                    CENTERING DOWEL
                                                                                                                    from £1.75
                                                                                                                    from £1.75
                                                                                                                    # 010
                                                                                                                    MPN: 194773
                                                                                                                    DOWEL
                                                                                                                    from £5.57
                                                                                                                    from £5.57
                                                                                                                    # 011
                                                                                                                    MPN: 156862
                                                                                                                    NONRETURN VALVE
                                                                                                                    from £5.14
                                                                                                                    from £5.14
                                                                                                                    # 012
                                                                                                                    MPN: 184045
                                                                                                                    DOWEL
                                                                                                                    from £5.57
                                                                                                                    from £5.57
                                                                                                                    # 013
                                                                                                                    MPN: 177727
                                                                                                                    CENTERING DOWEL
                                                                                                                    from £1.54
                                                                                                                    from £1.54
                                                                                                                    # 014
                                                                                                                    MPN: 164400
                                                                                                                    THREADED PLUG
                                                                                                                    from £1.93
                                                                                                                    from £1.93
                                                                                                                    # 015
                                                                                                                    MPN: 175611
                                                                                                                    CENTERING DOWEL
                                                                                                                    from £1.02
                                                                                                                    from £1.02
                                                                                                                    # 016
                                                                                                                    MPN: 13546734
                                                                                                                    STUD
                                                                                                                    from £0.68
                                                                                                                    from £0.68
                                                                                                                    # 016
                                                                                                                    MPN: 13546834
                                                                                                                    STUD
                                                                                                                    from £0.81
                                                                                                                    from £0.81
                                                                                                                    # 017
                                                                                                                    MPN: 193885
                                                                                                                    THREADED PLUG
                                                                                                                    from £1.87
                                                                                                                    from £1.87
                                                                                                                    # 018
                                                                                                                    MPN: 10263460
                                                                                                                    GASKET
                                                                                                                    Supplied also in the crankcasegasket revision kit (cod. 980020004)
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10261830
                                                                                                                    # 019
                                                                                                                    MPN: 13546934
                                                                                                                    STUD
                                                                                                                    from £1.06
                                                                                                                    from £1.06
                                                                                                                    # 019
                                                                                                                    MPN: 13547034
                                                                                                                    STUD
                                                                                                                    from £1.62
                                                                                                                    from £1.62
                                                                                                                    # 020
                                                                                                                    MPN: 100052
                                                                                                                    CENTERING DOWEL
                                                                                                                    from £1.39
                                                                                                                    from £1.39
                                                                                                                    # 021
                                                                                                                    MPN: 323979
                                                                                                                    FRONT COVER GASKET
                                                                                                                    from £29.52
                                                                                                                    from £29.52
                                                                                                                    This part replaces part number 245464
                                                                                                                    # 022
                                                                                                                    MPN: 188717
                                                                                                                    FRONT CRANKSHAFT SEAL
                                                                                                                    from £15.77
                                                                                                                    from £15.77
                                                                                                                    This part replaces part number 186883
                                                                                                                    # 023
                                                                                                                    MPN: 183010
                                                                                                                    O.R. GASKET
                                                                                                                    Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
                                                                                                                    from £0.93
                                                                                                                    from £0.93
                                                                                                                    # 024
                                                                                                                    MPN: 14324940
                                                                                                                    THREADED PLUG
                                                                                                                    from £1.08
                                                                                                                    from £1.08
                                                                                                                    # 025
                                                                                                                    MPN: 14303924
                                                                                                                    SCREW
                                                                                                                    M 6X70
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 025
                                                                                                                    MPN: 14305524
                                                                                                                    SCREW
                                                                                                                    M 6X30
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 025
                                                                                                                    MPN: 14305624
                                                                                                                    SCREW
                                                                                                                    M 6X35
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 025
                                                                                                                    MPN: 14305924
                                                                                                                    SCREW
                                                                                                                    M 6X45
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 14305921 - and 1 more. Click to view details
                                                                                                                    # 025
                                                                                                                    MPN: 14306024
                                                                                                                    SCREW
                                                                                                                    M 6X50
                                                                                                                    from £1.31
                                                                                                                    from £1.31
                                                                                                                    This part replaces part number 14306034 which we have in stock
                                                                                                                    # 025
                                                                                                                    MPN: 14432224
                                                                                                                    SCREW
                                                                                                                    M 6X22
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 025
                                                                                                                    MPN: 14433124
                                                                                                                    SCREW
                                                                                                                    M 6X18
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 026
                                                                                                                    MPN: 11197774
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 027
                                                                                                                    MPN: 13525770
                                                                                                                    THREADED INSERT
                                                                                                                    from £1.50
                                                                                                                    from £1.50
                                                                                                                    # 028
                                                                                                                    MPN: 175657
                                                                                                                    PISTONS COOLING NOZZLE
                                                                                                                    from £5.28
                                                                                                                    from £5.28
                                                                                                                    # 029
                                                                                                                    MPN: 11181474
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 030
                                                                                                                    MPN: 14302921
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 031
                                                                                                                    MPN: 132877
                                                                                                                    NUT
                                                                                                                    from £1.61
                                                                                                                    from £1.61
                                                                                                                    # 032
                                                                                                                    MPN: 12604274
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 033
                                                                                                                    MPN: 13541624
                                                                                                                    STUD
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 034
                                                                                                                    MPN: 14305324
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 14305321
                                                                                                                    # 034
                                                                                                                    MPN: 14305424
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 035
                                                                                                                    MPN: 10261860
                                                                                                                    GASKET
                                                                                                                    Supplied also in the crankcasegasket revision kit (cod. 980020004)
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 036
                                                                                                                    MPN: 104280
                                                                                                                    THREADED PLUG
                                                                                                                    from £4.95
                                                                                                                    from £4.95
                                                                                                                    # 037
                                                                                                                    MPN: 178348
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 038
                                                                                                                    MPN: 133988
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 186261
                                                                                                                    # 039
                                                                                                                    MPN: 14325140
                                                                                                                    THREADED PLUG
                                                                                                                    from £0.93
                                                                                                                    from £0.93
                                                                                                                    # 040
                                                                                                                    MPN: 11197774
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 041
                                                                                                                    MPN: 186029
                                                                                                                    RH ENGINE FIXING SUPPORT
                                                                                                                    from £42.09
                                                                                                                    from £42.09
                                                                                                                    # 041
                                                                                                                    MPN: 186030
                                                                                                                    LH ENGINE FIXING SUPPORT
                                                                                                                    from £42.09
                                                                                                                    from £42.09
                                                                                                                    # 042
                                                                                                                    MPN: 11190574
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 043
                                                                                                                    MPN: 11306934
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 044
                                                                                                                    MPN: 177018
                                                                                                                    NUT
                                                                                                                    from £0.60
                                                                                                                    from £0.60
                                                                                                                    # 045
                                                                                                                    MPN: 185361
                                                                                                                    ENGINE PAD
                                                                                                                    Alternative : 225839
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 046
                                                                                                                    MPN: 14307334
                                                                                                                    SCREW
                                                                                                                    from £5.49
                                                                                                                    from £5.49
                                                                                                                    # 047
                                                                                                                    MPN: 11198374
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 675000618
                                                                                                                    # 048
                                                                                                                    MPN: 14496624
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 049
                                                                                                                    MPN: 187739
                                                                                                                    SENSOR FOR FIRING
                                                                                                                    Flywheel side
                                                                                                                    from £55.69
                                                                                                                    from £55.69
                                                                                                                    This part replaces part number 182266 - and 1 more. Click to view details
                                                                                                                    # 049
                                                                                                                    MPN: 187740
                                                                                                                    SENSOR FOR FIRING
                                                                                                                    Timing side
                                                                                                                    from £32.74
                                                                                                                    from £32.74
                                                                                                                    This part replaces part number 181809
                                                                                                                    # 050
                                                                                                                    MPN: 16043834
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 16043824
                                                                                                                    # 051
                                                                                                                    MPN: 11198074
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 052
                                                                                                                    MPN: 135940
                                                                                                                    OIL PRESSURE TRANSMITTER
                                                                                                                    from £51.61
                                                                                                                    from £51.61
                                                                                                                    # 053
                                                                                                                    MPN: 182194
                                                                                                                    ANGOLAR SPEED SENSOR
                                                                                                                    from £48.44
                                                                                                                    from £48.44
                                                                                                                    # 054
                                                                                                                    MPN: 14305724
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 055
                                                                                                                    MPN: 11197774
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 056
                                                                                                                    MPN: 194756
                                                                                                                    STUD
                                                                                                                    from £2.68
                                                                                                                    from £2.68
                                                                                                                    # 057
                                                                                                                    MPN: 194757
                                                                                                                    STUD
                                                                                                                    from £4.02
                                                                                                                    from £4.02
                                                                                                                    # 058
                                                                                                                    MPN: 191791
                                                                                                                    PAD UPPER SHIELD
                                                                                                                    Valid for USA and CDN
                                                                                                                    from £2.83
                                                                                                                    from £2.83
                                                                                                                    # 059
                                                                                                                    MPN: 187718
                                                                                                                    BLEEDER PLUG
                                                                                                                    from £3.65
                                                                                                                    from £3.65
                                                                                                                    # 060
                                                                                                                    MPN: 10284460
                                                                                                                    GASKET
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 061
                                                                                                                    MPN: 10441590
                                                                                                                    BRACKET WITH SHEATH
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 062
                                                                                                                    MPN: 190876
                                                                                                                    STUD
                                                                                                                    from £14.19
                                                                                                                    from £14.19
                                                                                                                    This part replaces part number 585412900
                                                                                                                    # 063
                                                                                                                    MPN: 10158801
                                                                                                                    PLUG
                                                                                                                    from £0.71
                                                                                                                    from £0.71
                                                                                                                    # 064
                                                                                                                    MPN: 134704
                                                                                                                    O.R. GASKET
                                                                                                                    from £0.94
                                                                                                                    from £0.94
                                                                                                                    # 065
                                                                                                                    MPN: 191620
                                                                                                                    REDUCTION
                                                                                                                    from £12.21
                                                                                                                    from £12.21
                                                                                                                    # 066
                                                                                                                    MPN: 112254
                                                                                                                    THREADED INSERT
                                                                                                                    from £2.15
                                                                                                                    from £2.15
