Maserati 4200 Gransport (2005) Secondary Air System Parts Diagram

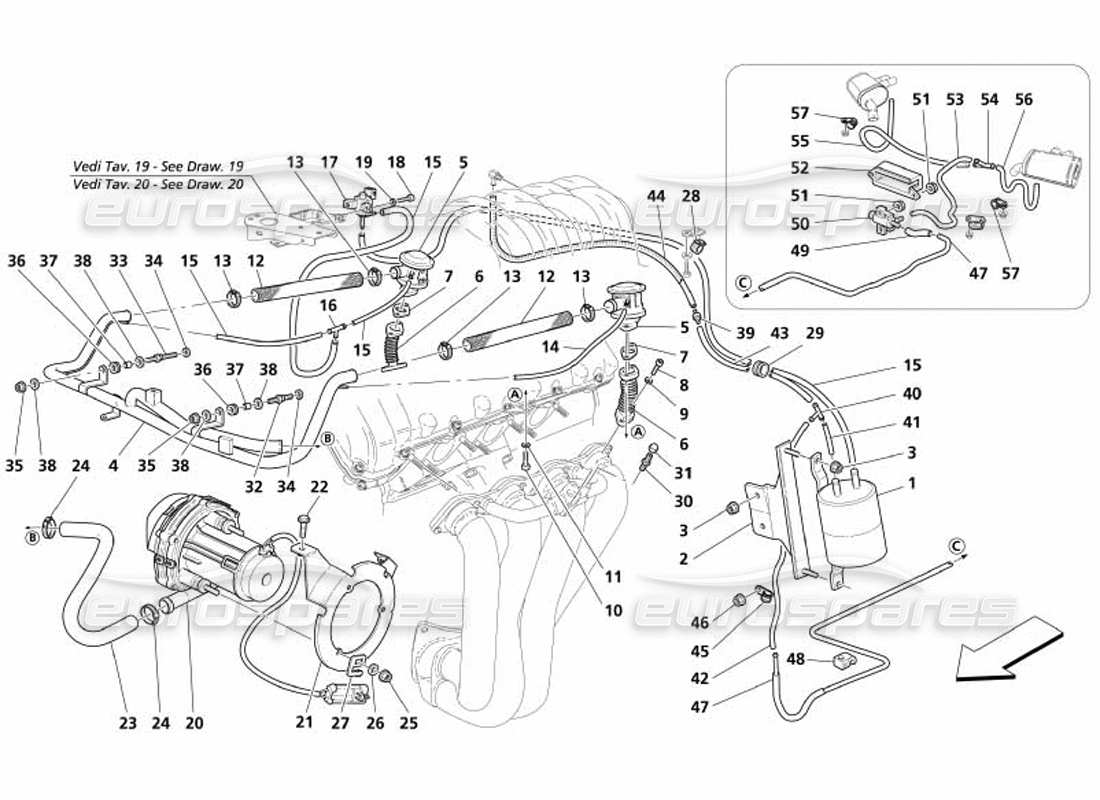

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                #
                                                                                                                Part number
                                                                                                                Description
                                                                                                                Price
                                                                                                                # 001
                                                                                                                MPN: 210189
                                                                                                                VACUUM TANK
                                                                                                                from £52.50
                                                                                                                from £52.50
                                                                                                                # 002
                                                                                                                MPN: 208281
                                                                                                                BRACKET
                                                                                                                from £7.41
                                                                                                                from £7.41
                                                                                                                # 003
                                                                                                                MPN: 14040614
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 004
                                                                                                                MPN: 195065
                                                                                                                AIR DELIVERY TUBE TO VALVES
                                                                                                                Valid for GD
                                                                                                                from £128.00
                                                                                                                from £128.00
                                                                                                                # 004
                                                                                                                MPN: 195066
                                                                                                                AIR DELIVERY TUBE TO VALVES
                                                                                                                Not for GD
                                                                                                                from £72.41
                                                                                                                from £72.41
                                                                                                                # 006
                                                                                                                MPN: 186274
                                                                                                                SECONDARY AIR VALVE PIPE
                                                                                                                from £48.36
                                                                                                                from £48.36
                                                                                                                # 007
                                                                                                                MPN: 186781
                                                                                                                GASKET
                                                                                                                from £2.94
                                                                                                                from £2.94
                                                                                                                # 008
                                                                                                                MPN: 14305724
                                                                                                                SCREW
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 009
                                                                                                                MPN: 127494
                                                                                                                WASHER
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 010
                                                                                                                MPN: 14433124
                                                                                                                SCREW
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 011
                                                                                                                MPN: 127494
                                                                                                                WASHER
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 013
                                                                                                                MPN: 178054
                                                                                                                CLAMP
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 014
                                                                                                                MPN: 147125
                                                                                                                LH RUBBER HOSE
                                                                                                                from £10.70
                                                                                                                from £10.70
                                                                                                                # 015
                                                                                                                MPN: 300100803
                                                                                                                RUBBER HOSE
                                                                                                                Supplied in meters - (Minimum quantity 1m. or multiples)
                                                                                                                from £56.39
                                                                                                                from £56.39
                                                                                                                This part replaces part number 318720329
                                                                                                                # 016
                                                                                                                MPN: 146972
                                                                                                                3-WAY UNION
                                                                                                                from £2.87
                                                                                                                from £2.87
                                                                                                                # 017
                                                                                                                MPN: 315769
                                                                                                                ON/OFF SOLENOID VALVE
                                                                                                                from £16.18
                                                                                                                from £16.18
                                                                                                                This part replaces part number 184363
                                                                                                                # 018
                                                                                                                MPN: 14304224
                                                                                                                SCREW
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 019
                                                                                                                MPN: 12601174
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 675000100
                                                                                                                # 021
                                                                                                                MPN: 184837
                                                                                                                BRACKET
                                                                                                                from £15.15
                                                                                                                from £15.15
                                                                                                                # 022
                                                                                                                MPN: 16296924
                                                                                                                SCREW
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 023
                                                                                                                MPN: 190992
                                                                                                                STUD
                                                                                                                from £16.70
                                                                                                                from £16.70
                                                                                                                # 024
                                                                                                                MPN: 178054
                                                                                                                CLAMP
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 025
                                                                                                                MPN: 102948
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 026
                                                                                                                MPN: 12601274
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 12601270
                                                                                                                # 027
                                                                                                                MPN: 162606
                                                                                                                CLIP
                                                                                                                from £0.76
                                                                                                                from £0.76
                                                                                                                # 028
                                                                                                                MPN: 159740
                                                                                                                CLIP
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 029
                                                                                                                MPN: 388100423
                                                                                                                RUBBER
                                                                                                                from £1.59
                                                                                                                from £1.59
                                                                                                                # 030
                                                                                                                MPN: 152630
                                                                                                                THREADED UNION
                                                                                                                from £45.55
                                                                                                                from £45.55
                                                                                                                # 031
                                                                                                                MPN: 150595
                                                                                                                CAP NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 032
                                                                                                                MPN: 194436
                                                                                                                STUD
                                                                                                                from £36.33
                                                                                                                from £36.33
                                                                                                                # 033
                                                                                                                MPN: 194437
                                                                                                                STUD
                                                                                                                from £10.65
                                                                                                                from £10.65
                                                                                                                # 034
                                                                                                                MPN: 11197774
                                                                                                                WASHER
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                # 035
                                                                                                                MPN: 159601
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 036
                                                                                                                MPN: 315520375
                                                                                                                SUPPORT
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 037
                                                                                                                MPN: 397850624
                                                                                                                SPACER
                                                                                                                from £2.46
                                                                                                                from £2.46
                                                                                                                # 038
                                                                                                                MPN: 14498801
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 039
                                                                                                                MPN: 62507200
                                                                                                                NONRETURN VALVE
                                                                                                                from £14.16
                                                                                                                from £14.16
                                                                                                                # 040
                                                                                                                MPN: 146972
                                                                                                                3-WAY UNION
                                                                                                                from £2.87
                                                                                                                from £2.87
                                                                                                                # 041
                                                                                                                MPN: 121831
                                                                                                                RUBBER HOSE
                                                                                                                from £1.37
                                                                                                                from £1.37
                                                                                                                # 042
                                                                                                                MPN: 211475
                                                                                                                RUBBER HOSE
                                                                                                                from £2.46
                                                                                                                from £2.46
                                                                                                                # 043
                                                                                                                MPN: 115148
                                                                                                                RUBBER HOSE
                                                                                                                from £3.76
                                                                                                                from £3.76
                                                                                                                # 044
                                                                                                                MPN: 124347
                                                                                                                RUBBER HOSE
                                                                                                                from £6.29
                                                                                                                from £6.29
                                                                                                                # 045
                                                                                                                MPN: 10418401
                                                                                                                BRACKET WITH SHEATH
                                                                                                                from £1.59
                                                                                                                from £1.59
                                                                                                                # 046
                                                                                                                MPN: 14059214
                                                                                                                NUT M6
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 12578121
                                                                                                                # 047
                                                                                                                MPN: 208359
                                                                                                                RIGID PIPE
                                                                                                                from £35.79
                                                                                                                from £35.79
                                                                                                                # 048
                                                                                                                MPN: 169477
                                                                                                                CLIP
                                                                                                                from £0.99
                                                                                                                from £0.99
                                                                                                                # 050
                                                                                                                MPN: 315769
                                                                                                                ON/OFF SOLENOID VALVE
                                                                                                                from £16.18
                                                                                                                from £16.18
                                                                                                                This part replaces part number 184363
                                                                                                                # 051
                                                                                                                MPN: 14040514
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 052
                                                                                                                MPN: 211068
                                                                                                                SHIELD
                                                                                                                from £12.84
                                                                                                                from £12.84
                                                                                                                # 053
                                                                                                                MPN: 163094
                                                                                                                RUBBER HOSE
                                                                                                                from £8.46
                                                                                                                from £8.46
                                                                                                                # 054
                                                                                                                MPN: 146972
                                                                                                                3-WAY UNION
                                                                                                                from £2.87
                                                                                                                from £2.87
                                                                                                                # 055
                                                                                                                MPN: 208461
                                                                                                                RH RUBBER HOSE
                                                                                                                from £46.49
                                                                                                                from £46.49
                                                                                                                # 056
                                                                                                                MPN: 208460
                                                                                                                LH RUBBER HOSE
                                                                                                                from £26.75
                                                                                                                from £26.75
                                                                                                                # 057
                                                                                                                MPN: 10441390
                                                                                                                BRACKET WITH SHEATH
                                                                                                                from £0.47
                                                                                                                from £0.47
