maserati 4200 gransport (2005) lay shaft gears parts diagram

030 - Lay Shaft Gears

Maserati 4200 Gransport (2005) Lay Shaft Gears Parts Diagram

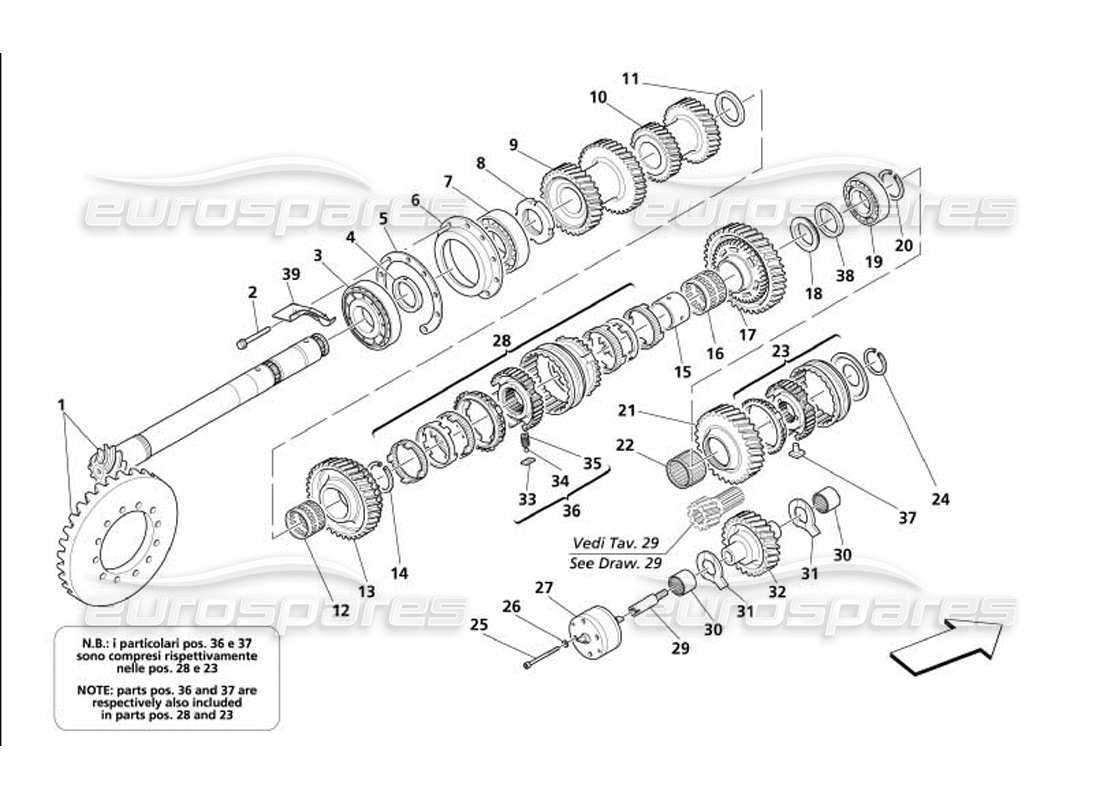

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 980138559
                                                                COMPLETE BEVEL SET
                                                                from £3,327.34
                                                                from £3,327.34
                                                                # 002
                                                                MPN: 16287731
                                                                SCREW
                                                                from £1.11
                                                                from £1.11
                                                                # 003
                                                                MPN: 185022
                                                                ROLLER BEARING
                                                                from £85.24
                                                                from £85.24
                                                                # 004
                                                                MPN: 185045
                                                                REGISTER RING
                                                                Thickness mm. 7,10
                                                                from £17.93
                                                                from £17.93
                                                                # 004
                                                                MPN: 185046
                                                                REGISTER RING
                                                                Thickness mm. 6,85 - Possible fitting
                                                                from £17.93
                                                                from £17.93
                                                                # 004
                                                                MPN: 185047
                                                                REGISTER RING
                                                                Thickness mm. 6,60 - Possible fitting
                                                                from £17.93
                                                                from £17.93
                                                                # 005
                                                                MPN: 185042
                                                                REGISTER RING
                                                                Thickness mm. 2,8
                                                                from £5.66
                                                                from £5.66
                                                                # 005
                                                                MPN: 185043
                                                                REGISTER RING
                                                                Thickness mm. 2,5 - Possible fitting
                                                                from £9.79
                                                                from £9.79
                                                                # 005
                                                                MPN: 185044
                                                                REGISTER RING
                                                                Thickness mm. 2,2 - Possible fitting
                                                                from £14.76
                                                                from £14.76
                                                                # 006
                                                                MPN: 185020
                                                                BEARING SUPPORT
                                                                from £75.24
                                                                from £75.24
                                                                # 007
                                                                MPN: 185021
                                                                ROLLER BEARING
                                                                from £75.53
                                                                from £75.53
                                                                # 009
                                                                MPN: 182287
                                                                3RD AND 4TH DRIVEN GEAR
                                                                from £221.39
                                                                from £221.39
                                                                # 010
                                                                MPN: 211815
                                                                5TH AND 6TH DRIVEN GEAR
                                                                from £200.32
                                                                from £200.32
                                                                # 011
                                                                MPN: 183974
                                                                RING
                                                                Thickness mm. 4,30
                                                                from £18.57
                                                                from £18.57
                                                                # 011
                                                                MPN: 185038
                                                                RING
                                                                Thickness mm. 3,95 - Possible fitting
                                                                from £17.93
                                                                from £17.93
                                                                # 011
                                                                MPN: 185039
                                                                RING
                                                                Thickness mm. 3,60 - Possible fitting
                                                                from £17.93
                                                                from £17.93
                                                                # 012
                                                                MPN: 184014
                                                                ROLLER CAGE
                                                                from £10.28
                                                                from £10.28
                                                                # 013
                                                                MPN: 182293
                                                                COMPLETE PINION FOR 2ND GEAR
                                                                from £147.39
                                                                from £147.39
                                                                # 014
                                                                MPN: 183976
                                                                FLEXIBLE RING
                                                                Thickness mm. 2,10
                                                                from £6.62
                                                                from £6.62
                                                                # 014
                                                                MPN: 185036
                                                                FLEXIBLE RING
                                                                Thickness mm. 1,85 - Possible fitting
                                                                from £19.67
                                                                from £19.67
                                                                # 014
                                                                MPN: 185037
                                                                FLEXIBLE RING
                                                                Thickness mm. 1,60 - Possible fitting
                                                                from £23.34
                                                                from £23.34
                                                                # 015
                                                                MPN: 183971
                                                                BUSHING
                                                                from £43.35
                                                                from £43.35
                                                                # 016
                                                                MPN: 184016
                                                                ROLLER CAGE
                                                                from £12.61
                                                                from £12.61
                                                                # 017
                                                                MPN: 182299
                                                                COMPLETE PINION FOR 1ST GEAR
                                                                from £342.86
                                                                from £342.86
                                                                # 018
                                                                MPN: 183972
                                                                RING
                                                                Thickness mm. 5,10
                                                                from £42.03
                                                                from £42.03
                                                                # 018
                                                                MPN: 185040
                                                                RING
                                                                Thickness mm. 4,85 - Possible fitting
                                                                from £23.32
                                                                from £23.32
                                                                # 018
                                                                MPN: 185041
                                                                RING
                                                                Thickness mm. 4,60 - Possible fitting
                                                                from £20.61
                                                                from £20.61
                                                                # 019
                                                                MPN: 184020
                                                                ROLLER BEARING
                                                                from £77.89
                                                                from £77.89
                                                                # 020
                                                                MPN: 184042
                                                                FLEXIBLE RING
                                                                from £6.92
                                                                from £6.92
                                                                # 021
                                                                MPN: 199752
                                                                COMPLETE PINION FOR REVERSE GEAR
                                                                from £316.44
                                                                from £316.44
                                                                # 022
                                                                MPN: 184018
                                                                ROLLER CAGE
                                                                from £15.42
                                                                from £15.42
                                                                # 023
                                                                MPN: 326260
                                                                REVERSE GEAR COMPLETE SYNCHRONIZER
                                                                from £1,184.45
                                                                from £1,184.45
                                                                This part replaces part number 193439
                                                                # 024
                                                                MPN: 184041
                                                                FLEXIBLE RING
                                                                from £2.55
                                                                from £2.55
                                                                # 025
                                                                MPN: 14303624
                                                                SCREW
                                                                from £0.47
                                                                from £0.47
                                                                # 026
                                                                MPN: 10571379
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                # 027
                                                                MPN: 182279
                                                                COMPLETE OIL PUMP
                                                                from £337.36
                                                                from £337.36
                                                                # 028
                                                                MPN: 185164
                                                                1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                                from £718.52
                                                                from £718.52
                                                                # 029
                                                                MPN: 182415
                                                                PIN
                                                                from £45.28
                                                                from £45.28
                                                                # 030
                                                                MPN: 184017
                                                                ROLLER CASING
                                                                from £4.88
                                                                from £4.88
                                                                # 031
                                                                MPN: 183975
                                                                RING
                                                                from £14.04
                                                                from £14.04
                                                                # 032
                                                                MPN: 199737
                                                                IDLE GEAR FOR REVERSE
                                                                from £130.25
                                                                from £130.25
                                                                # 033
                                                                -
                                                                PAD FOR SYNCHRONIZER
                                                                # 034
                                                                -
                                                                BALL
                                                                # 035
                                                                -
                                                                SPRING FOR BALL
                                                                # 036
                                                                MPN: 188320
                                                                PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
                                                                from £6.75
                                                                from £6.75
                                                                # 037
                                                                MPN: 193440
                                                                PADS/SYNCHRO REVERSE GEAR KIT
                                                                from £2.32
                                                                from £2.32
                                                                This part replaces part number 193484
                                                                # 038
                                                                MPN: 182326
                                                                SPACER
                                                                from £38.63
                                                                from £38.63
                                                                # 039
                                                                MPN: 185713
                                                                OIL CONVEYOR
                                                                from £15.71
                                                                from £15.71
                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
