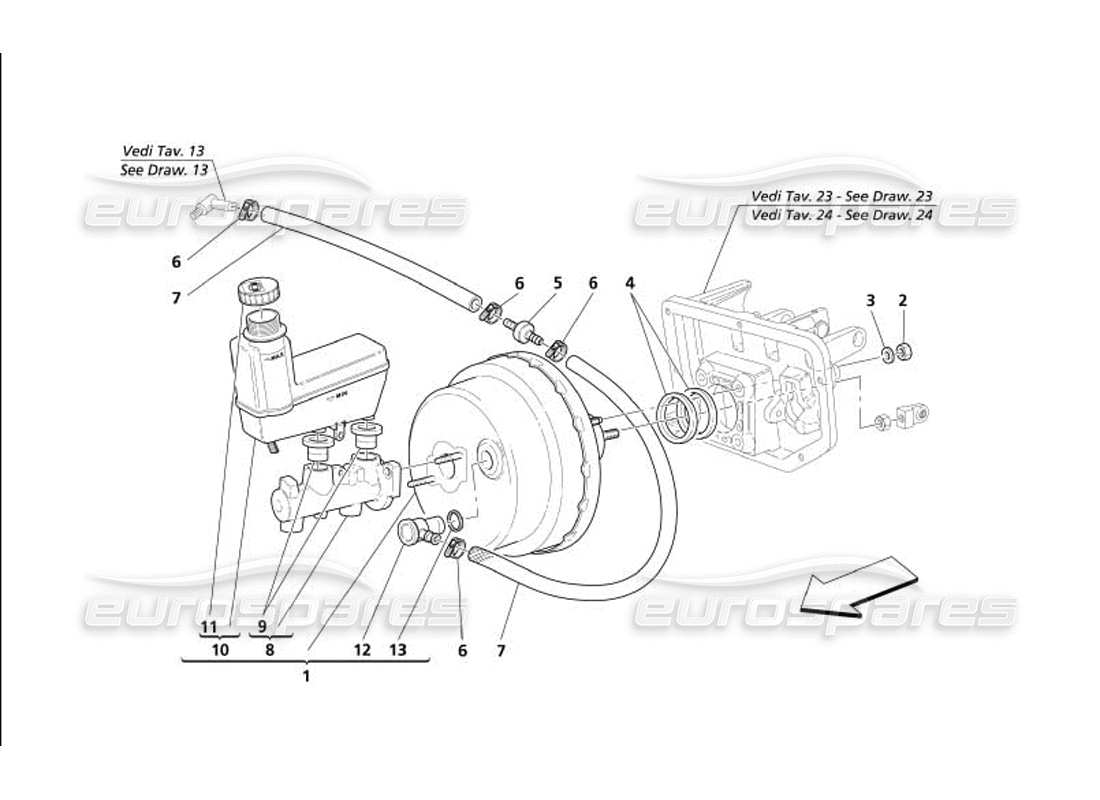

034 - Brakes Hydraulic Control
Maserati 4200 Gransport (2005) Brakes Hydraulic Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 196150
COMPLETE BRAKE BOOSTER
from £190.39
from £190.39
# 002
MPN: 16104421
NUT
from £0.81
from £0.81
# 003
MPN: 14496521
WASHER
from £0.51
from £0.51
# 004
MPN: 367402309
GASKET
from £1.60
from £1.60
# 005
MPN: 193186
DEPRESSION VALVE
from £6.90
from £6.90
# 006
MPN: 13000390
SCREW COLLAR
from £0.51
from £0.51
This part replaces part number 13121170 - and 1 more. Click to view details
# 007
MPN: 302220611
RUBBER HOSE
Supplied in meters - (Minimum quantity 1m. or multiples)
from £22.56
from £22.56
This part replaces part number 192978
