maserati 4200 gransport (2005) body - front outer trims parts diagram

100 - body - front outer trims

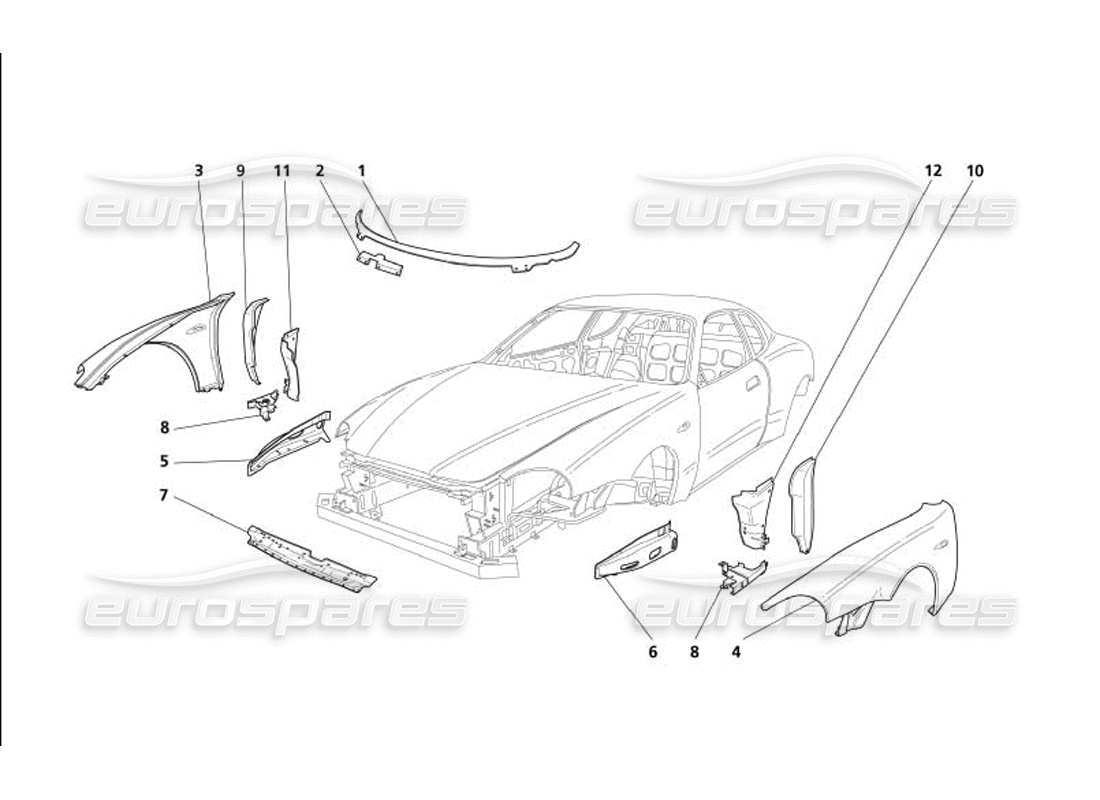

Maserati 4200 Gransport (2005) Body - Front Outer Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 000
                      MPN: 66678700
                      LHD BODYSHELL (USA)
                      # 000
                      MPN: 66678701
                      BODYSHELL
                      # 001
                      MPN: 66736500
                      COMPLETE UNDERWINDSCREEN FRAME
                      from £209.86
                      from £209.86
                      This part replaces part number 66196200
                      # 002
                      MPN: 66414000
                      SHIELD FOR WATER FIXING PLATE
                      Not for GD
                      from £18.76
                      from £18.76
                      # 002
                      MPN: 66726500
                      SHIELD FOR WATER FIXING PLATE
                      Valid for GD
                      from £18.76
                      from £18.76
                      # 003
                      MPN: 66605500
                      RH COMPLETE FENDER
                      STANDARD
                      from £467.25
                      from £467.25
                      This part replaces part number 65966800 - and 1 more. Click to view details

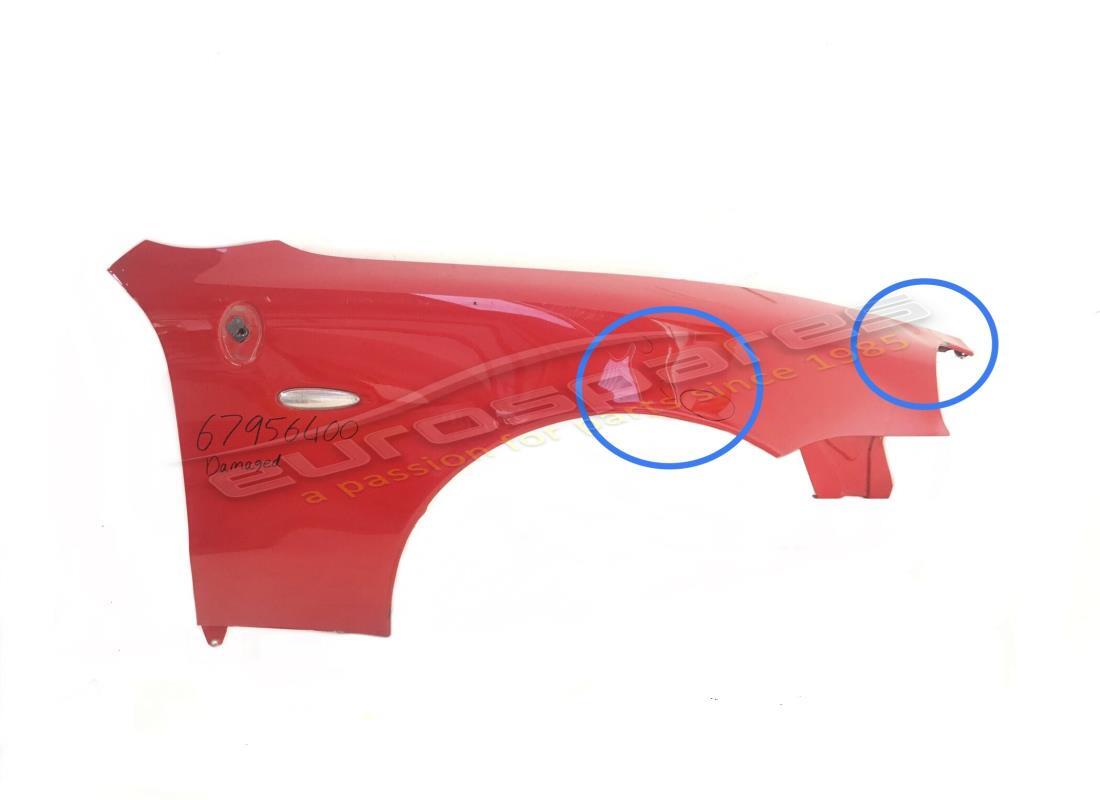

                      # 003
                      MPN: 67956400
                      RH COMPLETE FENDER
                      Optional- -Maserati mark in the front fender
                      from £456.75
                      from £456.75
                      # 004
                      MPN: 65966900
                      LH COMPLETE FENDER
                      STANDARD
                      from £917.47
                      from £917.47

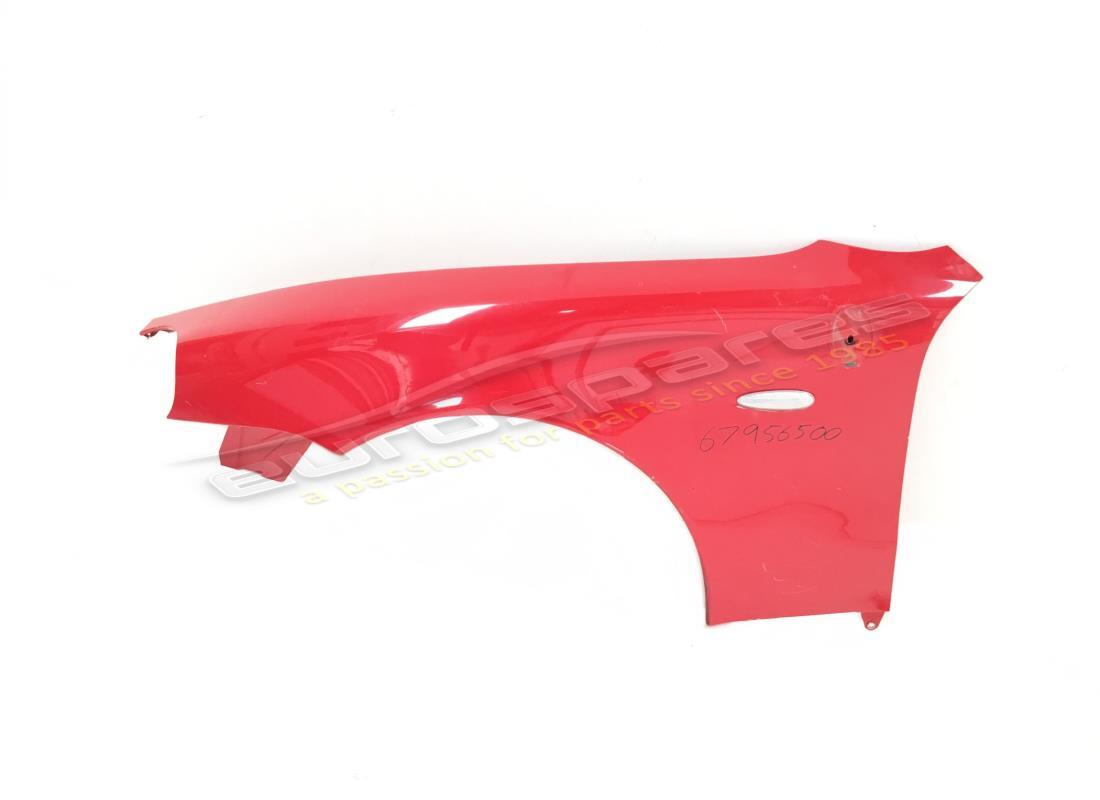

                      # 004
                      MPN: 67956500
                      LH COMPLETE FENDER
                      Optional- -Maserati mark in the front fender
                      from £519.75
                      from £519.75
                      # 005
                      MPN: 67236200
                      RH COMPLETE FRONT SPRAG
                      from £851.98
                      from £851.98
                      This part replaces part number 382500306
                      # 006
                      MPN: 67236300
                      LH COMPLETE FRONT SPRAG
                      from £851.98
                      from £851.98
                      This part replaces part number 382501305
                      # 007
                      MPN: 980001047
                      COMPLETE FRONT CROSS MEMBER
                      from £444.86
                      from £444.86
                      # 008
                      MPN: 66247000
                      BRACKET FOR LONGITUDINAL MEMBER
                      from £131.51
                      from £131.51
                      # 009
                      MPN: 382500308
                      RH FRONT FENDER LINKING
                      from £139.41
                      from £139.41
                      # 010
                      MPN: 382500307
                      LH FRONT FENDER LINKING
                      from £121.09
                      from £121.09
                      # 011
                      MPN: 980001174
                      COMPLETE RH FRONT ROD REINFORCEMENT
                      from £255.79
                      from £255.79
                      This part replaces part number 65957700
                      # 012
                      MPN: 980001173
                      COMPLETE LH FRONT ROD REINFORCEMENT
                      from £272.63
                      from £272.63
                      This part replaces part number 65957800
