maserati 4200 gransport (2005) front structure parts diagram

103 - front structure

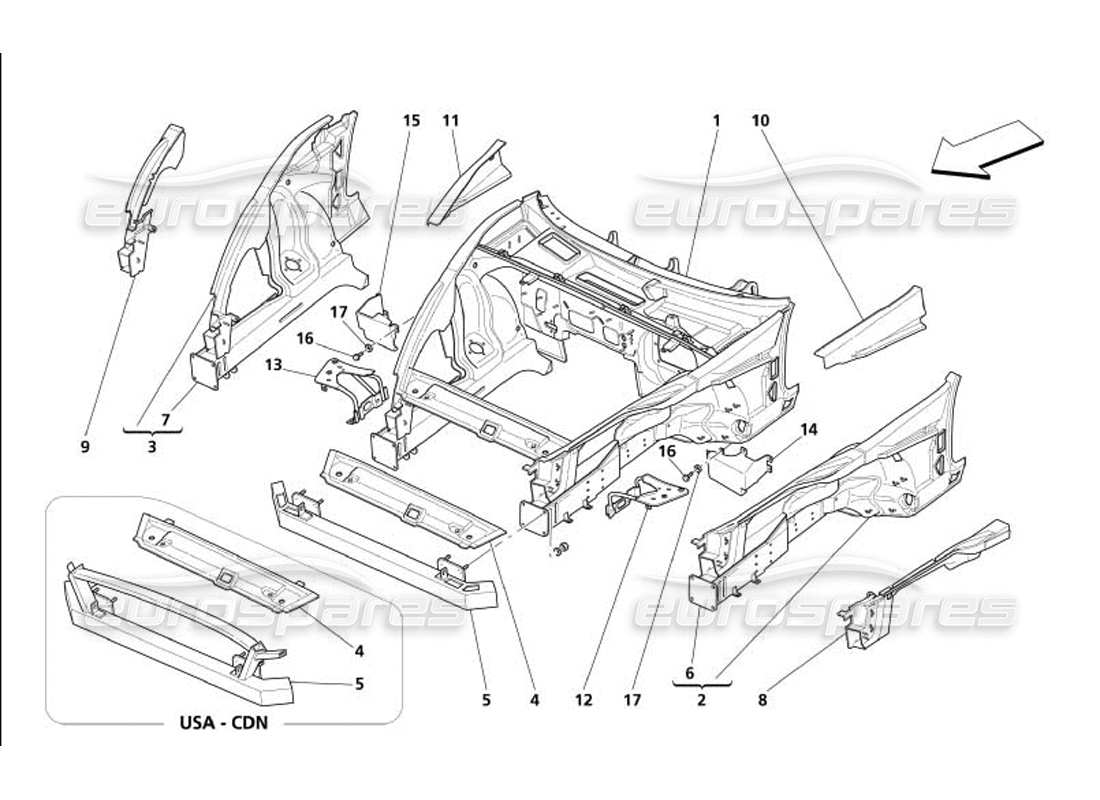

Maserati 4200 Gransport (2005) Front Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 980138025
                              COMPLETE FRONT FRAME
                              Not for USA, CDN and GD
                              from £3,975.99
                              from £3,975.99
                              # 001
                              MPN: 980138026
                              COMPLETE FRONT FRAME
                              Valid for USA and CDN
                              from £4,140.98
                              from £4,140.98
                              # 001
                              MPN: 980138027
                              COMPLETE FRONT FRAME
                              Valid for GD
                              from £4,510.29
                              from £4,510.29
                              # 002
                              MPN: 980001051
                              LH FRONT INNER LATERAL FRAME
                              from £1,500.88
                              from £1,500.88
                              # 003
                              MPN: 980001052
                              RH FRONT INNER LATERAL FRAME
                              from £1,217.97
                              from £1,217.97
                              # 004
                              MPN: 980001049
                              COMPLETE FRONT CROSS MEMBER
                              Not for USA and CDN
                              from £107.51
                              from £107.51
                              # 004
                              MPN: 980001170
                              COMPLETE FRONT CROSS MEMBER
                              Valid for USA and CDN
                              from £121.10
                              from £121.10
                              # 005
                              MPN: 66244400
                              FRONT BULL BAR
                              Not for USA and CDN
                              from £334.82
                              from £334.82
                              # 005
                              MPN: 66244500
                              FRONT BULL BAR
                              Valid for USA
                              from £307.74
                              from £307.74
                              # 005
                              MPN: 67015200
                              FRONT BULL BAR
                              Valid for CDN
                              from £551.65
                              from £551.65
                              # 006
                              MPN: 980001053
                              LH FRONT SPAR
                              from £297.15
                              from £297.15
                              # 007
                              MPN: 980001054
                              RH FRONT SPAR
                              from £297.15
                              from £297.15
                              # 008
                              MPN: 980001055
                              LH FRONT LATERAL FRAME
                              from £285.30
                              from £285.30
                              This part replaces part number 66305200
                              # 009
                              MPN: 980001056
                              RH FRONT LATERAL FRAME
                              from £264.83
                              from £264.83
                              This part replaces part number 66305100
                              # 010
                              MPN: 66305400
                              LH REAR LATERAL FRAME
                              from £63.36
                              from £63.36
                              # 011
                              MPN: 66305300
                              RH REAR LATERAL FRAME
                              from £63.36
                              from £63.36
                              # 012
                              MPN: 65965000
                              LH HEADLIGHT SUPPORTING BRAKET
                              from £287.70
                              from £287.70
                              # 013
                              MPN: 65964900
                              RH HEADLIGHT SUPPORTING BRAKET
                              from £286.04
                              from £286.04
                              # 014
                              MPN: 66248200
                              LH LONGITUDINAL MEMBER FRONT REINFORCEMENT
                              from £17.69
                              from £17.69
                              # 015
                              MPN: 66248100
                              RH LONGITUDINAL MEMBER FRONT REINFORCEMENT
                              from £17.69
                              from £17.69
                              # 016
                              MPN: 10902087
                              SCREW
                              from £0.49
                              from £0.49
                              # 017
                              MPN: 12644477
                              WASHER
                              from £0.71
                              from £0.71
