107 - REAR BUMPER

Maserati 4200 Gransport (2005) Rear Bumper Parts Diagram

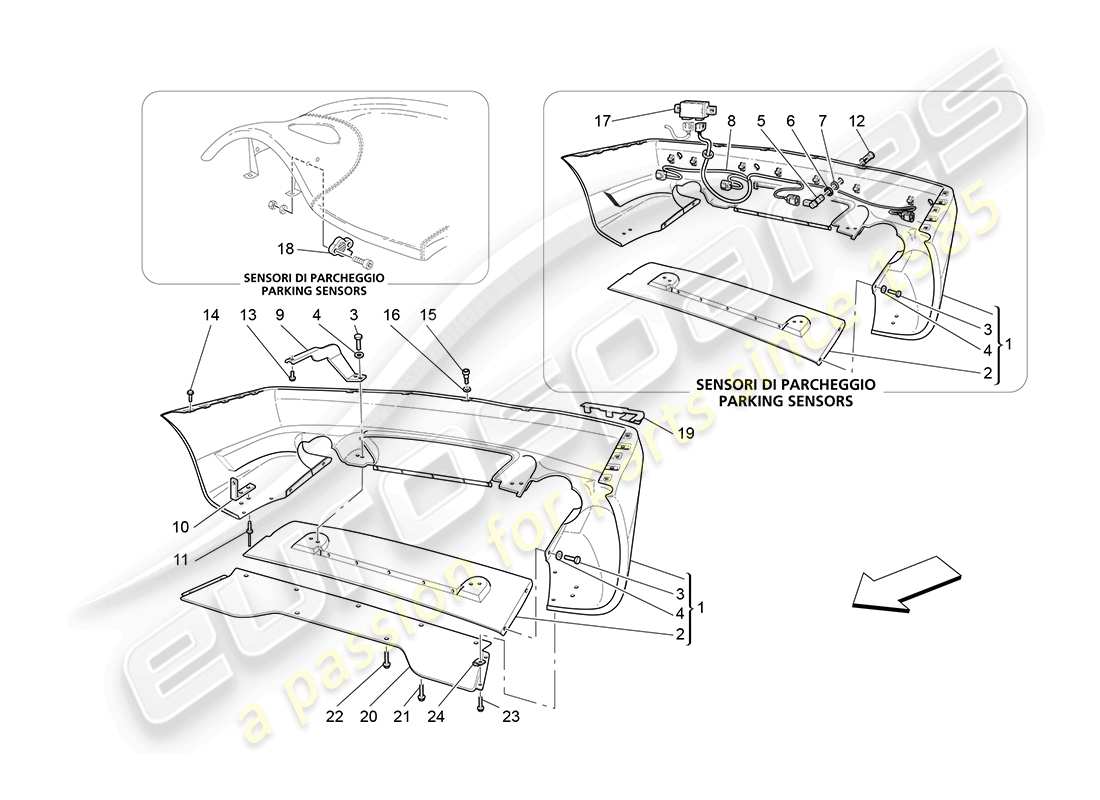

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 01
                                MPN: 980138248
                                COMPLETE REAR BUMPER
                                Standard- -Black nets- -Not for USA and CDN
                                from £908.08
                                from £908.08
                                # 01
                                MPN: 980138249
                                COMPLETE REAR BUMPER
                                Standard- -Chromate nets- -Not for USA and CDN
                                from £600.00
                                from £600.00
                                # 01
                                MPN: 980138250
                                COMPLETE REAR BUMPER
                                Optional- -Parking sensor- -Black nets- -Not for USA and CDN
                                from £1,514.69
                                from £1,514.69
                                # 01
                                MPN: 980138251
                                COMPLETE REAR BUMPER
                                Optional- -Parking sensor- -Chromate nets- -Not for USA and CDN
                                from £1,649.65
                                from £1,649.65
                                # 01
                                MPN: 980138252
                                COMPLETE REAR BUMPER
                                Standard- -Black nets- -Valid for USA and CDN
                                from £1,055.86
                                from £1,055.86
                                # 01
                                MPN: 980138253
                                COMPLETE REAR BUMPER
                                Standard- -Chromate nets- -Valid for USA and CDN
                                from £643.35
                                from £643.35
                                # 01
                                MPN: 980138254
                                COMPLETE REAR BUMPER
                                Optional- -Parking sensor- -Black nets- -Valid for USA and CDN
                                from £1,514.69
                                from £1,514.69
                                # 01
                                MPN: 980138255
                                COMPLETE REAR BUMPER
                                Optional- -Parking sensor- -Chromate nets- -Valid for USA and CDN
                                from £1,039.29
                                from £1,039.29
                                # 02
                                MPN: 980138256
                                SPOILER
                                from £795.12
                                from £795.12
                                # 03
                                MPN: 14305324
                                SCREW
                                from £0.47
                                from £0.47
                                This part replaces part number 14305321
                                # 04
                                MPN: 12643724
                                WASHER D 6,15-18X 1,5
                                from £0.47
                                from £0.47
                                # 05
                                MPN: 184929
                                PARKING SENSOR
                                Optional- -Parking sensor
                                from £131.80
                                from £131.80
                                # 06
                                MPN: 187677
                                RING NUT
                                Optional- -Parking sensor
                                from £26.52
                                from £26.52
                                # 07
                                MPN: 187678
                                SPACER
                                Optional- -Parking sensor
                                from £9.92
                                from £9.92
                                # 08
                                MPN: 200505
                                BUMPER PARKING SENSOR WIRING HARNESS
                                Optional- -Parking sensors- -Not for USA and CDN
                                from £118.27
                                from £118.27
                                This part replaces part number 186662 - and 1 more. Click to view details
                                # 09
                                MPN: 221029
                                SIDE MARKERS AND PARKING SENSOR LINKING CABLE
                                Optional- -Parking sensors- -Valid for USA and CDN
                                from £164.93
                                from £164.93
                                This part replaces part number 200509 - and 1 more. Click to view details
                                # 09
                                MPN: 68827400
                                RH BRACKET
                                from £154.77
                                from £154.77
                                # 09
                                MPN: 68827500
                                LH BRACKET
                                from £154.77
                                from £154.77
                                # 10
                                MPN: 66494900
                                BRACKET
                                from £7.90
                                from £7.90
                                # 11
                                MPN: 675000715
                                RIVET
                                from £1.10
                                from £1.10
                                # 12
                                MPN: 187679
                                OUTER SLEEVE
                                Optional- -Parking sensor
                                from £24.24
                                from £24.24
                                # 12
                                MPN: 187680
                                INNER SLEEVE
                                Optional- -Parking sensor
                                from £19.43
                                from £19.43
                                # 13
                                MPN: 16288321
                                SCREW
                                from £0.53
                                from £0.53
                                # 14
                                MPN: 7739729
                                SCREW
                                from £1.58
                                from £1.58
                                # 15
                                MPN: 51810310
                                SCREW
                                from £2.37
                                from £2.37
                                This part replaces part number 46419734
                                # 16
                                MPN: 67806700
                                WASHER
                                from £1.43
                                from £1.43
                                This part replaces part number 312552529
                                # 17
                                MPN: 193437
                                PARKING SENSOR ECU
                                Optional- -Parking sensor
                                from £173.84
                                from £173.84
                                This part replaces part number 184927 - and 1 more. Click to view details
                                # 18
                                MPN: 223469
                                PARKING SENSOR BUZZER
                                Optional- -Parking sensor- -Valid till stock exhaustion
                                from £15.17
                                from £15.17
                                This part replaces part number 184928 - and 1 more. Click to view details
                                # 18
                                MPN: 223469
                                PARKING SENSOR BUZZER
                                Optional- -Parking sensor- -Valid after stock exhaustion of 184928
                                from £15.17
                                from £15.17
                                This part replaces part number 184928 - and 1 more. Click to view details
                                # 19
                                MPN: 382500540
                                RH PLATE
                                from £40.26
                                from £40.26
                                # 19
                                MPN: 382500541
                                LH PLATE
                                from £40.26
                                from £40.26
                                # 20
                                MPN: 68331000
                                BUMPER LOWER SEAL
                                from £176.01
                                from £176.01
                                # 21
                                MPN: 51810310
                                SCREW
                                from £2.37
                                from £2.37
                                This part replaces part number 46419734
                                # 22
                                MPN: 10711227
                                SCREW M5X12
                                from £1.58
                                from £1.58
                                # 23
                                MPN: 67721000
                                SCREW M5
                                from £6.08
                                from £6.08
                                # 24
                                MPN: 67278700
                                BRACKET
                                from £2.37
                                from £2.37
                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
