115 - Trunk Hood Bonnet and Gas Door

Maserati 4200 Gransport (2005) Trunk Hood Bonnet and Gas Door Parts Diagram

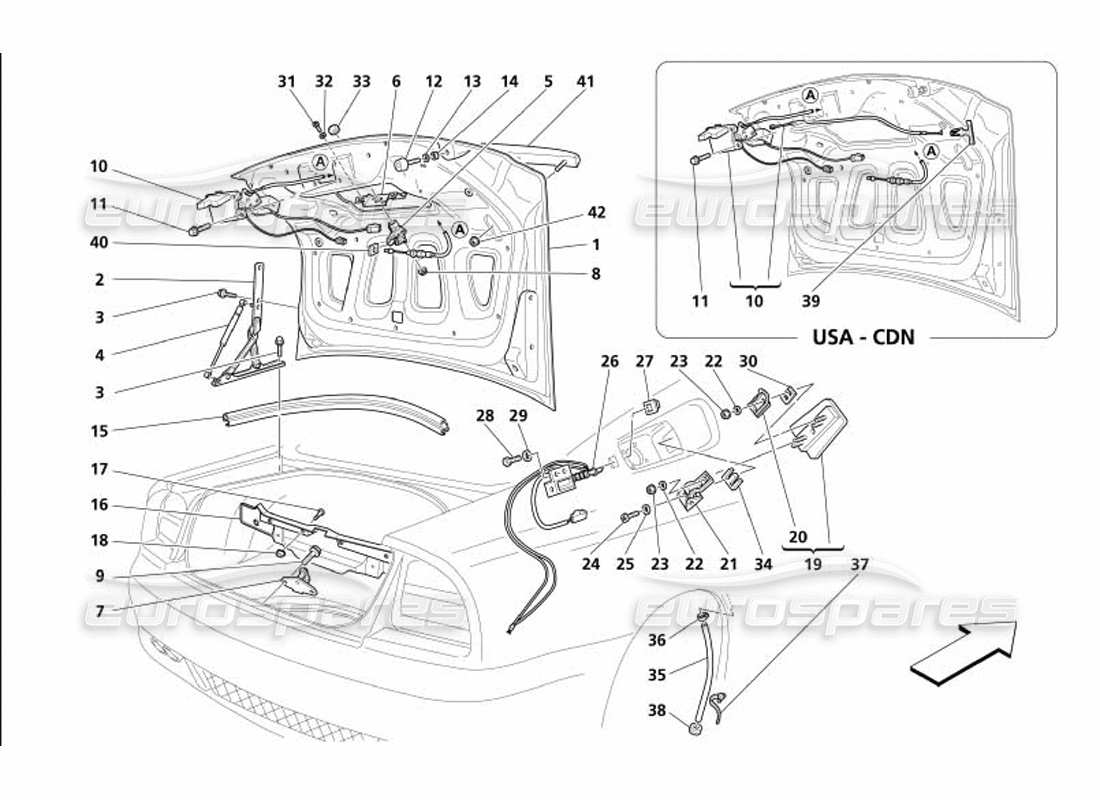

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 68289500

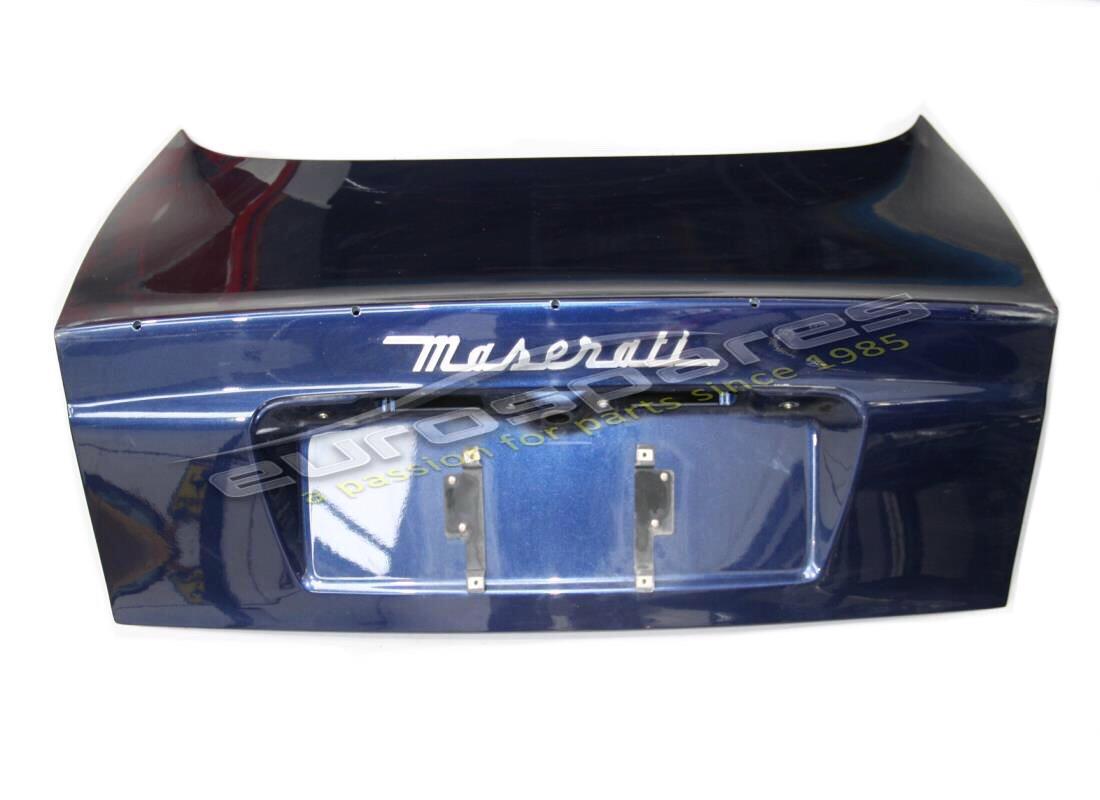

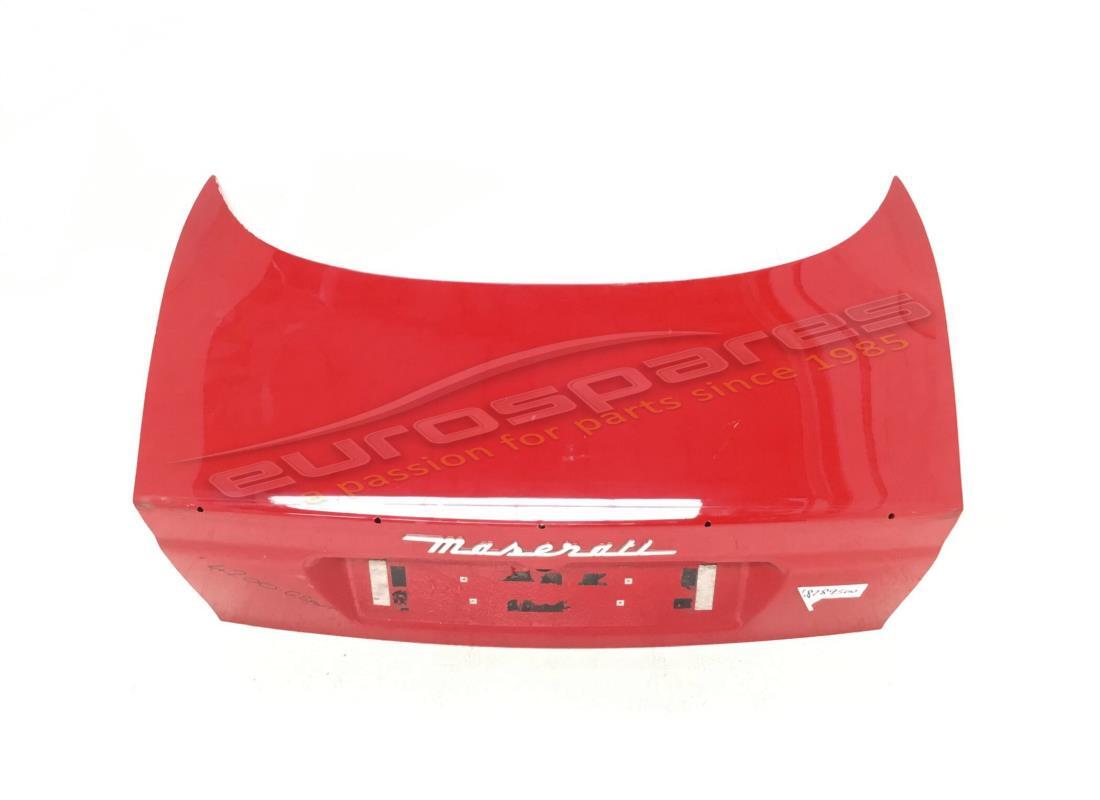

                                                                              COMPLETE REAR DOOR
                                                                              Not for USA and CDN
                                                                              from £2,808.43
                                                                              from £2,808.43
                                                                              # 001
                                                                              MPN: 68361100
                                                                              COMPLETE REAR DOOR
                                                                              Valid for USA and CDN
                                                                              from £2,529.70
                                                                              from £2,529.70
                                                                              # 002
                                                                              MPN: 384700105
                                                                              LH HINGE
                                                                              from £57.63
                                                                              from £57.63
                                                                              # 002
                                                                              MPN: 384700106
                                                                              RH HINGE
                                                                              from £57.63
                                                                              from £57.63
                                                                              # 003
                                                                              MPN: 82448954
                                                                              SCREW
                                                                              from £4.34
                                                                              from £4.34
                                                                              This part replaces part number 18770424
                                                                              # 004
                                                                              MPN: 384700118
                                                                              LUGGAGE COMPARTMENT STRUT
                                                                              from £55.01
                                                                              from £55.01
                                                                              # 005
                                                                              MPN: 82484270
                                                                              TRUNK HOOD OPENING CONTROL
                                                                              from £11.22
                                                                              from £11.22
                                                                              # 007
                                                                              MPN: 82487413
                                                                              BOOT LOCK STRIKER
                                                                              from £4.74
                                                                              from £4.74
                                                                              # 008
                                                                              MPN: 13046114
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 009
                                                                              MPN: 10704324
                                                                              SCREW
                                                                              from £1.89
                                                                              from £1.89
                                                                              # 010
                                                                              MPN: 384700125
                                                                              COMPLETE BOOT LOCK- BOWDEN CABLE
                                                                              Not for USA and CDN
                                                                              from £287.02
                                                                              from £287.02
                                                                              # 010
                                                                              MPN: 67554600
                                                                              COMPLETE BOOT LOCK- BOWDEN CABLE
                                                                              Valid for USA and CDN
                                                                              from £326.81
                                                                              from £326.81
                                                                              This part replaces part number 66914200 which we have in stock - and 2 more. Click to view details
                                                                              # 011
                                                                              MPN: 10704324
                                                                              SCREW
                                                                              from £1.89
                                                                              from £1.89
                                                                              # 012
                                                                              MPN: 60616619
                                                                              FLEXIBLE PAD
                                                                              from £3.67
                                                                              from £3.67
                                                                              # 013
                                                                              MPN: 11182277
                                                                              WASHER
                                                                              from £1.89
                                                                              from £1.89
                                                                              # 015
                                                                              MPN: 68084300
                                                                              GASKET FOR TRUNK HOOD
                                                                              from £36.65
                                                                              from £36.65
                                                                              This part replaces part number 384700130 - and 1 more. Click to view details
                                                                              # 016
                                                                              MPN: 66244100
                                                                              REAR TRIM
                                                                              from £54.42
                                                                              from £54.42
                                                                              # 017
                                                                              MPN: 15783507
                                                                              SCREW
                                                                              from £1.13
                                                                              from £1.13
                                                                              # 018
                                                                              MPN: 7754387
                                                                              BLOCK
                                                                              Supersession
                                                                              Supersession
                                                                              # 019
                                                                              MPN: 382501050
                                                                              COMPLETE FUEL INLET LID
                                                                              from £78.75
                                                                              from £78.75
                                                                              This part replaces part number 382500050 which we have in stock - and 1 more. Click to view details
                                                                              # 020
                                                                              MPN: 67502500
                                                                              WIRE ROD
                                                                              from £12.08
                                                                              from £12.08
                                                                              # 021
                                                                              MPN: 382500201
                                                                              HINGE FOR GAS UNION DOOOR
                                                                              from £36.17
                                                                              from £36.17
                                                                              # 022
                                                                              MPN: 12638104
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 023
                                                                              MPN: 14075611
                                                                              NUT
                                                                              from £1.35
                                                                              from £1.35
                                                                              # 024
                                                                              MPN: 13283214
                                                                              SCREW
                                                                              from £1.10
                                                                              from £1.10
                                                                              # 025
                                                                              MPN: 10519304
                                                                              WASHER
                                                                              from £0.87
                                                                              from £0.87
                                                                              This part replaces part number 14496304
                                                                              # 026
                                                                              MPN: 383300195
                                                                              FUEL INLET LID ACTUATOR
                                                                              from £70.73
                                                                              from £70.73
                                                                              # 027
                                                                              MPN: 388100355
                                                                              RUBBER
                                                                              from £6.95
                                                                              from £6.95
                                                                              # 028
                                                                              MPN: 10977624
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 029
                                                                              MPN: 135600050
                                                                              WASHER
                                                                              from £0.79
                                                                              from £0.79
                                                                              # 030
                                                                              MPN: 382500554
                                                                              ADJUSTING PLATE
                                                                              from £2.92
                                                                              from £2.92
                                                                              This part replaces part number 66193600
                                                                              # 031
                                                                              MPN: 13283514
                                                                              SCREW
                                                                              from £1.58
                                                                              from £1.58
                                                                              # 032
                                                                              MPN: 12642801
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 033
                                                                              MPN: 82484271
                                                                              GASKET
                                                                              from £1.10
                                                                              from £1.10
                                                                              # 034
                                                                              MPN: 66919100
                                                                              SHIMMING PLATE
                                                                              from £1.97
                                                                              from £1.97
                                                                              # 035
                                                                              MPN: 388100356
                                                                              LIQUID OUTLET HOSE
                                                                              from £3.32
                                                                              from £3.32
                                                                              # 036
                                                                              MPN: 13000290
                                                                              SCREW COLLAR
                                                                              from £0.50
                                                                              from £0.50
                                                                              # 037
                                                                              MPN: 7601962
                                                                              CLAMP
                                                                              Supersession
                                                                              Supersession
                                                                              # 038
                                                                              MPN: 53241312
                                                                              CABLE BUSHING
                                                                              from £1.11
                                                                              from £1.11
                                                                              # 039
                                                                              MPN: 67232100
                                                                              HANDLE
                                                                              Valid for USA and CDN
                                                                              from £12.74
                                                                              from £12.74
                                                                              # 040
                                                                              MPN: 67587700
                                                                              NUT
                                                                              from £3.24
                                                                              from £3.24
                                                                              # 041
                                                                              MPN: 68504900

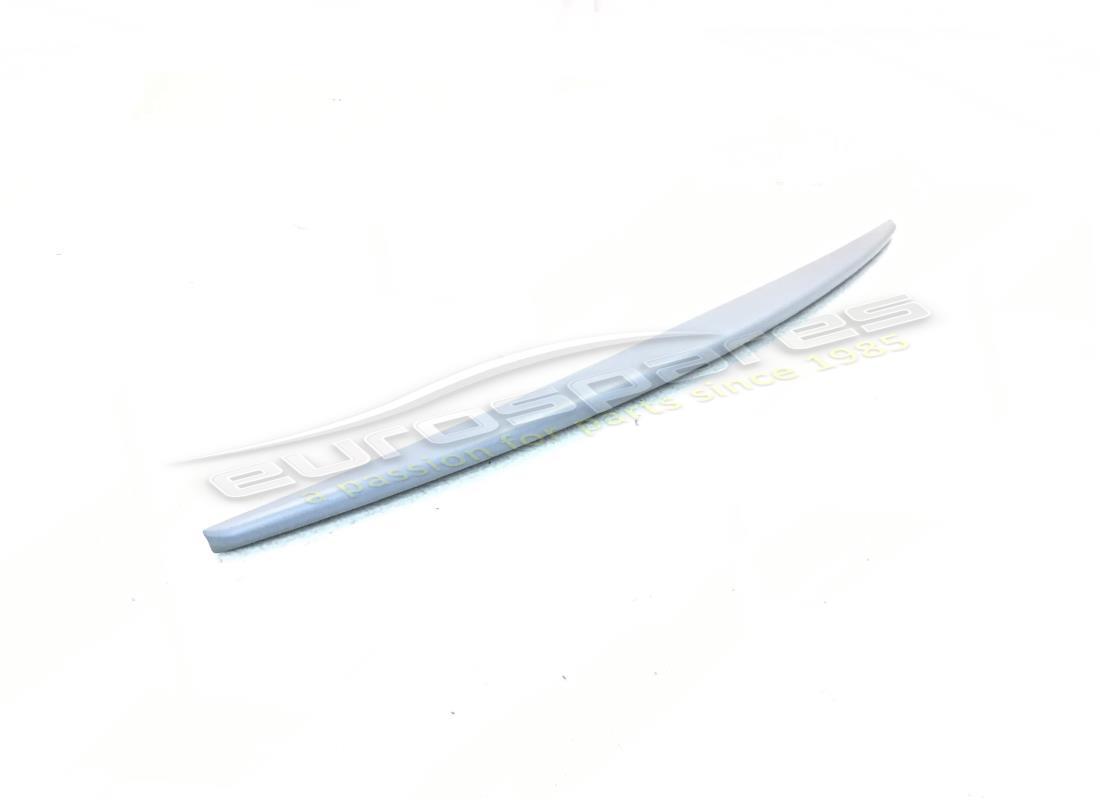

                                                                              REAR SPOILER
                                                                              Optional - Carbon
                                                                              Supersession
                                                                              Supersession
                                                                              # 041
                                                                              MPN: 980138259
                                                                              REAR SPOILER
                                                                              STANDARD
                                                                              from £313.42
                                                                              from £313.42
                                                                              This part replaces part number 68157100
                                                                              # 042
                                                                              MPN: 14059111
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
