Maserati 4200 Gransport (2005) Dashboard -Not for GD- Parts Diagram

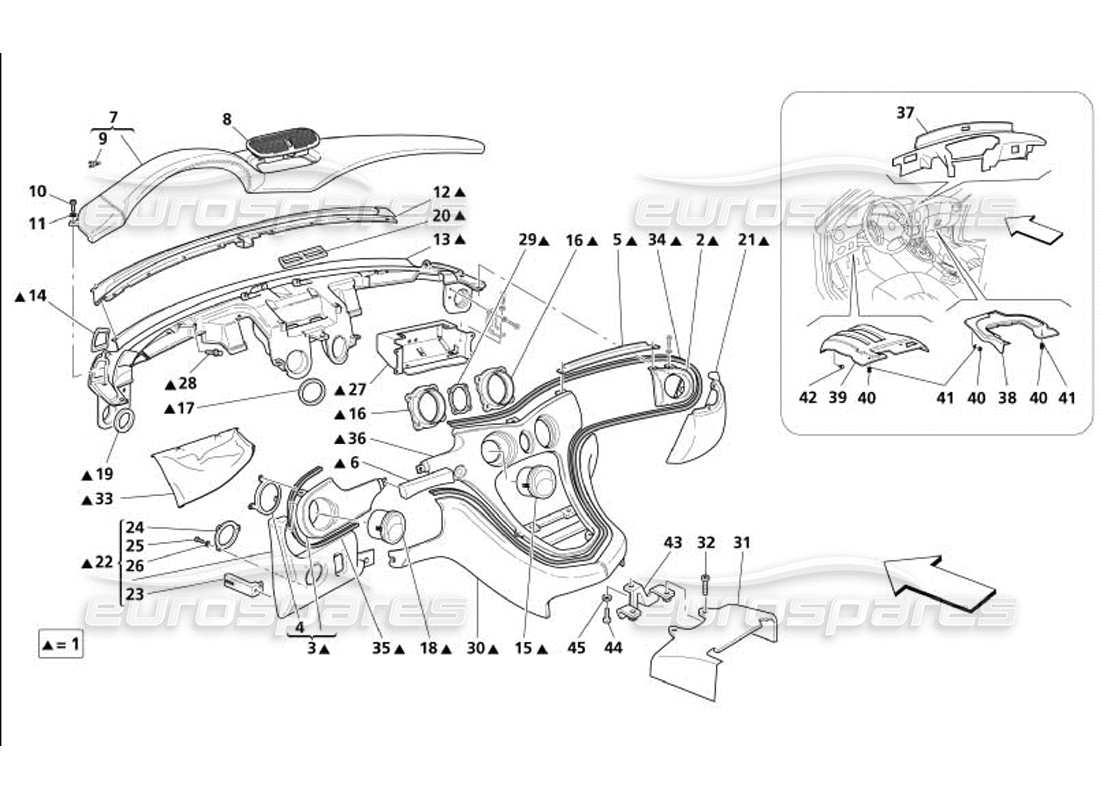

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 98258....
                                                                    COMPLETE DASHBOARD
                                                                    Standard - Not for USA and CDN - For order specify car number
                                                                    # 001
                                                                    MPN: 98259....
                                                                    COMPLETE DASHBOARD
                                                                    Optional - Xeno Headlight - Not for USA and CDN - For order specify car number
                                                                    # 001
                                                                    MPN: 98260....
                                                                    COMPLETE DASHBOARD
                                                                    Valid for USA and CDN - For order specify car number
                                                                    # 002
                                                                    MPN: 9811036..
                                                                    RH LATERAL BODY IN THE DASHBOARD
                                                                    For order specify car number
                                                                    Supersession
                                                                    Supersession
                                                                    # 003
                                                                    MPN: 981103505
                                                                    LH LATERAL BODY IN THE DASHBOARD
                                                                    For order specify car number
                                                                    from £192.79
                                                                    from £192.79
                                                                    # 004
                                                                    MPN: 382300427
                                                                    PLATE
                                                                    from £6.49
                                                                    from £6.49
                                                                    # 005
                                                                    MPN: 382300395
                                                                    CROSS MEMBER
                                                                    For order specify car number
                                                                    from £2.39
                                                                    from £2.39
                                                                    # 006
                                                                    MPN: 9811039..
                                                                    SUBINSTRUMENT
                                                                    Supersession
                                                                    Supersession
                                                                    # 007
                                                                    MPN: 67698500
                                                                    COMPLETE UPPER INSERT IN THE DASHBOARD
                                                                    (black)
                                                                    from £1,601.38
                                                                    from £1,601.38
                                                                    # 008
                                                                    MPN: 382300805
                                                                    AIR DIFFUSER
                                                                    from £490.34
                                                                    from £490.34
                                                                    This part replaces part number 382300325
                                                                    # 009
                                                                    MPN: 382300415
                                                                    CLIP
                                                                    Supersession
                                                                    Supersession
                                                                    # 010
                                                                    MPN: 13274077
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 010
                                                                    MPN: 13274177
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 011
                                                                    MPN: 12637821
                                                                    WASHER
                                                                    from £0.84
                                                                    from £0.84
                                                                    # 012
                                                                    MPN: 382300614
                                                                    UPPER FRAME
                                                                    from £104.67
                                                                    from £104.67
                                                                    # 013
                                                                    MPN: 67239600
                                                                    COMPLETE AIR DUCTING
                                                                    from £345.34
                                                                    from £345.34
                                                                    This part replaces part number 382300006 - and 1 more. Click to view details
                                                                    # 014
                                                                    MPN: 382300602
                                                                    RH AUTO-ADHESIVE SPONGE
                                                                    from £1.98
                                                                    from £1.98
                                                                    # 014
                                                                    MPN: 382300603
                                                                    LH AUTO-ADHESIVE SPONGE
                                                                    from £1.98
                                                                    from £1.98
                                                                    # 015
                                                                    MPN: 382300800
                                                                    CENTRAL OPENING IN THE DASHBOARD
                                                                    from £149.20
                                                                    from £149.20
                                                                    This part replaces part number 382300318
                                                                    # 016
                                                                    MPN: 382300803
                                                                    CHROME AIR VENT SURROUND
                                                                    from £80.56
                                                                    from £80.56
                                                                    This part replaces part number 382300444
                                                                    # 017
                                                                    MPN: 382300372
                                                                    GASKET
                                                                    from £2.31
                                                                    from £2.31
                                                                    # 018
                                                                    MPN: 382300802
                                                                    LATERAL OPENING IN THE DASHBOARD
                                                                    from £122.49
                                                                    from £122.49
                                                                    This part replaces part number 382300596
                                                                    # 019
                                                                    MPN: 382300371
                                                                    GASKET
                                                                    from £14.49
                                                                    from £14.49
                                                                    # 020
                                                                    MPN: 382300374
                                                                    GASKET
                                                                    from £2.85
                                                                    from £2.85
                                                                    # 021
                                                                    MPN: 667745..
                                                                    COMPLETE RH LATERAL INSERT
                                                                    For order specify car number
                                                                    Supersession
                                                                    Supersession
                                                                    # 022
                                                                    MPN: 667753..
                                                                    COMPLETE LH LATERAL INSERT
                                                                    Optional - Xeno headlights - For order specify car number
                                                                    Supersession
                                                                    Supersession
                                                                    # 022
                                                                    MPN: 667755..
                                                                    COMPLETE LH LATERAL INSERT
                                                                    Standard - Not for USA and CDN - For order specify car number
                                                                    Supersession
                                                                    Supersession
                                                                    # 023
                                                                    MPN: 382300319
                                                                    BRACKET
                                                                    from £81.67
                                                                    from £81.67
                                                                    # 024
                                                                    MPN: 66306900
                                                                    RING NUT
                                                                    from £68.70
                                                                    from £68.70
                                                                    # 025
                                                                    MPN: 10977524
                                                                    SCREW
                                                                    from £0.52
                                                                    from £0.52
                                                                    # 026
                                                                    MPN: 10519378
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 027
                                                                    MPN: 382300283
                                                                    COMPLETE AIR BAG FRAMEWORK
                                                                    from £69.80
                                                                    from £69.80
                                                                    # 028
                                                                    MPN: 66224800
                                                                    PIN
                                                                    Supersession
                                                                    Supersession
                                                                    # 029
                                                                    MPN: 382300512
                                                                    PLATE
                                                                    from £5.18
                                                                    from £5.18
                                                                    # 030
                                                                    MPN: 683390..
                                                                    COMPLETE LOWER DASHBOARD COVER
                                                                    For order specify car number
                                                                    # 031
                                                                    MPN: 683330..
                                                                    TUNNEL UPPER INSERT
                                                                    Supersession
                                                                    Supersession
                                                                    # 032
                                                                    MPN: 11620724
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 033
                                                                    MPN: 9810011..
                                                                    STEERING COLUMN BELLOWS LEATHER
                                                                    For order specify car number
                                                                    Supersession
                                                                    Supersession
                                                                    # 034
                                                                    MPN: 9811043..
                                                                    CENTRAL GASKET
                                                                    For order specify car number
                                                                    Supersession
                                                                    Supersession
                                                                    # 035
                                                                    MPN: 9811044..
                                                                    LATERAL GASKET
                                                                    For order specify car number
                                                                    Supersession
                                                                    Supersession
                                                                    # 036
                                                                    MPN: 682869..
                                                                    CENTRAL BODY IN THE DASHBOARD
                                                                    For order specify car number
                                                                    Supersession
                                                                    Supersession
                                                                    # 037
                                                                    MPN: 67526000
                                                                    REAR DASHBOARD SILENCER
                                                                    from £39.82
                                                                    from £39.82
                                                                    # 038
                                                                    MPN: 67525800
                                                                    RH SILENCER FOR UNDER DASHBOARD
                                                                    from £22.89
                                                                    from £22.89
                                                                    # 039
                                                                    MPN: 67525900
                                                                    LH SILENCER FOR UNDER DASHBOARD
                                                                    from £23.88
                                                                    from £23.88
                                                                    # 040
                                                                    MPN: 14059111
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 041
                                                                    MPN: 12638101
                                                                    WASHER
                                                                    from £0.71
                                                                    from £0.71
                                                                    This part replaces part number 12638121
                                                                    # 042
                                                                    MPN: 67640300
                                                                    FIXING BUTTON
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 043
                                                                    MPN: 68333200
                                                                    BRACKET
                                                                    from £32.38
                                                                    from £32.38
                                                                    # 044
                                                                    MPN: 13273914
                                                                    SCREW
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 045
                                                                    MPN: 12637821
                                                                    WASHER
                                                                    from £0.84
                                                                    from £0.84
