maserati 4200 gransport (2005) dashboard -valid for gd- parts diagram

124 - Dashboard -Valid for GD-

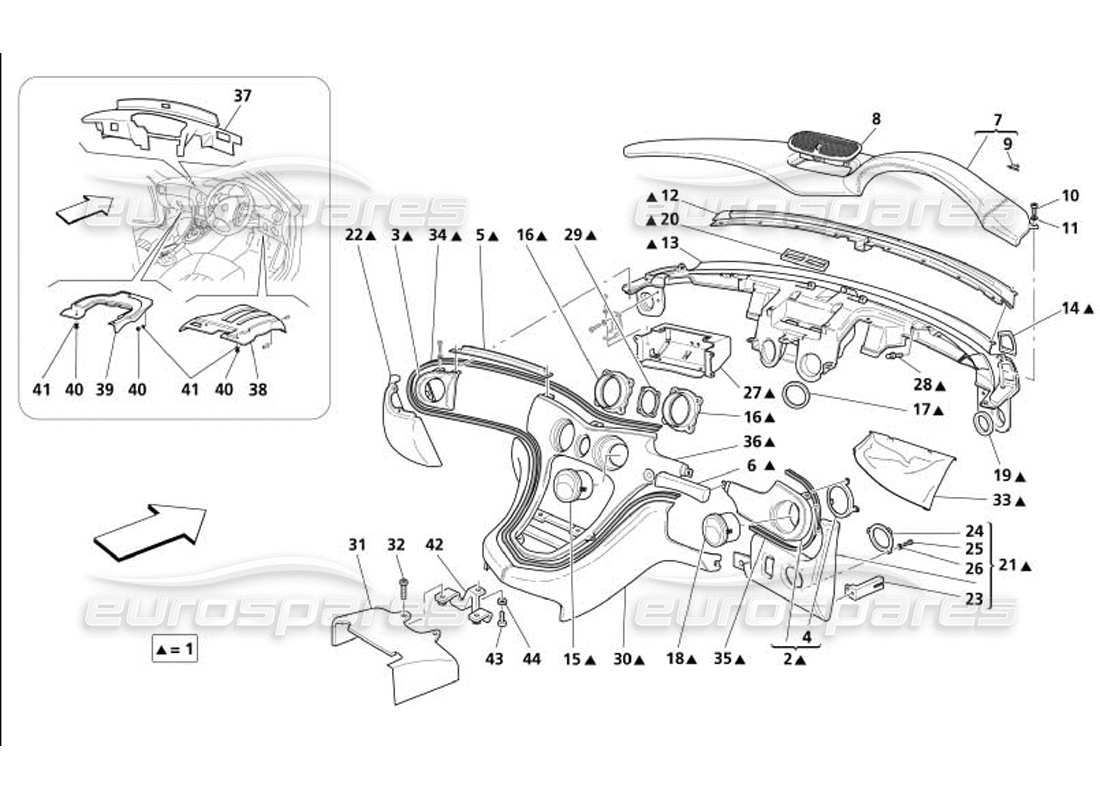

Maserati 4200 Gransport (2005) Dashboard -Valid for GD- Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 98261....
                                                                  COMPLETE DASHBOARD
                                                                  Standard - For order specify car number
                                                                  # 001
                                                                  MPN: 98262....
                                                                  COMPLETE DASHBOARD
                                                                  Optional - Xeno Headlight - For order specify car number
                                                                  # 002
                                                                  MPN: 9811038..
                                                                  RH LATERAL BODY IN THE DASHBOARD
                                                                  For order specify car number
                                                                  Supersession
                                                                  Supersession
                                                                  # 003
                                                                  MPN: 9811037..
                                                                  LH LATERAL BODY IN THE DASHBOARD
                                                                  For order specify car number
                                                                  Supersession
                                                                  Supersession
                                                                  # 004
                                                                  MPN: 382300427
                                                                  PLATE
                                                                  from £6.46
                                                                  from £6.46
                                                                  # 005
                                                                  MPN: 382310395
                                                                  CROSS MEMBER
                                                                  from £161.20
                                                                  from £161.20
                                                                  # 006
                                                                  MPN: 9811040..
                                                                  SUBINSTRUMENT
                                                                  For order specify car number
                                                                  from £414.75
                                                                  from £414.75
                                                                  # 007
                                                                  MPN: 9810004..
                                                                  COMPLETE UPPER INSERT IN THE DASHBOARD
                                                                  For order specify car number
                                                                  from £446.25
                                                                  from £446.25
                                                                  # 008
                                                                  MPN: 382300805
                                                                  AIR DIFFUSER
                                                                  from £158.03
                                                                  from £158.03
                                                                  This part replaces part number 382300325
                                                                  # 009
                                                                  MPN: 382300415
                                                                  CLIP
                                                                  Supersession
                                                                  Supersession
                                                                  # 010
                                                                  MPN: 13274077
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 010
                                                                  MPN: 13274177
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 011
                                                                  MPN: 12637821
                                                                  WASHER
                                                                  from £0.85
                                                                  from £0.85
                                                                  # 012
                                                                  MPN: 67293500
                                                                  UPPER FRAME
                                                                  from £135.92
                                                                  from £135.92
                                                                  This part replaces part number 382310614
                                                                  # 013
                                                                  MPN: 67239600
                                                                  COMPLETE AIR DUCTING
                                                                  from £342.84
                                                                  from £342.84
                                                                  This part replaces part number 382300006 - and 1 more. Click to view details
                                                                  # 014
                                                                  MPN: 382300602
                                                                  RH AUTO-ADHESIVE SPONGE
                                                                  from £1.98
                                                                  from £1.98
                                                                  # 014
                                                                  MPN: 382300603
                                                                  LH AUTO-ADHESIVE SPONGE
                                                                  from £1.98
                                                                  from £1.98
                                                                  # 015
                                                                  MPN: 382300800
                                                                  CENTRAL OPENING IN THE DASHBOARD
                                                                  from £98.88
                                                                  from £98.88
                                                                  This part replaces part number 382300318
                                                                  # 016
                                                                  MPN: 382300803
                                                                  OPENING FIXING PLATE
                                                                  from £80.28
                                                                  from £80.28
                                                                  This part replaces part number 382300444
                                                                  # 017
                                                                  MPN: 382300372
                                                                  GASKET
                                                                  from £2.31
                                                                  from £2.31
                                                                  # 018
                                                                  MPN: 382300802
                                                                  LATERAL OPENING IN THE DASHBOARD
                                                                  from £81.15
                                                                  from £81.15
                                                                  This part replaces part number 382300596
                                                                  # 019
                                                                  MPN: 382300371
                                                                  GASKET
                                                                  from £9.63
                                                                  from £9.63
                                                                  # 020
                                                                  MPN: 382300374
                                                                  GASKET
                                                                  from £2.85
                                                                  from £2.85
                                                                  # 021
                                                                  MPN: 666958..
                                                                  COMPLETE RH LATERAL INSERT
                                                                  Optional - Xeno headlights - For order specify car number
                                                                  Supersession
                                                                  Supersession
                                                                  # 021
                                                                  MPN: 666966..
                                                                  COMPLETE RH LATERAL INSERT
                                                                  Standard - For order specify car number
                                                                  Supersession
                                                                  Supersession
                                                                  # 022
                                                                  MPN: 9811042..
                                                                  COMPLETE LH LATERAL INSERT
                                                                  For order specify car number
                                                                  from £78.75
                                                                  from £78.75
                                                                  # 023
                                                                  MPN: 382300319
                                                                  BRACKET
                                                                  from £81.43
                                                                  from £81.43
                                                                  # 024
                                                                  MPN: 66306900
                                                                  RING NUT
                                                                  from £68.48
                                                                  from £68.48
                                                                  # 025
                                                                  MPN: 10977524
                                                                  SCREW
                                                                  from £0.52
                                                                  from £0.52
                                                                  # 026
                                                                  MPN: 10519378
                                                                  WASHER
                                                                  from £0.54
                                                                  from £0.54
                                                                  # 027
                                                                  MPN: 382310283
                                                                  COMPLETE AIR BAG FRAMEWORK
                                                                  from £24.08
                                                                  from £24.08
                                                                  # 028
                                                                  MPN: 66224800
                                                                  PIN
                                                                  Supersession
                                                                  Supersession
                                                                  # 029
                                                                  MPN: 382300512
                                                                  PLATE
                                                                  from £5.16
                                                                  from £5.16
                                                                  # 030
                                                                  MPN: 683407..
                                                                  COMPLETE LOWER DASHBOARD COVER
                                                                  For order specify car number
                                                                  # 031
                                                                  MPN: 683330..
                                                                  TUNNEL UPPER INSERT
                                                                  Supersession
                                                                  Supersession
                                                                  # 032
                                                                  MPN: 11620724
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 033
                                                                  MPN: 9810011..
                                                                  STEERING COLUMN BELLOWS LEATHER
                                                                  For order specify car number
                                                                  Supersession
                                                                  Supersession
                                                                  # 034
                                                                  MPN: 9811043..
                                                                  CENTRAL GASKET
                                                                  For order specify car number
                                                                  Supersession
                                                                  Supersession
                                                                  # 035
                                                                  MPN: 9811044..
                                                                  LATERAL GASKET
                                                                  For order specify car number
                                                                  Supersession
                                                                  Supersession
                                                                  # 036
                                                                  MPN: 683401..
                                                                  CENTRAL BODY IN THE DASHBOARD
                                                                  For order specify car number
                                                                  Supersession
                                                                  Supersession
                                                                  # 037
                                                                  MPN: 67526900
                                                                  REAR DASHBOARD SILENCER
                                                                  from £101.63
                                                                  from £101.63
                                                                  # 038
                                                                  MPN: 67524600
                                                                  RH SILENCER FOR UNDER DASHBOARD
                                                                  from £29.34
                                                                  from £29.34
                                                                  # 039
                                                                  MPN: 67524700
                                                                  LH SILENCER FOR UNDER DASHBOARD
                                                                  from £32.92
                                                                  from £32.92
                                                                  # 040
                                                                  MPN: 14059111
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 041
                                                                  MPN: 12638101
                                                                  WASHER
                                                                  from £0.71
                                                                  from £0.71
                                                                  This part replaces part number 12638121
                                                                  # 042
                                                                  MPN: 68333200
                                                                  BRACKET
                                                                  from £32.28
                                                                  from £32.28
                                                                  # 043
                                                                  MPN: 13273914
                                                                  SCREW
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 044
                                                                  MPN: 12637821
                                                                  WASHER
                                                                  from £0.85
                                                                  from £0.85
