maserati 4200 gransport (2005) dashboard drawer parts diagram

125 - Dashboard Drawer

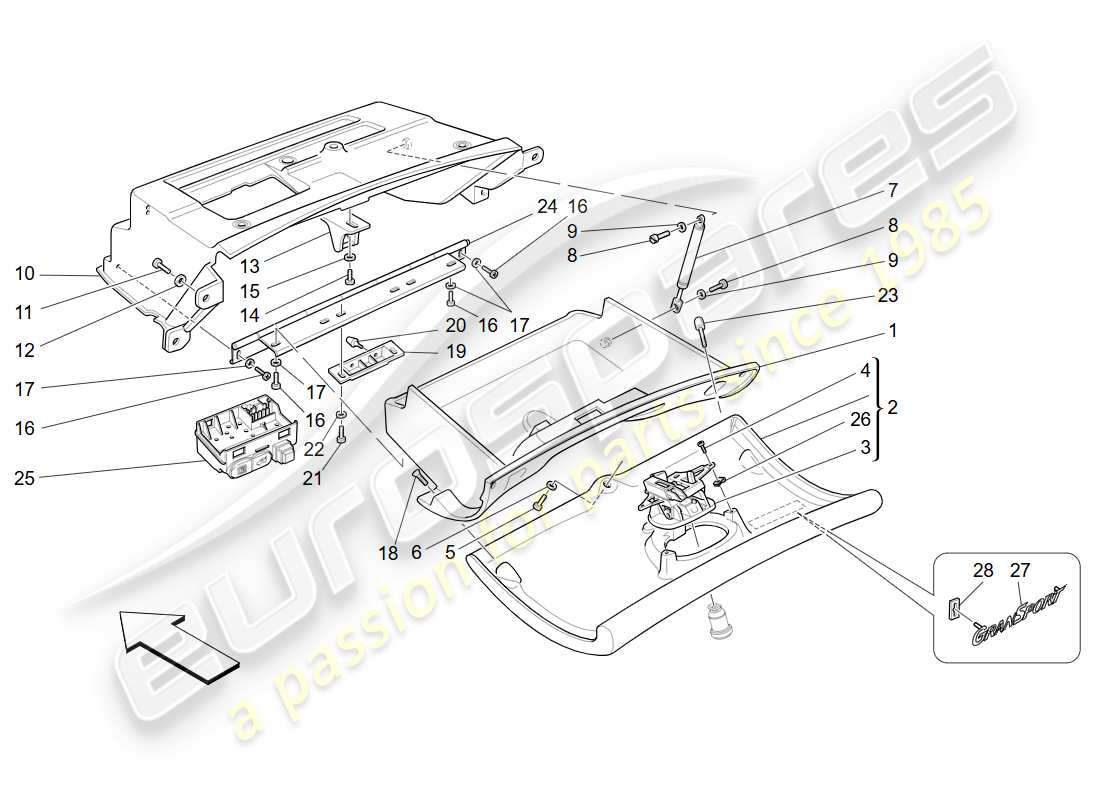

Maserati 4200 Gransport (2005) Dashboard Drawer Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 382300403
                                                  DASHBOARD GLOVE BOX FRAME
                                                  Not for GD
                                                  from £59.13
                                                  from £59.13
                                                  # 001
                                                  MPN: 382310403
                                                  DASHBOARD GLOVE BOX FRAME
                                                  Valid for GD
                                                  from £129.24
                                                  from £129.24
                                                  # 002
                                                  MPN: 682878..
                                                  COMPLETE GLOVE BOX SHUTTER
                                                  Not for GD - For order specify car number
                                                  Supersession
                                                  Supersession
                                                  # 002
                                                  MPN: 683438..
                                                  COMPLETE GLOVE BOX SHUTTER
                                                  Valid for GD - For order specify car number
                                                  Supersession
                                                  Supersession
                                                  # 003
                                                  MPN: 382300806
                                                  COMPLETE LOCK
                                                  Not for GD
                                                  from £101.22
                                                  from £101.22
                                                  This part replaces part number 382300598
                                                  # 003
                                                  MPN: 382310598
                                                  COMPLETE LOCK
                                                  Valid for GD
                                                  from £304.91
                                                  from £304.91
                                                  # 004
                                                  MPN: 15957107
                                                  SCREW
                                                  from £1.11
                                                  from £1.11
                                                  # 005
                                                  MPN: 13273977
                                                  SCREW
                                                  from £0.47
                                                  from £0.47
                                                  # 006
                                                  MPN: 10519378
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  # 007
                                                  MPN: 382300381
                                                  GLOVEBOX STRUT
                                                  from £72.52
                                                  from £72.52
                                                  # 008
                                                  MPN: 382300382
                                                  SPECIAL SCREW
                                                  from £12.85
                                                  from £12.85
                                                  # 009
                                                  MPN: 382300383
                                                  PLASTIC WASHER
                                                  from £4.67
                                                  from £4.67
                                                  # 010
                                                  MPN: 67695500
                                                  DASHBOARD GLOVE BOX CONTAINER FRAME
                                                  Standard - Not for GD
                                                  from £39.49
                                                  from £39.49
                                                  This part replaces part number 382300380
                                                  # 010
                                                  MPN: 67695600
                                                  DASHBOARD GLOVE BOX CONTAINER FRAME
                                                  Standard - Valid for GD
                                                  from £39.49
                                                  from £39.49
                                                  # 010
                                                  MPN: 68346600
                                                  DASHBOARD GLOVE BOX CONTAINER FRAME
                                                  Optional - Telephone GSM and GPS - Not for CDN, GD and J
                                                  from £55.74
                                                  from £55.74
                                                  # 010
                                                  MPN: 68346700
                                                  DASHBOARD GLOVE BOX CONTAINER FRAME
                                                  Optional - Telephone GSM and GPS - Valid for GB
                                                  from £59.86
                                                  from £59.86
                                                  # 011
                                                  MPN: 13273977
                                                  SCREW
                                                  from £0.47
                                                  from £0.47
                                                  # 012
                                                  MPN: 10519378
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  # 013
                                                  MPN: 382300202
                                                  LOCK STRIKER
                                                  from £12.93
                                                  from £12.93
                                                  # 014
                                                  MPN: 13273977
                                                  SCREW
                                                  from £0.47
                                                  from £0.47
                                                  # 015
                                                  MPN: 10519378
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  # 016
                                                  MPN: 13273977
                                                  SCREW
                                                  from £0.47
                                                  from £0.47
                                                  # 017
                                                  MPN: 10519378
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  # 018
                                                  MPN: 15957107
                                                  SCREW
                                                  from £1.11
                                                  from £1.11
                                                  # 020
                                                  MPN: 60616620
                                                  RUBBER
                                                  from £0.61
                                                  from £0.61
                                                  # 021
                                                  MPN: 13273824
                                                  SCREW
                                                  from £1.21
                                                  from £1.21
                                                  # 022
                                                  MPN: 12637821
                                                  WASHER
                                                  from £0.87
                                                  from £0.87
                                                  # 023
                                                  MPN: 382300430
                                                  ADJUSTMENT PIN
                                                  from £14.51
                                                  from £14.51
                                                  # 024
                                                  MPN: 382300116
                                                  BOX HINGE
                                                  from £92.51
                                                  from £92.51
                                                  # 025
                                                  MPN: 716338000
                                                  SIDE LAMP
                                                  from £110.95
                                                  from £110.95
                                                  # 026
                                                  MPN: 382300452
                                                  CLIP
                                                  from £0.71
                                                  from £0.71
                                                  # 027
                                                  MPN: 68157600
                                                  GRANSPORT EMBLEM
                                                  from £35.47
                                                  from £35.47
                                                  # 028
                                                  MPN: 67417300
                                                  CAR EMBLEM FIXING PLATE
                                                  from £1.11
                                                  from £1.11
