maserati 4200 gransport (2005) tunnel - framework and accessories parts diagram

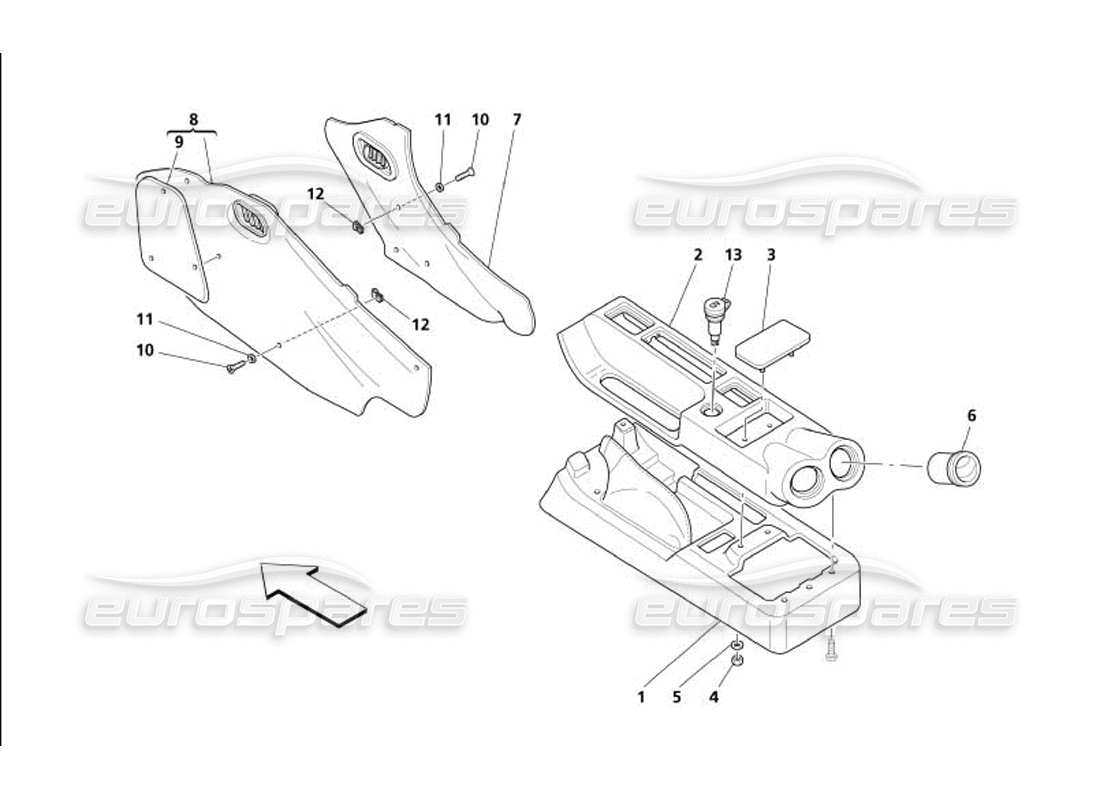

126 - Tunnel - Framework and Accessories

Maserati 4200 Gransport (2005) Tunnel - Framework and Accessories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 98263....
                COMPLETE LOWER CONSOLE
                Supersession
                Supersession

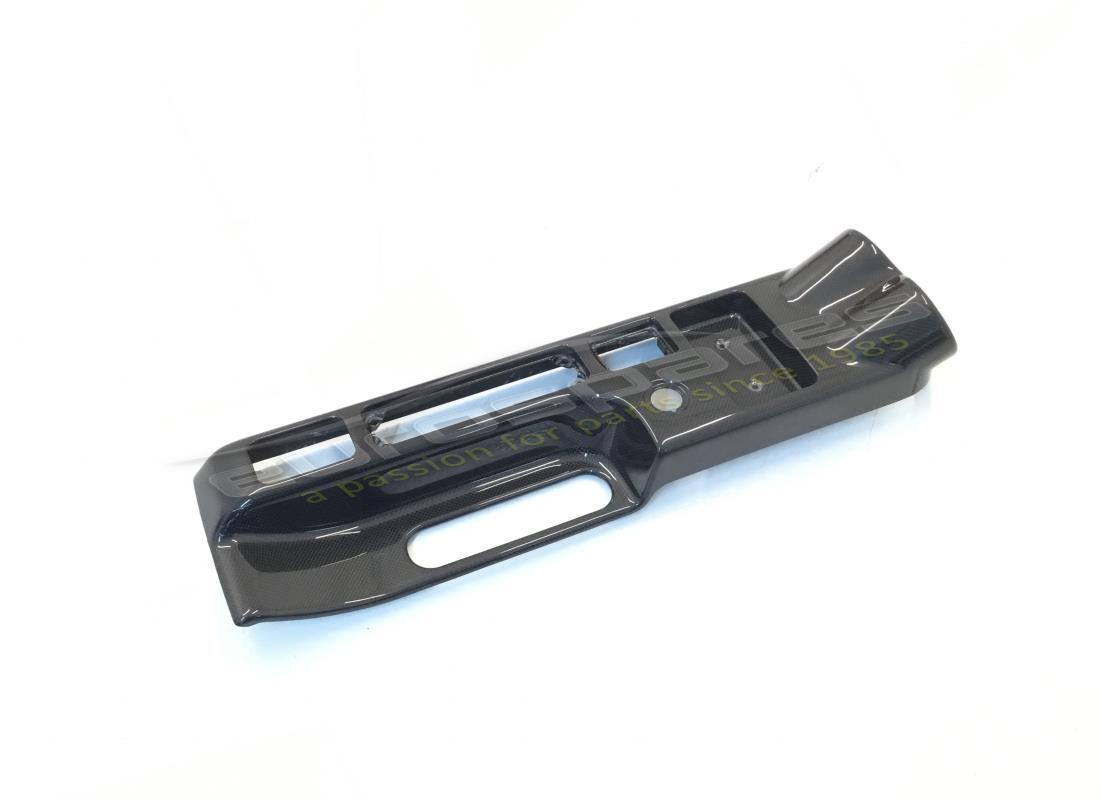

                # 002
                MPN: 68326200

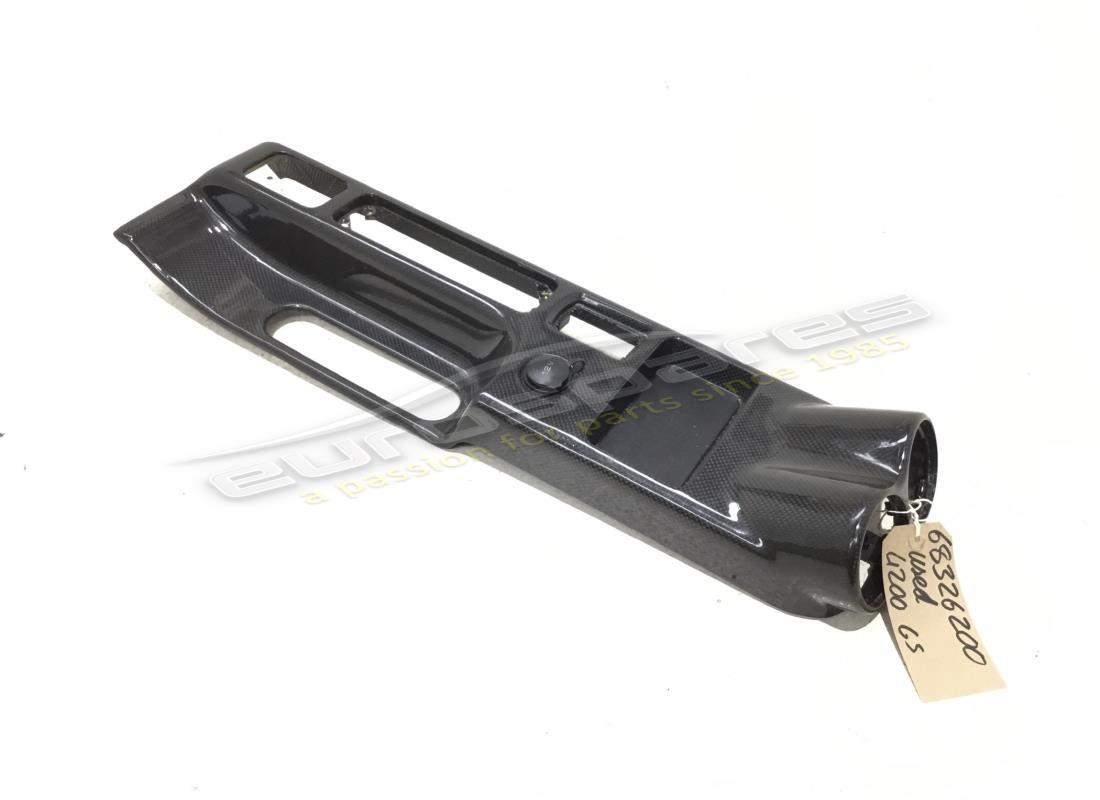

                COMPLETE UPPER CONSOLE
                from £892.50
                from £892.50
                # 003
                MPN: 683264..
                PLUG
                Supersession
                Supersession
                # 004
                MPN: 10721910
                NUT
                from £0.77
                from £0.77
                # 005
                MPN: 12642801
                WASHER
                from £0.54
                from £0.54
                # 006
                MPN: 382300802
                REAR AIR OPENING
                from £122.55
                from £122.55
                This part replaces part number 382300596
                # 007
                MPN: 675102..
                RH TUNNEL LATERAL COVER
                Not for GD
                Supersession
                Supersession
                # 007
                MPN: 675108..
                RH TUNNEL LATERAL COVER
                Valid for GD
                from £50.40
                from £50.40
                # 008
                MPN: 675103..
                LH TUNNEL LATERAL COVER
                Not for GD
                Supersession
                Supersession
                # 008
                MPN: 675109..
                LH TUNNEL LATERAL COVER
                Valid for GD
                from £50.40
                from £50.40
                # 009
                MPN: 382300295
                ACCELERATOR PROTECTION PLATE
                Not for GD
                from £56.19
                from £56.19
                # 010
                MPN: 15908807
                SCREW
                Valid for GD
                from £1.10
                from £1.10
                # 010
                MPN: 15909977
                SCREW
                Not for GD
                from £1.08
                from £1.08
                # 011
                MPN: 13336207
                WASHER
                Valid for GD
                from £4.57
                from £4.57
                # 011
                MPN: 388300580
                WASHER
                Not for GD
                from £4.57
                from £4.57
                This part replaces part number 13336207
                # 012
                MPN: 14371971
                CLIP
                Valid for GD
                from £0.48
                from £0.48
                # 012
                MPN: 386300326
                CLIP
                Not for GD
                from £3.24
                from £3.24
                # 013
                MPN: 203506
                SOCKET
                from £15.96
                from £15.96
