maserati 4200 gransport (2005) air conditioning system parts diagram

144 - air conditioning system

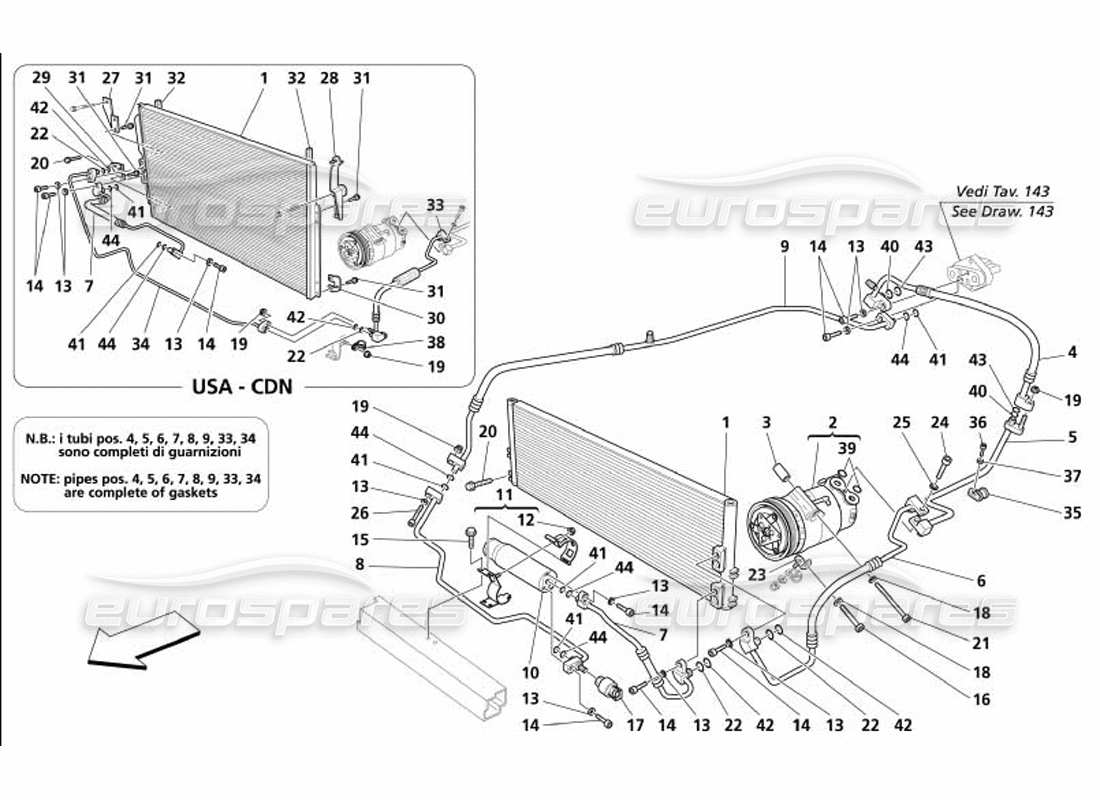

Maserati 4200 Gransport (2005) Air Conditioning System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 181106
                                                    A.C. CONDENSER
                                                    Not for USA and CDN
                                                    from £441.39
                                                    from £441.39
                                                    # 001
                                                    MPN: 189215
                                                    A.C. CONDENSER
                                                    Valid for USA and CDN
                                                    from £403.51
                                                    from £403.51
                                                    This part replaces part number 193547
                                                    # 002
                                                    MPN: 263172
                                                    AIR CONDITIONING COMPRESSOR
                                                    Delphi Version
                                                    from £608.19
                                                    from £608.19
                                                    This part replaces part number 242595
                                                    # 004
                                                    MPN: 66244200
                                                    PIPE FROM UNION TO EVAPORATOR
                                                    Not for GD
                                                    from £99.99
                                                    from £99.99
                                                    # 004
                                                    MPN: 66765700
                                                    PIPE FROM UNION TO EVAPORATOR
                                                    Valid for GD
                                                    from £102.75
                                                    from £102.75
                                                    # 005
                                                    MPN: 67813600
                                                    PIPE FROM UNION TO COMPRESSOR
                                                    from £37.22
                                                    from £37.22
                                                    # 006
                                                    MPN: 67813400
                                                    PIPE FROM COMPRESSOR TO CONDENSER
                                                    Not for USA and CDN
                                                    from £76.66
                                                    from £76.66
                                                    # 007
                                                    MPN: 66063100
                                                    PIPE FROM CONDENSER TO FILTER
                                                    Not for USA and CDN
                                                    from £73.65
                                                    from £73.65
                                                    # 007
                                                    MPN: 67193700
                                                    PIPE FROM CONDENSER TO FILTER
                                                    Valid for USA and CDN
                                                    from £104.84
                                                    from £104.84
                                                    # 008
                                                    MPN: 66063200
                                                    PIPE FROM FILTER TO UNION
                                                    Not for GD
                                                    from £45.73
                                                    from £45.73
                                                    # 008
                                                    MPN: 66765800
                                                    PIPE FROM FILTER TO UNION
                                                    Valid for GD
                                                    from £76.35
                                                    from £76.35
                                                    # 009
                                                    MPN: 66063300
                                                    PIPE FROM EVAPORATOR TO UNION
                                                    Not for GD
                                                    from £56.74
                                                    from £56.74
                                                    # 009
                                                    MPN: 66722700
                                                    PIPE FROM EVAPORATOR TO UNION
                                                    Valid for GD
                                                    from £73.21
                                                    from £73.21
                                                    # 010
                                                    MPN: 67110900
                                                    DEHYDRATING FILTER
                                                    from £42.11
                                                    from £42.11
                                                    This part replaces part number 385500174 - and 1 more. Click to view details
                                                    # 011
                                                    MPN: 66247100
                                                    COMPLETE DEHYDRATING FILTER SUPPORT BRACKET
                                                    from £7.89
                                                    from £7.89
                                                    This part replaces part number 66247200 - and 1 more. Click to view details
                                                    # 013
                                                    MPN: 12601274
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12601270
                                                    # 014
                                                    MPN: 14305424
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 015
                                                    MPN: 11612626
                                                    SCREW
                                                    from £2.54
                                                    from £2.54
                                                    # 016
                                                    MPN: 14307124
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 017
                                                    MPN: 46476438
                                                    PRESSOSTAT
                                                    from £43.94
                                                    from £43.94
                                                    # 018
                                                    MPN: 11193874
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 019
                                                    MPN: 14059214
                                                    NUT M6
                                                    (Quantity 3 for cars USA and CDN)
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12578121
                                                    # 020
                                                    MPN: 15698204
                                                    SCREW
                                                    Not for USA and CDN
                                                    from £1.35
                                                    from £1.35
                                                    # 020
                                                    MPN: 15699804
                                                    SCREW
                                                    Valid for USA and CDN
                                                    from £0.54
                                                    from £0.54
                                                    This part replaces part number 15534501
                                                    # 021
                                                    MPN: 175428
                                                    SCREW
                                                    from £1.02
                                                    from £1.02
                                                    # 022
                                                    MPN: 67641400
                                                    O.R. GASKET
                                                    from £2.38
                                                    from £2.38
                                                    # 023
                                                    MPN: 149694
                                                    BRACKET
                                                    from £3.15
                                                    from £3.15
                                                    # 025
                                                    MPN: 11198579
                                                    WASHER
                                                    from £1.11
                                                    from £1.11
                                                    # 026
                                                    MPN: 14305821
                                                    SCREW
                                                    from £0.53
                                                    from £0.53
                                                    # 027
                                                    MPN: 193551
                                                    RH UPPER BRACKET
                                                    Valid for USA and CDN
                                                    from £4.76
                                                    from £4.76
                                                    # 028
                                                    MPN: 193552
                                                    LH UPPER BRACKET
                                                    Valid for USA and CDN
                                                    from £16.73
                                                    from £16.73
                                                    # 029
                                                    MPN: 193553
                                                    RH LOWER BRACKET
                                                    Valid for USA and CDN
                                                    from £3.74
                                                    from £3.74
                                                    # 030
                                                    MPN: 193554
                                                    LH LOWER BRACKET
                                                    Valid for USA and CDN
                                                    from £3.74
                                                    from £3.74
                                                    # 031
                                                    MPN: 165137
                                                    SCREW
                                                    Valid for USA and CDN
                                                    from £1.35
                                                    from £1.35
                                                    # 032
                                                    MPN: 193556
                                                    RUBBER PROFILE
                                                    Valid for USA and CDN
                                                    from £1.59
                                                    from £1.59
                                                    # 033
                                                    MPN: 67813500
                                                    PIPE FROM COMPRESSOR TO UNION
                                                    Valid for USA and CDN
                                                    from £54.99
                                                    from £54.99
                                                    # 034
                                                    MPN: 67193600
                                                    PIPE FROM UNION TO CONDENSER
                                                    Valid for USA and CDN
                                                    from £195.11
                                                    from £195.11
                                                    # 035
                                                    MPN: 10441590
                                                    BRACKET WITH SHEATH
                                                    from £0.47
                                                    from £0.47
                                                    # 037
                                                    MPN: 127494
                                                    WASHER
                                                    from £0.54
                                                    from £0.54
                                                    # 038
                                                    MPN: 10441690
                                                    BRACKET WITH SHEATH
                                                    from £1.10
                                                    from £1.10
                                                    # 039
                                                    MPN: 194993
                                                    O.R. GASKET
                                                    from £13.02
                                                    from £13.02
                                                    # 040
                                                    MPN: 67641500
                                                    O.R. GASKET
                                                    from £2.38
                                                    from £2.38
                                                    # 041
                                                    MPN: 67641000
                                                    O.R. GASKET
                                                    (Quantity 5 for cars USA and CDN)
                                                    from £2.38
                                                    from £2.38
                                                    # 042
                                                    MPN: 67641100
                                                    O.R. GASKET
                                                    from £2.38
                                                    from £2.38
                                                    # 043
                                                    MPN: 67641200
                                                    O.R. GASKET
                                                    from £2.93
                                                    from £2.93
                                                    # 044
                                                    MPN: 67641300
                                                    O.R. GASKET
                                                    (Quantity 5 for cars USA and CDN)
                                                    from £1.98
                                                    from £1.98
