Maserati 4200 Spyder (2002) Part Diagrams

000

SPARE ASSEMBLY UNITS

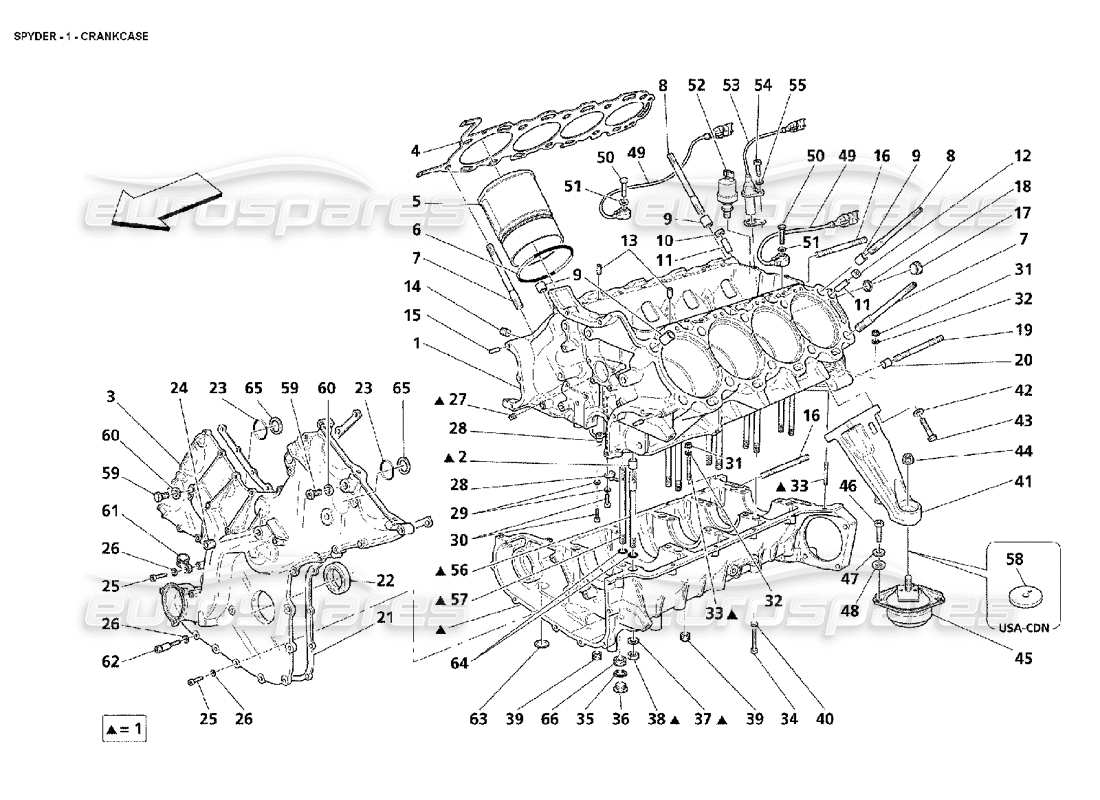

001

CRANKCASE

002

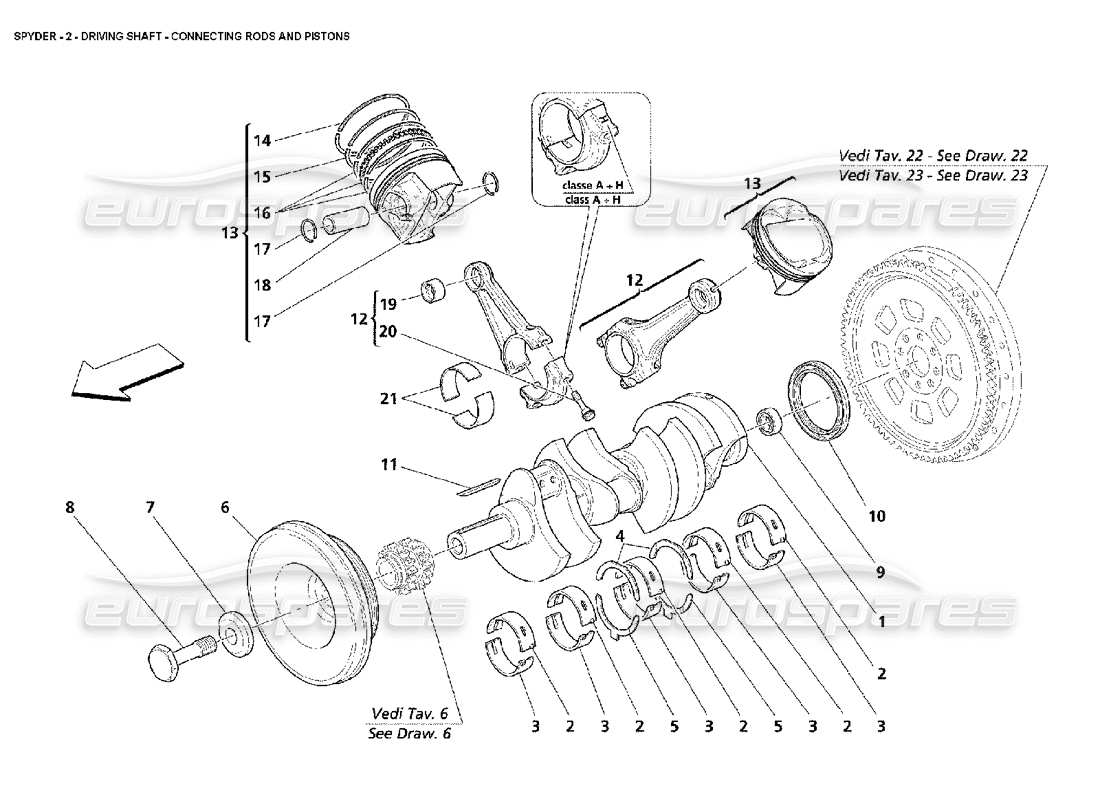

CRANKSHAFT CONRODS AND PISTONS

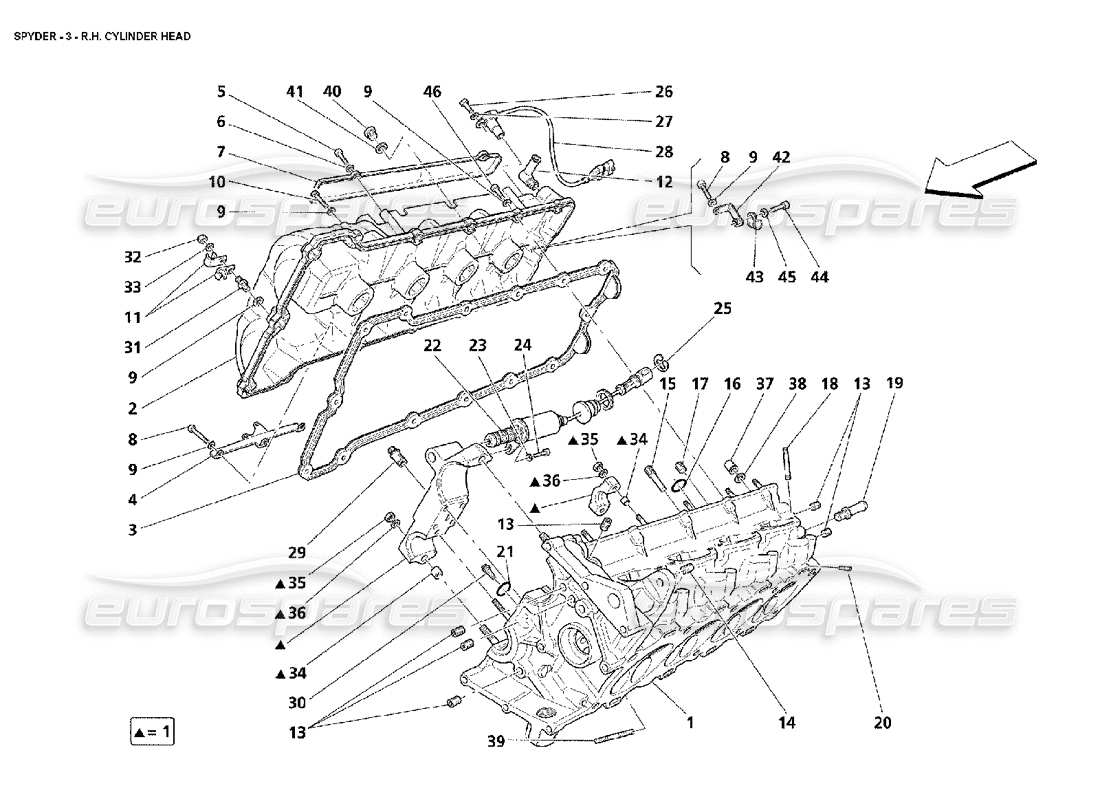

003

RH CYLINDER HEAD

004

LH CYLINDER HEAD

005

TIMING - TAPPETS

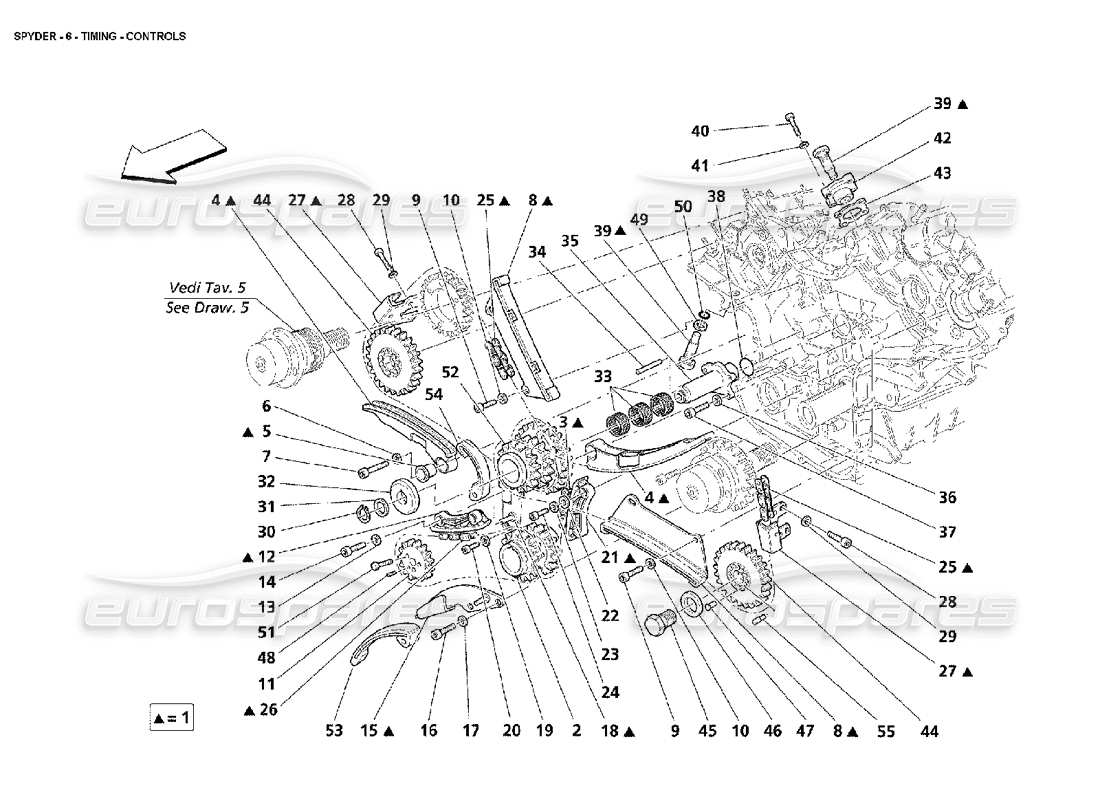

006

TIMING - CONTROLS

007

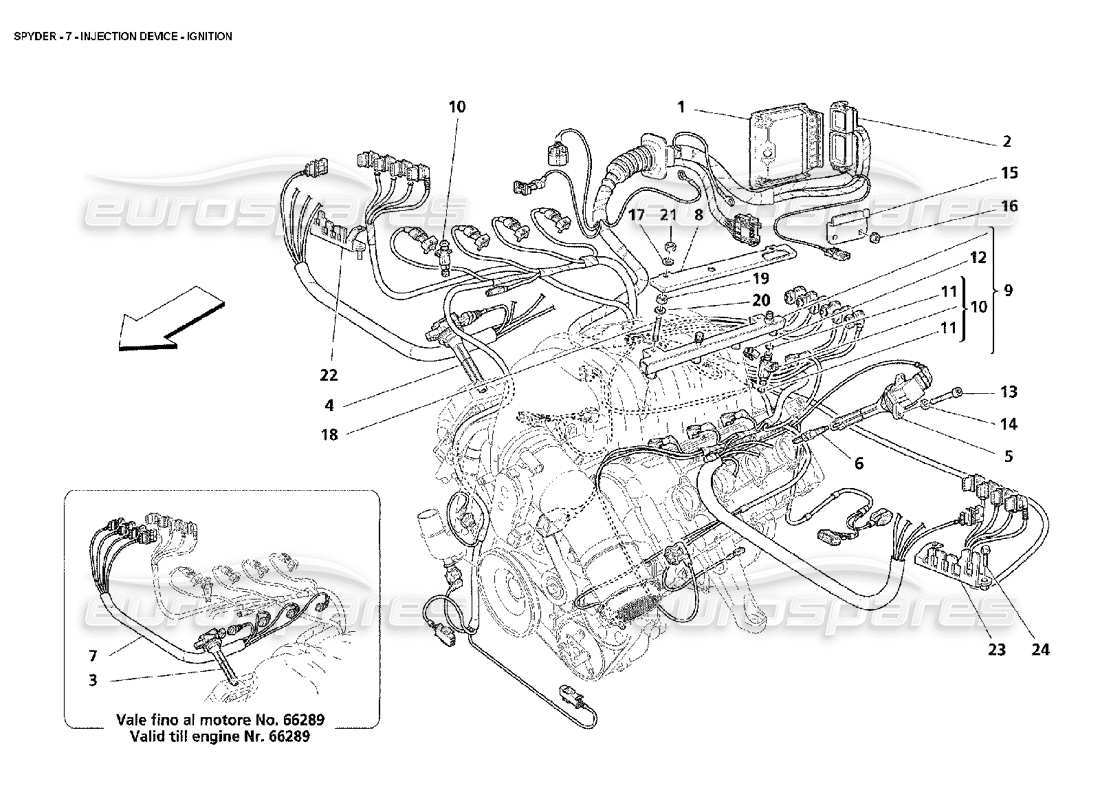

INJECTION DEVICE - IGNITION

008

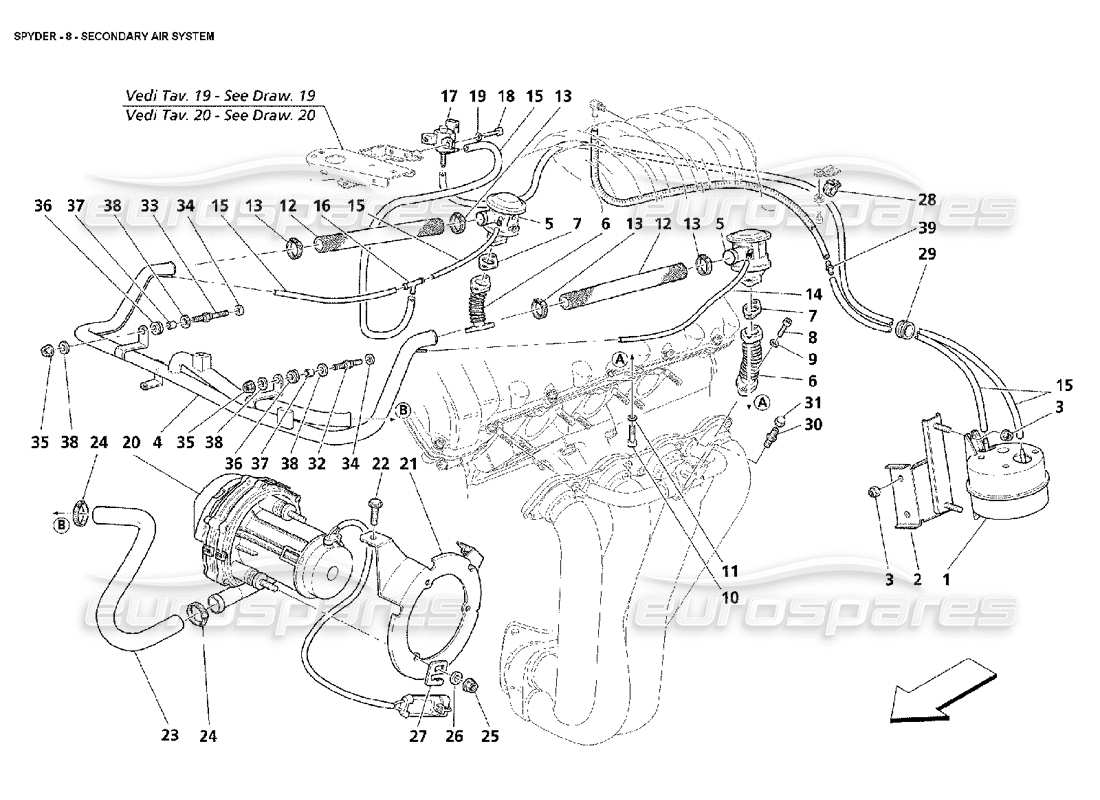

SECONDARY AIR SYSTEM

009

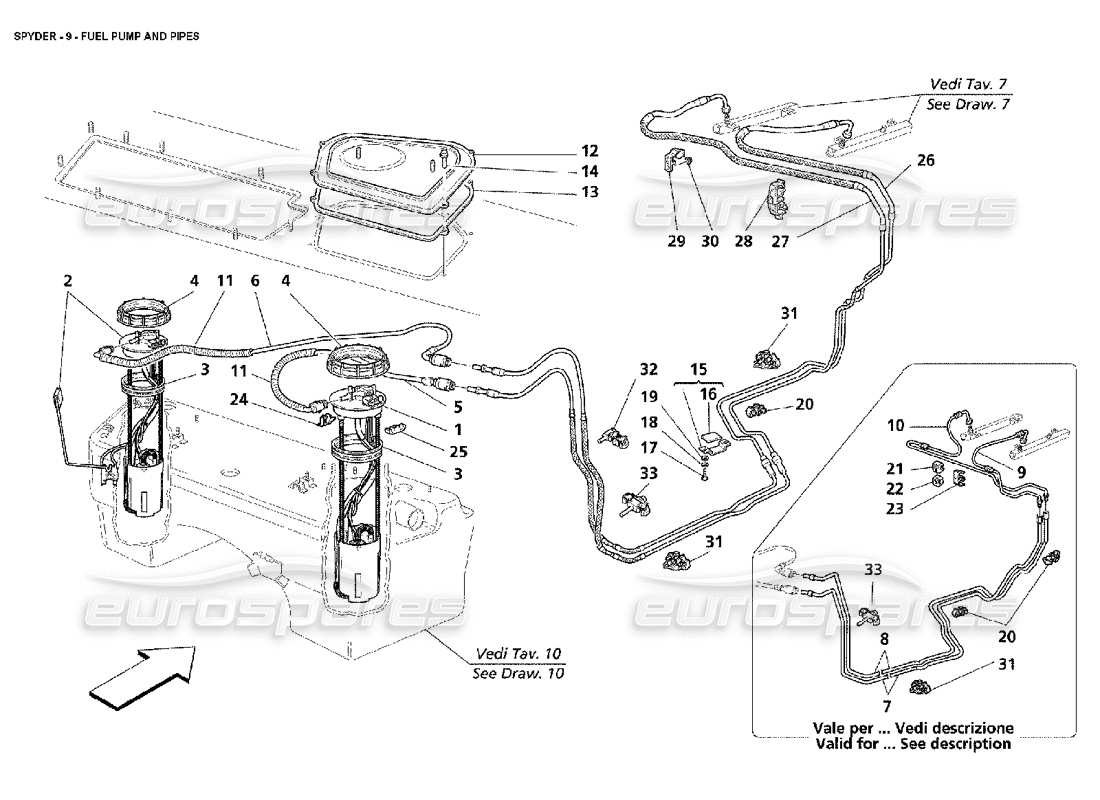

FUEL PUMP AND PIPES

010

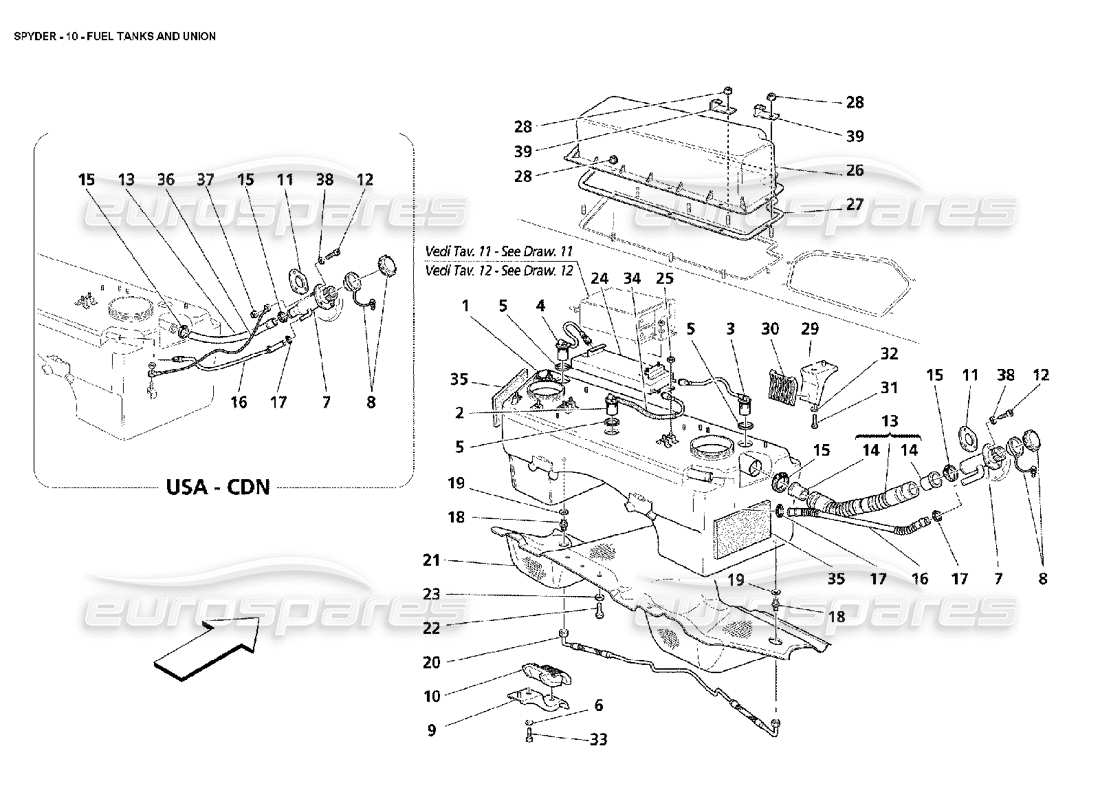

FUEL TANKS AND UNION

011

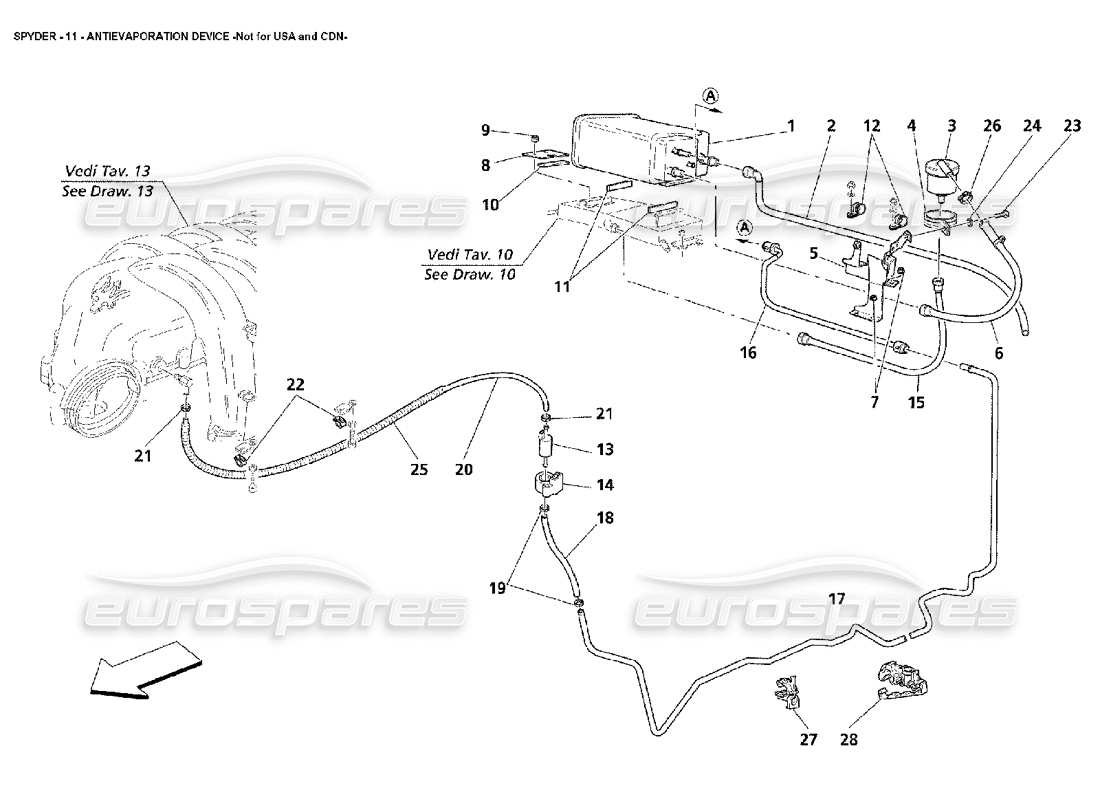

ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN

012

ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN

013

AIR INTAKE MANIFOLD

014

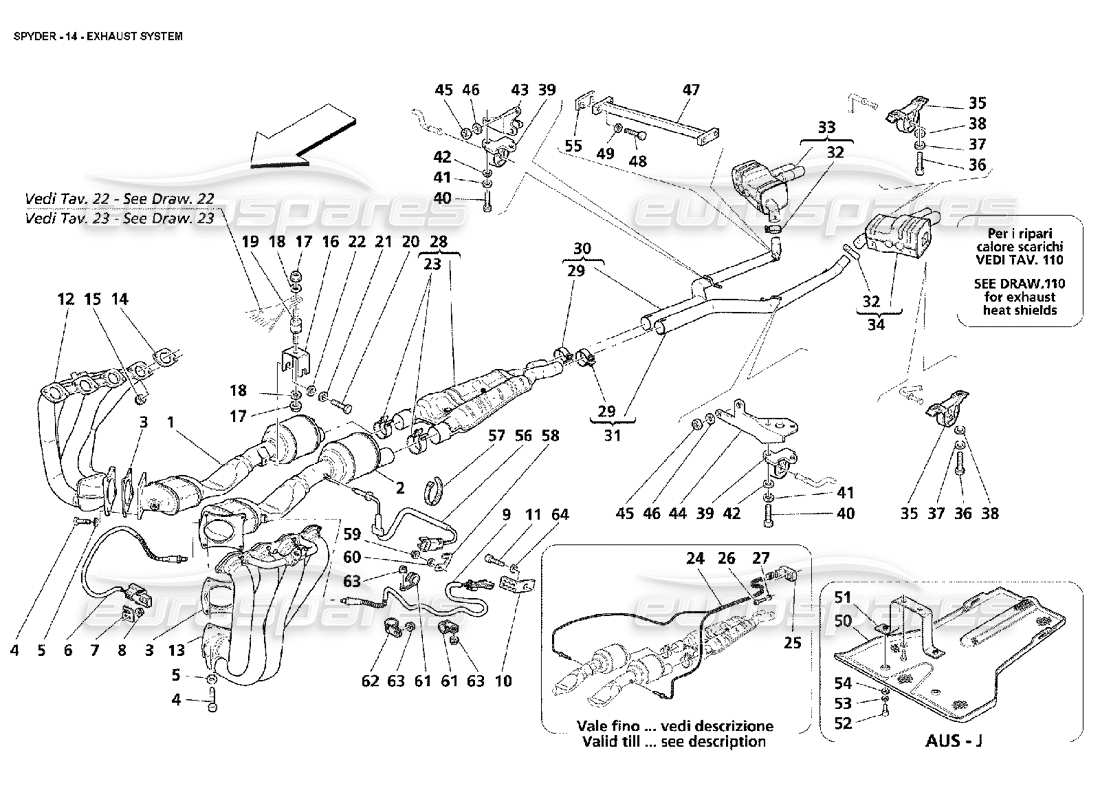

EXHAUST SYSTEM

015

EXHAUST SYSTEM -VARIATIONS FOR USA AND CDN

016

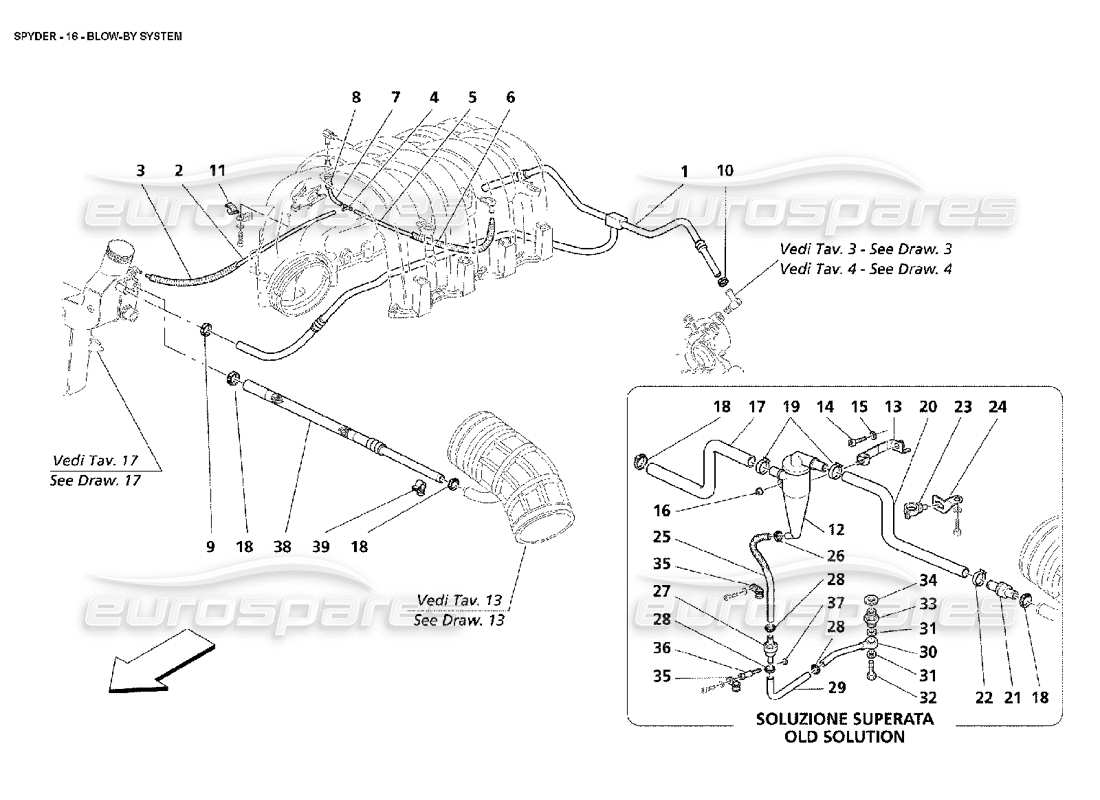

BLOW - BY SYSTEM

017

LUBRICATION SYSTEM - TANK - HEATER EXCHANGER

018

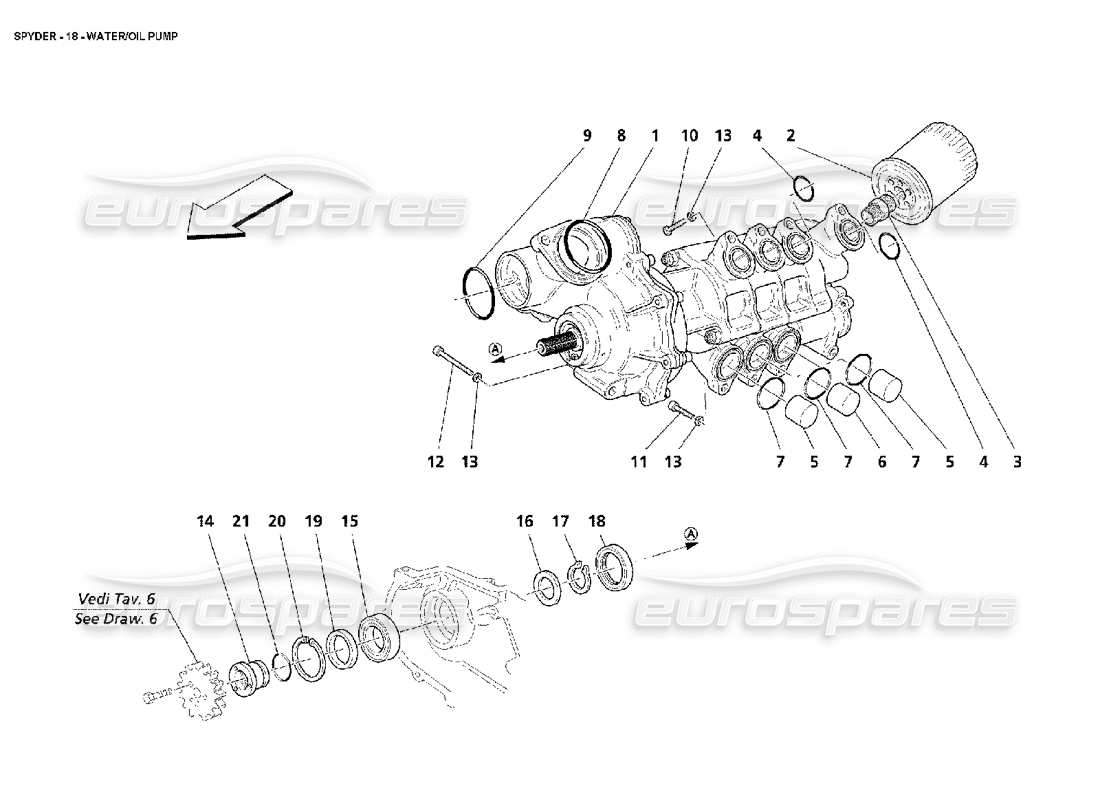

WATER-OIL PUMP

019

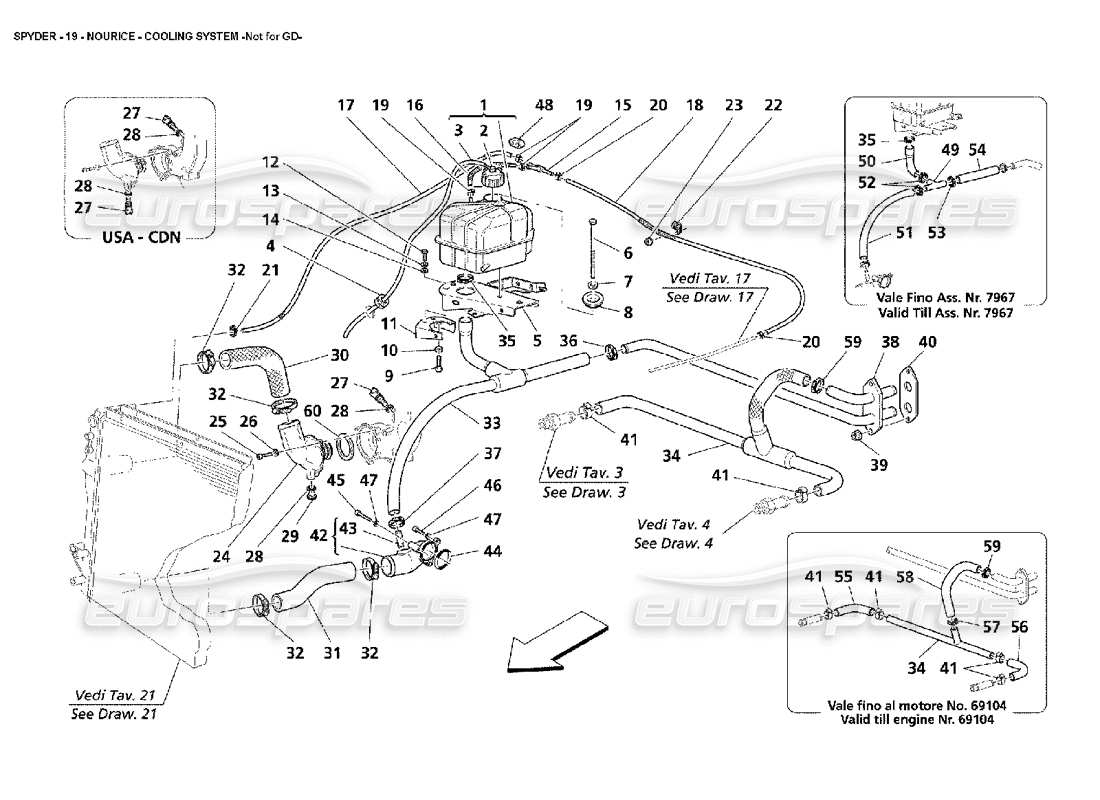

NOURICE - COOLING SYSTEM -NOT FOR GD

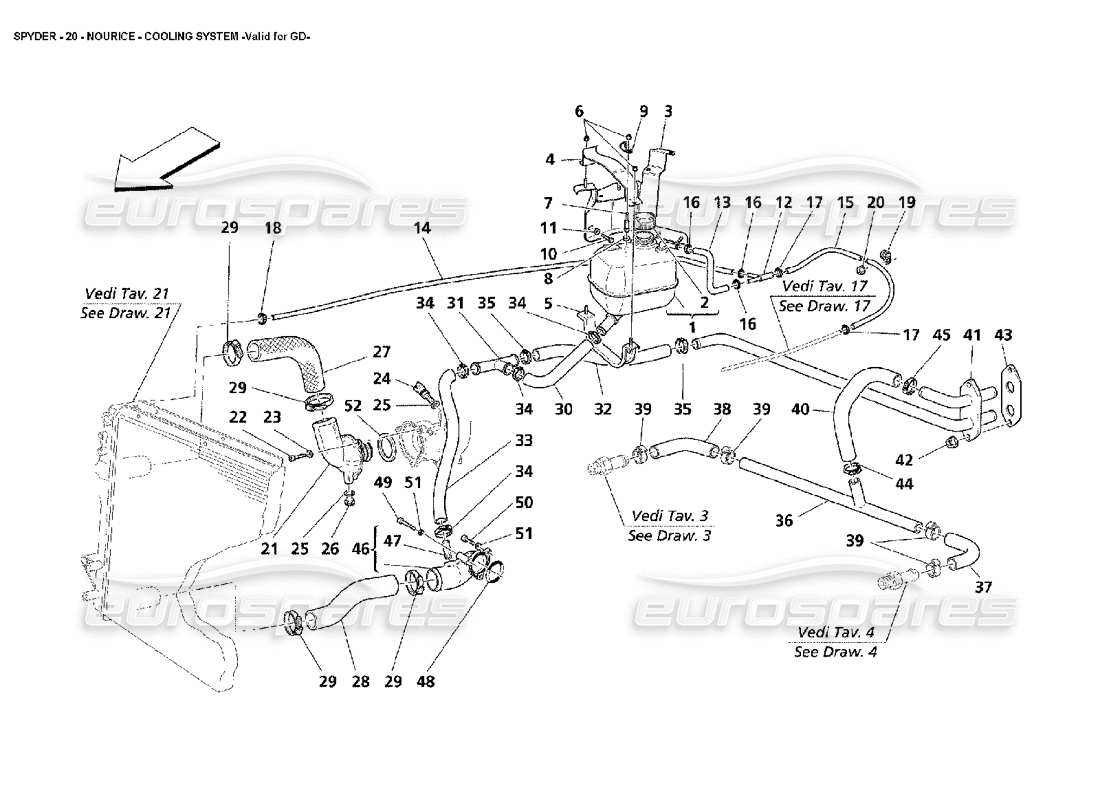

020

NOURICE - COOLING SYSTEM -VALID FOR GD

021

COOLING SYSTEM RADIATOR

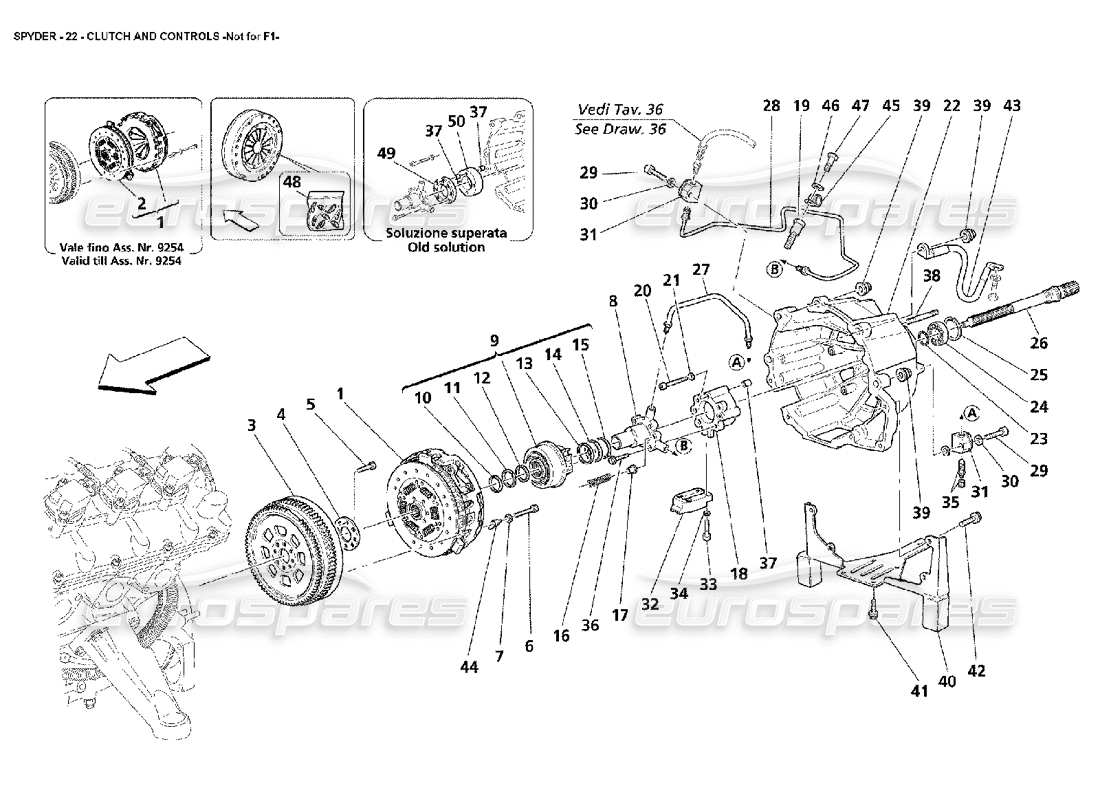

022

CLUTCH AND CONTROLS -NOT FOR F1

023

CLUTCH AND CONTROLS -VALID FOR F1

024

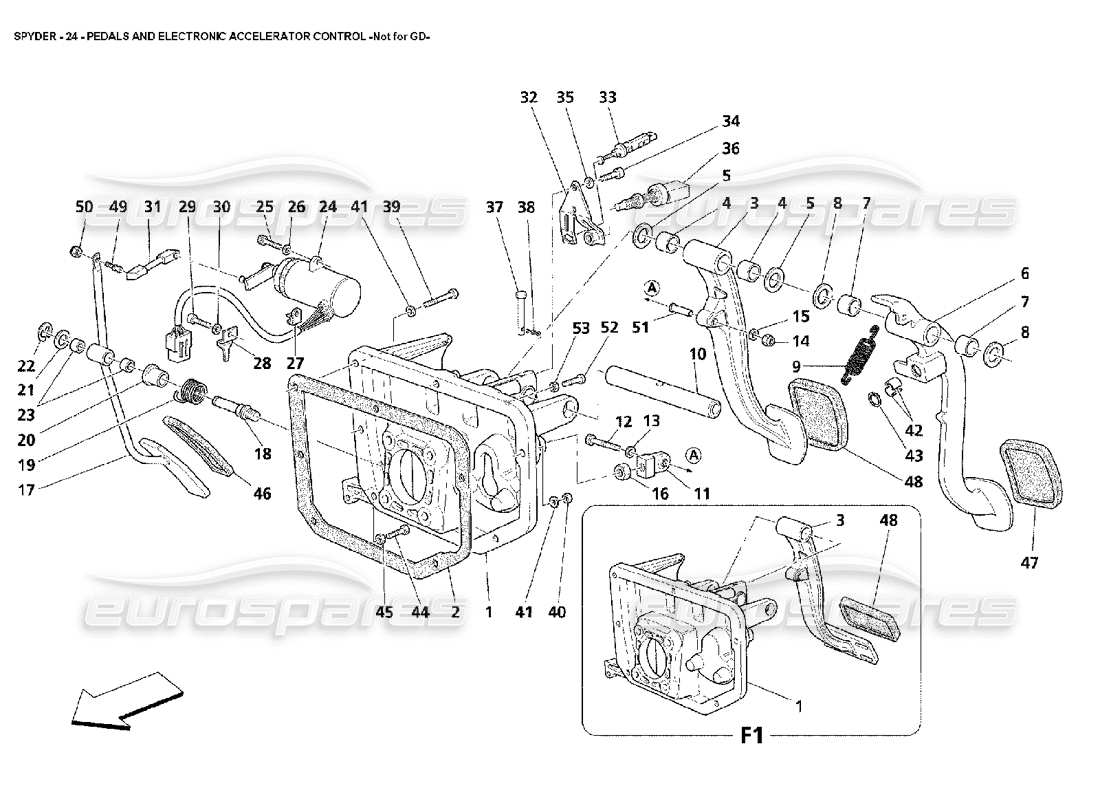

PEDALS AND ELECTRONIC ACCELERATOR CONTROL -NOT FOR GD

025

PEDALS AND ELECTRONIC ACCELERATOR CONTROL -VALID FOR GD

026

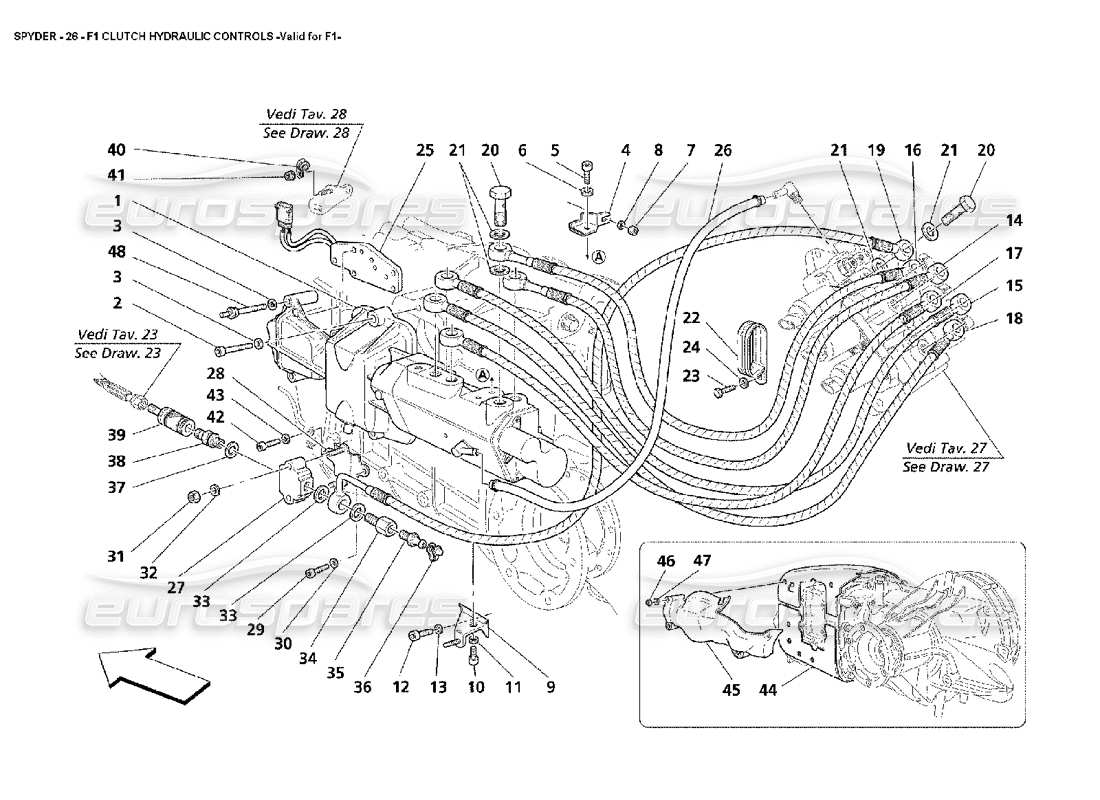

F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1

027

POWER UNIT AND TANK -VALID FOR F1

028

GEARBOX - COVER - GEARBOX OIL RADIATOR

029

DIFFERENTIAL BOX - REAR UNDERBODY

030

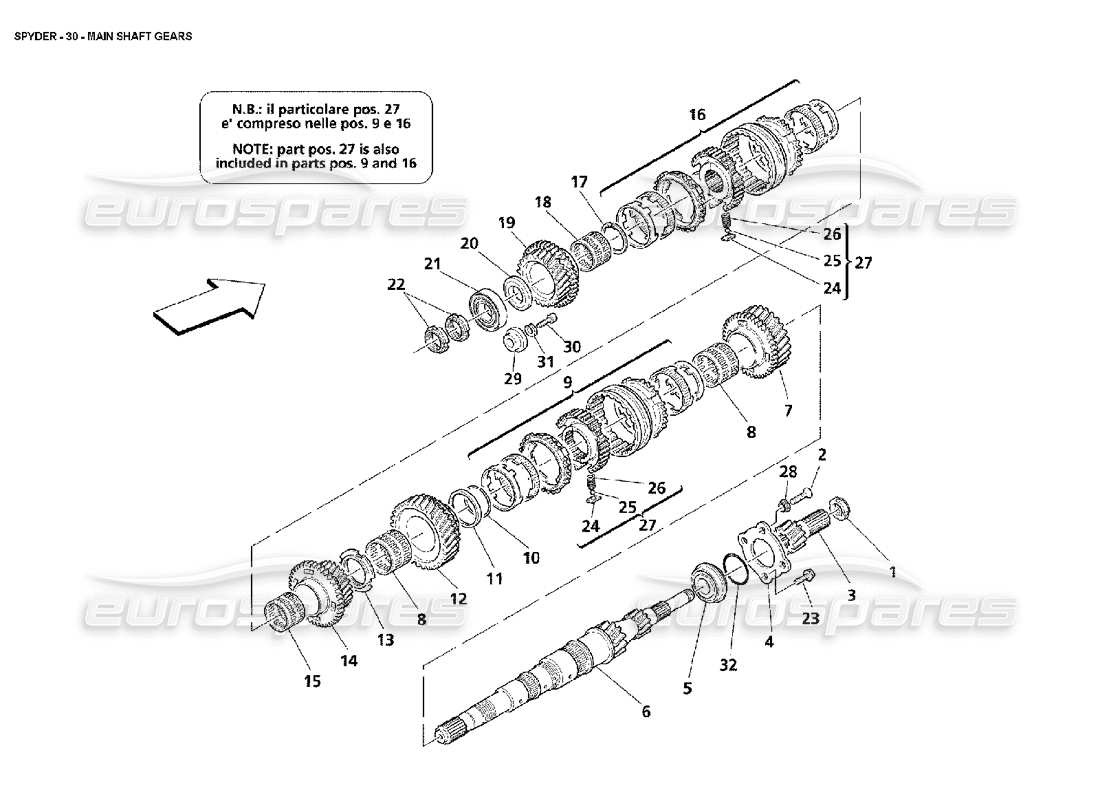

MAIN SHAFT GEARS

031

LAY SHAFT GEARS

032

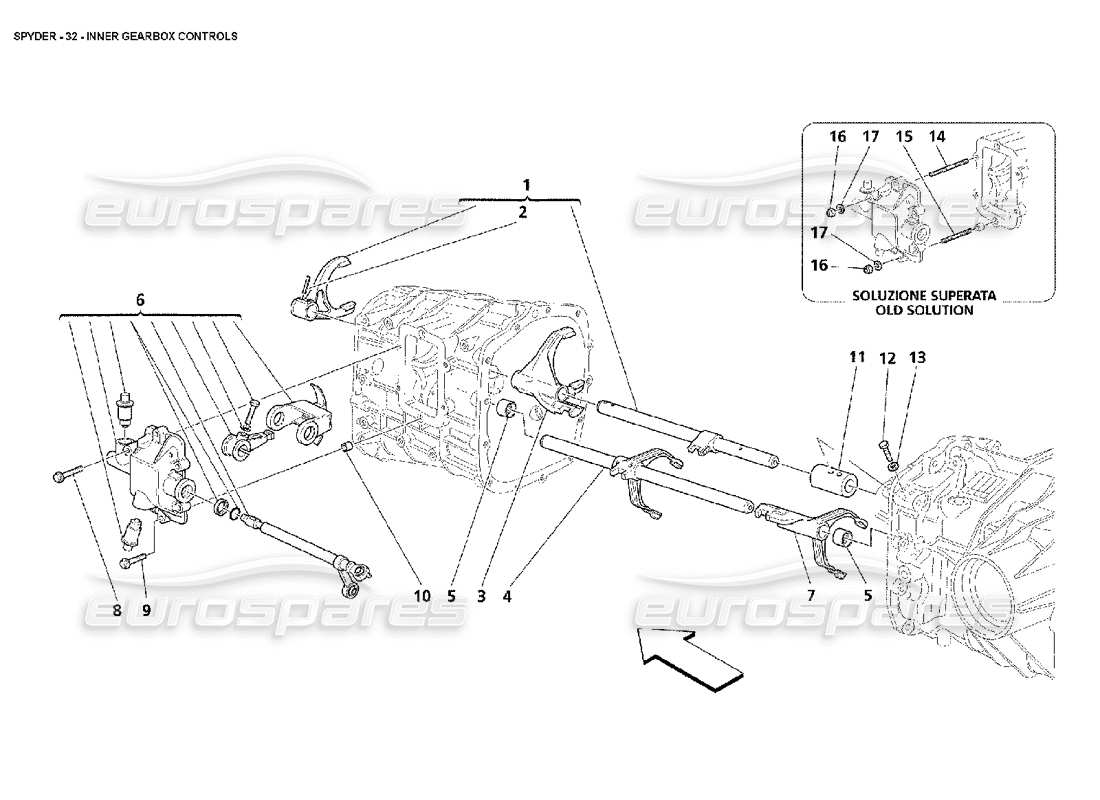

INNER GEARBOX CONTROLS

033

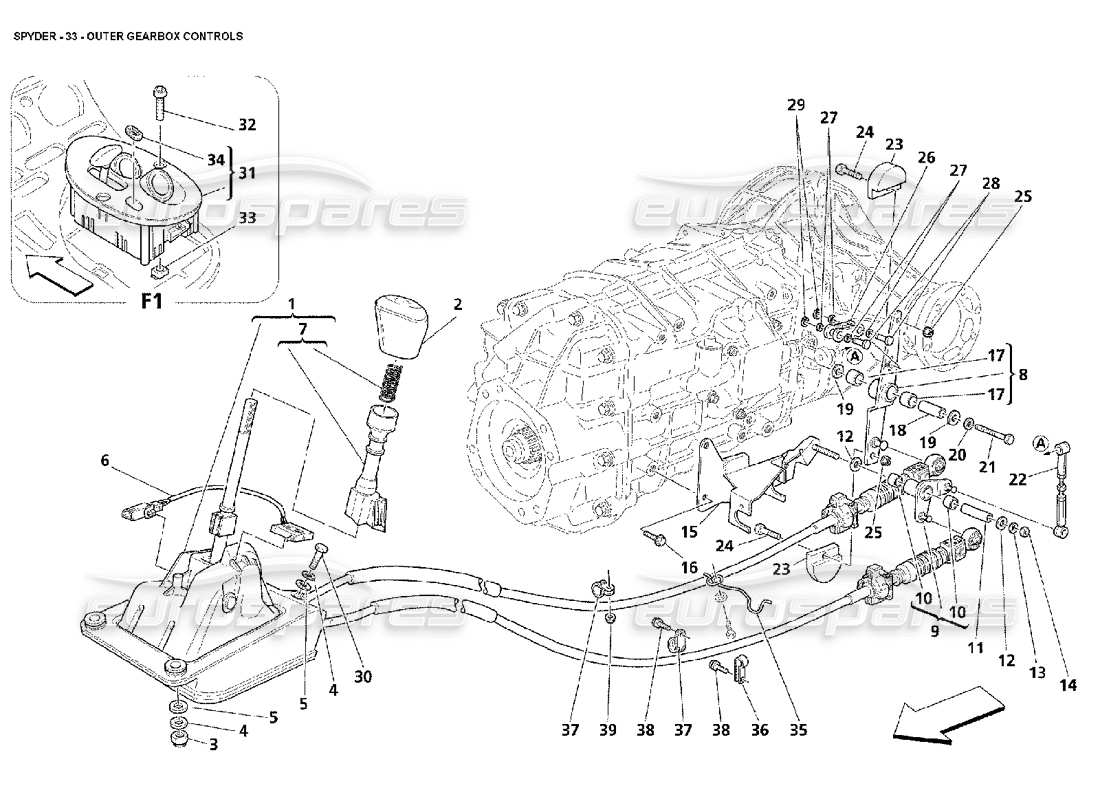

OUTER GEARBOX CONTROLS

034

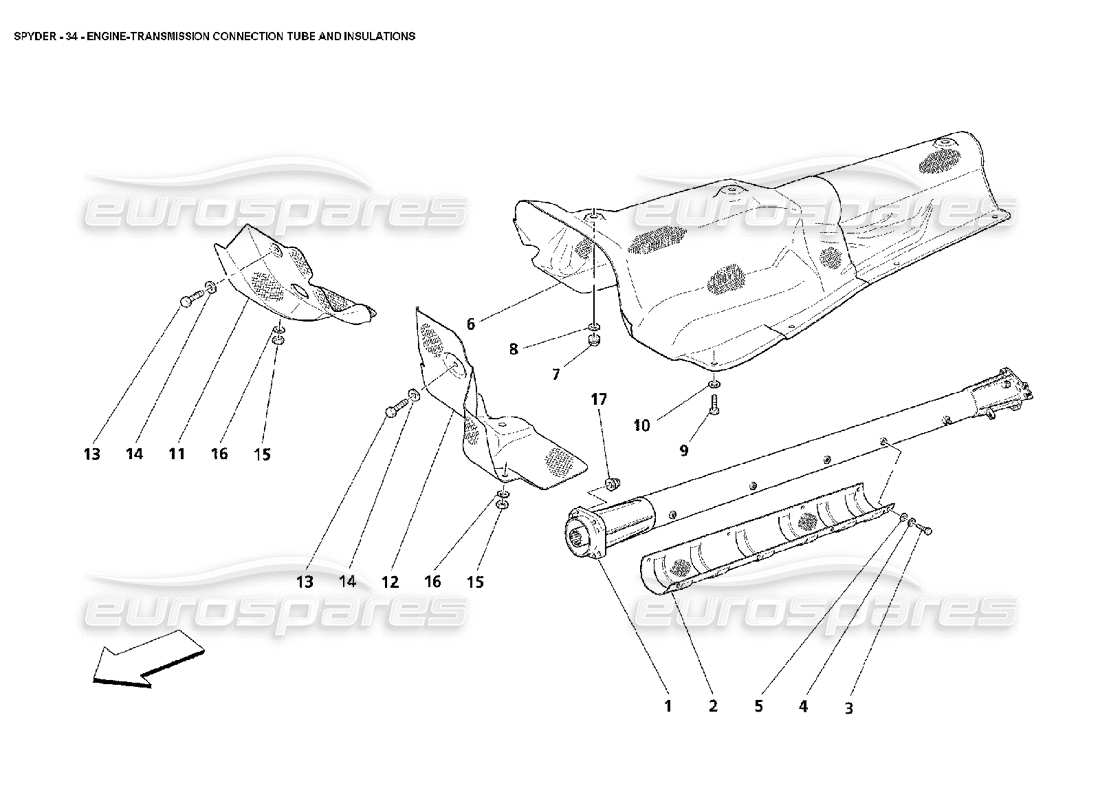

ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS

035

DIFFERENTIAL & AXLE SHAFTS

036

BRAKES AND CLUTCH HYDRAULIC CONTROLS

037

BRAKING SYSTEM -NOT FOR GD

038

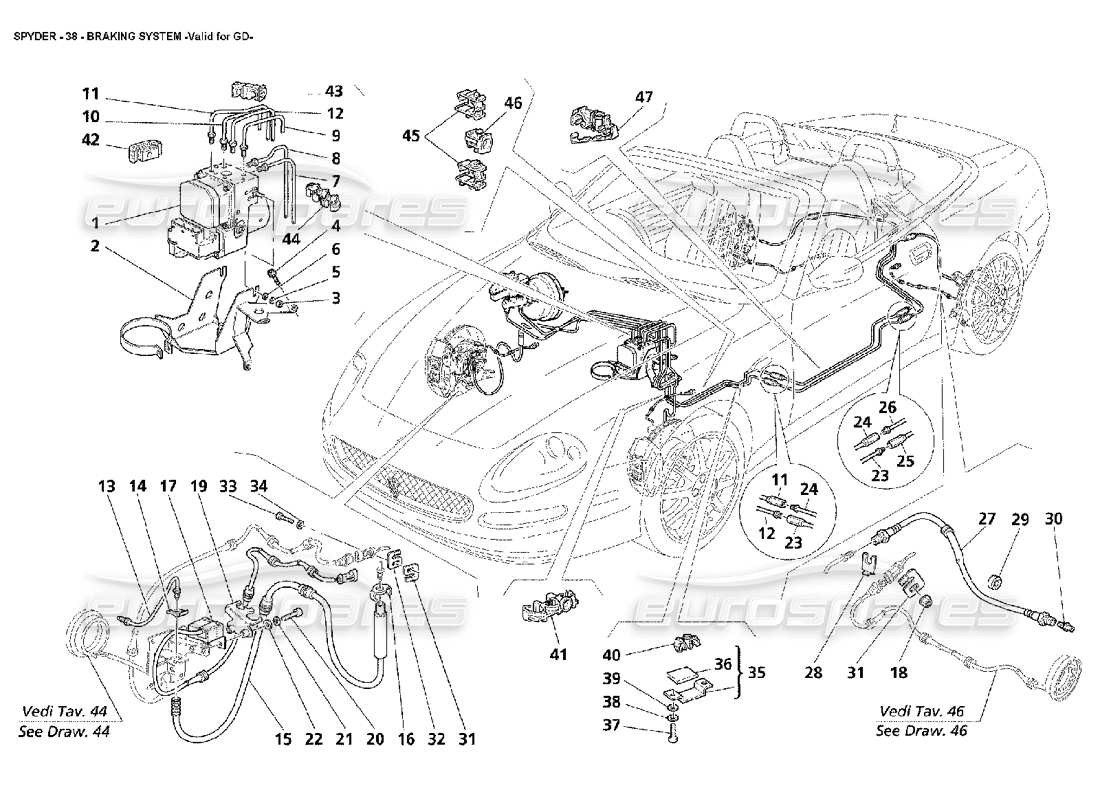

BRAKING SYSTEM -VALID FOR GD

039

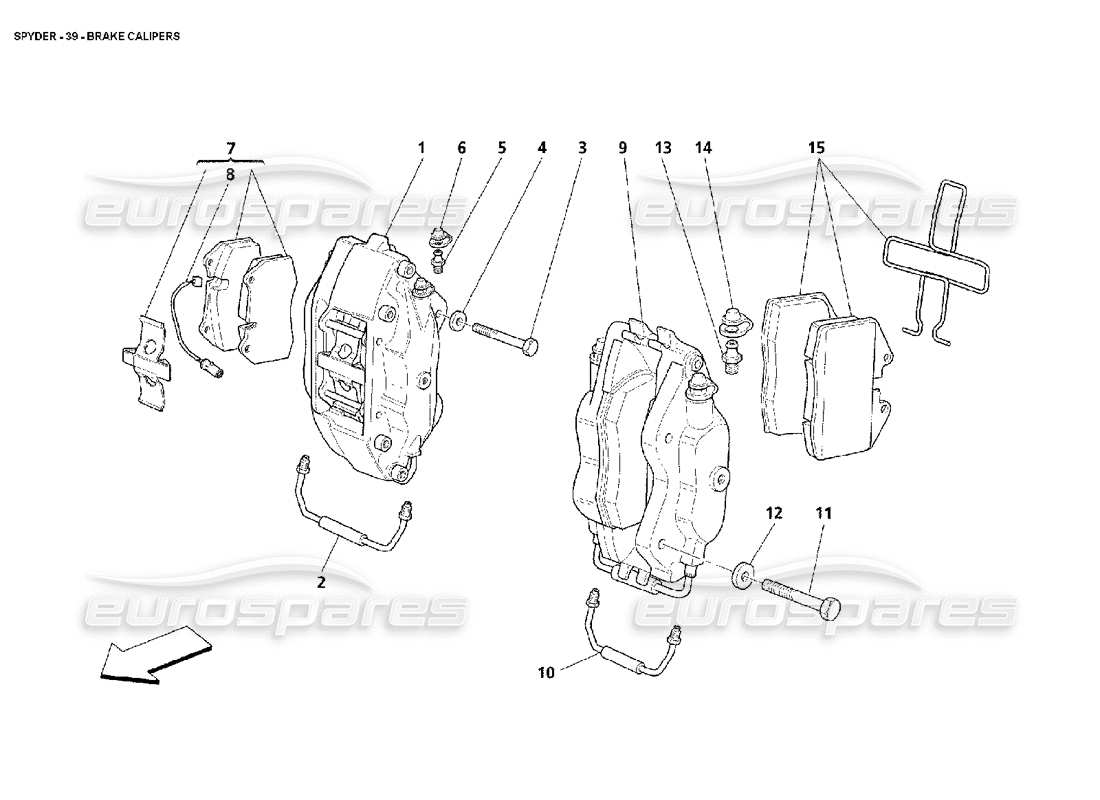

BRAKE CALIPERS

040

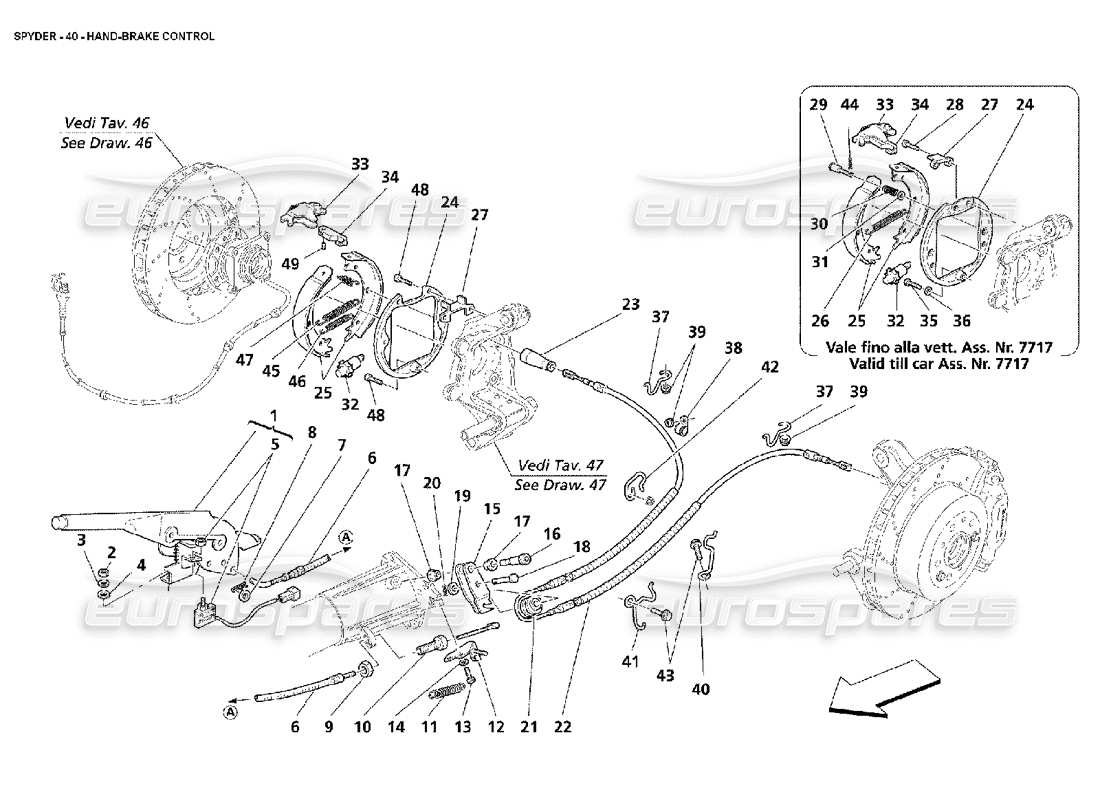

HAND-BRAKE CONTROL

041

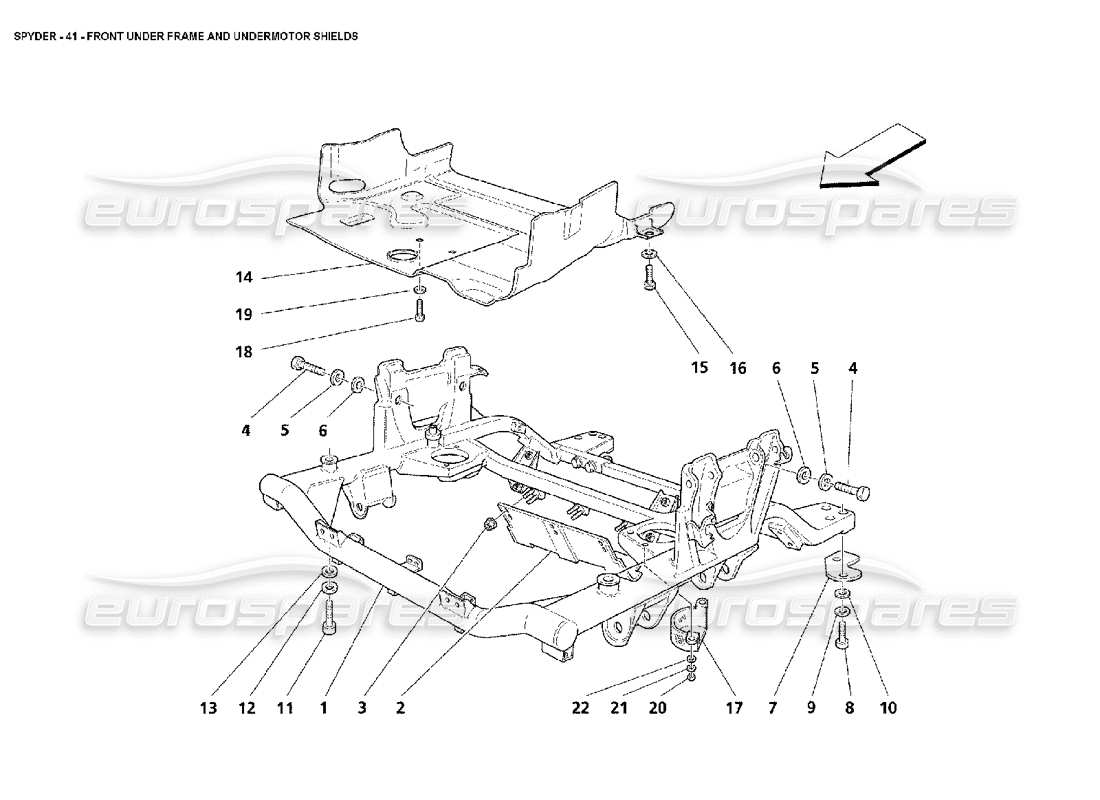

FRONT UNDER FRAME AND UNDERMOTOR SHIELDS

042

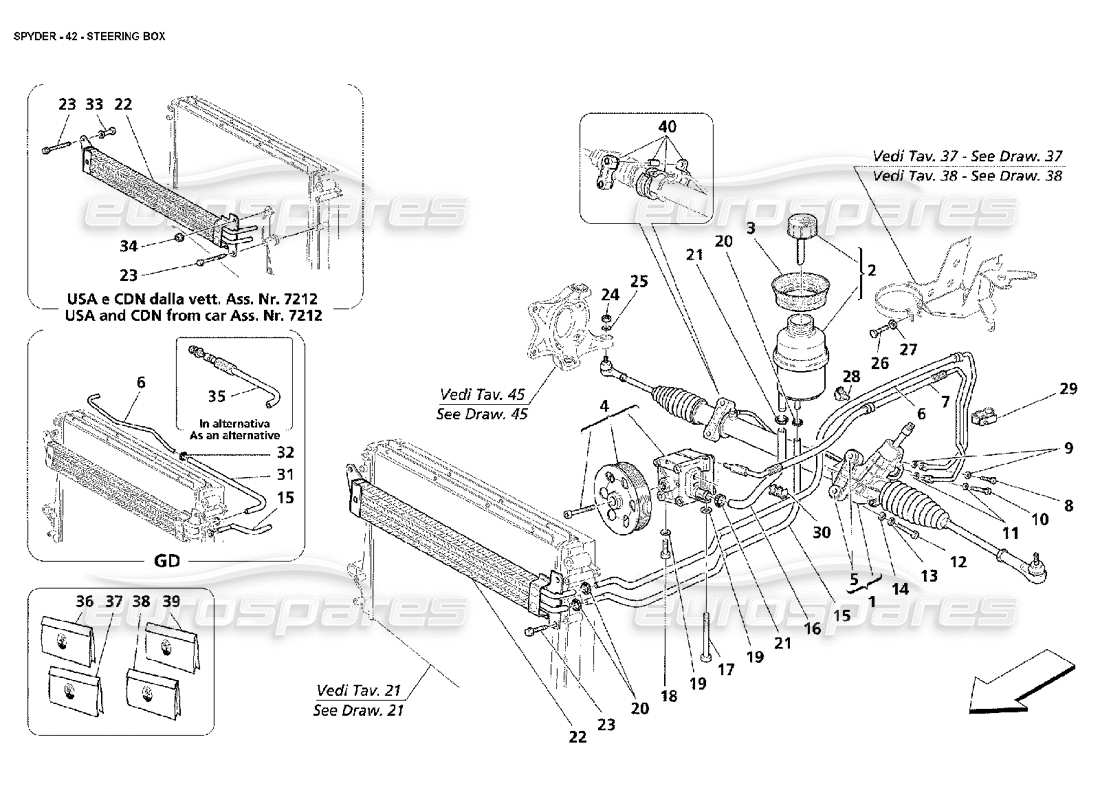

STEERING BOX

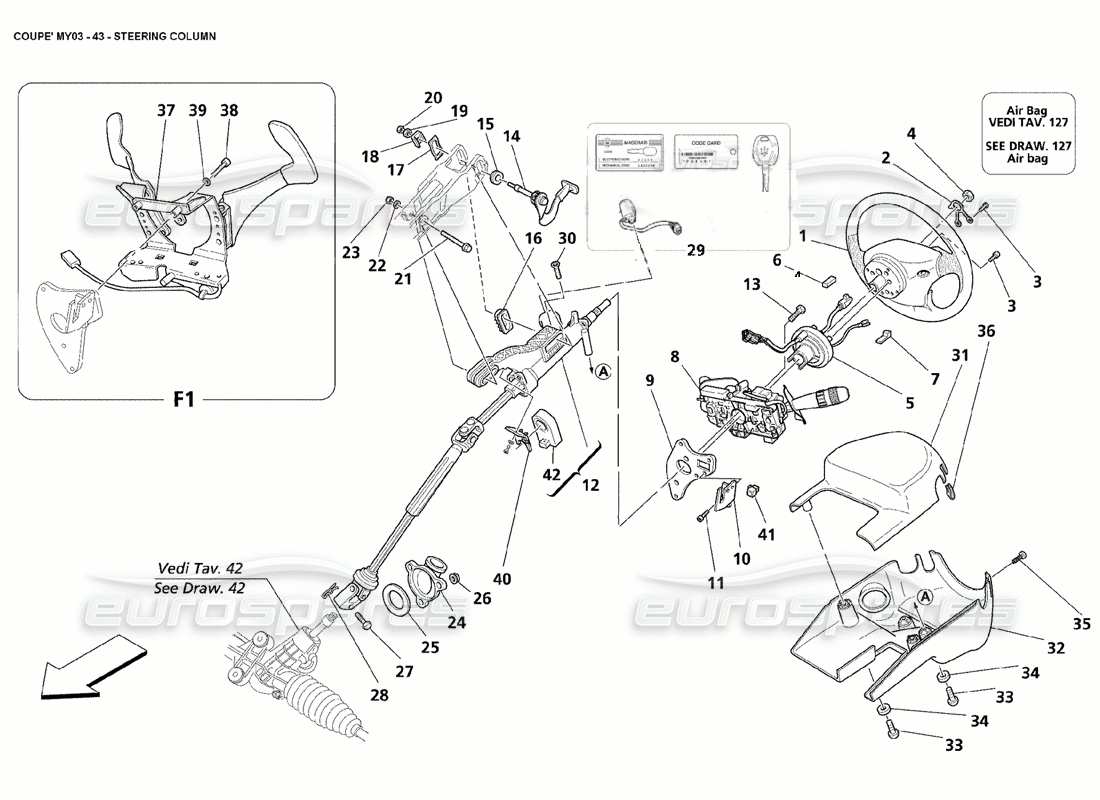

043

STEERING COLUMN

044

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

045

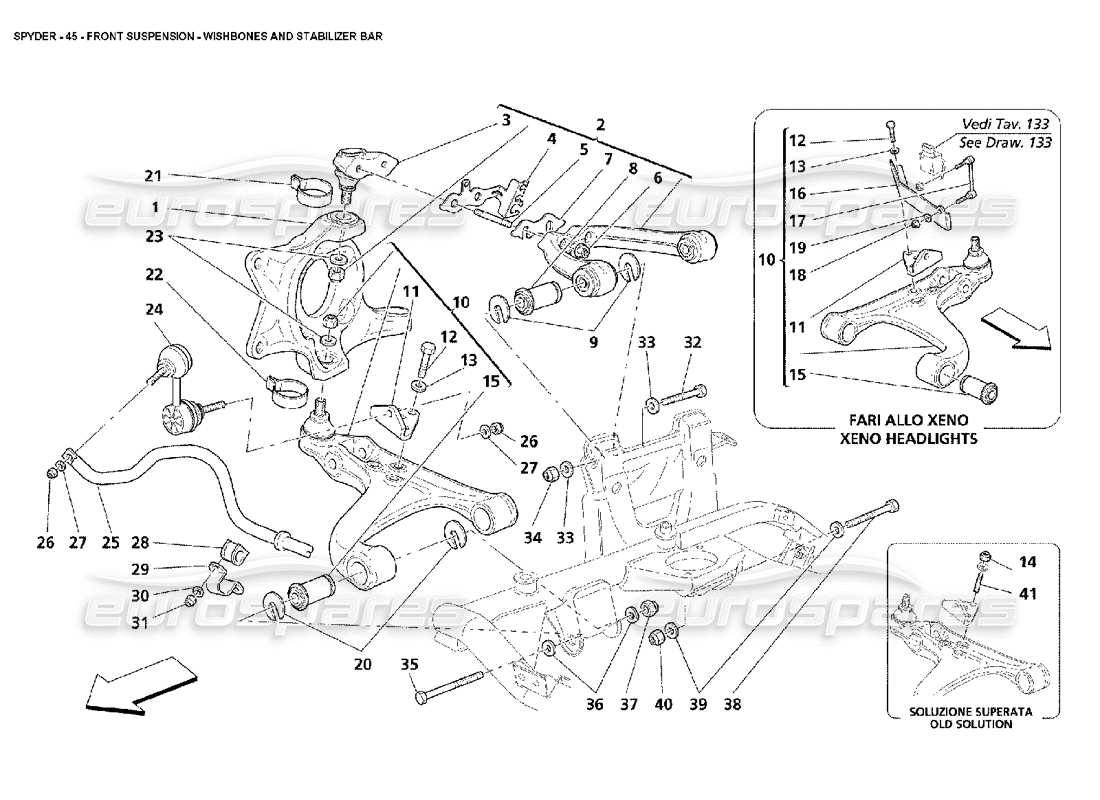

FRONT SUSPENSION - WISHBONES AND STABILIZER BAR

046

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK

047

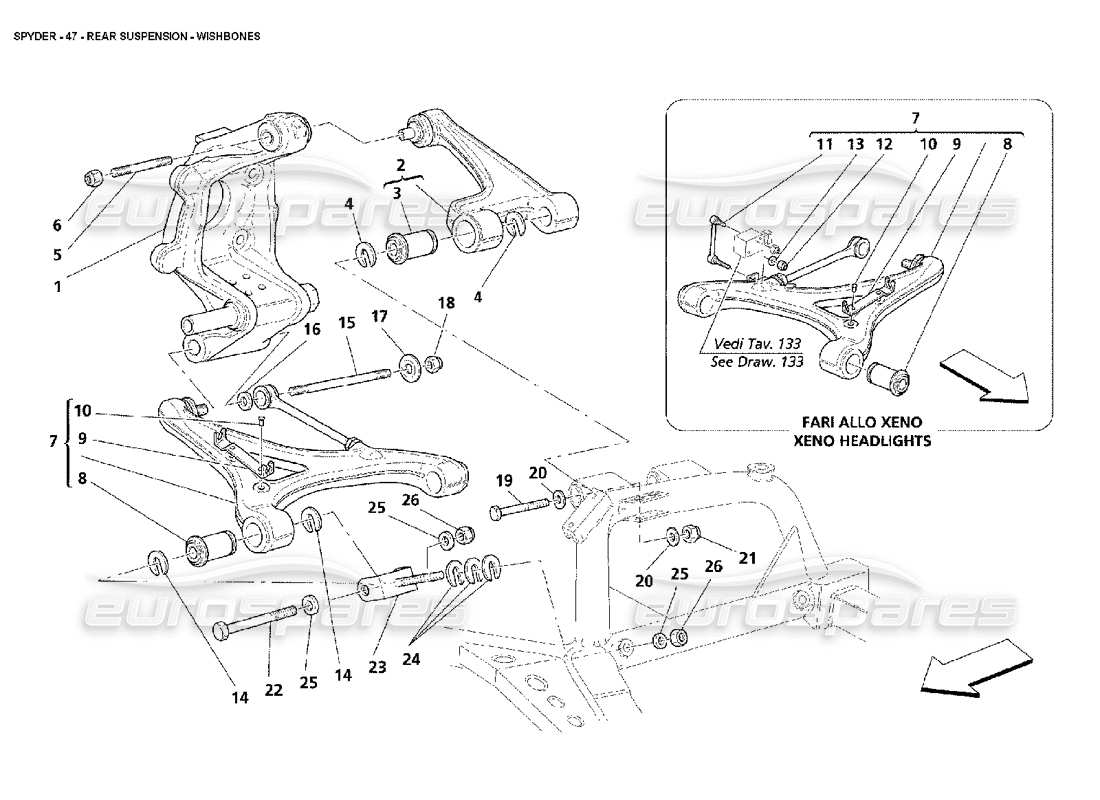

REAR SUSPENSION - WISHBONES

048

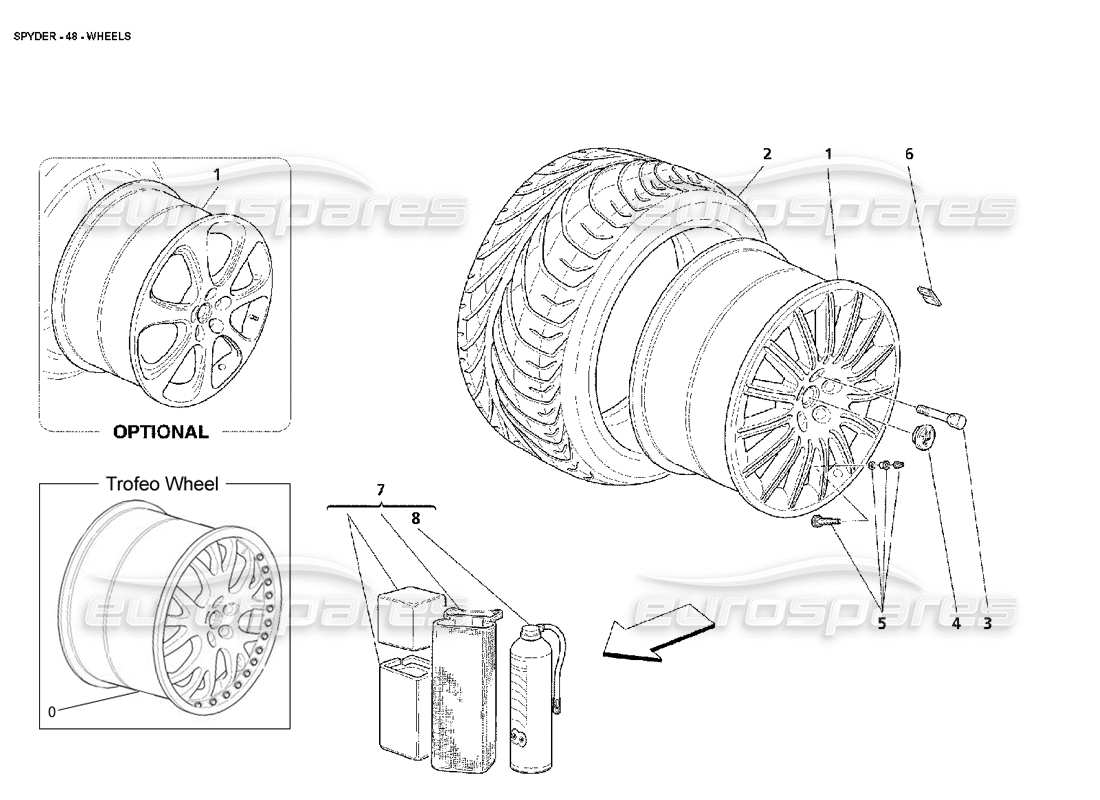

WHEELS

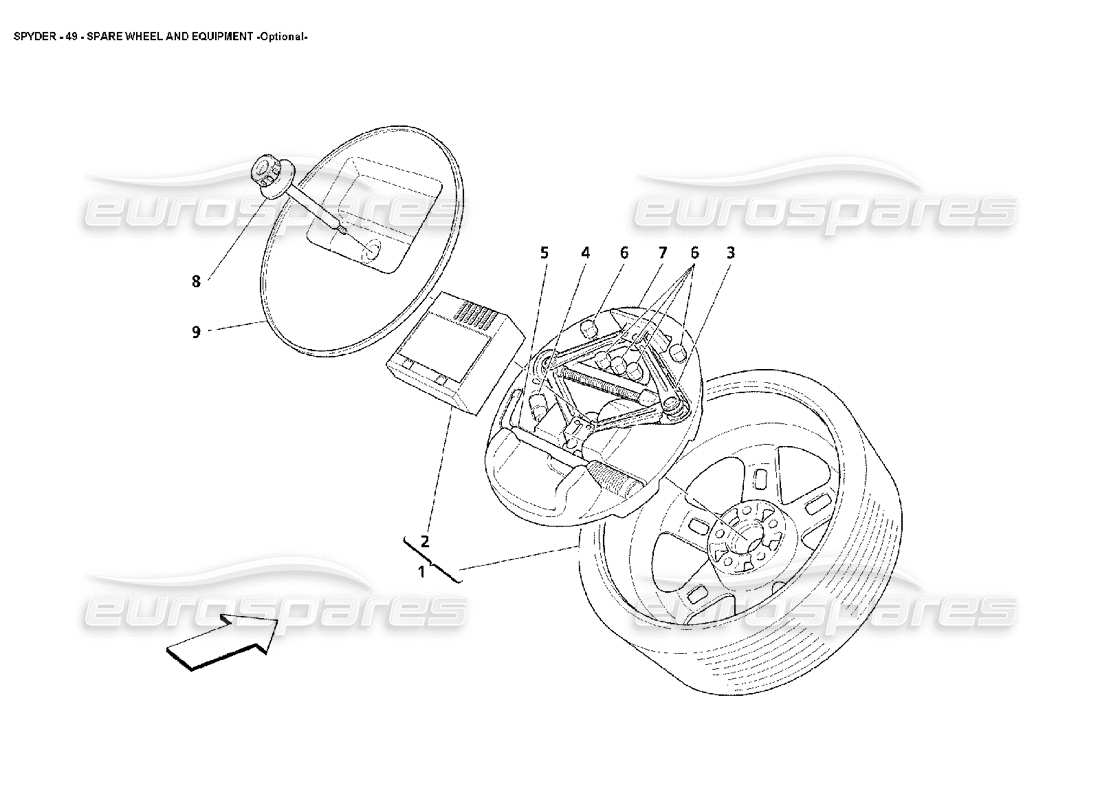

049

SPARE WHEEL AND EQUIPMENT -OPTIONAL

050

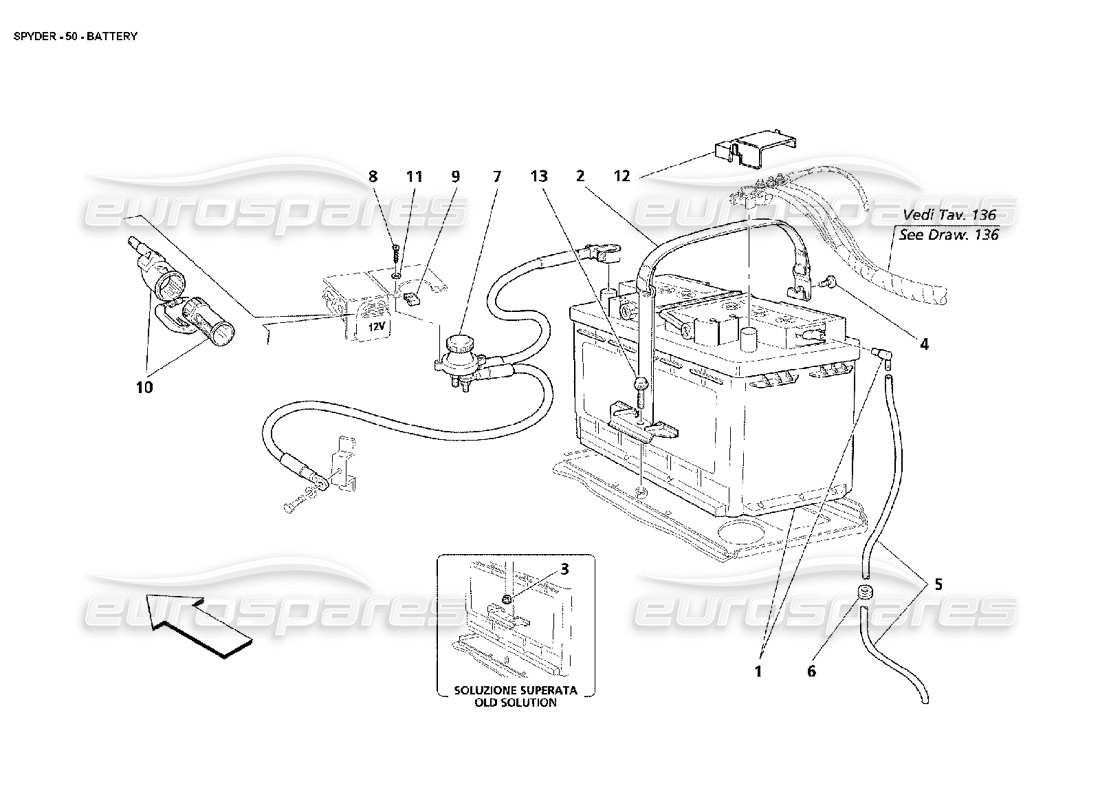

BATTERY

051

CURRENT GENERATOR-STARTING MOTOR

052

TOOLS EQUIPMENT AND ACCESSORIES

100

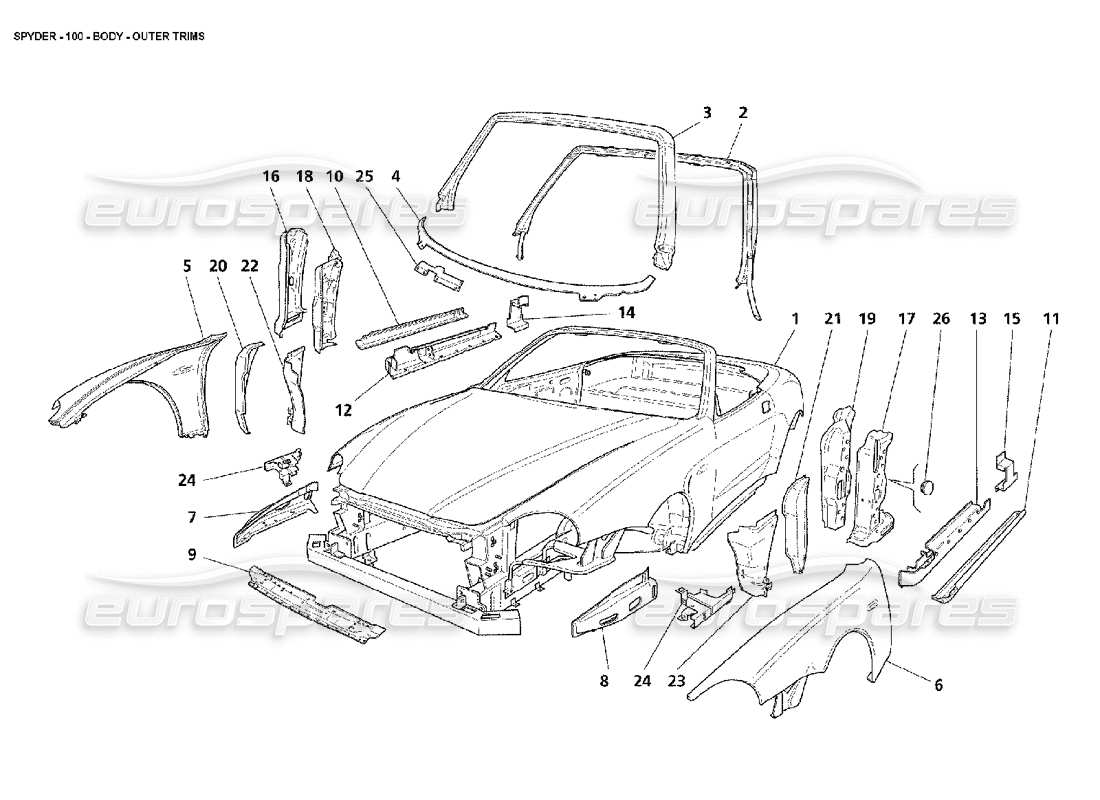

BODY - OUTER TRIMS

101

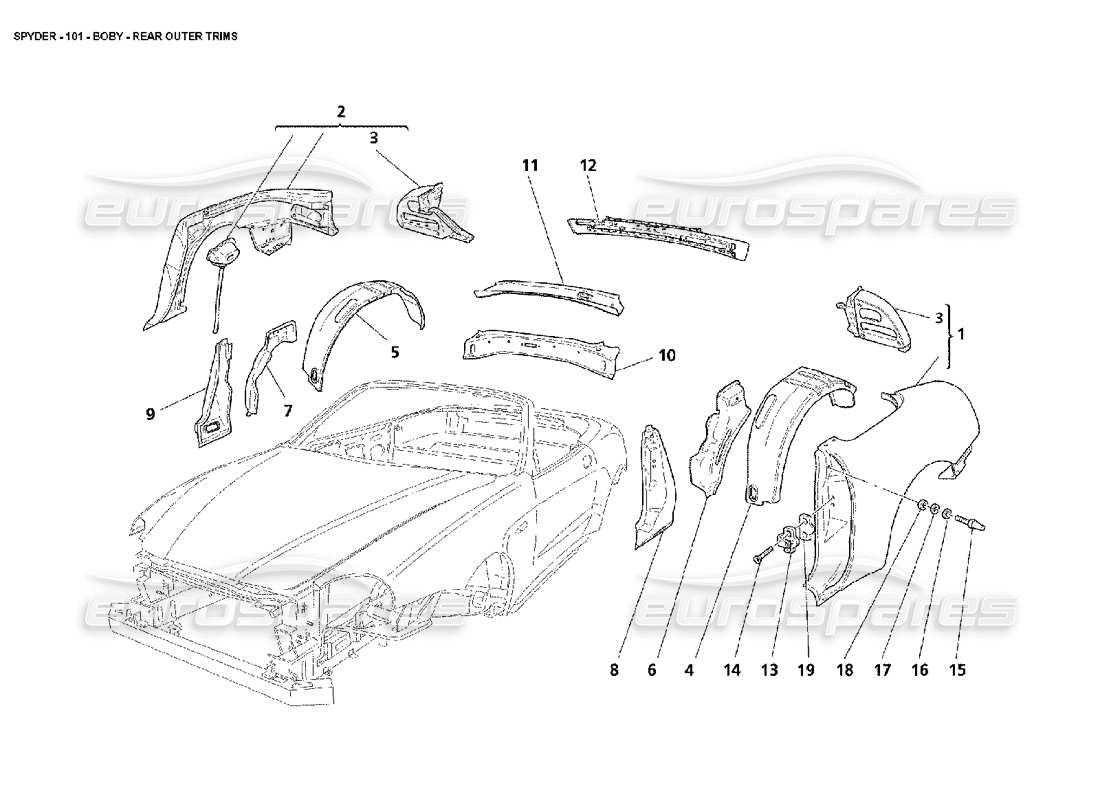

BODY - REAR OUTER TRIMS

102

FRONT STRUCTURE

103

CENTRAL STRUCTURE

104

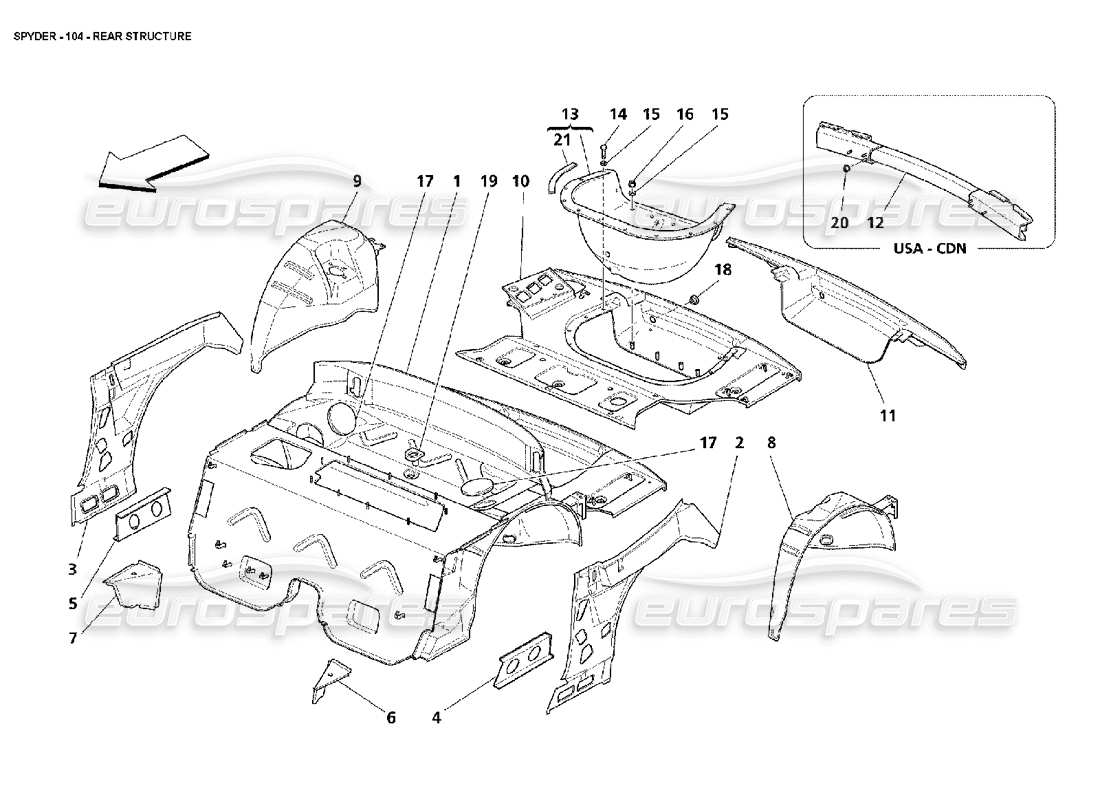

REAR STRUCTURE

105

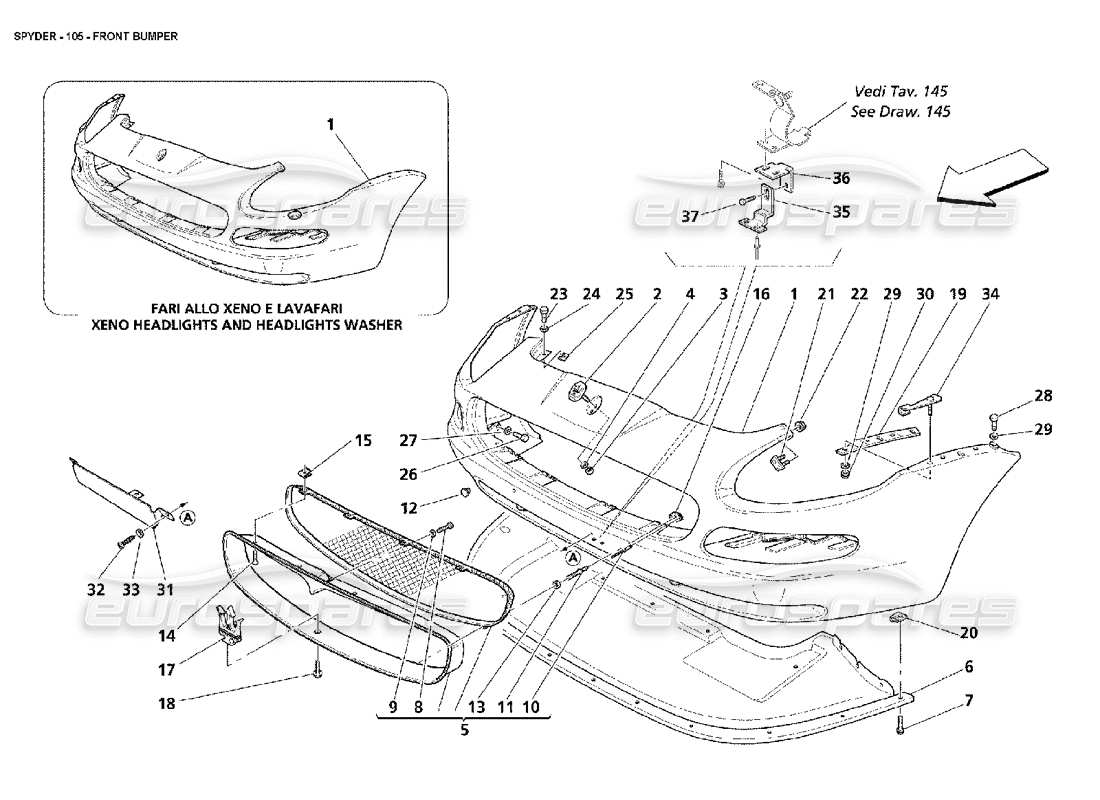

FRONT BUMPER

106

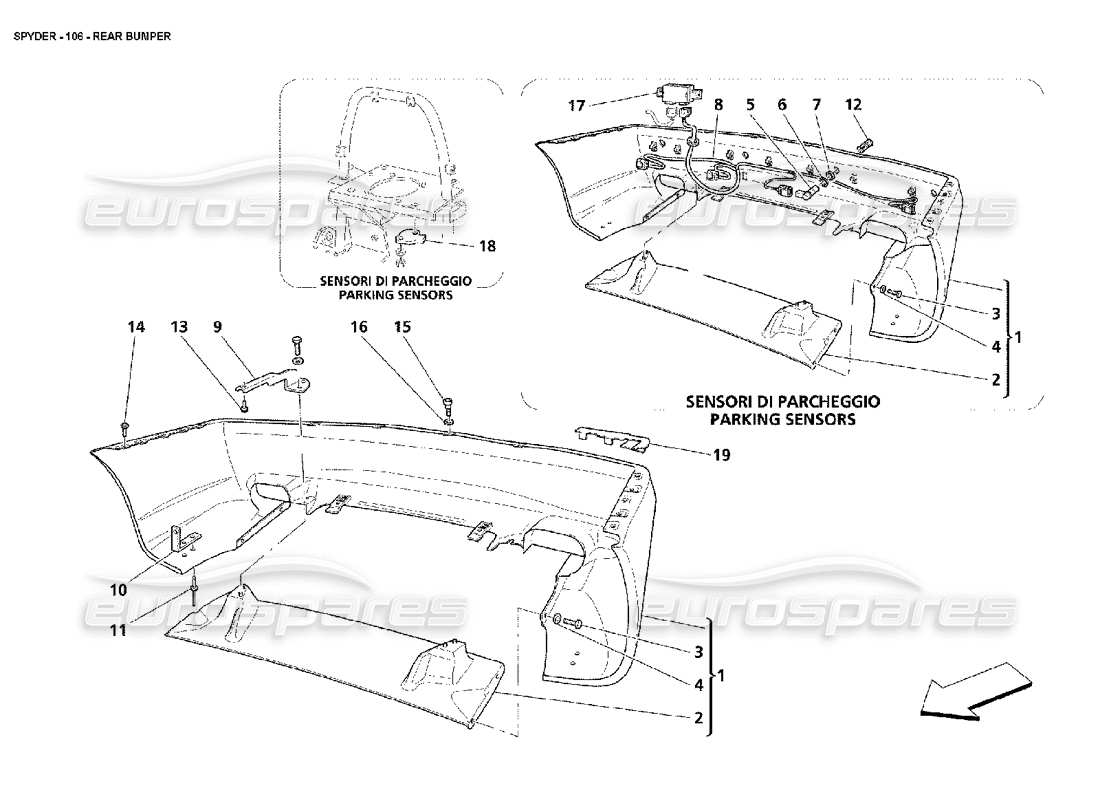

REAR BUMPER

107

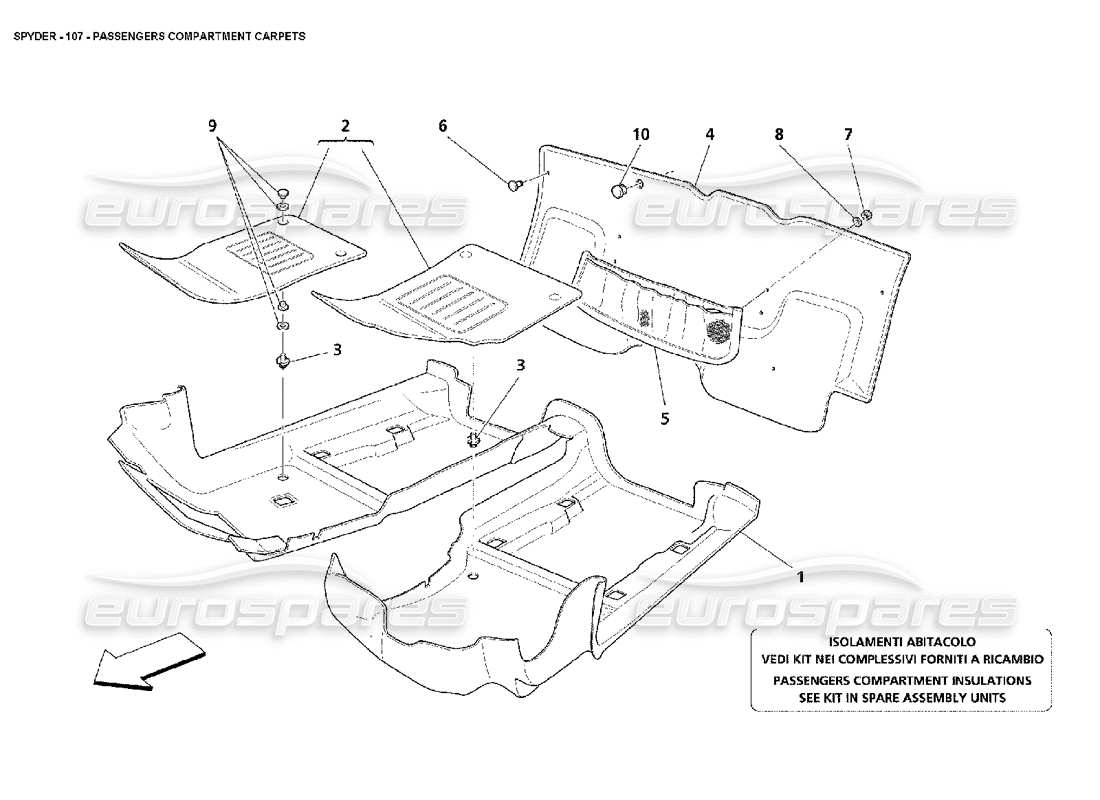

PASSENGERS COMPARTMENT CARPETS

108

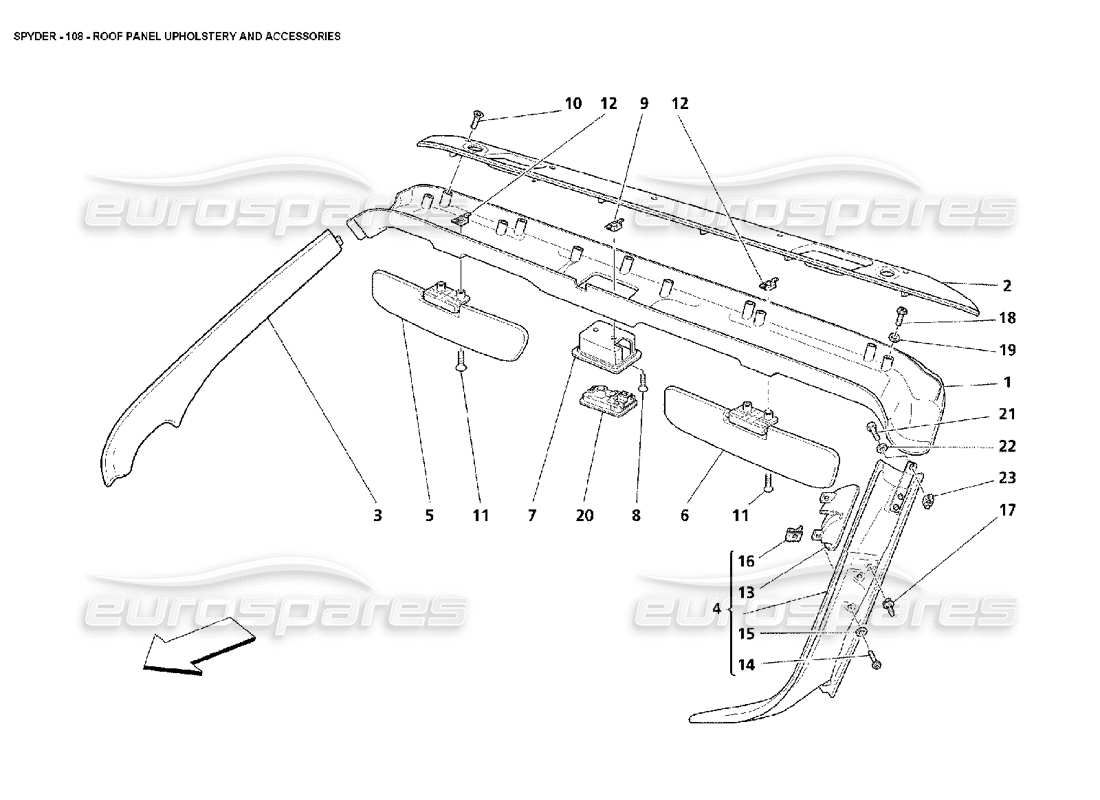

ROOF PANEL UPHOLSTERY AND ACCESSORIES

109

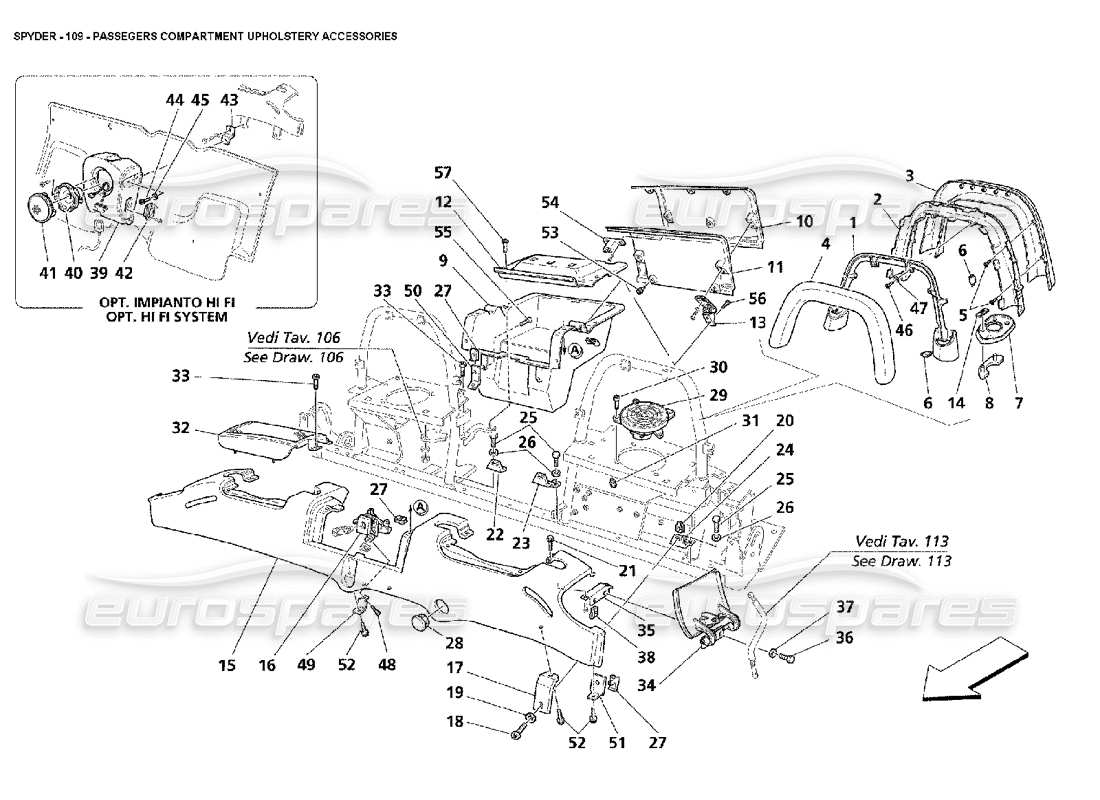

PASSEGERS COMPARTMENT UPHOLSTERY ACCESSORIES

110

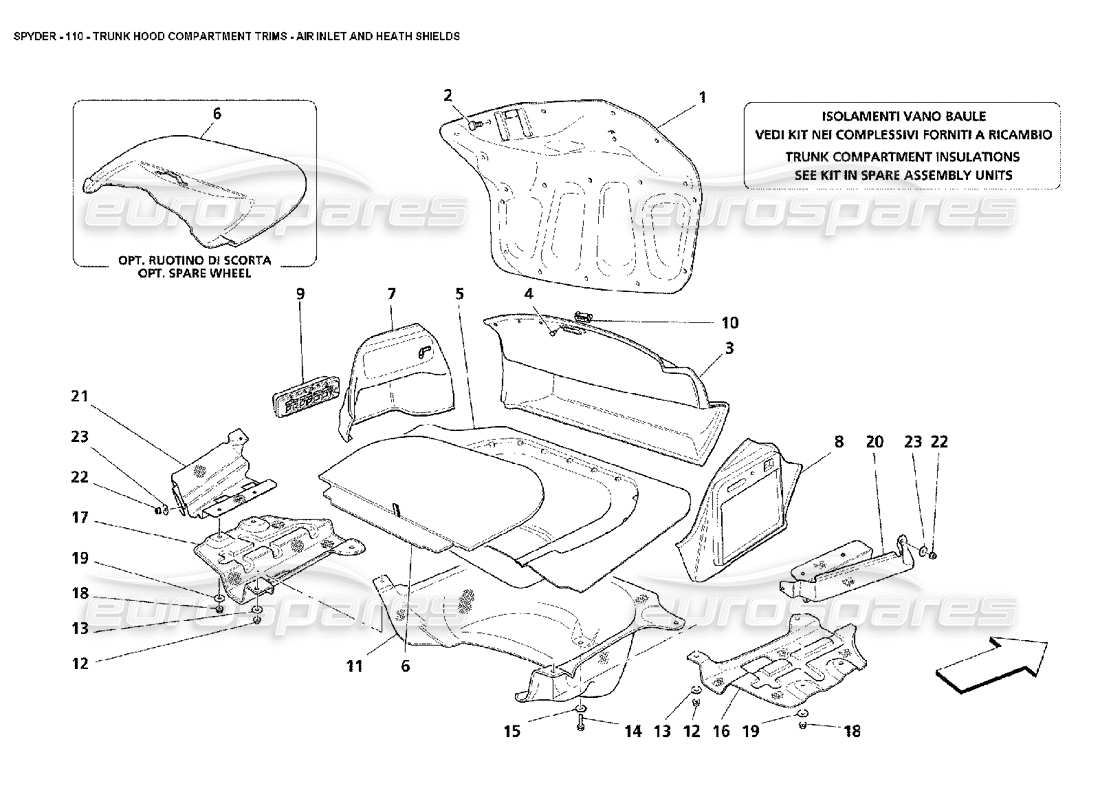

TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS

111

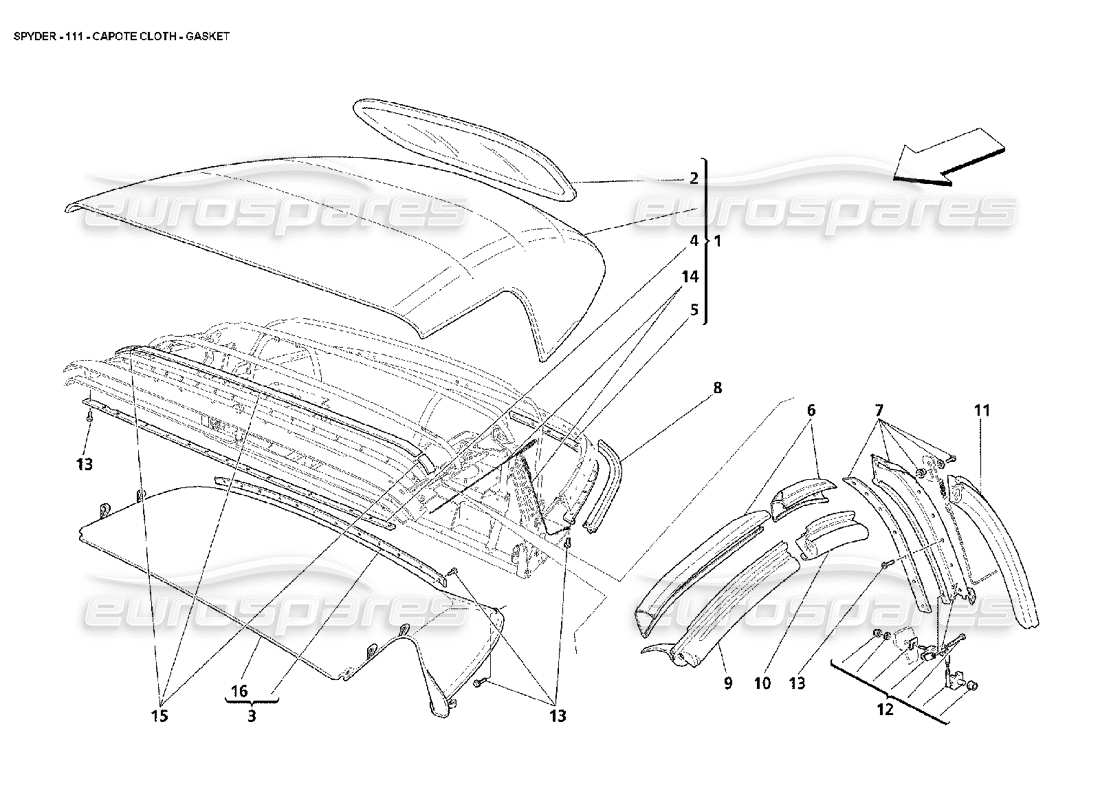

CAPOTE CLOTH - GASKET

112

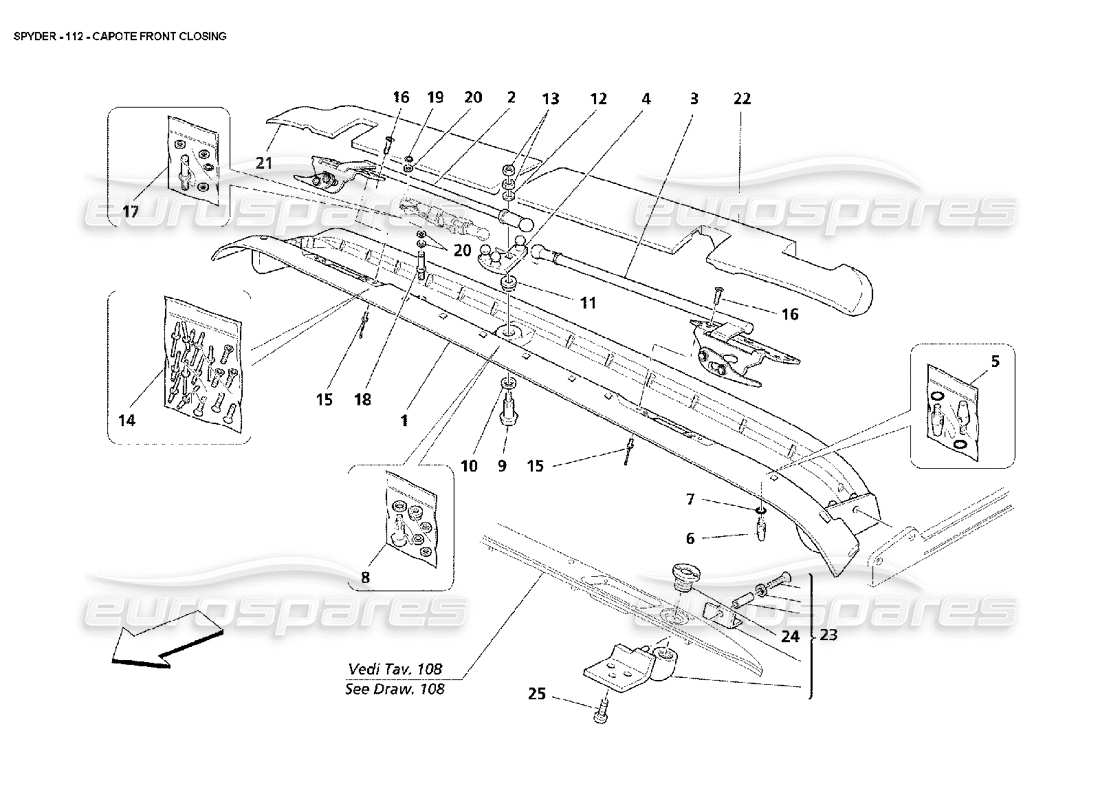

CAPOTE FRONT CLOSING

113

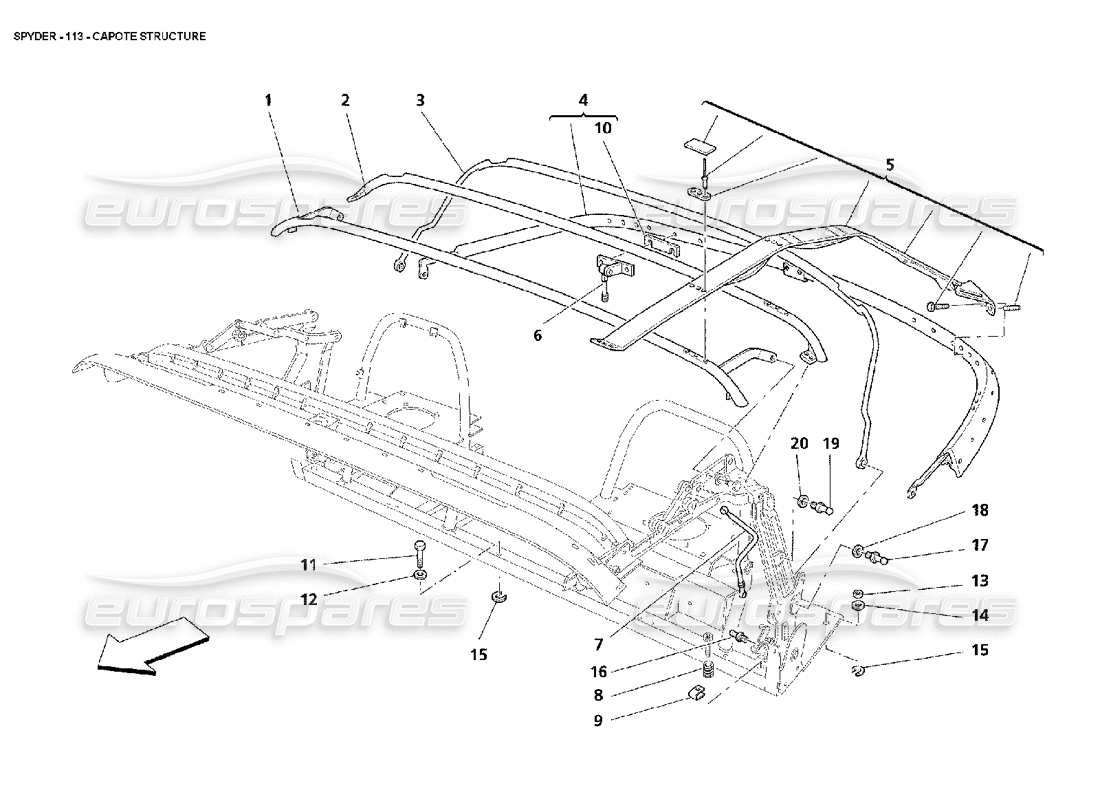

CAPOTE STRUCTURE

114

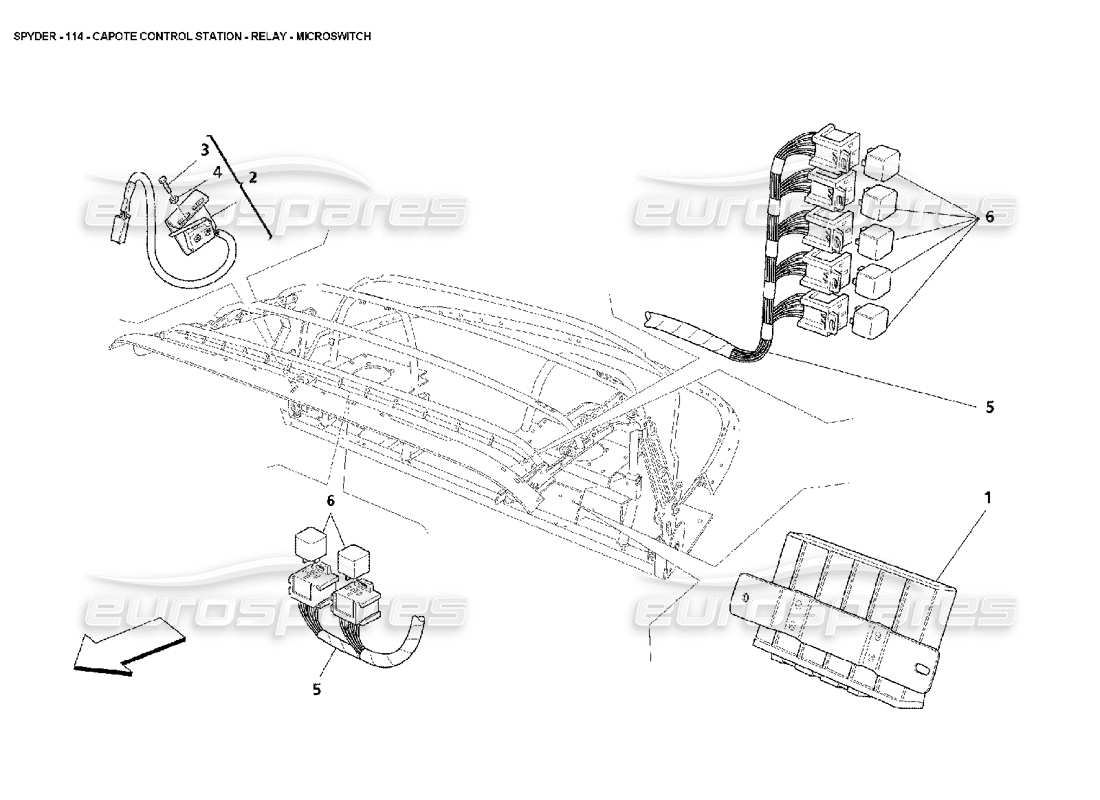

CAPOTE CONTROL STATION - RELAY - MICROSWITCH

115

CAPOTE HYDRAULIC SYSTEM

116

CLOSINGS AND COVER

117

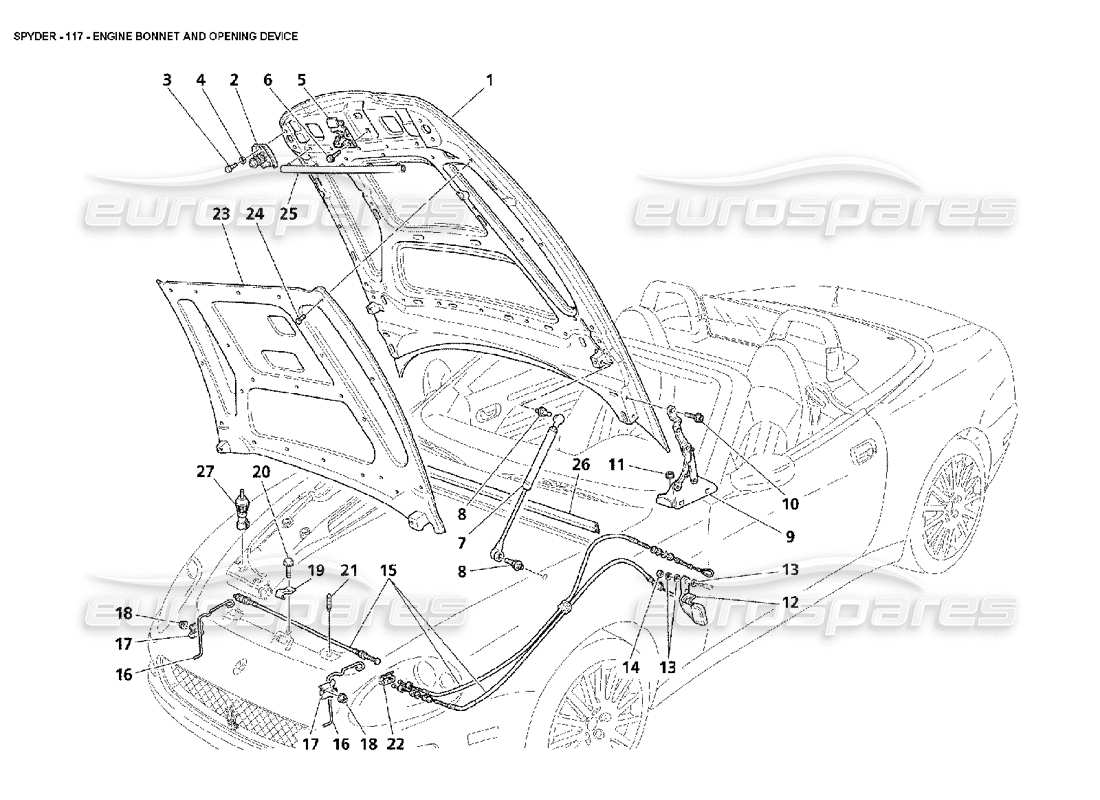

ENGINE BONNET AND OPENING DEVICE

118

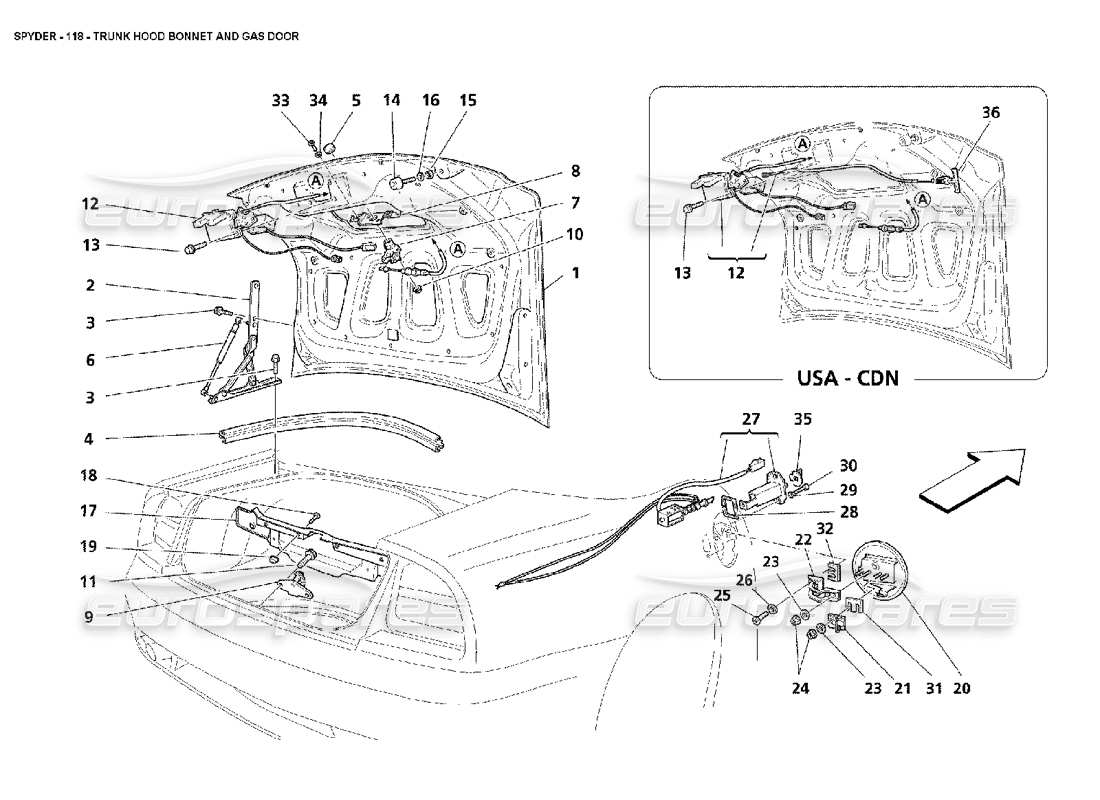

TRUNK HOOD BONNET AND GAS DOOR

119

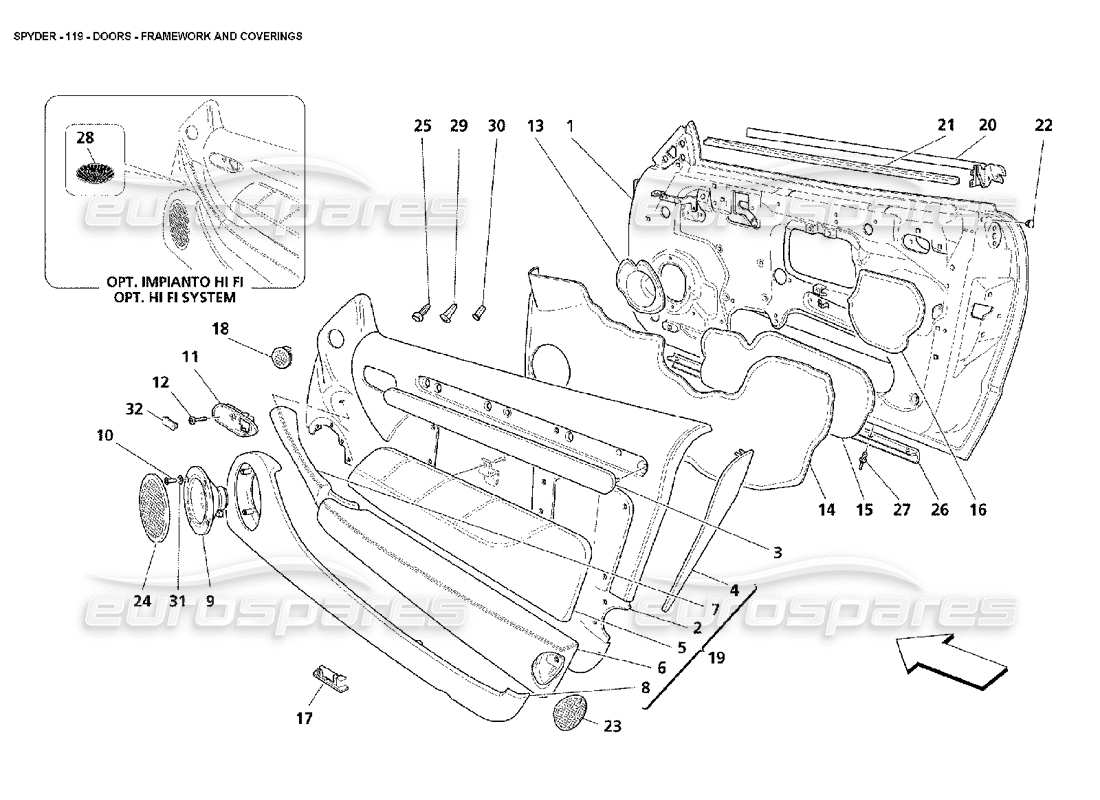

DOORS - FRAMEWORK AND COVERINGS

120

DOORS - OPENING CONTROL AND HINGES

121

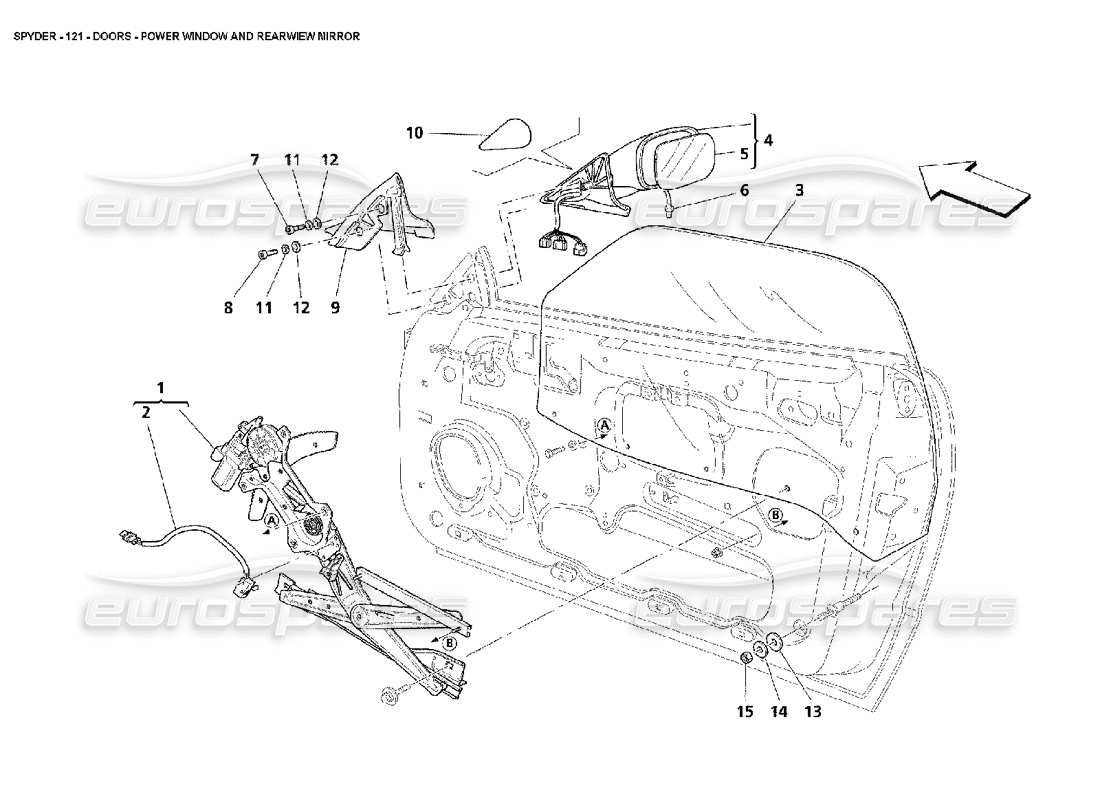

DOORS - POWER WINDOW AND REARWIEW MIRROR

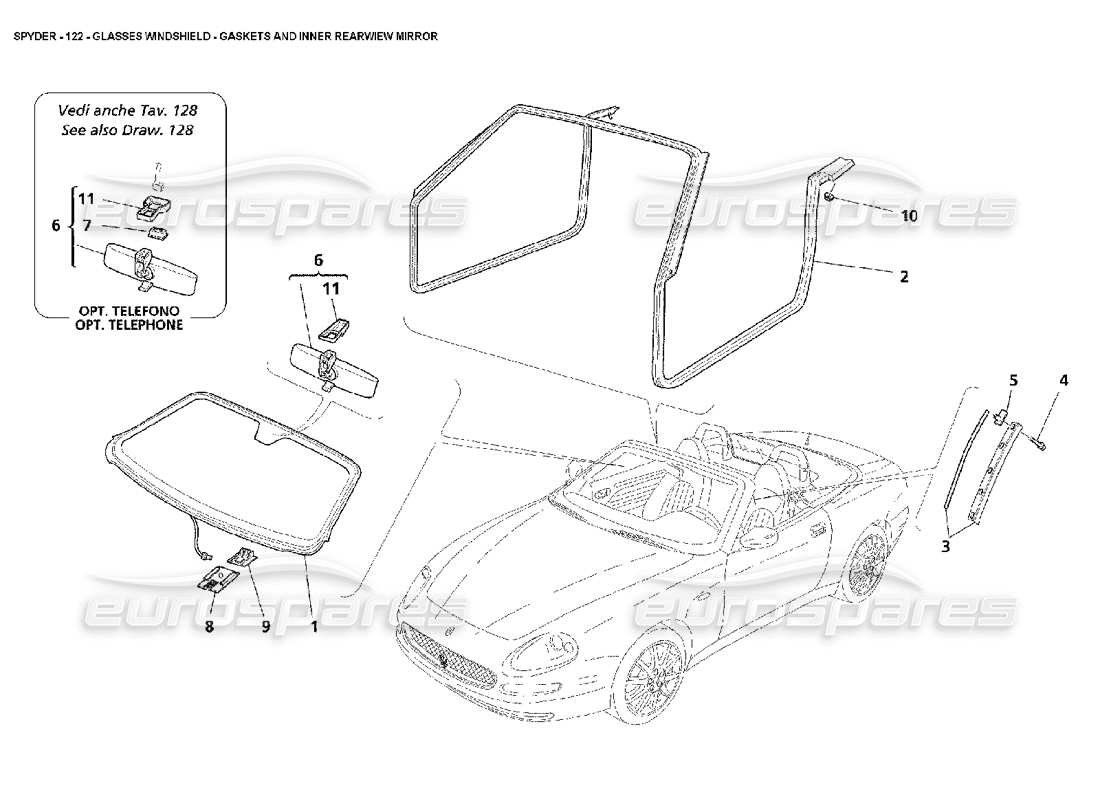

122

GLASSES WINDSHIELD - GASKETS AND INNER REARWIEW MIRROR

123

ELECRICAL SEAT-SAFETY BELTS

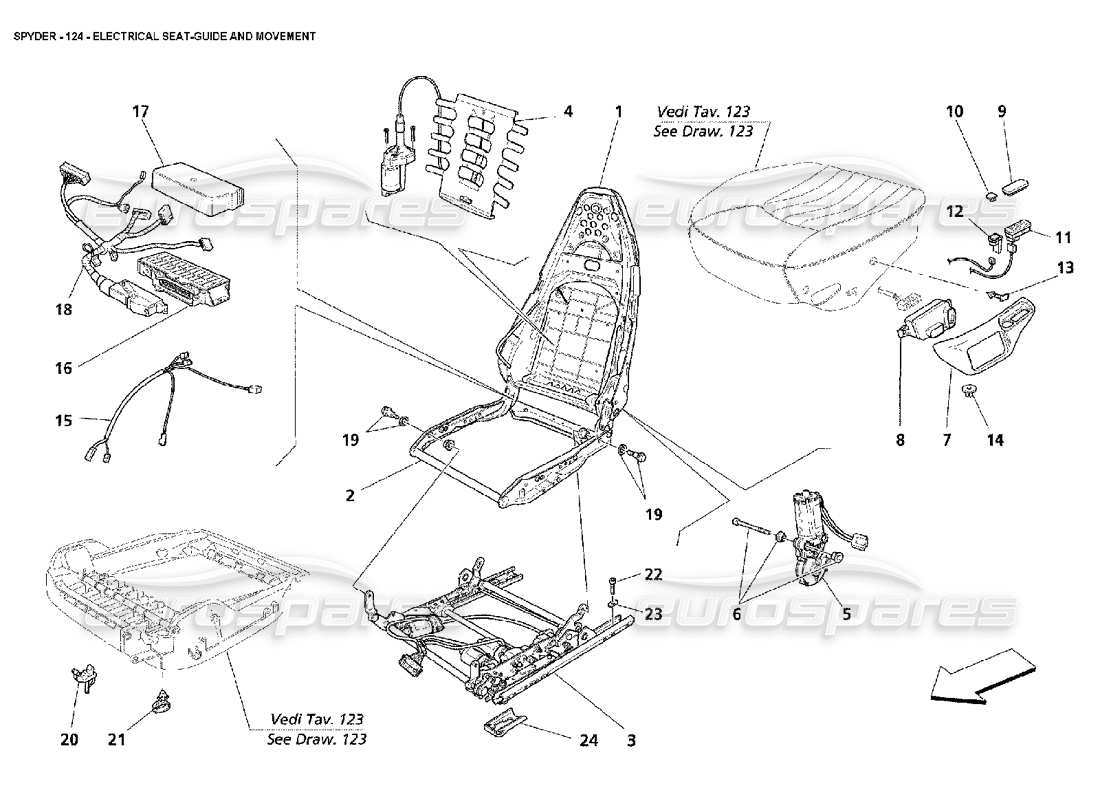

124

ELECTRICAL SEAT-GUIDE AND MOVEMENT

125

DASHBOARD -NOT FOR GD

126

DASHBOARD -VALID FOR GD

127

DASHBOARD DRAWER

128

TUNNEL - FRAMEWORK AND ACCESSORIES

129

AIR-BAGS

130

DASHBOARD INSTRUMENTS

131

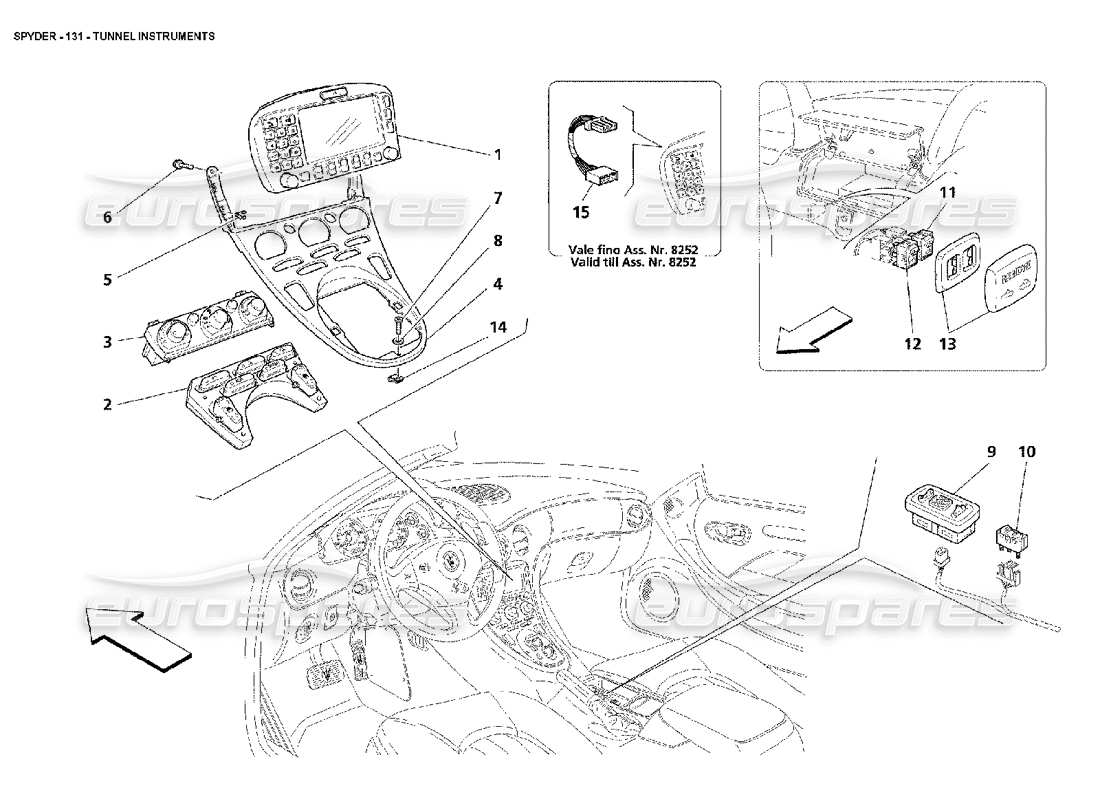

TUNNEL INSTRUMENTS

132

FRONT AND REAR LIGHTS

133

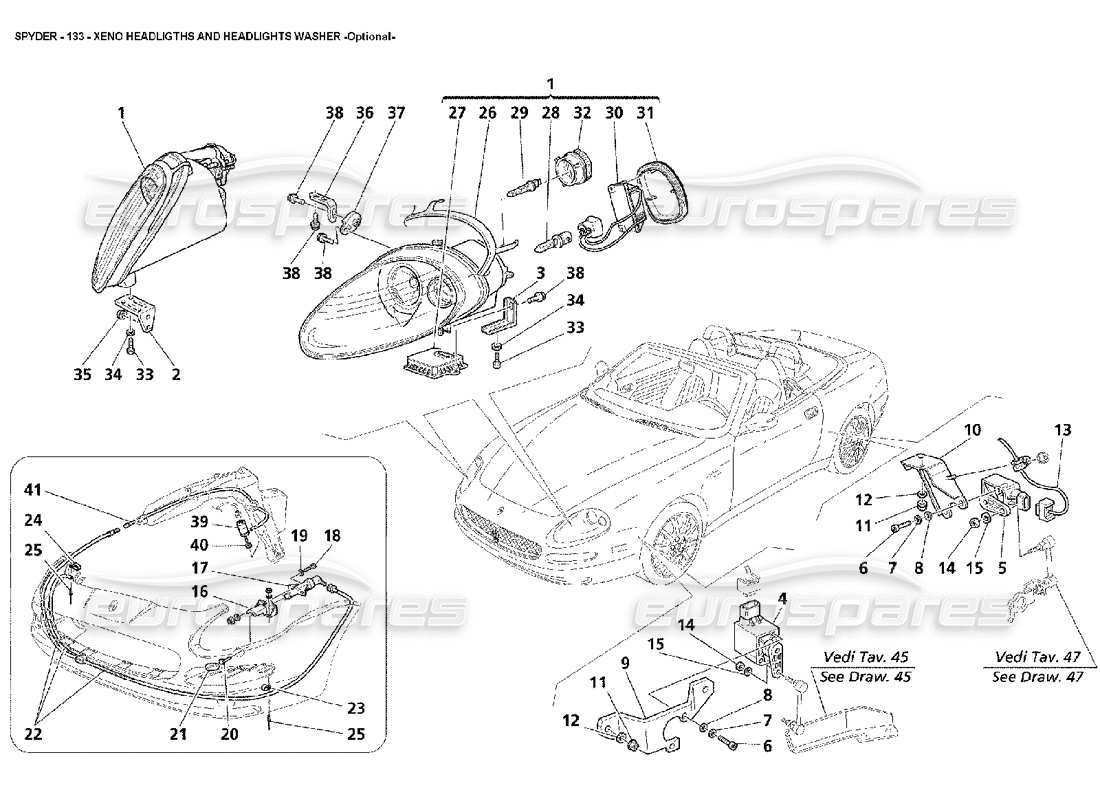

XENO HEADLIGTHS AND HEADLIGHTS WASHER -OPTIONAL

134

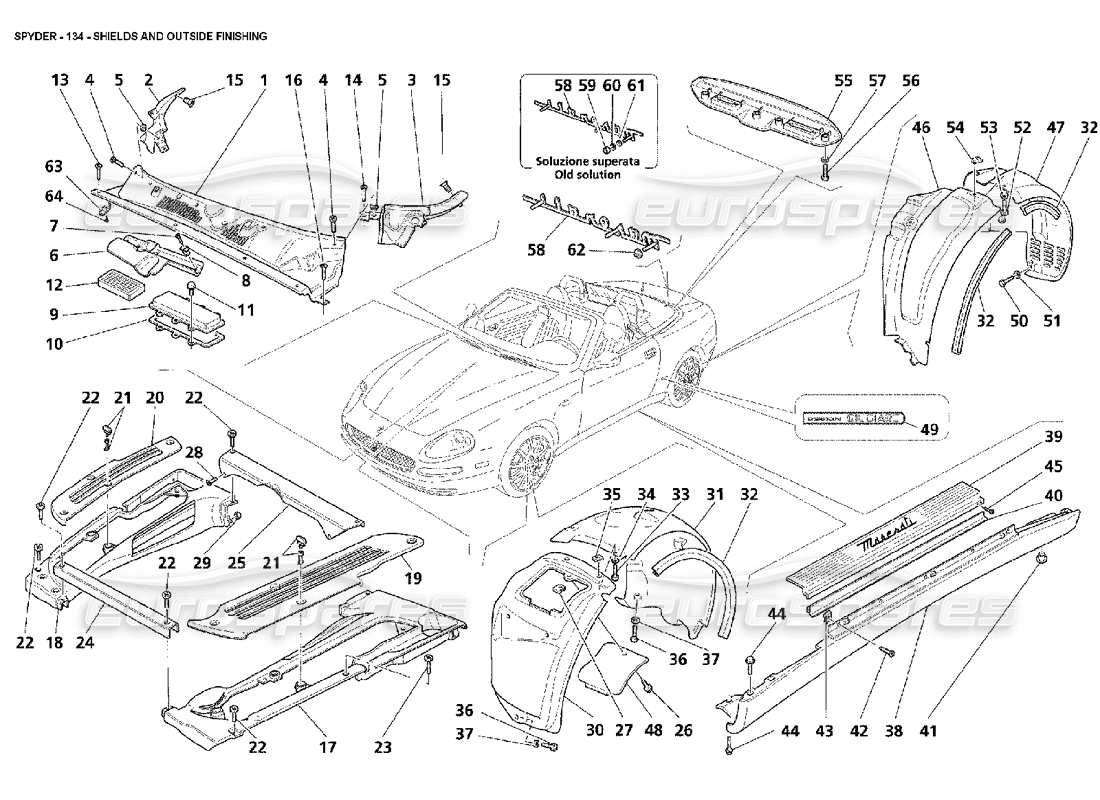

SHIELDS AND OUTSIDE FINISHING

135

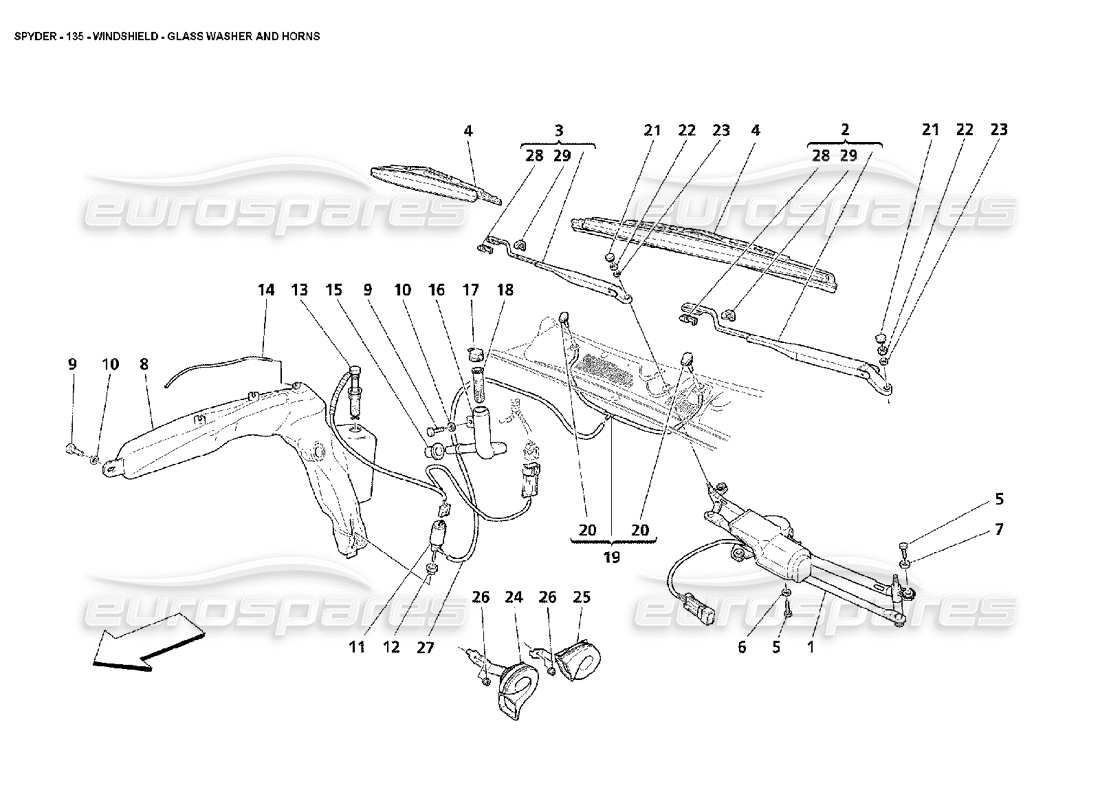

WINDSHIELD - GLASS WASHER AND HORNS

136

ELECTRICAL SYSTEM

137

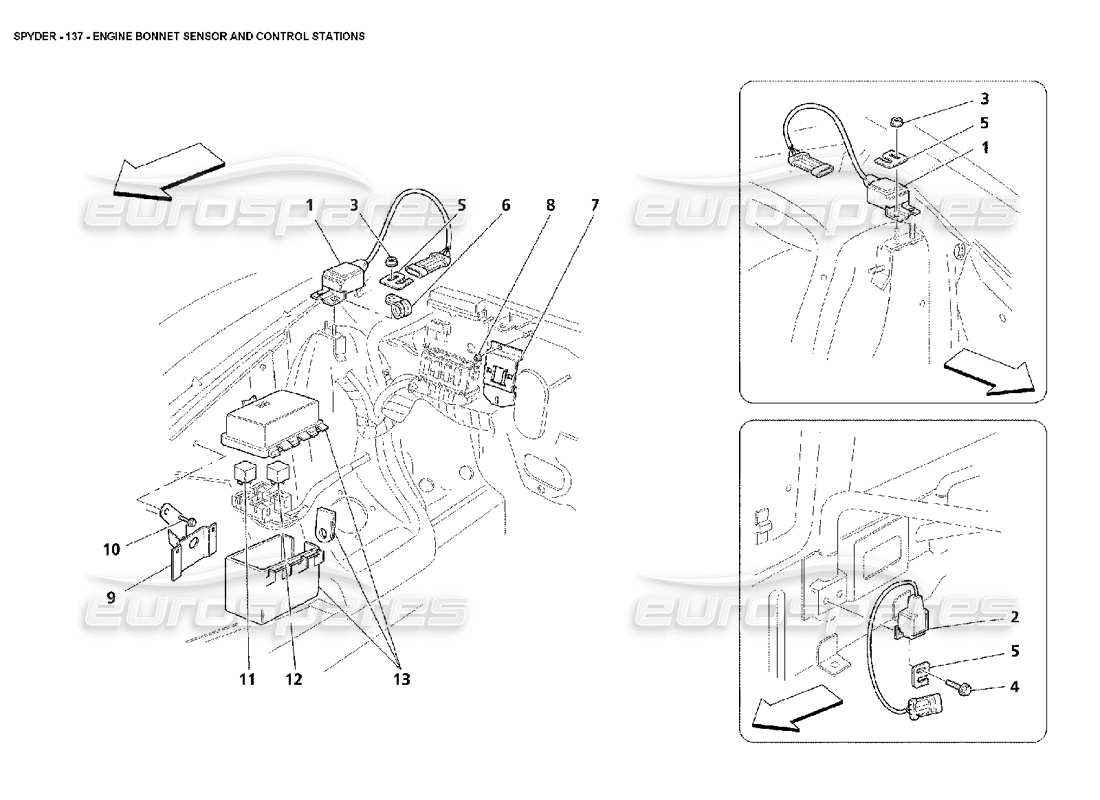

ENGINE BONNET SENSOR AND CONTROL STATIONS

138

FRONT PASSENGERS COMPARTMENT CONTROL STATION

139

PASSENGERS SIDE CONTROL UNITS

140

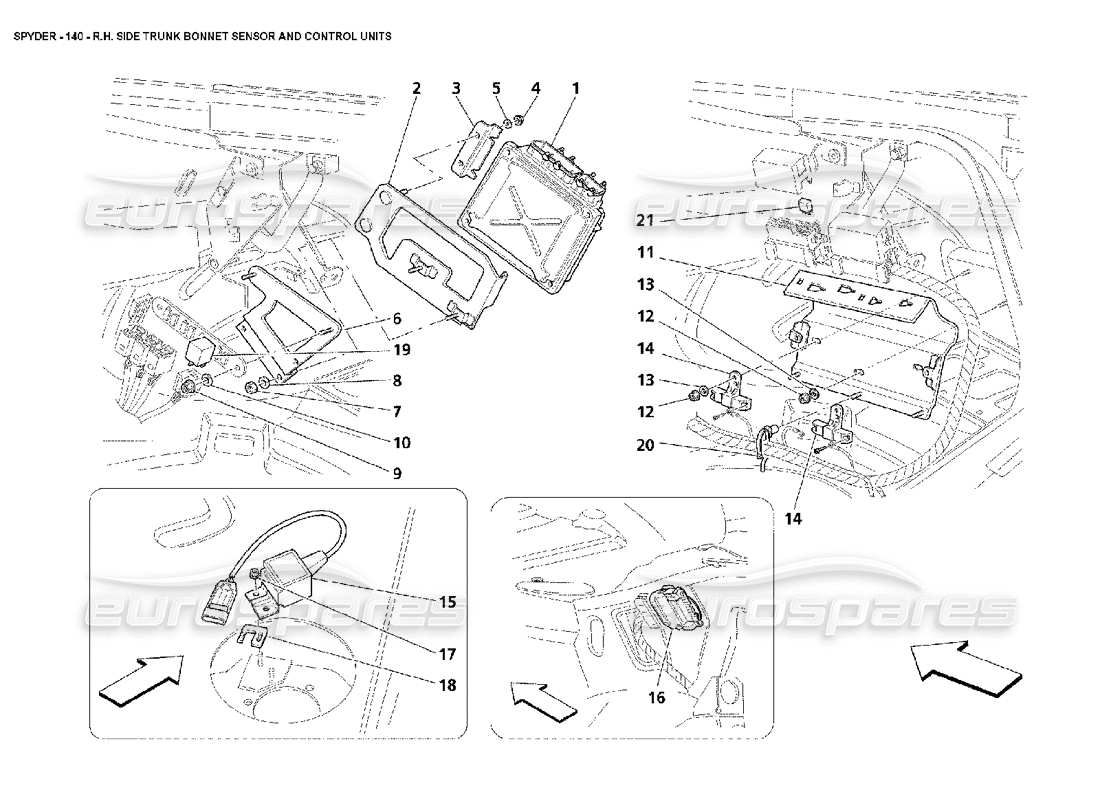

RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS

141

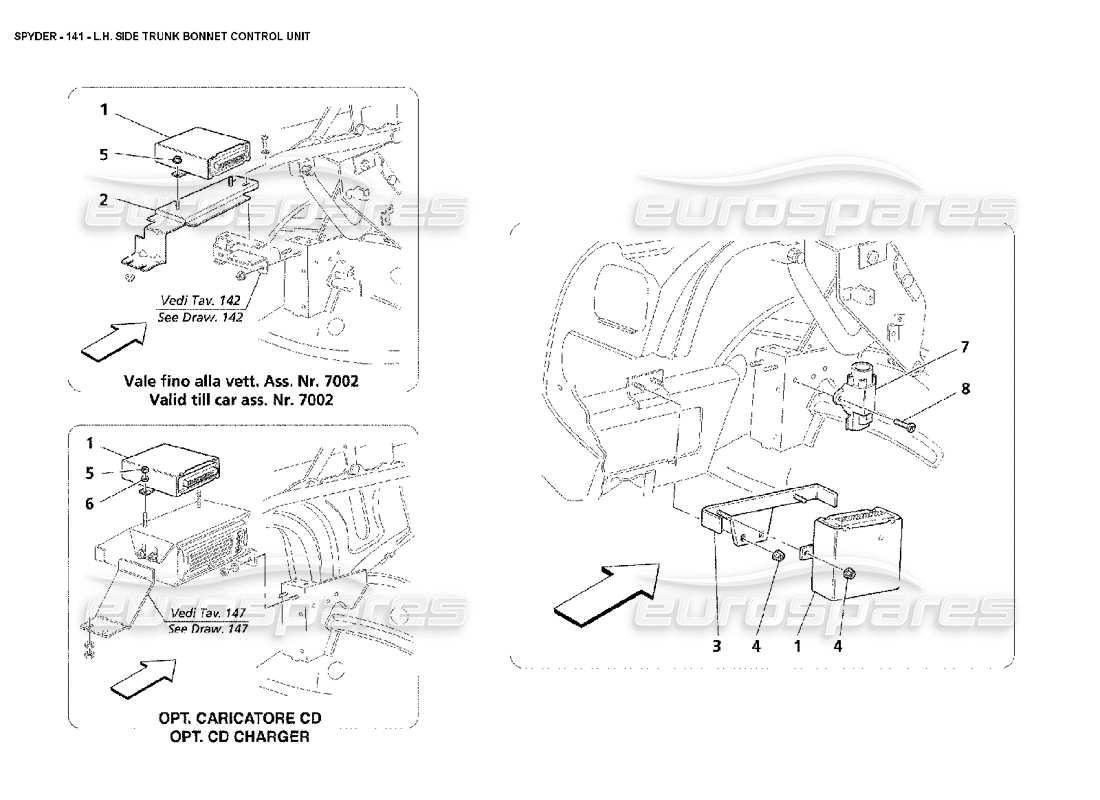

LH SIDE TRUNK BONNET CONTROL UNIT

142

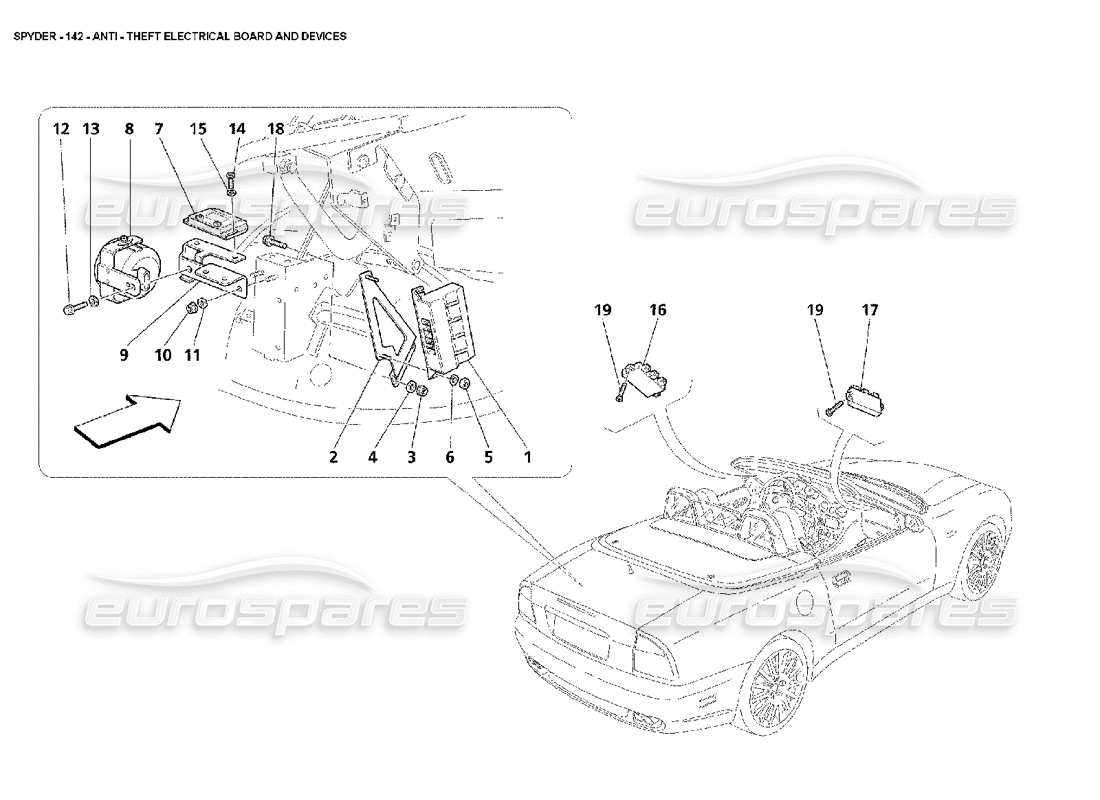

ANTI THEFT ELECTRICAL BOARDS AND DEVICES

143

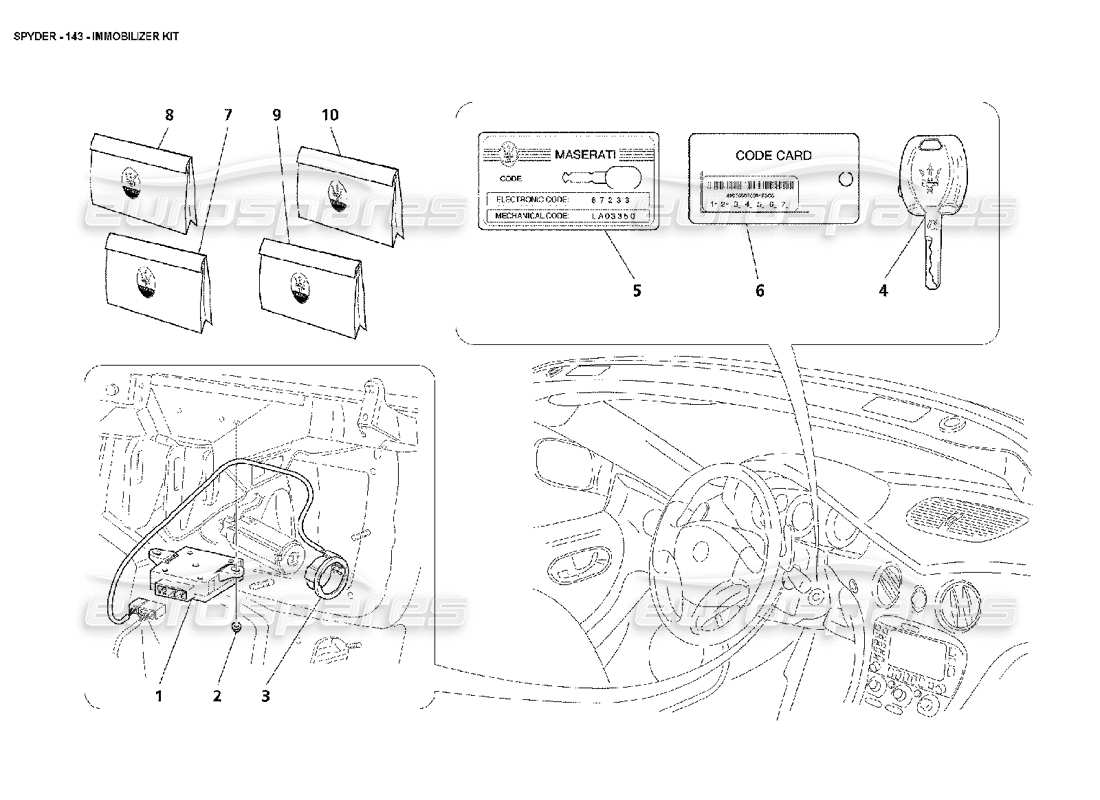

IMMOBILIZER KIT

144

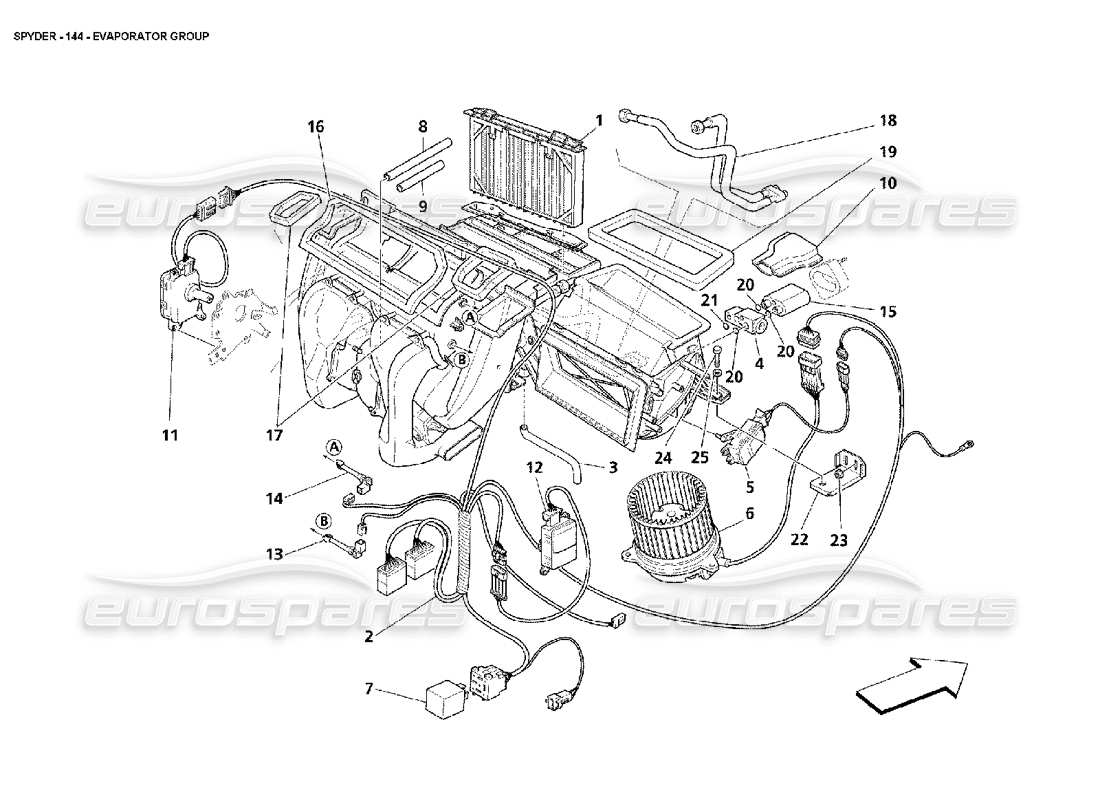

EVAPORATOR GROUP

145

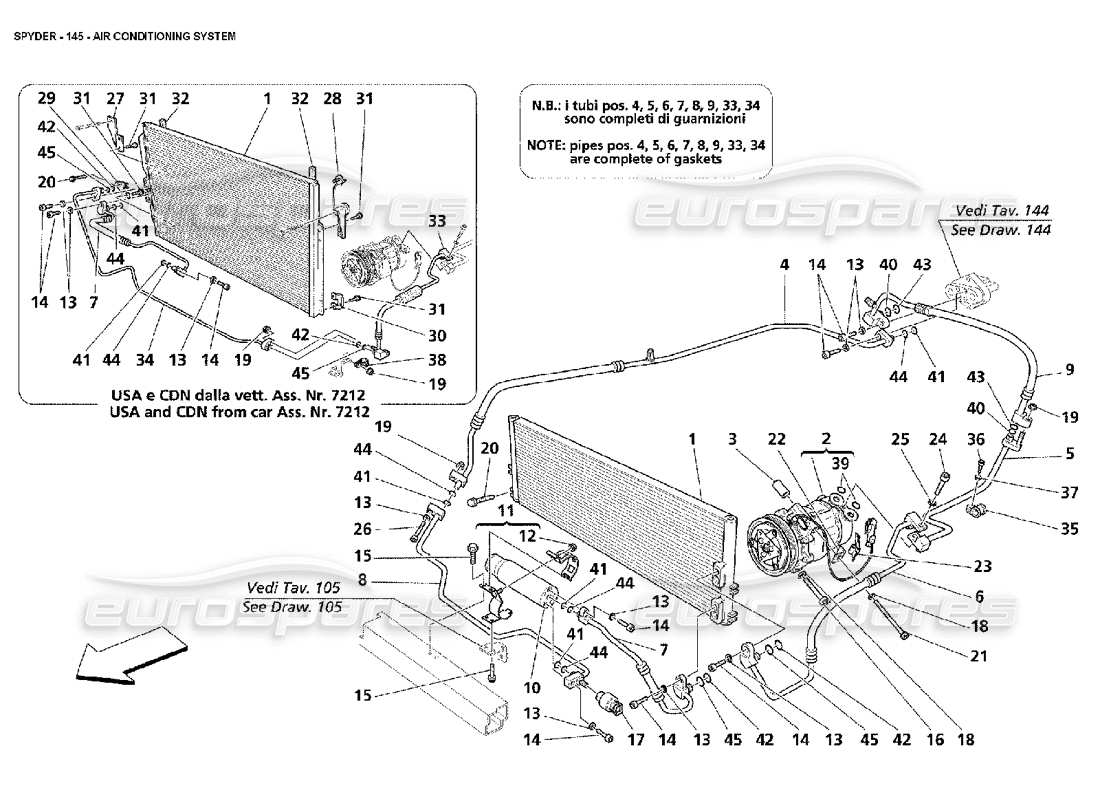

AIR CONDITIONING SYSTEM

146

CAR STEREO SYSTEM

147

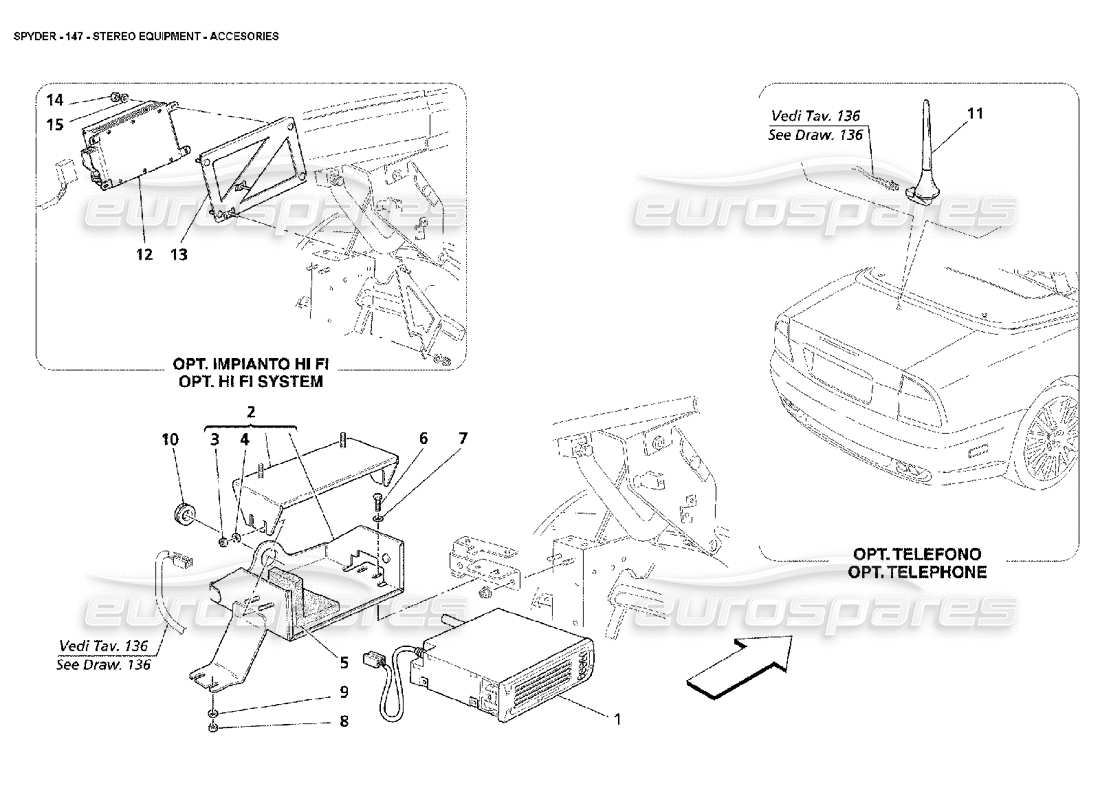

STEREO EQUIPMENT - ACCESORIES

148

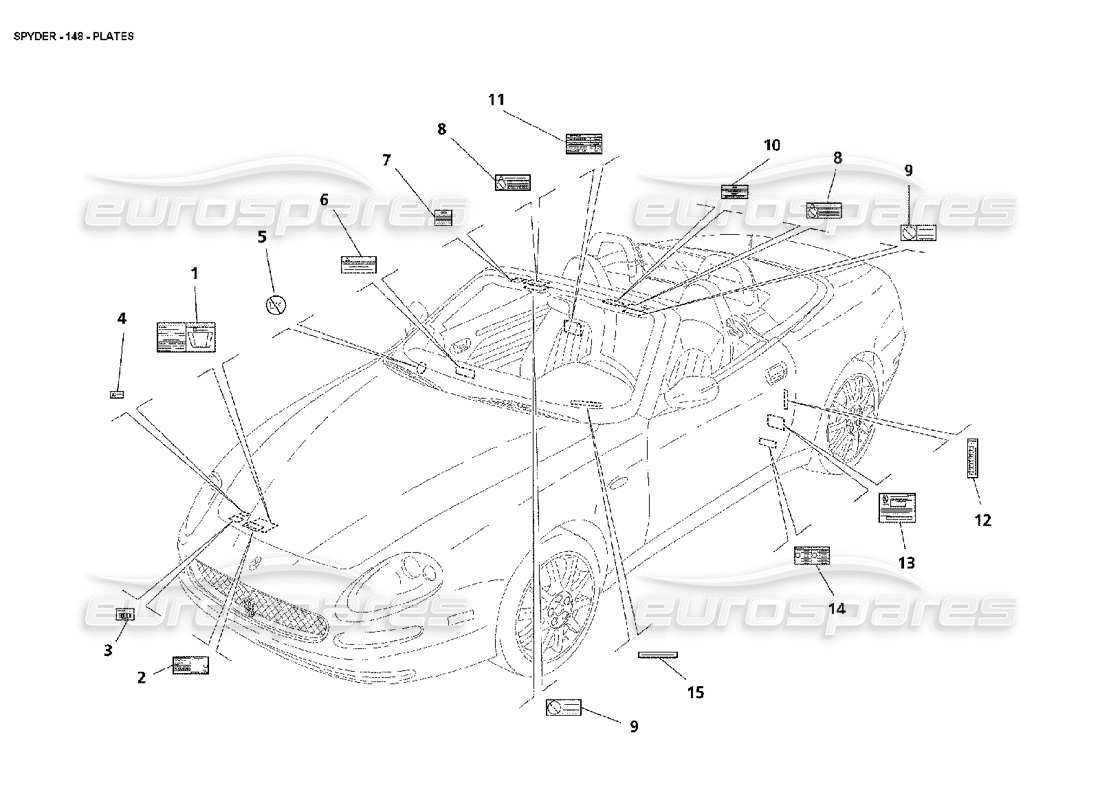

PLATES
