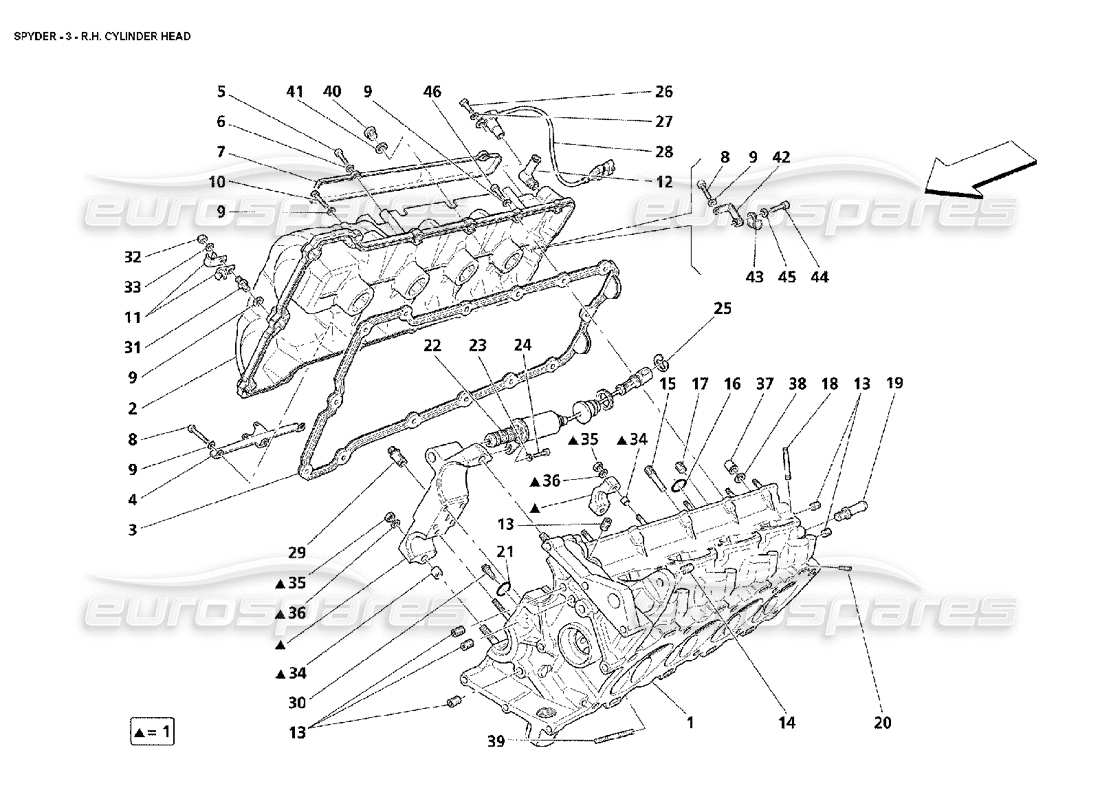

Maserati 4200 Spyder (2002) R.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 189359
                                                                                      COMPLETE RH HEAD
                                                                                      from £2,080.87
                                                                                      from £2,080.87
                                                                                      This part replaces part number 187998 - and 5 more. Click to view details
                                                                                      # 002
                                                                                      MPN: 187815
                                                                                      RH CYLINDERS HEAD COVER
                                                                                      from £173.50
                                                                                      from £173.50
                                                                                      # 003
                                                                                      MPN: 198927
                                                                                      RH HEAD COVER GASKET
                                                                                      - Supplied also in the cover gasket revision kit (cod. 98002000)
                                                                                      from £31.50
                                                                                      from £31.50
                                                                                      # 004
                                                                                      MPN: 186252
                                                                                      SECONDARY AIR VALVE FIX. BRACKET
                                                                                      - Valid till stock exhaustion
                                                                                      from £114.81
                                                                                      from £114.81
                                                                                      # 004
                                                                                      MPN: 192390
                                                                                      SECONDARY AIR VALVE FIX. BRACKET
                                                                                      - Valid after stock exhaustion of 186252
                                                                                      from £45.17
                                                                                      from £45.17
                                                                                      # 005
                                                                                      MPN: 14304424
                                                                                      SCREW
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      # 006
                                                                                      MPN: 14497878
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 007
                                                                                      MPN: 185276
                                                                                      RH HARNESS SMALL COVER
                                                                                      from £19.68
                                                                                      from £19.68
                                                                                      # 008
                                                                                      MPN: 156834
                                                                                      SCREW
                                                                                      from £1.58
                                                                                      from £1.58
                                                                                      # 009
                                                                                      MPN: 11197774
                                                                                      WASHER
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      # 010
                                                                                      MPN: 156830
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 011
                                                                                      MPN: 187713
                                                                                      CLIP
                                                                                      from £3.24
                                                                                      from £3.24
                                                                                      This part replaces part number 98055
                                                                                      # 012
                                                                                      MPN: 124342
                                                                                      THREADED UNION
                                                                                      from £3.59
                                                                                      from £3.59
                                                                                      # 013
                                                                                      MPN: 14326050
                                                                                      THREADED PLUG
                                                                                      from £0.95
                                                                                      from £0.95
                                                                                      # 014
                                                                                      MPN: 140135
                                                                                      THREADED INSERT
                                                                                      from £1.78
                                                                                      from £1.78
                                                                                      # 015
                                                                                      MPN: 183447
                                                                                      THREADED PLUG
                                                                                      from £4.74
                                                                                      from £4.74
                                                                                      # 016
                                                                                      MPN: 187706
                                                                                      GASKET
                                                                                      from £3.32
                                                                                      from £3.32
                                                                                      # 017
                                                                                      MPN: 164400
                                                                                      THREADED PLUG
                                                                                      from £1.86
                                                                                      from £1.86
                                                                                      # 018
                                                                                      MPN: 13541224
                                                                                      STUD
                                                                                      from £35.68
                                                                                      from £35.68
                                                                                      # 019
                                                                                      MPN: 191633
                                                                                      UNION
                                                                                      from £49.24
                                                                                      from £49.24
                                                                                      This part replaces part number 188602
                                                                                      # 020
                                                                                      MPN: 141563
                                                                                      THREADED PLUG
                                                                                      from £0.76
                                                                                      from £0.76
                                                                                      # 021
                                                                                      MPN: 134233
                                                                                      GASKET
                                                                                      - Supplied also in the cover gasket revision kit (cod. 98002000)
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 022
                                                                                      MPN: 212423
                                                                                      VARIATOR CONTROL SOLENOID VALVE
                                                                                      from £427.47
                                                                                      from £427.47
                                                                                      This part replaces part number 186563 - and 2 more. Click to view details
                                                                                      # 023
                                                                                      MPN: 11197774
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 025
                                                                                      MPN: 11087376
                                                                                      FLEXIBLE RING
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 026
                                                                                      MPN: 14305224
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 027
                                                                                      MPN: 11197774
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 029
                                                                                      MPN: 184681
                                                                                      OIL PRESSURE CHECK VALVE
                                                                                      from £240.24
                                                                                      from £240.24
                                                                                      # 030
                                                                                      MPN: 180266
                                                                                      OIL FILTER
                                                                                      - Supplied also in the cover gasket revision kit (cod. 98002000)
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 031
                                                                                      MPN: 187711
                                                                                      STUD
                                                                                      from £53.26
                                                                                      from £53.26
                                                                                      # 033
                                                                                      MPN: 12639724
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 034
                                                                                      MPN: 102725
                                                                                      CENTERING DOWEL
                                                                                      from £0.62
                                                                                      from £0.62
                                                                                      # 036
                                                                                      MPN: 11197774
                                                                                      WASHER
                                                                                      from £0.51
                                                                                      from £0.51
                                                                                      # 037
                                                                                      MPN: 183524
                                                                                      NUT
                                                                                      from £0.98
                                                                                      from £0.98
                                                                                      # 038
                                                                                      MPN: 151117
                                                                                      WASHER
                                                                                      from £0.32
                                                                                      from £0.32
                                                                                      This part replaces part number 300266 - and 1 more. Click to view details
                                                                                      # 039
                                                                                      MPN: 13543424
                                                                                      STUD
                                                                                      from £1.03
                                                                                      from £1.03
                                                                                      # 040
                                                                                      MPN: 187963
                                                                                      PLUG
                                                                                      from £3.71
                                                                                      from £3.71
                                                                                      # 041
                                                                                      MPN: 10263360
                                                                                      GASKET
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 042
                                                                                      MPN: 185471
                                                                                      BRACKET
                                                                                      from £2.92
                                                                                      from £2.92
                                                                                      # 043
                                                                                      MPN: 10441190
                                                                                      BRACKET WITH SHEATH
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 044
                                                                                      MPN: 14305024
                                                                                      SCREW
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 045
                                                                                      MPN: 10519424
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 10519421 - and 1 more. Click to view details
                                                                                      # 046
                                                                                      MPN: 157218
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
