maserati 4200 spyder (2002) fuel pump and pipes parts diagram

009 - fuel pump and pipes

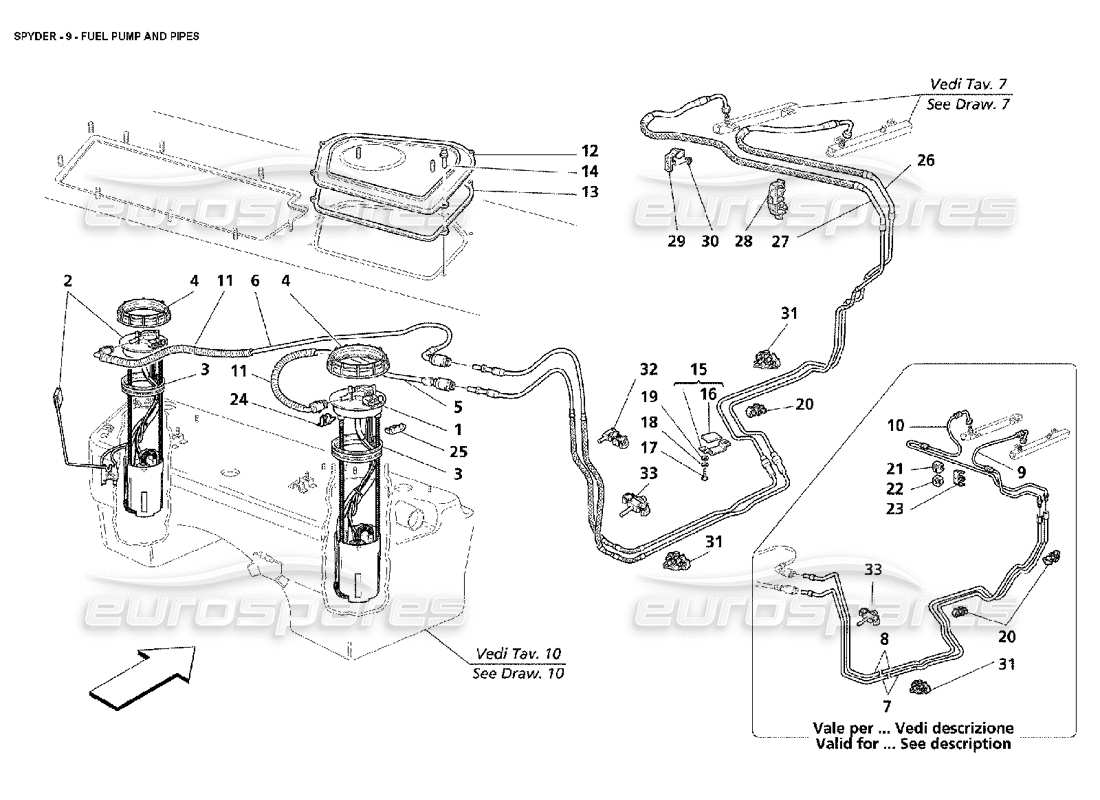

Maserati 4200 Spyder (2002) Fuel Pump and Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 184348

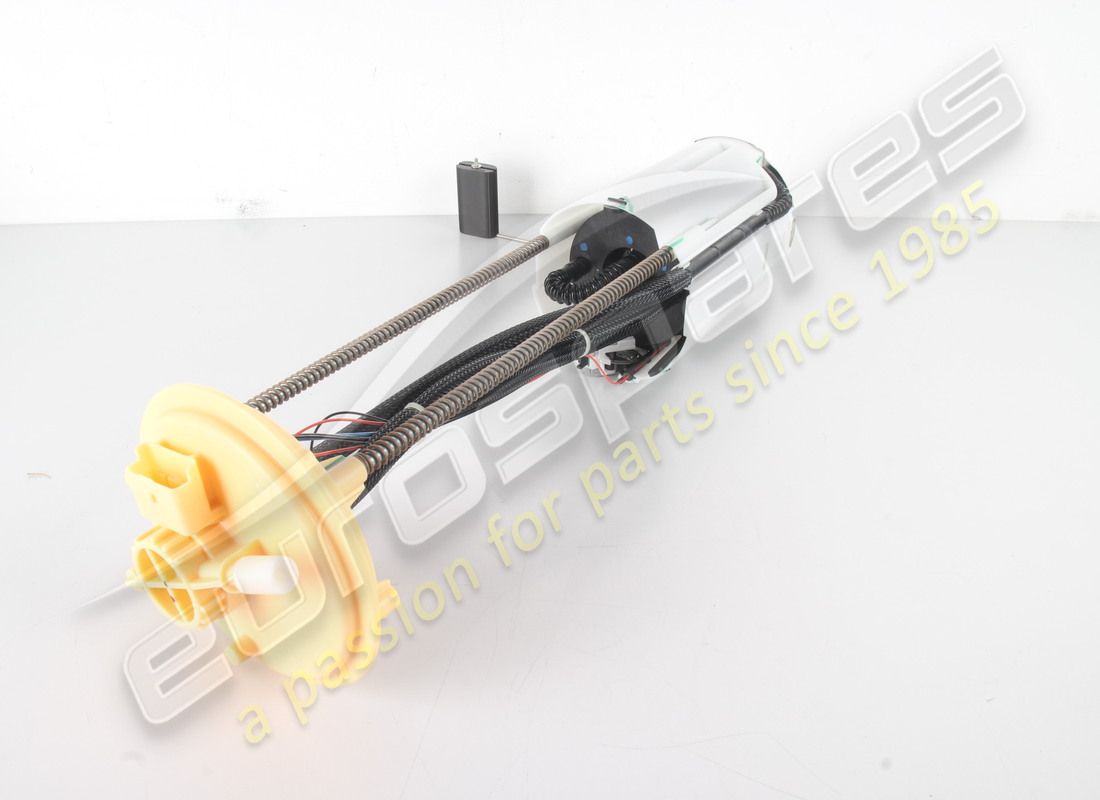

                                  RH COMPLETE FUEL PUMP
                                  from £306.38
                                  from £306.38
                                  # 002
                                  MPN: 184347
                                  LH COMPLETE FUEL PUMP
                                  from £306.84
                                  from £306.84
                                  # 003
                                  MPN: 181681
                                  GASKET
                                  from £11.67
                                  from £11.67
                                  # 004
                                  MPN: 181682
                                  RING NUT
                                  from £7.78
                                  from £7.78
                                  # 005
                                  MPN: 186702
                                  RH FUEL DELIVERY TUBE
                                  from £29.88
                                  from £29.88
                                  # 006
                                  MPN: 186701
                                  LH FUEL DELIVERY TUBE
                                  from £32.35
                                  from £32.35
                                  # 007
                                  MPN: 186703
                                  RH FUEL DELIVERY UNDERFRAME TUBE
                                  - Till car Ass. Nr. 9571 valid for all versions - From car Ass. Nr. 9572 valid only for USA and CDN
                                  from £59.26
                                  from £59.26
                                  # 008
                                  MPN: 186704
                                  LH FUEL DELIVERY UNDERFRAME TUBE
                                  - Till car Ass. Nr. 9571 valid for all versions - From car Ass. Nr. 9572 valid only for USA and CDN
                                  from £59.26
                                  from £59.26
                                  # 009
                                  MPN: 183214
                                  RH FUEL DELIVERY PIPE TO FLEXIBLE
                                  - Not for GD - Till car Ass. Nr. 9571 valid for all GS versions - From car Ass. Nr. 9572 valid only for USA and CDN
                                  from £37.40
                                  from £37.40
                                  # 009
                                  MPN: 189663
                                  RH FUEL DELIVERY PIPE TO FLEXIBLE
                                  - Valid for GD - Valid till car Ass. Nr. 9571
                                  from £70.24
                                  from £70.24
                                  # 010
                                  MPN: 183215
                                  LH FUEL DELIVERY PIPE TO FLEXIBLE
                                  - Not for GD - Till car Ass. Nr. 9571 valid for all GS versions - From car Ass. Nr. 9572 valid only for USA and CDN
                                  from £39.98
                                  from £39.98
                                  # 010
                                  MPN: 189664
                                  LH FUEL DELIVERY PIPE TO FLEXIBLE
                                  - Valid for GD - Valid till car Ass. Nr. 9571
                                  from £79.41
                                  from £79.41
                                  # 011
                                  MPN: 97218
                                  PIPE
                                  - Supplied in meters - (Minimum quantity 1m. or multiples)
                                  from £1.86
                                  from £1.86
                                  This part replaces part number 188340 - and 1 more. Click to view details
                                  # 012
                                  MPN: 66360600
                                  RH PUMP COVER
                                  from £30.23
                                  from £30.23
                                  # 013
                                  MPN: 66360500
                                  GASKET
                                  from £26.98
                                  from £26.98
                                  # 014
                                  MPN: 16296927
                                  SCREW
                                  from £0.51
                                  from £0.51
                                  # 015
                                  MPN: 187464
                                  PIPES PROTECTION BRACKET
                                  from £8.20
                                  from £8.20
                                  This part replaces part number 387400102
                                  # 016
                                  MPN: 387400402
                                  GASKET
                                  from £1.55
                                  from £1.55
                                  # 017
                                  MPN: 10977824
                                  SCREW
                                  from £1.08
                                  from £1.08
                                  This part replaces part number 16130321 which we have in stock
                                  # 018
                                  MPN: 11181574
                                  WASHER
                                  from £0.54
                                  from £0.54
                                  # 019
                                  MPN: 14447025
                                  WASHER
                                  from £1.39
                                  from £1.39
                                  # 020
                                  MPN: 379200408
                                  CLIP
                                  - (Quantity defined during at assembly)
                                  from £1.08
                                  from £1.08
                                  # 021
                                  MPN: 140731
                                  CLIP
                                  - Till car Ass. Nr. 9571 valid for all versions - From car Ass. Nr. 9572 valid only for USA and CDN
                                  from £0.69
                                  from £0.69
                                  # 022
                                  MPN: 155781
                                  ANCHORAGE FOR CLIP
                                  - Till car Ass. Nr. 9571 valid for all versions - From car Ass. Nr. 9572 valid only for USA and CDN
                                  from £0.47
                                  from £0.47
                                  # 023
                                  MPN: 190410
                                  CLIP
                                  - Till car Ass. Nr. 9571 valid for all versions - From car Ass. Nr. 9572 valid only for USA and CDN
                                  from £2.32
                                  from £2.32
                                  # 024
                                  MPN: 389200406
                                  CLIP
                                  from £0.54
                                  from £0.54
                                  # 025
                                  MPN: 379200408
                                  CLIP
                                  from £1.08
                                  from £1.08
                                  # 026
                                  MPN: 194749
                                  RH FUEL DELIVERY PIPE TO FLEXIBLE
                                  - Not for USA and CDN - Valid from car Ass. Nr. 9572
                                  from £125.18
                                  from £125.18
                                  # 027
                                  MPN: 194750
                                  LH FUEL DELIVERY PIPE TO FLEXIBLE
                                  - Not for USA and CDN - Valid from car Ass. Nr. 9572
                                  from £341.40
                                  from £341.40
                                  # 028
                                  MPN: 195052
                                  CLIP
                                  - Not for USA and CDN - Valid from car Ass. Nr. 9572
                                  from £1.08
                                  from £1.08
                                  # 029
                                  MPN: 159521
                                  CLIP
                                  - Not for USA and CDN - Valid from car Ass. Nr. 9572
                                  from £1.33
                                  from £1.33
                                  # 030
                                  MPN: 14059111
                                  NUT
                                  - Not for USA and CDN - Valid from car Ass. Nr. 9572
                                  from £0.47
                                  from £0.47
                                  # 031
                                  MPN: 190410
                                  CLIP
                                  - (Quantity defined during at assembly)
                                  from £2.32
                                  from £2.32
                                  # 032
                                  MPN: 191431
                                  CLIP
                                  - Not for USA and CDN - Valid from car Ass. Nr. 9572 - (Quantity defined during at assembly)
                                  from £1.08
                                  from £1.08
                                  # 033
                                  MPN: 191283
                                  CLIP
                                  - (Quantity defined during at assembly)
                                  from £1.08
                                  from £1.08
