012 - Antievaporation Device -Valid for USA and CDN

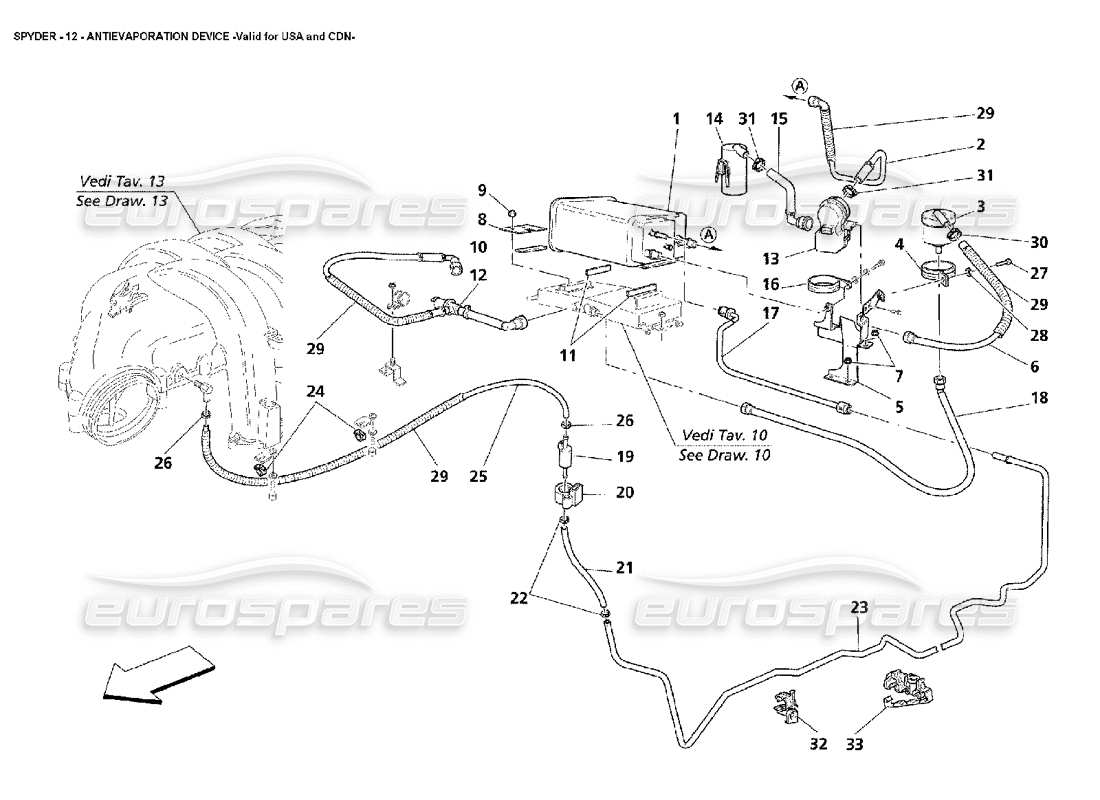

Maserati 4200 Spyder (2002) Antievaporation Device -Valid for USA and CDN Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 220074
FUEL VAPOR FILTER
from £61.55
from £61.55
This part replaces part number 212961 - and 1 more. Click to view details
# 002
MPN: 184555
PIPE FROM CANISTER TO PUMP
from £130.49
from £130.49
# 003
MPN: 180573
ROLL-OVER VALVE
from £39.10
from £39.10
# 004
MPN: 189894
BRACKET
from £176.43
from £176.43
# 005
MPN: 189895
BRACKET
from £97.04
from £97.04
# 006
MPN: 184553
PIPE FROM ROLL OVER TO CANISTER
from £18.95
from £18.95
# 007
MPN: 12574211
NUT
from £0.71
from £0.71
This part replaces part number 128300060
# 008
MPN: 186920
FUEL VAPOR FILTER BRACKET
from £3.24
from £3.24
# 009
MPN: 12574211
NUT
from £0.71
from £0.71
This part replaces part number 128300060
# 010
MPN: 184766
RUBBER THICKNESS
from £7.73
from £7.73
# 011
MPN: 184221
RUBBER THICKNESS
from £2.32
from £2.32
# 012
MPN: 186003
PIERBURG VALVE COMPLETE TUBE
from £159.31
from £159.31
# 013
MPN: 185405
DIAGNOSIS PUMP
from £148.04
from £148.04
# 014
MPN: 183221
FILTER FOR OBD PUMP
from £7.40
from £7.40
# 015
MPN: 184554
UNIONS COMPLETE TUBE
from £312.57
from £312.57
# 016
MPN: 189893
BRACKET
from £38.10
from £38.10
# 017
MPN: 184557
PIPE FROM CANISTER TO UNDERFLOOR
from £15.71
from £15.71
# 018
MPN: 187468
PIPE FROM DISAREATOR TO ROLL-OVER
from £171.91
from £171.91
# 019
MPN: 180861
WASHING VALVE
from £53.02
from £53.02
# 020
MPN: 174623
BUFFER FOR SUPPORT
from £3.88
from £3.88
# 021
MPN: 181703
WASHING VALVE INLET TUBE
from £5.91
from £5.91
# 022
MPN: 13432070
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 13434670
# 023
MPN: 190518
COMPLETE UNDERFLOOR TUBE
from £20.92
from £20.92
# 024
MPN: 10441790
BRACKET WITH SHEATH
- Not for cars with bracket 190509 - (See draw 13 pos. 29)
from £0.47
from £0.47
# 024
MPN: 178430
CLIP
- Valid for cars with bracket 190509 - (See draw 13 pos. 29)
from £0.47
from £0.47
# 025
MPN: 181704
WASHING VALVE OUTLET PIPE
from £21.36
from £21.36
# 026
MPN: 190471
FIXING CLIP
from £1.93
from £1.93
# 027
MPN: 10902021
SCREW
from £1.21
from £1.21
# 028
MPN: 14499324
WASHER
from £0.47
from £0.47
# 029
MPN: 318720333
PIPE
- Supplied in meters - (Minimum quantity 1m. or multiples)
from £5.14
from £5.14
# 030
MPN: 13433370
COLLAR FOR SLEEVE
from £0.54
from £0.54
# 031
MPN: 13000390
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 13121170 - and 1 more. Click to view details
# 032
MPN: 187840
CLIP
- (Quantity defined during at assembly)
from £0.61
from £0.61
# 033
MPN: 190409
CLIP
- (Quantity defined during at assembly)
from £3.24
from £3.24
