maserati 4200 spyder (2002) differential box - rear underbody parts diagram

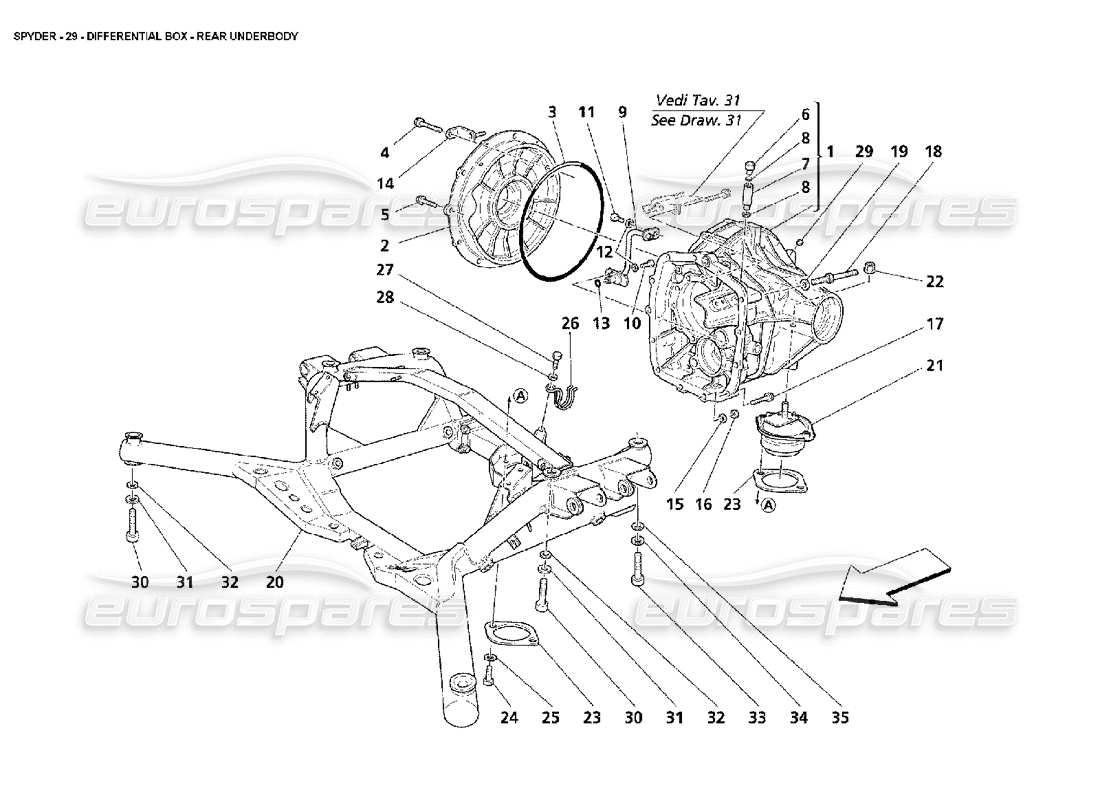

029 - Differential Box - Rear Underbody

Maserati 4200 Spyder (2002) Differential Box - Rear Underbody Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 192732
                                                    COMPLETE DIFFERENTIAL BOX
                                                    from £814.22
                                                    from £814.22
                                                    This part replaces part number 184644
                                                    # 002
                                                    MPN: 184767
                                                    DIFFERENTIAL COVER
                                                    from £147.89
                                                    from £147.89
                                                    # 003
                                                    MPN: 14468781
                                                    O.R. GASKET
                                                    from £23.08
                                                    from £23.08
                                                    # 004
                                                    MPN: 16287321
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 006
                                                    MPN: 13414691
                                                    OIL BREATHER
                                                    from £5.57
                                                    from £5.57
                                                    # 007
                                                    MPN: 186900
                                                    ADAPTER FOR VENT
                                                    from £50.83
                                                    from £50.83
                                                    # 008
                                                    MPN: 13415400
                                                    COPPER GASKET
                                                    from £0.47
                                                    from £0.47
                                                    # 009
                                                    MPN: 185720
                                                    LUBRICATION TUBE
                                                    from £88.08
                                                    from £88.08
                                                    # 010
                                                    MPN: 10902224
                                                    SCREW
                                                    from £0.53
                                                    from £0.53
                                                    # 011
                                                    MPN: 10979424
                                                    SCREW
                                                    from £0.53
                                                    from £0.53
                                                    # 012
                                                    MPN: 11194377
                                                    WASHER
                                                    from £0.71
                                                    from £0.71
                                                    # 013
                                                    MPN: 137192
                                                    O.R. GASKET
                                                    from £0.54
                                                    from £0.54
                                                    # 014
                                                    MPN: 149694
                                                    FIXING BRACKET
                                                    - Valid for F1
                                                    from £3.84
                                                    from £3.84
                                                    # 015
                                                    MPN: 12601374
                                                    WASHER
                                                    from £0.54
                                                    from £0.54
                                                    # 016
                                                    MPN: 16100812
                                                    NUT
                                                    from £0.71
                                                    from £0.71
                                                    # 017
                                                    MPN: 16287521
                                                    SCREW-M 8X40
                                                    from £2.13
                                                    from £2.13
                                                    # 017
                                                    MPN: 16287624
                                                    SCREW-M 8X45
                                                    from £1.85
                                                    from £1.85
                                                    This part replaces part number 16287421
                                                    # 017
                                                    MPN: 16287921
                                                    SCREW-M 8X60
                                                    - Not for F1
                                                    from £2.47
                                                    from £2.47
                                                    # 018
                                                    MPN: 190044
                                                    STUD
                                                    - Valid for F1
                                                    from £16.31
                                                    from £16.31
                                                    This part replaces part number 190094
                                                    # 019
                                                    MPN: 12601374
                                                    WASHER
                                                    - Valid for F1
                                                    from £0.54
                                                    from £0.54
                                                    # 020
                                                    MPN: 66628200

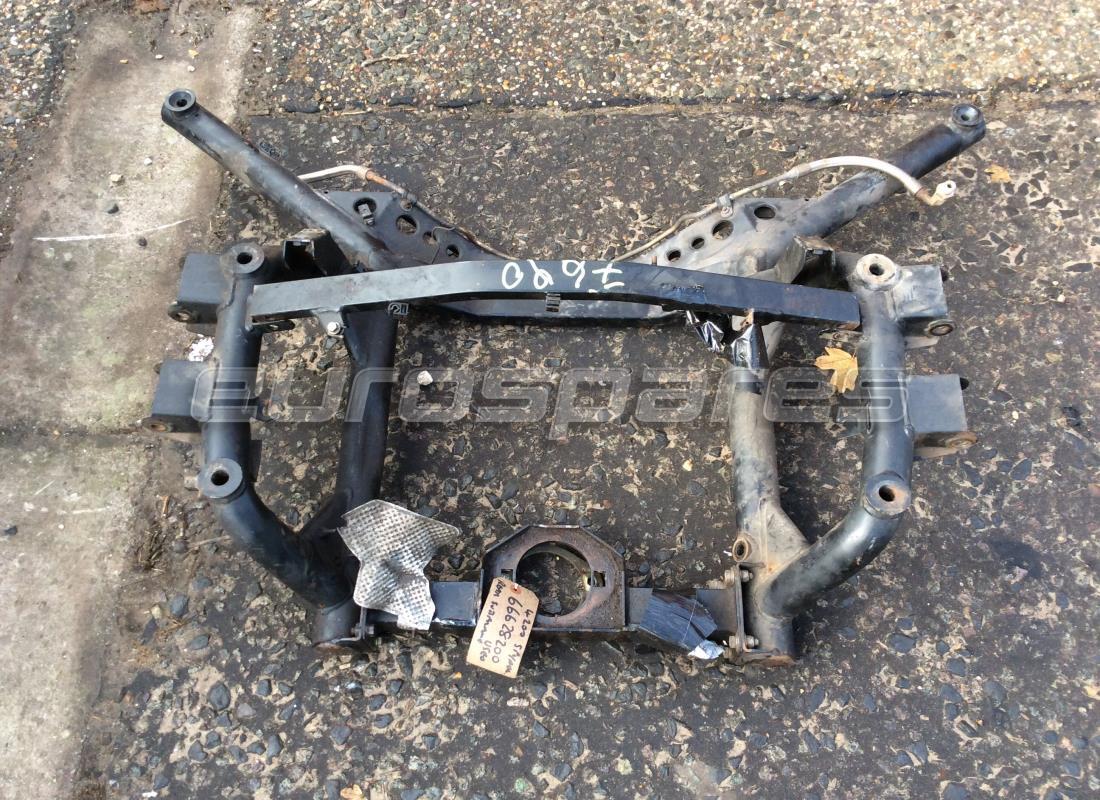

                                                    REAR UNDER FRAME
                                                    from £540.82
                                                    from £540.82
                                                    This part replaces part number 66069300 - and 1 more. Click to view details
                                                    # 021
                                                    MPN: 186908
                                                    FLEXIBLE PAD
                                                    from £1,156.78
                                                    from £1,156.78
                                                    # 022
                                                    MPN: 177018
                                                    NUT
                                                    from £0.67
                                                    from £0.67
                                                    # 023
                                                    MPN: 66428300
                                                    GEAR SUPPORT FLANGE
                                                    from £3.88
                                                    from £3.88
                                                    # 024
                                                    MPN: 14307534
                                                    SCREW
                                                    from £1.55
                                                    from £1.55
                                                    # 025
                                                    MPN: 11198374
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 675000618
                                                    # 026
                                                    MPN: 188971
                                                    PIPES RETAINING SPRING
                                                    - Valid for F1
                                                    from £2.97
                                                    from £2.97
                                                    # 027
                                                    MPN: 10979424
                                                    SCREW
                                                    - Valid for F1
                                                    from £0.53
                                                    from £0.53
                                                    # 028
                                                    MPN: 10519411
                                                    WASHER
                                                    - Valid for F1
                                                    from £1.39
                                                    from £1.39
                                                    # 029
                                                    MPN: 14326101
                                                    THREADED PLUG
                                                    from £0.72
                                                    from £0.72
                                                    This part replaces part number 10152350
                                                    # 030
                                                    MPN: 14331574
                                                    SCREW-M 12X50
                                                    - Valid from car Ass. Nr. 9867
                                                    from £7.73
                                                    from £7.73
                                                    # 030
                                                    MPN: 14331874
                                                    SCREW-M 12X65
                                                    - Valid till car Ass. Nr. 9866
                                                    from £4.24
                                                    from £4.24
                                                    # 031
                                                    MPN: 10569579
                                                    WASHER
                                                    - For screw - M 12X65
                                                    from £1.08
                                                    from £1.08
                                                    # 031
                                                    MPN: 11198674
                                                    WASHER
                                                    - For screw - M 12X50
                                                    from £1.39
                                                    from £1.39
                                                    # 032
                                                    MPN: 10732501
                                                    WASHER
                                                    - For screw - M 12X65
                                                    from £1.18
                                                    from £1.18
                                                    # 032
                                                    MPN: 10738021
                                                    WASHER
                                                    - For screw - M 12X50
                                                    from £0.73
                                                    from £0.73
                                                    # 033
                                                    MPN: 14312174
                                                    SCREW
                                                    from £7.73
                                                    from £7.73
                                                    # 034
                                                    MPN: 66490100
                                                    WASHER
                                                    from £1.85
                                                    from £1.85
                                                    # 035
                                                    MPN: 67246100
                                                    WASHER
                                                    from £5.41
                                                    from £5.41
                                                    This part replaces part number 102694
