maserati 4200 spyder (2002) differential & axle shafts parts diagram

035 - Differential & Axle Shafts

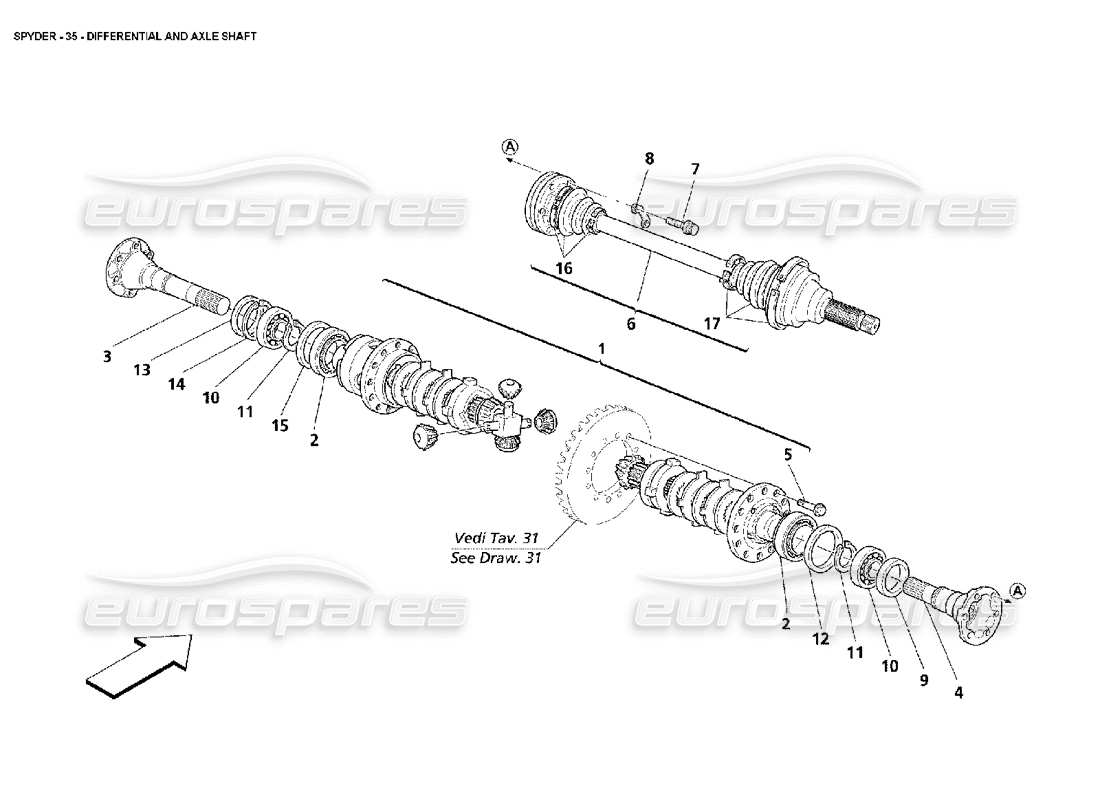

Maserati 4200 Spyder (2002) Differential & Axle Shafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 192735
                            COMPLETE SELF-LOCKING DIFFERENTIAL
                            from £2,043.35
                            from £2,043.35
                            This part replaces part number 185680
                            # 002
                            MPN: 184998
                            ROLLER BEARING
                            from £73.93
                            from £73.93
                            This part replaces part number 376200124
                            # 003
                            MPN: 185014
                            LH LONG DIFFERENTIAL OUTLET SHAFT
                            Supersession
                            Supersession
                            # 004
                            MPN: 182322
                            RH SHORT DIFFERENTIAL OUTLET SHAFT
                            Supersession
                            Supersession
                            # 005
                            MPN: 183909
                            SCREW
                            from £3.36
                            from £3.36
                            # 006
                            MPN: 218163
                            AXLE SHAFT
                            from £261.45
                            from £261.45
                            This part replaces part number 184540 - and 1 more. Click to view details
                            # 006
                            MPN: 218163
                            AXLE SHAFT
                            from £261.45
                            from £261.45
                            This part replaces part number 184540 - and 1 more. Click to view details
                            # 007
                            MPN: 181910
                            SCREW
                            from £2.37
                            from £2.37
                            This part replaces part number 211027 - and 1 more. Click to view details
                            # 008
                            MPN: 149415
                            PLATE
                            from £1.00
                            from £1.00
                            # 009
                            MPN: 181618
                            RH OIL RING
                            from £29.30
                            from £29.30
                            # 011
                            MPN: 184994
                            SEEGER RING
                            from £3.71
                            from £3.71
                            # 012
                            MPN: 185026

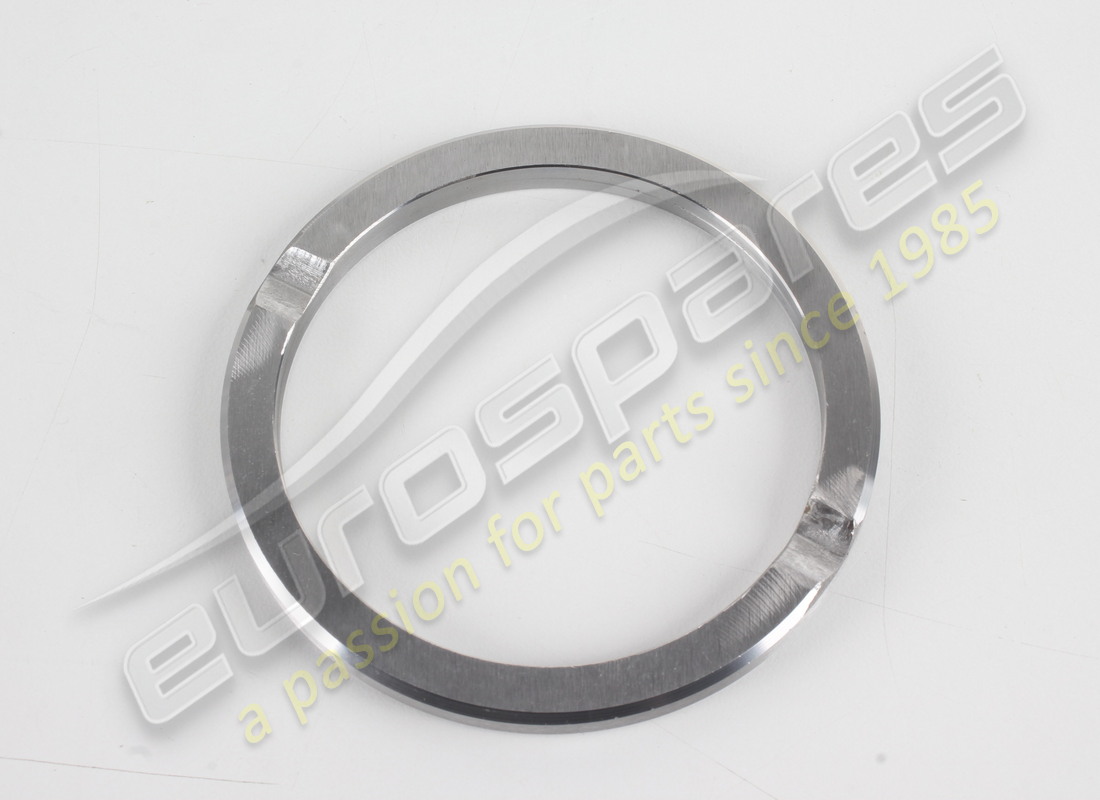

                            REGISTER RING
                            - Thickness mm. 6,8
                            from £23.32
                            from £23.32
                            # 012
                            MPN: 185027
                            REGISTER RING
                            - Thickness mm. 6,4
                            from £26.90
                            from £26.90
                            # 012
                            MPN: 185028
                            REGISTER RING
                            - Thickness mm. 6
                            from £26.90
                            from £26.90
                            # 013
                            MPN: 185722
                            LH OIL RING
                            from £36.64
                            from £36.64
                            # 014
                            MPN: 185723
                            SEEGER RING
                            from £2.24
                            from £2.24
                            # 015
                            MPN: 185029
                            REGISTER RING
                            - Thickness mm. 3,30
                            from £21.51
                            from £21.51
                            # 015
                            MPN: 185033
                            REGISTER RING
                            - Thickness mm. 2,95
                            from £21.51
                            from £21.51
                            # 015
                            MPN: 185034
                            REGISTER RING
                            - Thickness mm. 2,60
                            from £21.51
                            from £21.51
                            # 016
                            MPN: 70006022
                            CLAMP AND PROTECTION REPLACEMENT SET
                            - Differential side
                            from £54.95
                            from £54.95
                            This part replaces part number 70000867
                            # 017
                            MPN: 70000868
                            CLAMP AND PROTECTION REPLACEMENT SET
                            - Wheel side
                            from £68.66
                            from £68.66
