maserati 4200 spyder (2002) front suspension - wishbones and stabilizer bar parts diagram

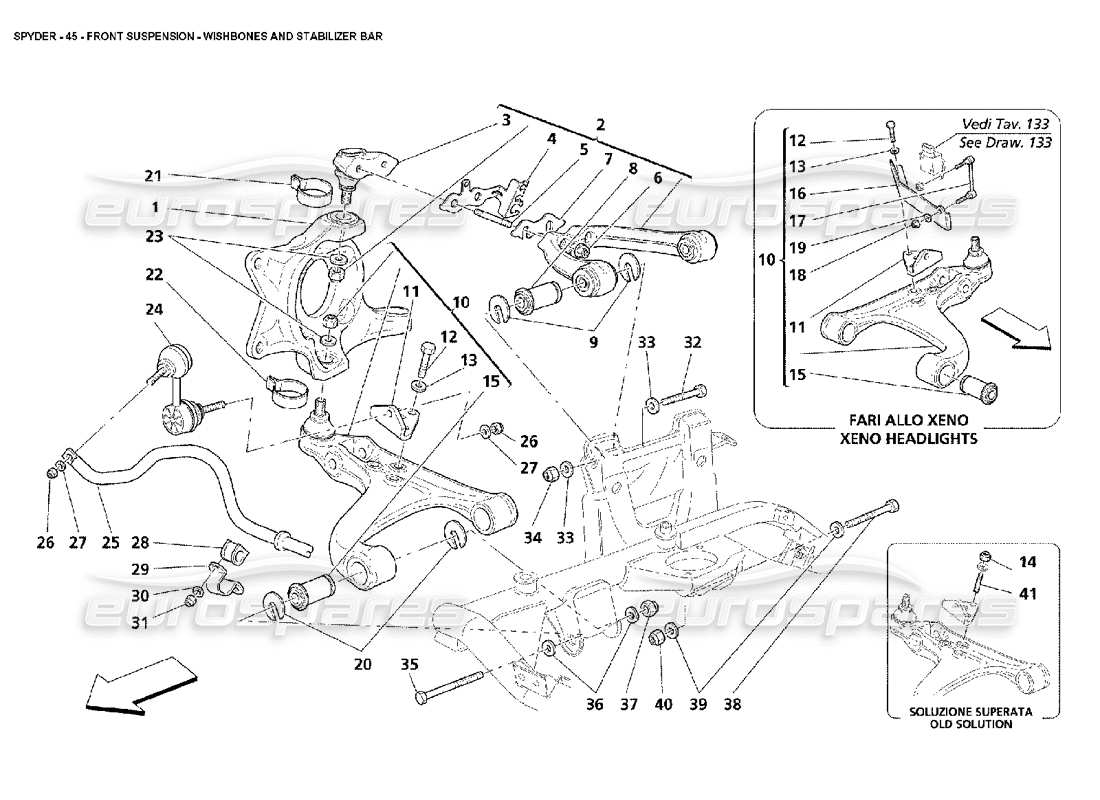

045 - Front Suspension - Wishbones and Stabilizer Bar

Maserati 4200 Spyder (2002) Front Suspension - Wishbones and Stabilizer Bar Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 189328
                                                              RH FRONT HUB HOLDER
                                                              - Valid after stock exhaustion of 386600026
                                                              from £637.04
                                                              from £637.04
                                                              # 001
                                                              MPN: 189329
                                                              LH FRONT HUB HOLDER
                                                              - Valid after stock exhaustion of 386600025
                                                              from £637.04
                                                              from £637.04
                                                              # 001
                                                              MPN: 386600025
                                                              LH FRONT HUB HOLDER
                                                              - Valid till stock exhaustion
                                                              from £393.75
                                                              from £393.75
                                                              # 001
                                                              MPN: 386600026
                                                              RH FRONT HUB HOLDER
                                                              - Valid till stock exhaustion
                                                              from £393.75
                                                              from £393.75
                                                              # 002
                                                              MPN: 185948
                                                              COMPLETE LH UPPER LEVER
                                                              - Not for USA, CDN, AUS and arab nations from car Ass. Nr. 8678
                                                              from £243.64
                                                              from £243.64
                                                              # 002
                                                              MPN: 185949
                                                              COMPLETE RH UPPER LEVER
                                                              - Not for USA, CDN, AUS and arab nations from car Ass. Nr. 8678
                                                              from £435.75
                                                              from £435.75
                                                              # 002
                                                              MPN: 194367
                                                              COMPLETE LH UPPER LEVER
                                                              - Valid for USA, CDN, AUS and arab nations from car Ass. Nr. 8678
                                                              from £477.75
                                                              from £477.75
                                                              # 002
                                                              MPN: 194368
                                                              COMPLETE RH UPPER LEVER
                                                              - Valid for USA, CDN, AUS and arab nations from car Ass. Nr. 8678
                                                              from £477.75
                                                              from £477.75
                                                              # 003
                                                              MPN: 386600129
                                                              JOINT FOR UPPER LEVER
                                                              from £178.92
                                                              from £178.92
                                                              # 004
                                                              MPN: 190691
                                                              RH CABLES SUPPORTING BRACKET
                                                              from £10.05
                                                              from £10.05
                                                              # 004
                                                              MPN: 190692
                                                              LH CABLES SUPPORTING BRACKET
                                                              from £10.97
                                                              from £10.97
                                                              # 005
                                                              MPN: 386600405
                                                              STUD
                                                              from £9.20
                                                              from £9.20
                                                              # 006
                                                              MPN: 14058521
                                                              NUT
                                                              from £1.02
                                                              from £1.02
                                                              # 007
                                                              MPN: 386600411
                                                              ADJUSTMENT TICKNESS - MM. 0,5
                                                              from £2.85
                                                              from £2.85
                                                              # 007
                                                              MPN: 386600412
                                                              ADJUSTMENT TICKNESS - MM. 1
                                                              from £2.85
                                                              from £2.85
                                                              # 007
                                                              MPN: 386600413
                                                              ADJUSTMENT TICKNESS - MM. 2,5
                                                              from £2.32
                                                              from £2.32
                                                              # 008
                                                              MPN: 186493
                                                              FLANBLOC
                                                              from £75.94
                                                              from £75.94
                                                              # 008
                                                              MPN: 186493
                                                              FLANBLOC
                                                              - Valid for USA, CDN, AUS and arab nations from car Ass. Nr. 8678
                                                              from £75.94
                                                              from £75.94
                                                              # 009
                                                              MPN: 386600425
                                                              WASHER
                                                              - Tickness mm. 0,5
                                                              from £5.41
                                                              from £5.41
                                                              This part replaces part number 66667900
                                                              # 009
                                                              MPN: 386600426
                                                              WASHER
                                                              - Tickness mm. 0,75
                                                              from £2.32
                                                              from £2.32
                                                              # 009
                                                              MPN: 386600427
                                                              WASHER
                                                              - Tickness mm. 1
                                                              from £1.85
                                                              from £1.85
                                                              This part replaces part number 66668000
                                                              # 009
                                                              MPN: 386600428
                                                              WASHER
                                                              - Tickness mm. 1,75
                                                              from £2.32
                                                              from £2.32
                                                              # 009
                                                              MPN: 386600429
                                                              WASHER
                                                              - Tickness mm. 3
                                                              from £1.85
                                                              from £1.85
                                                              # 010
                                                              MPN: 186676
                                                              COMPLETE LH LOWER LEVER
                                                              - Standard - Not for USA, CDN, AUS and arab nations from car Ass. Nr. 8678
                                                              from £380.08
                                                              from £380.08
                                                              # 010
                                                              MPN: 201778
                                                              COMPLETE RH LOWER LEVER
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 186677
                                                              # 010
                                                              MPN: 201781
                                                              COMPLETE LH LOWER LEVER
                                                              - Optional - Xeno headlights - Not for USA and CDN - Not for AUS and arab nations from car Ass. Nr. 8678
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 189052
                                                              # 010
                                                              MPN: 201784
                                                              RH FRONT LOWER LEVER
                                                              Optional - Xeno headlights -
                                                              from £729.75
                                                              from £729.75
                                                              This part replaces part number 194396 - and 3 more. Click to view details
                                                              # 010
                                                              MPN: 201786
                                                              COMPLETE LH LOWER LEVER
                                                              from £1,274.17
                                                              from £1,274.17
                                                              This part replaces part number 194398
                                                              # 010
                                                              MPN: 201787
                                                              LH FRONT LOWER LEVER
                                                              Optional - Xeno headlights -
                                                              from £700.79
                                                              from £700.79
                                                              This part replaces part number 194397 - and 3 more. Click to view details
                                                              # 011
                                                              MPN: 186347
                                                              TORSION BAR TIE ROD SUPPORT
                                                              from £25.22
                                                              from £25.22
                                                              # 012
                                                              MPN: 16043621
                                                              SCREW
                                                              from £1.08
                                                              from £1.08
                                                              # 013
                                                              MPN: 14496524
                                                              WASHER
                                                              from £0.52
                                                              from £0.52
                                                              # 014
                                                              MPN: 104030
                                                              NUT
                                                              from £0.53
                                                              from £0.53
                                                              # 015
                                                              MPN: 186494
                                                              FLANBLOC
                                                              - Valid for USA, CDN, AUS and arab nations from car Ass. Nr. 8678
                                                              from £106.03
                                                              from £106.03
                                                              # 015
                                                              MPN: 386600113
                                                              FLANBLOC
                                                              Alternative : 169326
                                                              from £106.29
                                                              from £106.29
                                                              # 016
                                                              MPN: 190045
                                                              BRACKET FOR FRONT POTENTIOMETER
                                                              - Valid for opt. Xeno headlights - Not for USA and CDN
                                                              from £13.60
                                                              from £13.60
                                                              # 017
                                                              MPN: 188629
                                                              TIE ROD
                                                              - Valid for opt. Xeno headlights - Not for USA and CDN
                                                              from £19.31
                                                              from £19.31
                                                              # 018
                                                              MPN: 12574215
                                                              NUT
                                                              - Valid for opt. Xeno headlights - Not for USA and CDN
                                                              from £1.23
                                                              from £1.23
                                                              # 019
                                                              MPN: 14498805
                                                              WASHER
                                                              - Valid for opt. Xeno headlights - Not for USA and CDN
                                                              from £0.54
                                                              from £0.54
                                                              # 020
                                                              MPN: 377030378
                                                              WASHER
                                                              - Tickness mm. 0,5
                                                              from £3.16
                                                              from £3.16
                                                              # 020
                                                              MPN: 377030379
                                                              WASHER
                                                              - Tickness mm. 0,75
                                                              from £3.86
                                                              from £3.86
                                                              # 020
                                                              MPN: 377030380
                                                              WASHER
                                                              - Tickness mm. 1
                                                              from £17.23
                                                              from £17.23
                                                              # 020
                                                              MPN: 377030381
                                                              WASHER
                                                              - Tickness mm. 1,75
                                                              from £3.86
                                                              from £3.86
                                                              # 020
                                                              MPN: 377030382
                                                              WASHER
                                                              - Tickness mm. 3
                                                              from £4.57
                                                              from £4.57
                                                              # 021
                                                              MPN: 386600416
                                                              JOINT UPPER PROTECTION
                                                              from £3.63
                                                              from £3.63
                                                              # 022
                                                              MPN: 160019
                                                              JOINT LOWER PROTECTION
                                                              from £3.63
                                                              from £3.63
                                                              This part replaces part number 386600419
                                                              # 023
                                                              MPN: 386600403
                                                              WASHER
                                                              from £6.04
                                                              from £6.04
                                                              # 024
                                                              MPN: 185914
                                                              RH TIE ROD FOR TORSION BAR
                                                              from £50.85
                                                              from £50.85
                                                              # 024
                                                              MPN: 185916
                                                              LH TIE ROD FOR TORSION BAR
                                                              from £50.85
                                                              from £50.85
                                                              # 025
                                                              MPN: 185909
                                                              ANTI-ROLL BAR
                                                              from £110.25
                                                              from £110.25
                                                              # 026
                                                              MPN: 12575621
                                                              NUT
                                                              from £1.31
                                                              from £1.31
                                                              This part replaces part number 98095 which we have in stock
                                                              # 027
                                                              MPN: 13550421
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 028
                                                              MPN: 208324
                                                              BAR BUFFER
                                                              from £20.45
                                                              from £20.45
                                                              This part replaces part number 163212
                                                              # 030
                                                              MPN: 14496524
                                                              WASHER
                                                              from £0.53
                                                              from £0.53
                                                              # 031
                                                              MPN: 104030
                                                              NUT
                                                              from £0.53
                                                              from £0.53
                                                              # 032
                                                              MPN: 15541521
                                                              SCREW
                                                              from £2.47
                                                              from £2.47
                                                              # 033
                                                              MPN: 14496721
                                                              WASHER
                                                              from £0.48
                                                              from £0.48
                                                              # 034
                                                              MPN: 15503811
                                                              NUT
                                                              from £1.08
                                                              from £1.08
                                                              # 035
                                                              MPN: 196071
                                                              SCREW
                                                              from £4.24
                                                              from £4.24
                                                              # 036
                                                              MPN: 14496825
                                                              WASHER
                                                              from £1.18
                                                              from £1.18
                                                              # 037
                                                              MPN: 15503915
                                                              NUT
                                                              from £1.63
                                                              from £1.63
                                                              # 038
                                                              MPN: 189137
                                                              SCREW
                                                              from £18.09
                                                              from £18.09
                                                              # 039
                                                              MPN: 13579861
                                                              WASHER
                                                              from £14.15
                                                              from £14.15
                                                              # 040
                                                              MPN: 386600441
                                                              NUT
                                                              from £2.45
                                                              from £2.45
                                                              # 041
                                                              MPN: 13517034
                                                              STUD
                                                              from £62.51
                                                              from £62.51
