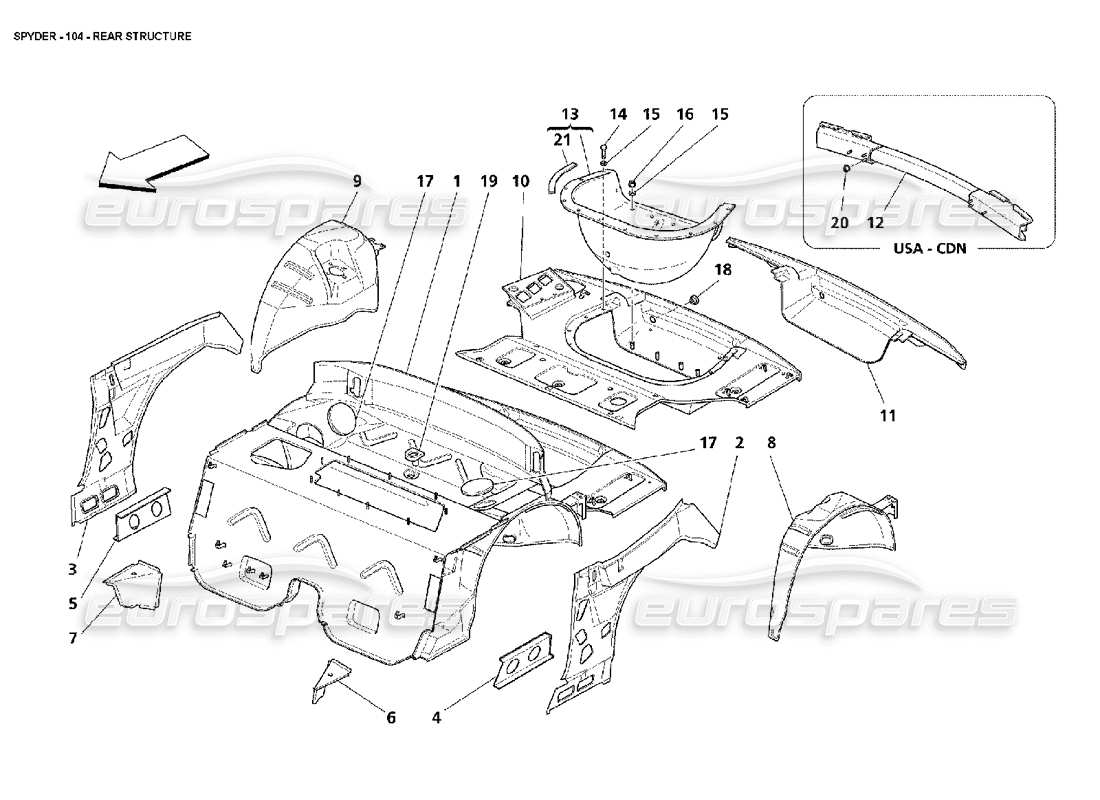

maserati 4200 spyder (2002) rear structure parts diagram

104 - rear structure

Maserati 4200 Spyder (2002) Rear Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 980001058
                                      COMPLETE REAR CENTRAL FLOOR
                                      from £4,575.06
                                      from £4,575.06
                                      # 002
                                      MPN: 980001151
                                      COMPLETE LH REAR DIAPHRAGM
                                      from £105.48
                                      from £105.48
                                      # 003
                                      MPN: 980001152
                                      COMPLETE RH REAR DIAPHRAGM
                                      from £92.79
                                      from £92.79
                                      # 004
                                      MPN: 66249200
                                      LH REAR LONGITUDINAL MEMBER REINFORCEMENT
                                      from £16.84
                                      from £16.84
                                      # 005
                                      MPN: 66249100
                                      RH REAR LONGITUDINAL MEMBER REINFORCEMENT
                                      from £16.84
                                      from £16.84
                                      # 006
                                      MPN: 65962700
                                      LH OUTER ANGULAR REINFORCEMENT
                                      from £15.86
                                      from £15.86
                                      # 007
                                      MPN: 65962600
                                      RH OUTER ANGULAR REINFORCEMENT
                                      from £15.86
                                      from £15.86
                                      # 008
                                      MPN: 980001061
                                      COMPLETE INNER LH REAR WHEEL HOUSE
                                      from £430.12
                                      from £430.12
                                      # 009
                                      MPN: 980001062
                                      COMPLETE INNER RH REAR WHEEL HOUSE
                                      from £430.12
                                      from £430.12
                                      # 010
                                      MPN: 980001059
                                      COMPLETE TRUNK FLOOR
                                      from £598.03
                                      from £598.03
                                      # 011
                                      MPN: 980001060
                                      COMPLETE REAR WALL
                                      from £132.18
                                      from £132.18
                                      # 012
                                      MPN: 66300700
                                      REAR BULL BAR
                                      - Valid for USA
                                      from £447.29
                                      from £447.29
                                      # 012
                                      MPN: 67021800
                                      REAR BULL BAR
                                      - Valid for CDN
                                      from £461.04
                                      from £461.04
                                      # 013
                                      MPN: 66491000
                                      COMPLETE WHEEL HOUSING
                                      - Valid till car Ass. Nr. 9813
                                      Supersession
                                      Supersession
                                      # 013
                                      MPN: 67245900
                                      COMPLETE WHEEL HOUSING
                                      - Valid from car Ass. Nr. 9814
                                      from £276.85
                                      from £276.85
                                      This part replaces part number 66491000
                                      # 014
                                      MPN: 13274611
                                      SCREW
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 13274517
                                      # 015
                                      MPN: 12638170
                                      WASHER
                                      from £1.08
                                      from £1.08
                                      # 016
                                      MPN: 14058311
                                      NUT
                                      from £0.47
                                      from £0.47
                                      # 017
                                      MPN: 66428200
                                      PLUG
                                      from £8.20
                                      from £8.20
                                      # 018
                                      MPN: 14506987
                                      PLUG
                                      from £1.93
                                      from £1.93
                                      # 019
                                      MPN: 385500300
                                      EXHAUST TERMINAL
                                      from £6.81
                                      from £6.81
                                      # 020
                                      MPN: 14040715
                                      NUT
                                      - Valid for USA and CDN
                                      from £0.47
                                      from £0.47
                                      # 021
                                      MPN: 66134100
                                      WHEEL HOUSING GASKET
                                      from £119.01
                                      from £119.01
                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
