121 - Doors - Power Window and Rearwiew Mirror

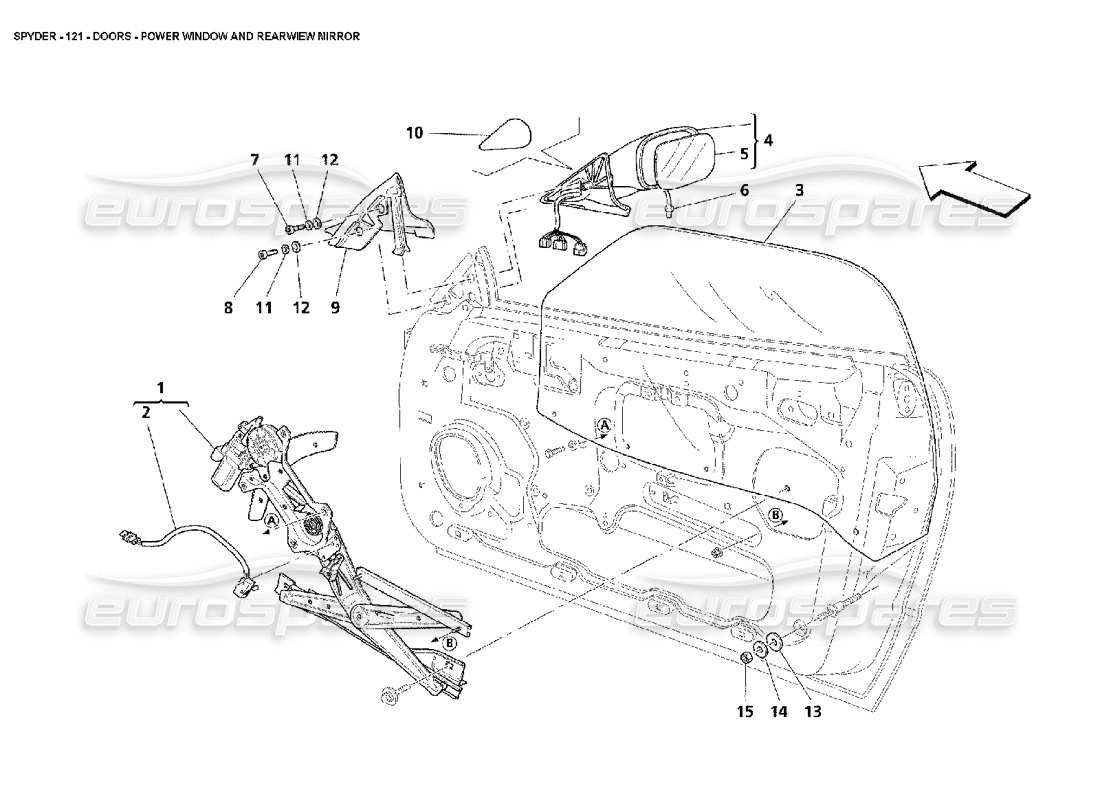

Maserati 4200 Spyder (2002) Doors - Power Window and Rearwiew Mirror Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 387700050
RH WINDOW MECHANISM
from £879.75
from £879.75
This part replaces part number 387700040
# 001
MPN: 387700051
LH WINDOW MECHANISM
from £816.72
from £816.72
This part replaces part number 387700041
# 002
MPN: 980001800
MICRO-SWITCH
from £121.88
from £121.88
# 003
MPN: 66137900
RH MOBILE GLASS
from £29.23
from £29.23
# 003
MPN: 66138000
LH MOBILE GLASS
from £29.23
from £29.23
# 004
MPN: 980024926
RH OUTER REAR VIEW MIRROR
- Valid for AUS
from £453.77
from £453.77
# 004
MPN: 980040923
LH OUTER REAR VIEW MIRROR
- Valid for USA and CDN
from £465.51
from £465.51
# 004
MPN: 980040924
RH OUTER REAR VIEW MIRROR
- Valid for USA and CDN
from £465.51
from £465.51
# 004
MPN: 980138923
LH OUTER REAR VIEW MIRROR
- Not for USA, CDN and GD
from £449.27
from £449.27
# 004
MPN: 980138924
RH OUTER REAR VIEW MIRROR
- Not for USA, CDN and GD
from £229.32
from £229.32
# 004
MPN: 980138925
LH OUTER REAR VIEW MIRROR
- Valid for GD
from £244.29
from £244.29
# 004
MPN: 980138926
RH OUTER REAR VIEW MIRROR
- Valid for GB
from £115.50
from £115.50
# 005
MPN: 980000945
LH MIRROR GLASS (LH D.)
- Not for USA, CDN and GD
from £46.07
from £46.07
# 005
MPN: 980000946
RH MIRROR GLASS (LH D.)
from £61.80
from £61.80
# 005
MPN: 980000947
LH MIRROR GLASS (RH D.)
from £47.38
from £47.38
# 005
MPN: 980000948
RH MIRROR GLASS (RH D.)
from £70.69
from £70.69
# 005
MPN: 980040945
GLASS FOR LH MIRROR
- Valid for USA and CDN
from £51.36
from £51.36
# 005
MPN: 980040946
GLASS FOR RH MIRROR
- Valid for USA and CDN
from £36.95
from £36.95
# 005
MPN: 980050948
GLASS FOR RH MIRROR
- Valid for AUS
from £38.81
from £38.81
# 006
MPN: 980000961
DRIVER SIDE OUTER TEMPERATURE SENSOR
from £17.00
from £17.00
This part replaces part number 980000931
# 007
MPN: 14305424
SCREW
from £0.47
from £0.47
# 008
MPN: 14305124
SCREW
from £0.47
from £0.47
# 009
MPN: 69464000
RH MIRROR GASKET
from £42.56
from £42.56
This part replaces part number 67243400 - and 1 more. Click to view details
# 009
MPN: 69464000
RH MIRROR GASKET
from £42.56
from £42.56
This part replaces part number 67243400 - and 1 more. Click to view details
# 009
MPN: 69464100
LH MIRROR GASKET
from £72.48
from £72.48
This part replaces part number 67243500 - and 1 more. Click to view details
# 010
MPN: 980000949
O.R. GASKET
from £1.56
from £1.56
# 011
MPN: 135100064
WASHER
from £1.09
from £1.09
# 012
MPN: 386100666
RUBBER WASHER
from £1.09
from £1.09
# 013
MPN: 312520511
GASKET
from £1.72
from £1.72
# 014
MPN: 136110110
WASHER
from £2.18
from £2.18
# 015
MPN: 14040711
NUT
from £0.47
from £0.47
This part replaces part number 14576780
