maserati 4200 spyder (2002) immobilizer kit parts diagram

143 - Immobilizer Kit

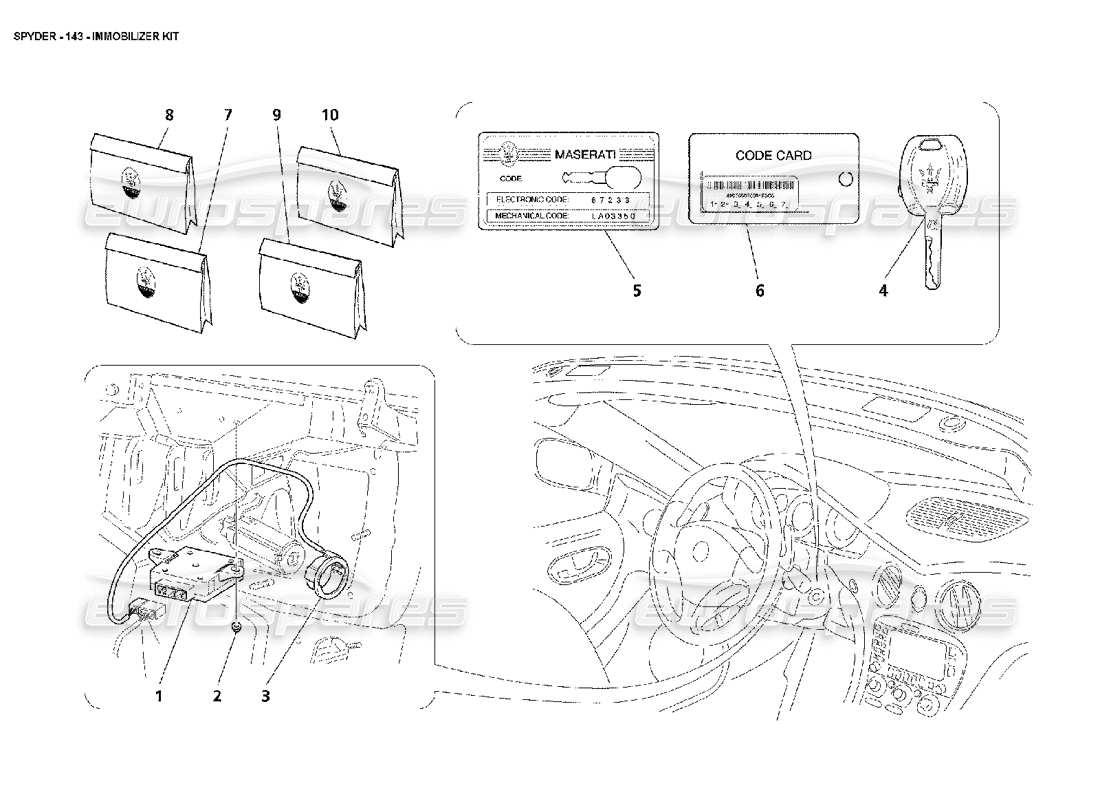

Maserati 4200 Spyder (2002) Immobilizer Kit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 60673131
      IMMOBILIZER CONTROL STATION
      - Programmable
      from £110.04
      from £110.04
      This part replaces part number 182233
      # 002
      MPN: 13831811
      NUT
      from £0.53
      from £0.53
      # 003
      MPN: 60674640
      IMMOBILIZER ANTENNA
      Supersession
      Supersession
      # 004
      MPN: 383401102
      BLACK KEY ONE BUTTON
      - Programmable - Not for USA and CDN
      Supersession
      Supersession
      # 004
      MPN: 980001801
      BLUE KEY TWO BUTTON
      - Programmable - Factory only Secure part
      from £397.55
      from £397.55
      This part replaces part number 383401102
      # 004
      MPN: 980001802
      RED VALLET KEY ONE BUTTON
      - Programmable - Valid for USA and CDN
      from £188.40
      from £188.40
      # 005
      MPN: 980001810
      Maserati CODE CARD
      - Programmable
      from £2.93
      from £2.93
      This part replaces part number 383400312
      # 006
      MPN: 186585
      RADIOCONTROLLER CODE KEY
      - Programmable
      from £5.09
      from £5.09
      # 007
      -
      DOOR OPENING CENTRAL
      # 007
      -
      Battery
      # 007
      -
      CODE CARD
      # 007
      -
      ANTISTATIC CONFECTION
      # 007
      -
      TELECONTROL ONE BUTTON
      # 007
      -
      TELECONTROL TWO BUTTONS
      # 007
      MPN: 980001803
      SHEETS AND DOOR OPENING KIT
      - One button - Programmable - Not for USA and CDN
      from £364.69
      from £364.69
      # 007
      MPN: 980001811
      SHEETS AND DOOR OPENING KIT
      - Two buttons - Programmable - Not for USA and CDN
      from £261.00
      from £261.00
      # 008
      -
      ALARM - DOOR OPENING CENTRAL
      # 008
      -
      Battery
      # 008
      -
      CODE CARD
      # 008
      -
      ANTISTATIC CONFECTION
      # 008
      -
      TELECONTROL ONE BUTTON
      # 008
      -
      TELECONTROL TWO BUTTONS
      # 008
      -
      VALLET KEY TELECONTROL
      # 008
      MPN: 980001805
      SHEETS AND DOOR OPENING / ALARM KIT
      - One button - Programmable - Not for USA and CDN
      from £476.94
      from £476.94
      # 008
      MPN: 980001806
      SHEETS AND DOOR OPENING / ALARM KIT
      - Two buttons - Programmable - Valid for USA and CDN
      from £306.15
      from £306.15
      # 008
      MPN: 980001812
      SHEETS AND DOOR OPENING / ALARM KIT
      - Two buttons - Programmable - Not for USA and CDN
      from £1,434.61
      from £1,434.61
      # 009
      -
      DOOR BLOCKS / TRUNK / AIR BAG / STARTER / DRAWERS
      # 009
      -
      BLUE KEY ONE BUTTON NOT TELECONTROLLER, WITH TRASPONDER
      # 009
      -
      BLUE KEY TWO BUTTONS NOT TELECONTROLLER, WITH TRASPONDER
      # 009
      -
      CODE CARD
      # 009
      -
      RED VALLET KEY NOT TELECONTROLLER, WITH TRASPONDER
      # 009
      MPN: 980001807
      KEYS AND BLOCKS KIT
      - One button - Programmable - Not for USA and CDN
      from £321.41
      from £321.41
      # 009
      MPN: 980001808
      KEYS AND BLOCKS KIT
      - Two buttons - Programmable - Valid for USA and CDN
      from £796.34
      from £796.34
      # 009
      MPN: 980001813
      KEYS AND BLOCKS KIT
      - Two buttons - Programmable - Not for USA and CDN
      from £378.34
      from £378.34
      # 010
      -
      TELECONTROLLER SHEETS
      # 010
      -
      BATTERY 1,5 V.
      # 010
      -
      RUBBER BLACK PUSH BUTTON
      # 010
      -
      RUBBER RED PUSH BUTTON
      # 010
      -
      TELECONTROLLER SHEETS
      # 010
      -
      BATTERY 1,5 V.
      # 010
      -
      DOOR OPENING PUSH BUTTON
      # 010
      -
      TRUNK OPENING PUSH BUTTON
      # 010
      MPN: 980001022
      KEY COMMAND KIT 3200GT
      - Programmable - One button
      from £133.93
      from £133.93
      # 010
      MPN: 980001809
      TELECONTROLLER SHEETS KIT
      - Programmable - Two buttons
      from £45.40
      from £45.40
