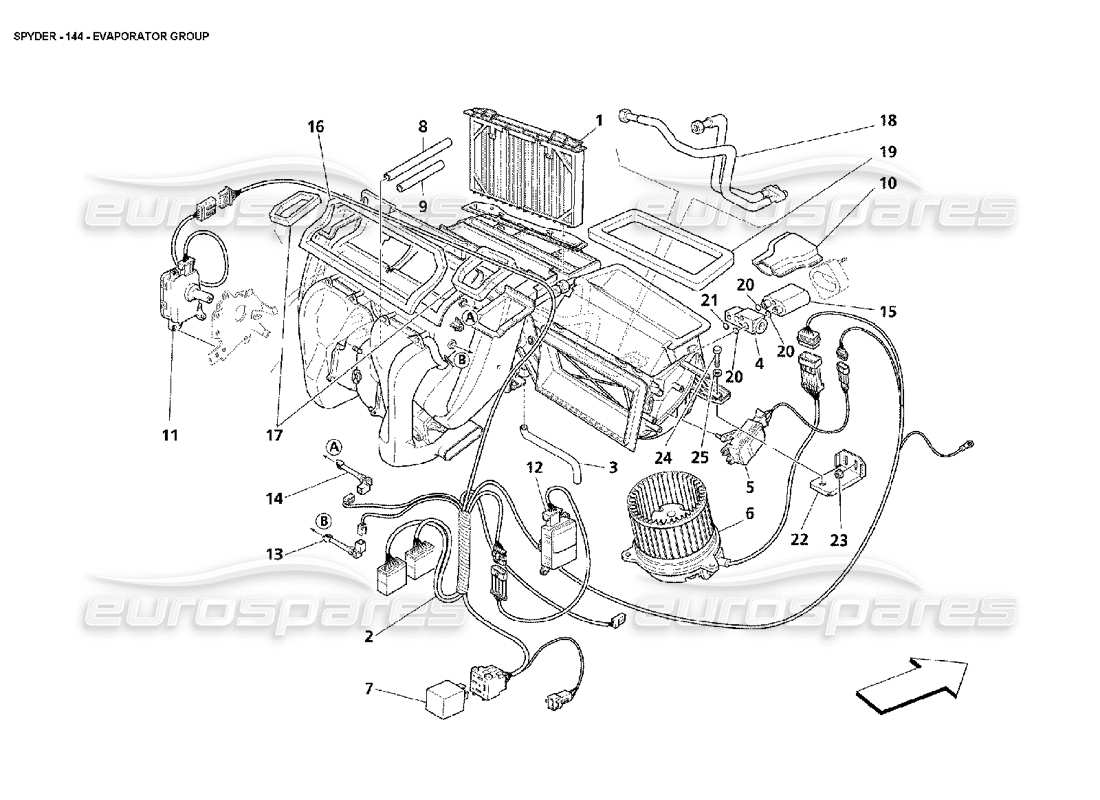

144 - Evaporator Group
Maserati 4200 Spyder (2002) Evaporator Group Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 66661000
COMPLETE EVAPORATOR SET
- Not for GD
from £801.06
from £801.06
# 000
MPN: 66666100
COMPLETE EVAPORATOR SET
- Valid for GD
Supersession
Supersession
# 001
MPN: 382400304
ANTIPOLLEN FILTER
from £26.55
from £26.55
# 002
MPN: 980001125
RELAY COMPLETE CABLE
- Not for GD
from £128.45
from £128.45
# 002
MPN: 980001200
RELAY COMPLETE CABLE
- Valid for GD
from £149.72
from £149.72
# 003
MPN: 980000979
EXAUST PIPE
from £3.62
from £3.62
# 004
MPN: 375530166
EXPANSION VALVLE
from £476.00
from £476.00
# 005
MPN: 980000975
RICIRCLE ACTUATOR
from £80.94
from £80.94
# 006
MPN: 980010980
ELECTROFAN
from £378.84
from £378.84
This part replaces part number 980000980
# 007
MPN: 46451295
RELAY
from £34.16
from £34.16
# 008
MPN: 385500479
WATER INLET DUCT
- Not for GD
from £17.93
from £17.93
# 008
MPN: 385510479
WATER INLET DUCT
- Valid for GD
from £15.74
from £15.74
# 009
MPN: 385500481
WATER OUTLET DUCT
- Not for GD
from £16.73
from £16.73
# 009
MPN: 385510481
WATER OUTLET DUCT
- Valid for GD
from £16.81
from £16.81
# 010
MPN: 980000984
FREON VALVLE GASKET
from £6.40
from £6.40
# 011
MPN: 980000974
ACTUATOR
from £90.48
from £90.48
# 012
MPN: 980000999
ACTUATOR
from £95.12
from £95.12
# 013
MPN: 980000977
TT2 AIR SENSOR
from £13.77
from £13.77
# 014
MPN: 980000976
TT1 AIR SENSOR
from £13.77
from £13.77
# 015
MPN: 980001126
FLANGE FOR VALVLE
from £33.70
from £33.70
# 016
MPN: 385500501
GASKET
from £1.66
from £1.66
# 017
MPN: 385500502
GASKET
from £3.08
from £3.08
# 018
MPN: 980001127
FREON PIPES
- Not for GD
from £69.46
from £69.46
# 018
MPN: 980001201
FREON PIPES
- Valid for GD
from £99.16
from £99.16
# 019
MPN: 385500503
UPPER GASKET FOR ADAPTATOR
from £3.48
from £3.48
# 020
MPN: 375500458
RUBBER
from £5.70
from £5.70
# 021
MPN: 375500457
RUBBER
from £3.87
from £3.87
# 022
MPN: 66412200
BRACKET
- Not supplyed in the complete evaporator set
from £40.92
from £40.92
# 023
MPN: 14059214
NUT M6
- Not supplyed in the complete evaporator set
from £0.53
from £0.53
This part replaces part number 12578121
# 024
MPN: 16043124
SCREW
- Not supplyed in the complete evaporator set
from £0.30
from £0.30
# 025
MPN: 12646724
WASHER
- Not supplyed in the complete evaporator set
from £0.54
from £0.54
