maserati 4200 spyder (2002) air conditioning system parts diagram

145 - air conditioning system

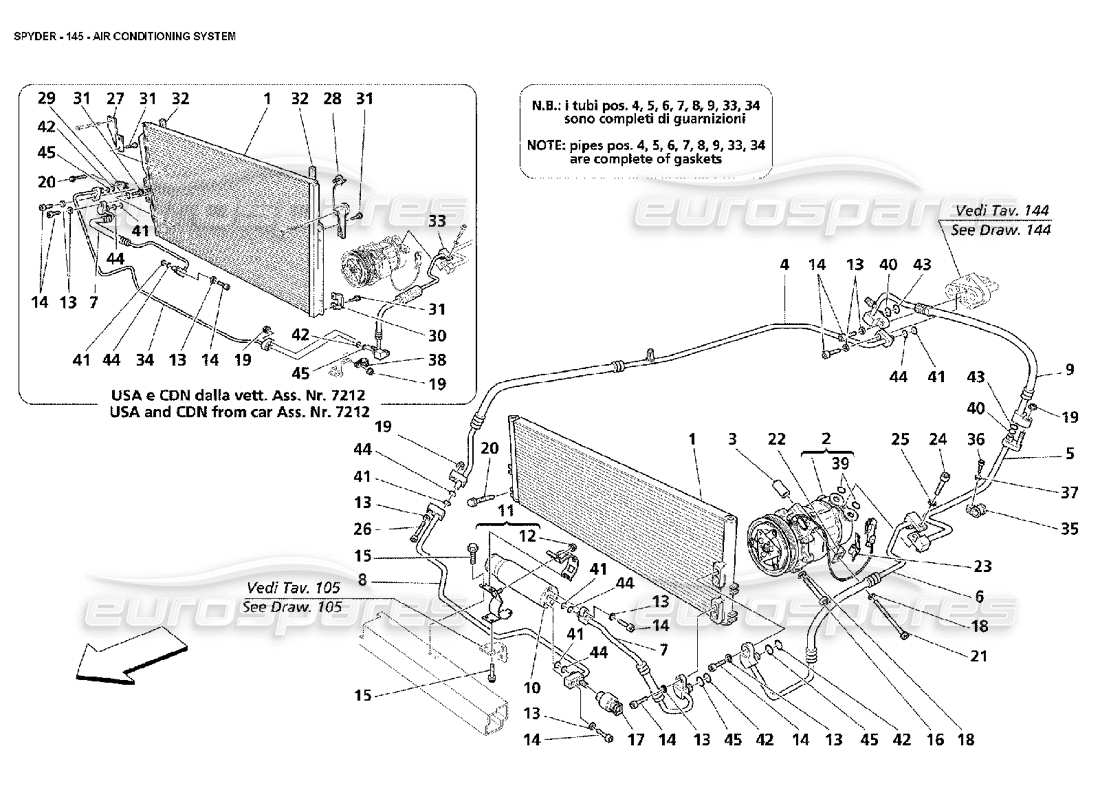

Maserati 4200 Spyder (2002) Air Conditioning System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 181106
                                                  A.C. CONDENSER
                                                  - Not for USA and CDN from car Ass. Nr. 7212
                                                  from £426.96
                                                  from £426.96
                                                  # 001
                                                  MPN: 189215
                                                  A.C. CONDENSER
                                                  - Valid for USA and CDN from car Ass. Nr. 7212
                                                  from £390.31
                                                  from £390.31
                                                  This part replaces part number 193547
                                                  # 002
                                                  MPN: 183309
                                                  AIR CONDITIONING COMPRESSOR
                                                  Sanden Version
                                                  from £1,183.81
                                                  from £1,183.81
                                                  # 003
                                                  MPN: 141496
                                                  SPACER
                                                  from £1.57
                                                  from £1.57
                                                  # 004
                                                  MPN: 66244200
                                                  PIPE FROM UNION TO EVAPORATOR
                                                  - Not for GD
                                                  from £96.72
                                                  from £96.72
                                                  # 004
                                                  MPN: 66765700
                                                  PIPE FROM UNION TO EVAPORATOR
                                                  - Valid for GD
                                                  from £99.39
                                                  from £99.39
                                                  # 005
                                                  MPN: 66063400
                                                  PIPE FROM UNION TO COMPRESSOR
                                                  - Valid till car Ass. Nr. 7130
                                                  from £29.96
                                                  from £29.96
                                                  # 005
                                                  MPN: 67028000
                                                  PIPE FROM UNION TO COMPRESSOR
                                                  - Valid from car Ass. Nr. 7131
                                                  from £63.82
                                                  from £63.82
                                                  # 006
                                                  MPN: 66707600
                                                  PIPE FROM COMPRESSOR TO CONDENSER
                                                  - Not for USA and CDN from car Ass. Nr. 7212
                                                  from £138.54
                                                  from £138.54
                                                  # 007
                                                  MPN: 66063100
                                                  PIPE FROM CONDENSER TO FILTER
                                                  - Not for USA and CDN from car Ass. Nr. 7212
                                                  from £71.24
                                                  from £71.24
                                                  # 007
                                                  MPN: 67193700
                                                  PIPE FROM CONDENSER TO FILTER
                                                  - Valid for USA and CDN from car Ass. Nr. 7212
                                                  from £101.41
                                                  from £101.41
                                                  # 008
                                                  MPN: 66063200
                                                  PIPE FROM FILTER TO UNION
                                                  - Not for GD
                                                  from £44.23
                                                  from £44.23
                                                  # 008
                                                  MPN: 66765800
                                                  PIPE FROM FILTER TO UNION
                                                  - Valid for GD
                                                  from £73.85
                                                  from £73.85
                                                  # 009
                                                  MPN: 66063300
                                                  PIPE FROM EVAPORATOR TO UNION
                                                  - Not for GD
                                                  from £54.89
                                                  from £54.89
                                                  # 009
                                                  MPN: 66722700
                                                  PIPE FROM EVAPORATOR TO UNION
                                                  - Valid for GD
                                                  from £70.81
                                                  from £70.81
                                                  # 010
                                                  MPN: 67110900
                                                  DEHYDRATING FILTER
                                                  from £40.73
                                                  from £40.73
                                                  This part replaces part number 385500174 - and 1 more. Click to view details
                                                  # 011
                                                  MPN: 66247100
                                                  COMPLETE DEHYDRATING FILTER SUPPORT BRACKET
                                                  from £7.67
                                                  from £7.67
                                                  This part replaces part number 66247200 - and 1 more. Click to view details
                                                  # 013
                                                  MPN: 12601274
                                                  WASHER
                                                  from £0.52
                                                  from £0.52
                                                  This part replaces part number 12601270
                                                  # 014
                                                  MPN: 14305424
                                                  SCREW
                                                  from £0.50
                                                  from £0.50
                                                  # 015
                                                  MPN: 11612626
                                                  SCREW
                                                  from £2.47
                                                  from £2.47
                                                  # 016
                                                  MPN: 14307124
                                                  SCREW
                                                  from £0.53
                                                  from £0.53
                                                  # 017
                                                  MPN: 46476438
                                                  PRESSOSTAT
                                                  from £42.51
                                                  from £42.51
                                                  # 018
                                                  MPN: 11193874
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  # 019
                                                  MPN: 14059214
                                                  NUT M6
                                                  - (Quantity 3 for USA and CDN from car Ass. Nr. 7212)
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 12578121
                                                  # 020
                                                  MPN: 15698204
                                                  SCREW
                                                  - Not for USA and CDN from car Ass. Nr. 7212
                                                  from £1.31
                                                  from £1.31
                                                  # 020
                                                  MPN: 15699804
                                                  SCREW
                                                  - Valid for USA and CDN from car Ass. Nr. 7212
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 15534501
                                                  # 021
                                                  MPN: 175428
                                                  SCREW
                                                  from £1.04
                                                  from £1.04
                                                  # 022
                                                  MPN: 185556
                                                  CABLES FIXING BRACKET
                                                  from £1.55
                                                  from £1.55
                                                  # 023
                                                  MPN: 155978
                                                  CLIP
                                                  from £0.54
                                                  from £0.54
                                                  # 025
                                                  MPN: 11198579
                                                  WASHER
                                                  from £1.08
                                                  from £1.08
                                                  # 026
                                                  MPN: 14305821
                                                  SCREW
                                                  from £0.53
                                                  from £0.53
                                                  # 027
                                                  MPN: 193551
                                                  RH UPPER BRACKET
                                                  - Valid for USA and CDN from car Ass. Nr. 7212
                                                  from £4.63
                                                  from £4.63
                                                  # 028
                                                  MPN: 193552
                                                  LH UPPER BRACKET
                                                  - Valid for USA and CDN from car Ass. Nr. 7212
                                                  from £16.25
                                                  from £16.25
                                                  # 029
                                                  MPN: 193553
                                                  RH LOWER BRACKET
                                                  - Valid for USA and CDN from car Ass. Nr. 7212
                                                  from £3.63
                                                  from £3.63
                                                  # 030
                                                  MPN: 193554
                                                  LH LOWER BRACKET
                                                  - Valid for USA and CDN from car Ass. Nr. 7212
                                                  from £3.63
                                                  from £3.63
                                                  # 031
                                                  MPN: 165137
                                                  SCREW
                                                  - Valid for USA and CDN from car Ass. Nr. 7212
                                                  from £1.31
                                                  from £1.31
                                                  # 032
                                                  MPN: 193556
                                                  RUBBER PROFILE
                                                  - Valid for USA and CDN from car Ass. Nr. 7212
                                                  from £1.55
                                                  from £1.55
                                                  # 033
                                                  MPN: 67193500
                                                  PIPE FROM COMPRESSOR TO UNION
                                                  - Valid for USA and CDN from car Ass. Nr. 7212
                                                  from £367.37
                                                  from £367.37
                                                  # 034
                                                  MPN: 67193600
                                                  PIPE FROM UNION TO CONDENSER
                                                  - Valid for USA and CDN from car Ass. Nr. 7212
                                                  from £125.81
                                                  from £125.81
                                                  # 035
                                                  MPN: 10441590
                                                  BRACKET WITH SHEATH
                                                  - Valid for cars with pipe (pos. 5) cod. 67028000
                                                  from £0.53
                                                  from £0.53
                                                  # 036
                                                  MPN: 14433124
                                                  SCREW
                                                  from £0.53
                                                  from £0.53
                                                  # 037
                                                  MPN: 127494
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  # 038
                                                  MPN: 10441690
                                                  BRACKET WITH SHEATH
                                                  from £1.08
                                                  from £1.08
                                                  # 039
                                                  MPN: 194993
                                                  O.R. GASKET
                                                  from £8.64
                                                  from £8.64
                                                  # 040
                                                  MPN: 67641500
                                                  O.R. GASKET
                                                  from £2.31
                                                  from £2.31
                                                  # 041
                                                  MPN: 67641000
                                                  O.R. GASKET
                                                  - (Quantity 5 for cars USA and CDN)
                                                  from £2.31
                                                  from £2.31
                                                  # 042
                                                  MPN: 67641100
                                                  O.R. GASKET
                                                  from £2.31
                                                  from £2.31
                                                  # 043
                                                  MPN: 67641200
                                                  O.R. GASKET
                                                  from £2.85
                                                  from £2.85
                                                  # 044
                                                  MPN: 67641300
                                                  O.R. GASKET
                                                  - (Quantity 5 for cars USA and CDN)
                                                  from £1.92
                                                  from £1.92
                                                  # 045
                                                  MPN: 67641400
                                                  O.R. GASKET
                                                  from £2.31
                                                  from £2.31
