maserati 4200 spyder (2003) fuel tanks and union parts diagram

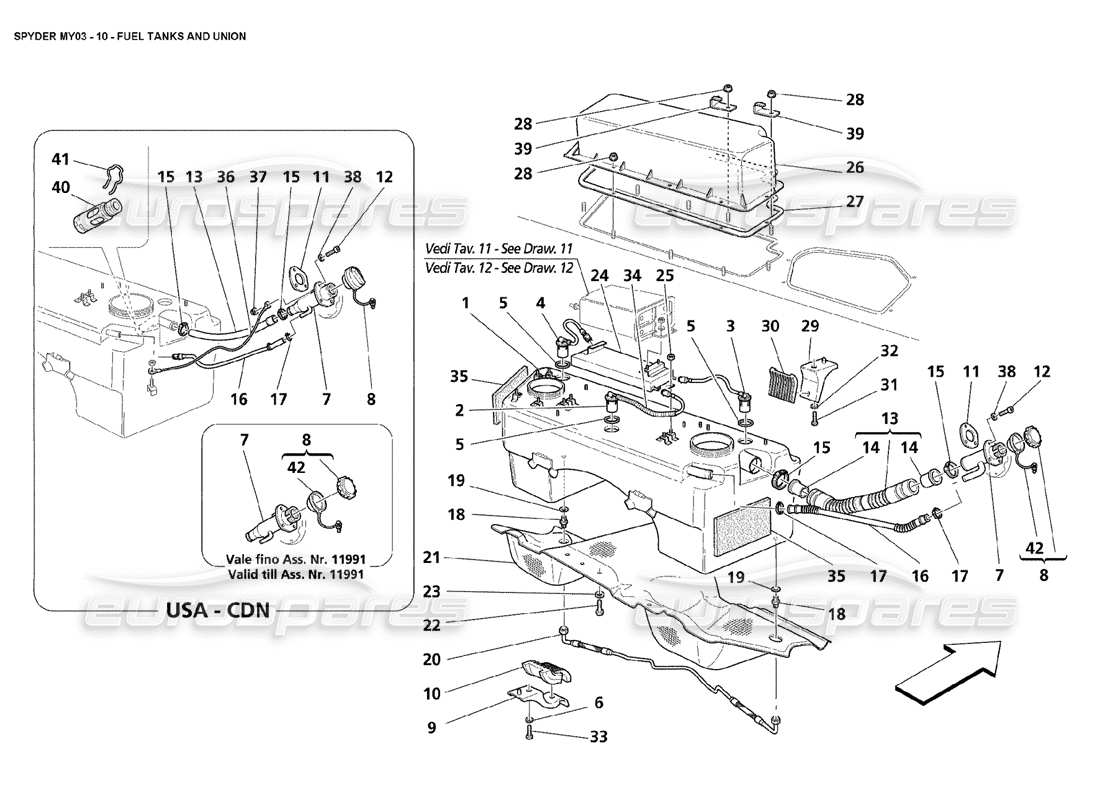

010 - Fuel Tanks and Union

Maserati 4200 Spyder (2003) Fuel Tanks and Union Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 184288
                                                  FUEL TANK
                                                  - Not for USA and CDN
                                                  from £1,414.36
                                                  from £1,414.36
                                                  # 001
                                                  MPN: 184732
                                                  FUEL TANK
                                                  - Valid for USA and CDN - Valid till car Ass. Nr. 11186
                                                  from £1,591.21
                                                  from £1,591.21
                                                  # 001
                                                  MPN: 193834
                                                  FUEL TANK
                                                  - Valid for USA and CDN - Valid from car Ass. Nr. 11187
                                                  from £1,655.48
                                                  from £1,655.48
                                                  # 002
                                                  MPN: 184908
                                                  CENTRAL FLOAT VALVLE WHITE PIPE
                                                  from £343.35
                                                  from £343.35
                                                  # 003
                                                  MPN: 184349
                                                  RH FLOAT VALVE WITH PIPE
                                                  from £32.61
                                                  from £32.61
                                                  # 004
                                                  MPN: 184907
                                                  LH FLOAT VALVE WITH PIPE
                                                  from £35.28
                                                  from £35.28
                                                  # 005
                                                  MPN: 169938
                                                  GASKET FOR VALVE
                                                  - Valid till stock exhaustion
                                                  Supersession
                                                  Supersession
                                                  # 005
                                                  MPN: 195049
                                                  GASKET FOR VALVE
                                                  - Valid after stock exhaustion of 169938
                                                  from £2.40
                                                  from £2.40
                                                  This part replaces part number 169938
                                                  # 006
                                                  MPN: 12626224
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  # 007
                                                  MPN: 190203
                                                  FUEL UNION
                                                  - Not for USA and CDN
                                                  from £44.39
                                                  from £44.39
                                                  # 007
                                                  MPN: 194101
                                                  FUEL UNION
                                                  - Valid for USA and CDN - Valid till car Ass. Nr. 11991
                                                  Supersession
                                                  Supersession
                                                  # 007
                                                  MPN: 201347
                                                  FUEL UNION
                                                  - Valid for USA and CDN - Valid from car Ass. Nr. 11992
                                                  from £653.93
                                                  from £653.93
                                                  This part replaces part number 194101
                                                  # 008
                                                  MPN: 190154
                                                  COMPLETE PLUG
                                                  - For versions USA and CDN - valid till car Ass. Nr. 11991
                                                  from £175.09
                                                  from £175.09
                                                  This part replaces part number 186866 which we have in stock
                                                  # 008
                                                  MPN: 190154
                                                  COMPLETE PLUG
                                                  - Valid for USA and CDN - Valid from car Ass. Nr. 11992
                                                  from £175.09
                                                  from £175.09
                                                  This part replaces part number 186866 which we have in stock
                                                  # 009
                                                  MPN: 184298
                                                  FUEL TANK FIXING BRACKET
                                                  from £8.33
                                                  from £8.33
                                                  # 010
                                                  MPN: 186986
                                                  RUBBER REAR SPACER
                                                  from £4.23
                                                  from £4.23
                                                  # 011
                                                  MPN: 190141
                                                  GASKET FOR UNION
                                                  from £6.11
                                                  from £6.11
                                                  # 012
                                                  MPN: 14778017
                                                  SCREW
                                                  - Valid for USA and CDN - TANK CONNECTING PIPE - Not for USA and CDN - TANK CONNECTING PIPE - Valid for USA and CDN
                                                  from £1.59
                                                  from £1.59
                                                  # 012
                                                  MPN: 62926700
                                                  SCREW
                                                  - Not for USA and CDN
                                                  from £0.71
                                                  from £0.71
                                                  # 013
                                                  MPN: 189733
                                                  UNION
                                                  from £107.22
                                                  from £107.22
                                                  # 013
                                                  MPN: 191617
                                                  UNION
                                                  from £59.29
                                                  from £59.29
                                                  # 014
                                                  MPN: 191618
                                                  GASKET
                                                  - Not for USA and CDN
                                                  from £31.32
                                                  from £31.32
                                                  # 015
                                                  MPN: 13000590
                                                  SCREW COLLAR
                                                  - Valid for USA and CDN
                                                  from £0.47
                                                  from £0.47
                                                  # 015
                                                  MPN: 13000790
                                                  SCREW COLLAR
                                                  - Not for USA and CDN
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 312420106
                                                  # 016
                                                  MPN: 190150
                                                  VAPOR RECYCLING PIPE
                                                  - Valid for USA and CDN
                                                  from £23.50
                                                  from £23.50
                                                  # 016
                                                  MPN: 190164
                                                  COMPLETE VENT PIPE FROM TANK TO UNION
                                                  - Not for USA and CDN
                                                  from £29.21
                                                  from £29.21
                                                  # 017
                                                  MPN: 13000390
                                                  SCREW COLLAR
                                                  - Not for USA and CDN
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 13121170 - and 1 more. Click to view details
                                                  # 017
                                                  MPN: 13432070
                                                  COLLAR FOR SLEEVE
                                                  - Valid for USA and CDN
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 13434670
                                                  # 018
                                                  MPN: 188548
                                                  NIPPLO
                                                  - Not for USA and CDN
                                                  from £101.74
                                                  from £101.74
                                                  # 018
                                                  MPN: 193689
                                                  NIPPLO
                                                  - Valid for USA and CDN
                                                  from £28.15
                                                  from £28.15
                                                  # 019
                                                  MPN: 675000691
                                                  GASKET
                                                  from £1.11
                                                  from £1.11
                                                  This part replaces part number 10257060 which we have in stock
                                                  # 020
                                                  MPN: 189875
                                                  TANK CONNECTING PIPE
                                                  - Not for USA and CDN - Valid till stock exhaustion
                                                  from £137.08
                                                  from £137.08
                                                  # 020
                                                  MPN: 193688
                                                  TANK CONNECTING PIPE
                                                  - Valid for USA and CDN - Valid for all versions - after exhaustion of 189875
                                                  from £145.61
                                                  from £145.61
                                                  # 021
                                                  MPN: 66065600
                                                  UNDERTANK HEAT SHIELD
                                                  from £81.14
                                                  from £81.14
                                                  # 022
                                                  MPN: 10902224
                                                  SCREW
                                                  from £0.49
                                                  from £0.49
                                                  # 023
                                                  MPN: 10523424
                                                  WASHER
                                                  from £0.49
                                                  from £0.49
                                                  # 024
                                                  MPN: 187466
                                                  DISAREATOR
                                                  - Not for USA and CDN
                                                  from £69.64
                                                  from £69.64
                                                  # 024
                                                  MPN: 187467
                                                  DISAREATOR
                                                  - Valid for USA and CDN
                                                  from £286.58
                                                  from £286.58
                                                  # 025
                                                  MPN: 12574211
                                                  NUT
                                                  from £0.71
                                                  from £0.71
                                                  This part replaces part number 128300060
                                                  # 026
                                                  MPN: 67239500
                                                  ANTIEVAPORATION DEVICE COVER
                                                  from £24.47
                                                  from £24.47
                                                  This part replaces part number 66360800 which we have in stock - and 1 more. Click to view details
                                                  # 027
                                                  MPN: 66360700
                                                  GASKET
                                                  from £28.15
                                                  from £28.15
                                                  # 028
                                                  MPN: 14059217
                                                  NUT
                                                  from £0.47
                                                  from £0.47
                                                  # 029
                                                  MPN: 184297
                                                  FUEL TANK FIXING BRACKET
                                                  from £8.12
                                                  from £8.12
                                                  # 030
                                                  MPN: 186985
                                                  RUBBER FRONT SPACER
                                                  from £4.23
                                                  from £4.23
                                                  # 031
                                                  MPN: 14307524
                                                  SCREW
                                                  from £0.62
                                                  from £0.62
                                                  # 032
                                                  MPN: 12626224
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  # 033
                                                  MPN: 14307524
                                                  SCREW
                                                  from £0.62
                                                  from £0.62
                                                  # 034
                                                  MPN: 318720333
                                                  PIPE
                                                  - Supplied in meters - (Minimum quantity 1m. or multiples)
                                                  from £5.28
                                                  from £5.28
                                                  # 035
                                                  MPN: 371530464
                                                  PROTECTION
                                                  from £23.72
                                                  from £23.72
                                                  # 036
                                                  MPN: 194102
                                                  GROUND CABLE
                                                  - Valid for USA and CDN
                                                  Supersession
                                                  Supersession
                                                  # 037
                                                  MPN: 14059214
                                                  NUT M6
                                                  - Valid for USA and CDN
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 12578121
                                                  # 038
                                                  MPN: 12605374
                                                  WASHER
                                                  from £0.71
                                                  from £0.71
                                                  # 039
                                                  MPN: 179996
                                                  CONNECTOR FIXING BRACKET
                                                  from £2.93
                                                  from £2.93
                                                  # 040
                                                  MPN: 181929
                                                  FUEL INTERCEPTION VALVE
                                                  - Valid for USA and CDN
                                                  from £153.95
                                                  from £153.95
                                                  # 041
                                                  MPN: 181930
                                                  CLIP
                                                  - Valid for USA and CDN
                                                  from £10.31
                                                  from £10.31
                                                  # 042
                                                  MPN: 980138218
                                                  FUEL PLUG GASKET KIT
                                                  - For versions USA and CDN - valid till car Ass. Nr. 11991
                                                  from £39.09
                                                  from £39.09
