maserati 4200 spyder (2003) power unit and tank - valid for f3 parts diagram

027 - Power Unit and Tank - Valid for F3

Maserati 4200 Spyder (2003) Power Unit and Tank - Valid for F3 Parts Diagram

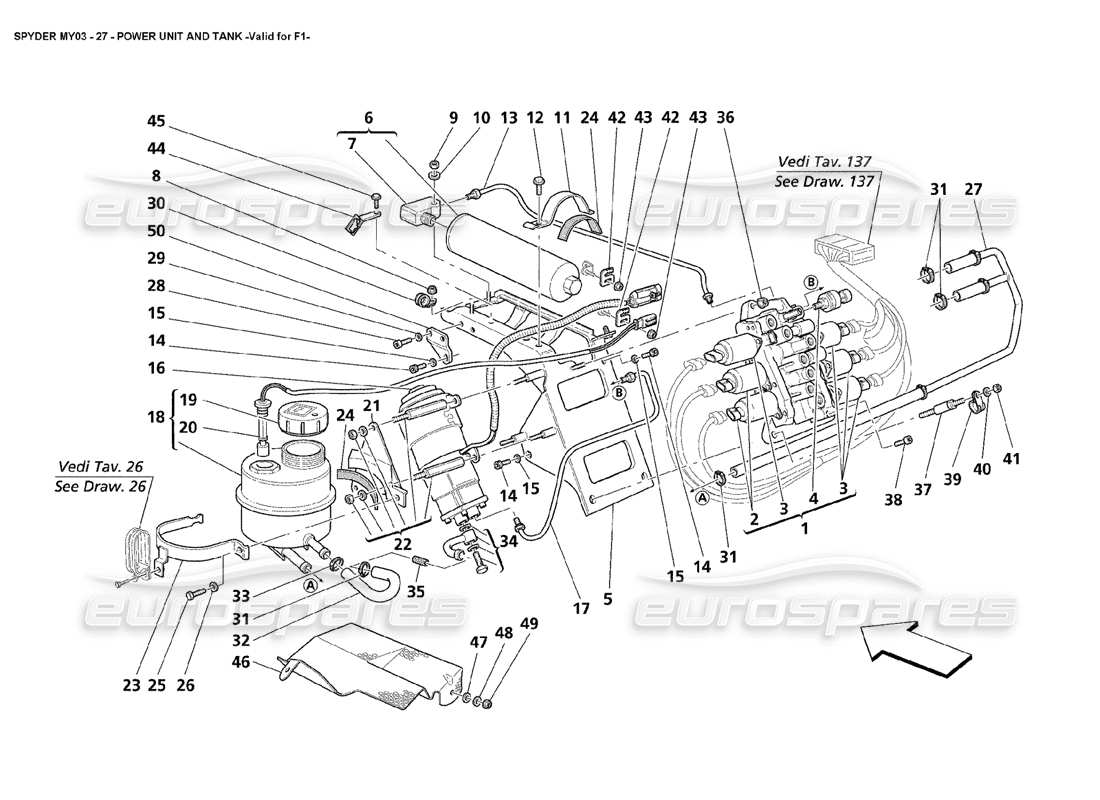

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 179140
                                                                                                    POWER UNIT
                                                                                                    from £901.21
                                                                                                    from £901.21
                                                                                                    # 002
                                                                                                    MPN: 980001155
                                                                                                    PPV VALVE KIT
                                                                                                    from £546.50
                                                                                                    from £546.50
                                                                                                    # 003
                                                                                                    MPN: 980001154
                                                                                                    QPV VALVE KIT
                                                                                                    from £546.50
                                                                                                    from £546.50
                                                                                                    # 004
                                                                                                    MPN: 980001156
                                                                                                    PRESSURE SENSOR
                                                                                                    from £192.72
                                                                                                    from £192.72
                                                                                                    This part replaces part number 190662
                                                                                                    # 006
                                                                                                    MPN: 179143
                                                                                                    COMPLETE ACCUMULATOR
                                                                                                    from £357.03
                                                                                                    from £357.03
                                                                                                    # 007
                                                                                                    MPN: 179211
                                                                                                    ACCUMULATOR DUCTING
                                                                                                    from £162.41
                                                                                                    from £162.41
                                                                                                    # 008
                                                                                                    MPN: 14058411
                                                                                                    NUT
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 010
                                                                                                    MPN: 12601374
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 011
                                                                                                    MPN: 184878
                                                                                                    ACCUMULATOR BRACKET
                                                                                                    from £27.80
                                                                                                    from £27.80
                                                                                                    # 012
                                                                                                    MPN: 16297024
                                                                                                    SCREW
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 013
                                                                                                    MPN: 184269
                                                                                                    PIPE FROM ACCUMULATOR TO POWER UNIT
                                                                                                    from £40.96
                                                                                                    from £40.96
                                                                                                    This part replaces part number 260533 - and 2 more. Click to view details
                                                                                                    # 014
                                                                                                    MPN: 14301924
                                                                                                    SCREW
                                                                                                    from £1.55
                                                                                                    from £1.55
                                                                                                    # 015
                                                                                                    MPN: 12601274
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 12601270
                                                                                                    # 016
                                                                                                    MPN: 247223
                                                                                                    HYDRAULIC PUMP
                                                                                                    (recommended to replace the F1 relay 155437)
                                                                                                    from £250.00
                                                                                                    from £250.00
                                                                                                    # 017
                                                                                                    MPN: 185186
                                                                                                    PIPE FROM PUMP TO POWER UNIT
                                                                                                    from £45.84
                                                                                                    from £45.84
                                                                                                    # 018
                                                                                                    MPN: 188686
                                                                                                    COMPLETE F1 GEARBOX OIL TANK
                                                                                                    from £307.69
                                                                                                    from £307.69
                                                                                                    # 019
                                                                                                    MPN: 980001147
                                                                                                    PLUG
                                                                                                    from £6.81
                                                                                                    from £6.81
                                                                                                    # 020
                                                                                                    MPN: 980001148
                                                                                                    OIL LEVEL INDICATOR
                                                                                                    from £48.77
                                                                                                    from £48.77
                                                                                                    # 021
                                                                                                    MPN: 185952
                                                                                                    OIL TANK BRACKET
                                                                                                    from £86.03
                                                                                                    from £86.03
                                                                                                    # 022
                                                                                                    MPN: 980001157
                                                                                                    PUMP FIXING KIT
                                                                                                    from £102.90
                                                                                                    from £102.90
                                                                                                    # 023
                                                                                                    MPN: 186298
                                                                                                    OIL TANK COLLAR
                                                                                                    from £54.57
                                                                                                    from £54.57
                                                                                                    # 024
                                                                                                    MPN: 183718
                                                                                                    RUBBER GASKET
                                                                                                    from £1.56
                                                                                                    from £1.56
                                                                                                    # 025
                                                                                                    MPN: 10902124
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 026
                                                                                                    MPN: 12601274
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    This part replaces part number 12601270
                                                                                                    # 027
                                                                                                    MPN: 185070
                                                                                                    COMPLETE PIPE FROM POWER UNIT TO OIL TANK
                                                                                                    from £216.95
                                                                                                    from £216.95
                                                                                                    This part replaces part number 186002 - and 2 more. Click to view details
                                                                                                    # 028
                                                                                                    MPN: 14305724
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 029
                                                                                                    MPN: 12601274
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 12601270
                                                                                                    # 030
                                                                                                    MPN: 10441790
                                                                                                    BRACKET WITH SHEATH
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 031
                                                                                                    MPN: 161490
                                                                                                    SCREW COLLAR
                                                                                                    from £1.34
                                                                                                    from £1.34
                                                                                                    # 033
                                                                                                    MPN: 13000390
                                                                                                    SCREW COLLAR
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 13121170 - and 1 more. Click to view details
                                                                                                    # 034
                                                                                                    MPN: 980001159
                                                                                                    PUMP UNION KIT
                                                                                                    from £92.23
                                                                                                    from £92.23
                                                                                                    # 035
                                                                                                    MPN: 188459
                                                                                                    OIL FILTER
                                                                                                    from £5.14
                                                                                                    from £5.14
                                                                                                    # 036
                                                                                                    MPN: 14066021
                                                                                                    NUT
                                                                                                    from £1.61
                                                                                                    from £1.61
                                                                                                    # 037
                                                                                                    MPN: 585410200
                                                                                                    STUD
                                                                                                    from £17.16
                                                                                                    from £17.16
                                                                                                    # 038
                                                                                                    MPN: 14306524
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 14306521
                                                                                                    # 039
                                                                                                    MPN: 10441390
                                                                                                    BRACKET WITH SHEATH
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 040
                                                                                                    MPN: 12601279
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 041
                                                                                                    MPN: 15896214
                                                                                                    NUT
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    This part replaces part number 15896211
                                                                                                    # 042
                                                                                                    MPN: 162606
                                                                                                    CLIP
                                                                                                    from £0.84
                                                                                                    from £0.84
                                                                                                    # 043
                                                                                                    MPN: 14058411
                                                                                                    NUT
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 044
                                                                                                    MPN: 189936
                                                                                                    BRACKET FOR CONNECTOR FIXING
                                                                                                    from £31.38
                                                                                                    from £31.38
                                                                                                    # 045
                                                                                                    MPN: 16285924
                                                                                                    SCREW
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 046
                                                                                                    MPN: 216848
                                                                                                    GEARBOX OIL TANK HEAT SHIELD
                                                                                                    from £56.32
                                                                                                    from £56.32
                                                                                                    This part replaces part number 190121
                                                                                                    # 047
                                                                                                    MPN: 12601174
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    This part replaces part number 675000100
                                                                                                    # 048
                                                                                                    MPN: 14496324
                                                                                                    WASHER
                                                                                                    from £1.39
                                                                                                    from £1.39
                                                                                                    # 049
                                                                                                    MPN: 15896414
                                                                                                    NUT
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 15896411
                                                                                                    # 050
                                                                                                    MPN: 186906
                                                                                                    BRACKET
                                                                                                    from £18.09
                                                                                                    from £18.09
