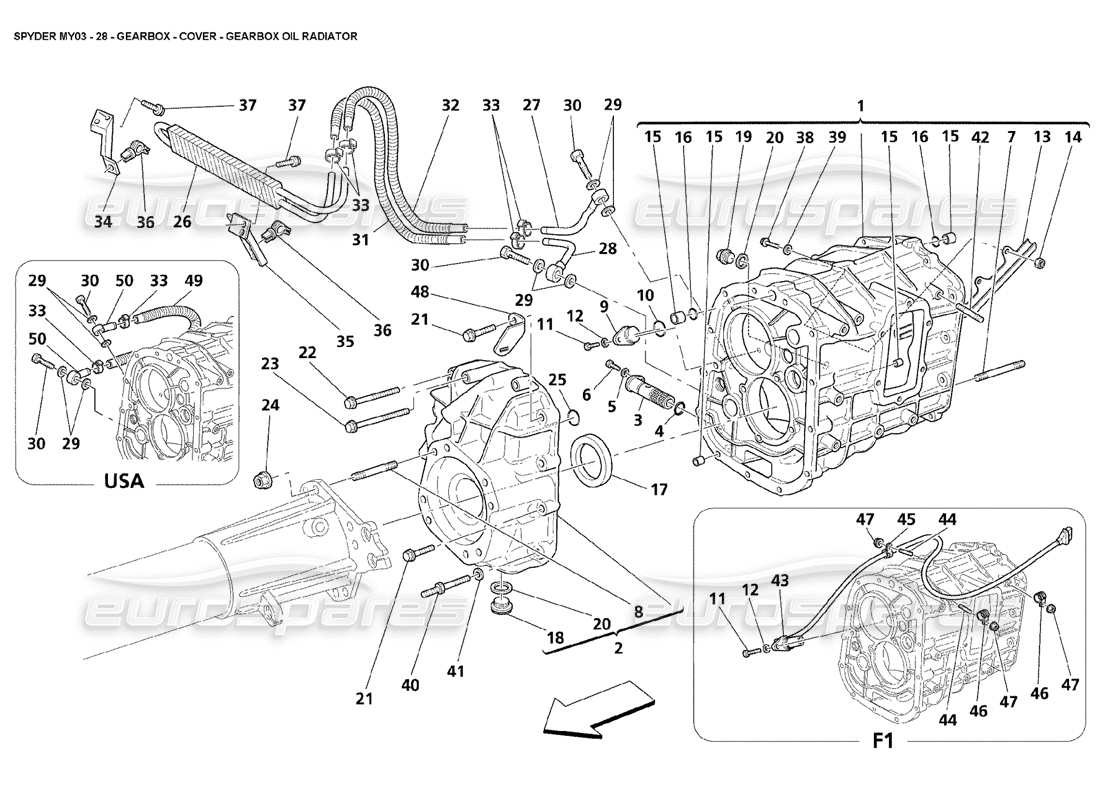

028 - Gearbox - Cover - Gearbox Oil Radiator

Maserati 4200 Spyder (2003) Gearbox - Cover - Gearbox Oil Radiator Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 184451
                                                            COMPLETE GEARBOX
                                                            -Valid for F1-
                                                            from £3,675.00
                                                            from £3,675.00
                                                            # 001
                                                            MPN: 192736
                                                            GEARBOX CASING
                                                            from £543.02
                                                            from £543.02
                                                            This part replaces part number 184518
                                                            # 001
                                                            MPN: 198256
                                                            COMPLETE GEAR BOX
                                                            -Not for F1-
                                                            from £6,536.14
                                                            from £6,536.14
                                                            This part replaces part number 189450 which we have in stock - and 1 more. Click to view details
                                                            # 002
                                                            MPN: 192734
                                                            COMPLETE FRONT COVER
                                                            from £312.96
                                                            from £312.96
                                                            This part replaces part number 184773
                                                            # 003
                                                            MPN: 182416
                                                            OIL FILTER
                                                            from £63.30
                                                            from £63.30
                                                            # 004
                                                            MPN: 182119
                                                            O.R. GASKET
                                                            from £2.50
                                                            from £2.50
                                                            # 005
                                                            MPN: 11199277
                                                            WASHER
                                                            from £1.85
                                                            from £1.85
                                                            # 006
                                                            MPN: 10977624
                                                            SCREW
                                                            from £0.53
                                                            from £0.53
                                                            # 007
                                                            MPN: 13543624
                                                            STUD
                                                            from £0.51
                                                            from £0.51
                                                            # 008
                                                            MPN: 13546334
                                                            STUD
                                                            from £0.60
                                                            from £0.60
                                                            # 009
                                                            MPN: 185721
                                                            PLUG
                                                            - Not for F1
                                                            from £2.84
                                                            from £2.84
                                                            # 010
                                                            MPN: 254644
                                                            O.R. GASKET
                                                            - Not for F1
                                                            from £0.54
                                                            from £0.54
                                                            # 011
                                                            MPN: 10902224
                                                            SCREW
                                                            from £0.53
                                                            from £0.53
                                                            # 012
                                                            MPN: 11194377
                                                            WASHER
                                                            from £0.71
                                                            from £0.71
                                                            # 013
                                                            MPN: 185714
                                                            OIL TILE
                                                            from £9.85
                                                            from £9.85
                                                            # 015
                                                            MPN: 150957
                                                            CENTERING DOWEL
                                                            from £5.39
                                                            from £5.39
                                                            # 016
                                                            MPN: 14456981
                                                            O.R. GASKET
                                                            from £0.66
                                                            from £0.66
                                                            # 017
                                                            MPN: 185719
                                                            OIL RING
                                                            from £30.04
                                                            from £30.04
                                                            # 018
                                                            MPN: 183962
                                                            MAGNETIC PLUG
                                                            from £14.34
                                                            from £14.34
                                                            This part replaces part number 4123120
                                                            # 019
                                                            MPN: 10305111
                                                            THREADED PLUG
                                                            from £4.33
                                                            from £4.33
                                                            # 020
                                                            MPN: 10263460
                                                            GASKET
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 10261830
                                                            # 021
                                                            MPN: 16287521
                                                            SCREW
                                                            from £2.13
                                                            from £2.13
                                                            # 022
                                                            MPN: 16287731
                                                            SCREW
                                                            from £1.44
                                                            from £1.44
                                                            # 023
                                                            MPN: 16288121
                                                            SCREW
                                                            from £2.47
                                                            from £2.47
                                                            # 025
                                                            MPN: 14453581
                                                            O.R. GASKET
                                                            from £2.57
                                                            from £2.57
                                                            # 026
                                                            MPN: 214366
                                                            OIL RADIATOR
                                                            - Not for USA
                                                            from £176.06
                                                            from £176.06
                                                            This part replaces part number 188308 - and 1 more. Click to view details
                                                            # 027
                                                            MPN: 189289
                                                            UNION
                                                            - Not for USA
                                                            from £10.43
                                                            from £10.43
                                                            # 028
                                                            MPN: 188316
                                                            UNION
                                                            - Not for USA
                                                            from £42.65
                                                            from £42.65
                                                            # 029
                                                            MPN: 10280060
                                                            GASKET
                                                            from £0.51
                                                            from £0.51
                                                            # 031
                                                            MPN: 189457
                                                            OIL DELIVERY TUBE
                                                            - Not for USA
                                                            from £13.78
                                                            from £13.78
                                                            # 032
                                                            MPN: 189458
                                                            OIL RETURN TUBE
                                                            - Not for USA
                                                            from £10.99
                                                            from £10.99
                                                            # 033
                                                            MPN: 13000290
                                                            SCREW COLLAR
                                                            - (Quantity 2 for USA)
                                                            from £0.53
                                                            from £0.53
                                                            # 034
                                                            MPN: 187892
                                                            COIL SUPPORTING RH BRACKET
                                                            - Not for USA
                                                            from £4.63
                                                            from £4.63
                                                            # 035
                                                            MPN: 187894
                                                            COIL SUPPORTING LH BRACKET
                                                            - Not for USA
                                                            from £10.95
                                                            from £10.95
                                                            # 036
                                                            MPN: 181756
                                                            ELEMENT FOR FIXING QUICK
                                                            - Not for USA
                                                            from £2.85
                                                            from £2.85
                                                            # 037
                                                            MPN: 11730624
                                                            SCREW
                                                            - Not for USA
                                                            from £0.53
                                                            from £0.53
                                                            # 038
                                                            MPN: 16286121
                                                            SCREW
                                                            from £0.53
                                                            from £0.53
                                                            # 039
                                                            MPN: 10297760
                                                            GASKET
                                                            from £0.53
                                                            from £0.53
                                                            # 040
                                                            MPN: 188077
                                                            STUD
                                                            from £5.08
                                                            from £5.08
                                                            # 041
                                                            MPN: 12601374
                                                            WASHER
                                                            from £0.53
                                                            from £0.53
                                                            # 042
                                                            MPN: 11500024
                                                            STUD
                                                            from £1.55
                                                            from £1.55
                                                            # 043
                                                            MPN: 168729
                                                            ELECTRO MAGNETIC SENSOR
                                                            - Valid for F1
                                                            from £70.27
                                                            from £70.27
                                                            # 044
                                                            MPN: 11500024
                                                            STUD
                                                            - Valid for F1
                                                            from £1.55
                                                            from £1.55
                                                            # 045
                                                            MPN: 10441190
                                                            BRACKET WITH SHEATH
                                                            - Valid for F1
                                                            from £0.54
                                                            from £0.54
                                                            # 046
                                                            MPN: 10441490
                                                            BRACKET WITH SHEATH
                                                            - Valid for F1
                                                            from £0.51
                                                            from £0.51
                                                            # 047
                                                            MPN: 14058411
                                                            NUT
                                                            - Valid for F1
                                                            from £0.53
                                                            from £0.53
                                                            # 048
                                                            MPN: 188004
                                                            CONNECTOR SUPPORT BRACKET
                                                            - Valid for F1
                                                            from £10.48
                                                            from £10.48
                                                            # 049
                                                            MPN: 193583
                                                            OIL RECYCLING PIPE
                                                            - Valid for USA
                                                            from £16.65
                                                            from £16.65
                                                            # 050
                                                            MPN: 193594
                                                            UNION FOR RECYCLING PIPE
                                                            - Valid for USA
                                                            Supersession
