![maserati 4200 spyder (2003) outer geabox controls parts diagram](/img/ixAAAETdFtt3OLwkSxlyBiIoqmWIRqFBovNxLv26SDQeFTzCxpYBAw%3D%3D/maserati-4200-spyder-(2003)-part-diagram-033.webp)

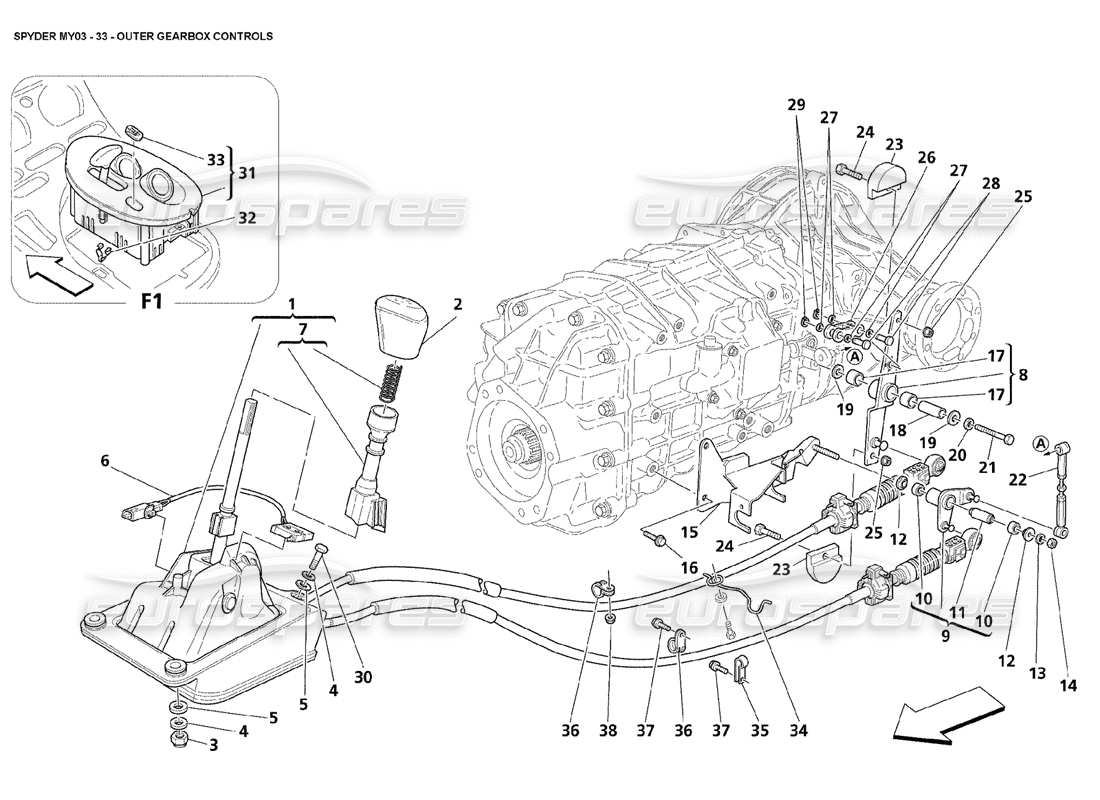

033 - Outer Geabox Controls
Maserati 4200 Spyder (2003) Outer Geabox Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 198245
GEARBOX CONTROL ASSEMBLY
- Not for F1
from £175.53
from £175.53
This part replaces part number 194730
# 002
MPN: 186122
GEARBOX CONTROL KNOB
(manual)
from £1,474.91
from £1,474.91
# 002
MPN: 186123
GEARBOX CONTROL KNOB
- Optional - Brier - Not for F1
from £1,043.75
from £1,043.75
# 002
MPN: 186124
GEARBOX CONTROL KNOB
- Optional - Carbon - Not for F1
from £1,043.75
from £1,043.75
# 002
MPN: 197106
GEARBOX CONTROL KNOB
- Optional - Leather drilled - Not for F1
from £488.32
from £488.32
# 003
MPN: 16100814
NUT
- Not for F1
from £0.71
from £0.71
# 004
MPN: 12601374
WASHER
- Not for F1
from £0.53
from £0.53
# 005
MPN: 12625224
WASHER
- Not for F1
from £0.47
from £0.47
This part replaces part number 12625221
# 006
MPN: 980001109
MICROSWITCH KIT
- Not for F1
from £15.28
from £15.28
# 007
MPN: 980001110
GEARBOX CONTROL SLEEVE KIT
- Not for F1
from £12.78
from £12.78
# 008
MPN: 185807
COMPLETE GEAR COUPLING CABLE
- Not for F1
from £578.16
from £578.16
# 009
MPN: 196876
COMPLETE GEARSHIFT ROCKER ARM
- Not for F1
from £251.55
from £251.55
This part replaces part number 186780 which we have in stock
# 010
MPN: 196878
BALL BEARING
- Not for F1
from £86.82
from £86.82
# 011
MPN: 196877
SPACER
- Not for F1
from £361.61
from £361.61
# 012
MPN: 198381
WASHER
- Not for F1
from £11.38
from £11.38
# 013
MPN: 12604474
WASHER
- Not for F1
from £0.47
from £0.47
This part replaces part number 12604479
# 014
MPN: 14075811
NUT
- Not for F1
from £1.64
from £1.64
This part replaces part number 314632309
# 015
MPN: 186780
BRACKET FOR GEARBOX CABLE FIXING
- Not for F1
from £275.72
from £275.72
# 016
MPN: 16296921
SCREW
- Not for F1
from £1.56
from £1.56
# 017
MPN: 103226
SELF LUBRICATING BUSHING
- Not for F1
from £2.34
from £2.34
# 018
MPN: 183396
BUSHING
- Not for F1
from £33.44
from £33.44
# 019
MPN: 184525
WASHER
- Not for F1
from £3.19
from £3.19
# 020
MPN: 12604574
WASHER
- Not for F1
from £0.47
from £0.47
# 021
MPN: 15888724
SCREW
- Not for F1
from £0.54
from £0.54
# 022
MPN: 185976
COMPLETE TIE ROD FOR GEARSHIFT
- Not for F1
from £46.55
from £46.55
# 023
MPN: 183738
COUNTER WEIGHT
- Not for F1
from £49.18
from £49.18
# 024
MPN: 16286224
SCREW
- Not for F1
from £1.33
from £1.33
# 025
MPN: 14058419
NUT
- Not for F1
from £0.47
from £0.47
# 026
MPN: 174912
FORK FOR GEARBOX CONTROL COUPLING
- Not for F1
from £97.02
from £97.02
# 027
MPN: 171673
SPACER
- Not for F1
from £3.67
from £3.67
# 028
MPN: 174974
PIN
- Not for F1
from £10.59
from £10.59
# 029
MPN: 11065674
SEEGER RING
- Not for F1
from £0.53
from £0.53
# 030
MPN: 16135724
SCREW
- Not for F1
from £1.87
from £1.87
# 031
MPN: 67604226
F1 CONTROL DASHBOARD
- Valid for F1 - Not for GD - Bordeaux color
from £1,176.18
from £1,176.18
# 031
MPN: 67604227
F1 CONTROL DASHBOARD
- Valid for F1 - Not for GD - Gray color
from £1,071.84
from £1,071.84
This part replaces part number 67604228
# 031
MPN: 67604326
F1 CONTROL DASHBOARD
- Valid for F1 - Valid for GD - Bordeaux color
from £1,275.52
from £1,275.52
# 031
MPN: 67604327
F1 CONTROL DASHBOARD
- Valid for F1 - Valid for GD - Gray color
from £1,275.52
from £1,275.52
This part replaces part number 67604328
# 032
MPN: 67968400
FIXING CLIP
- Valid for F1
from £2.34
from £2.34
This part replaces part number 65048300
# 033
MPN: 66951200
Maserati MARK
- Valid for F1
from £35.48
from £35.48
# 034
MPN: 193299
SUPPORT FOR CABLE
- Not for F1
from £14.89
from £14.89
# 035
MPN: 312020432
CLAMP
- Not for F1
from £1.95
from £1.95
# 036
MPN: 10441690
BRACKET WITH SHEATH
- Not for F1
from £1.09
from £1.09
# 037
MPN: 10711227
SCREW
- Not for F1
from £1.56
from £1.56
# 038
MPN: 13831811
NUT
- Not for F1
from £0.47
from £0.47
