035 - Differential & Axle Shafts

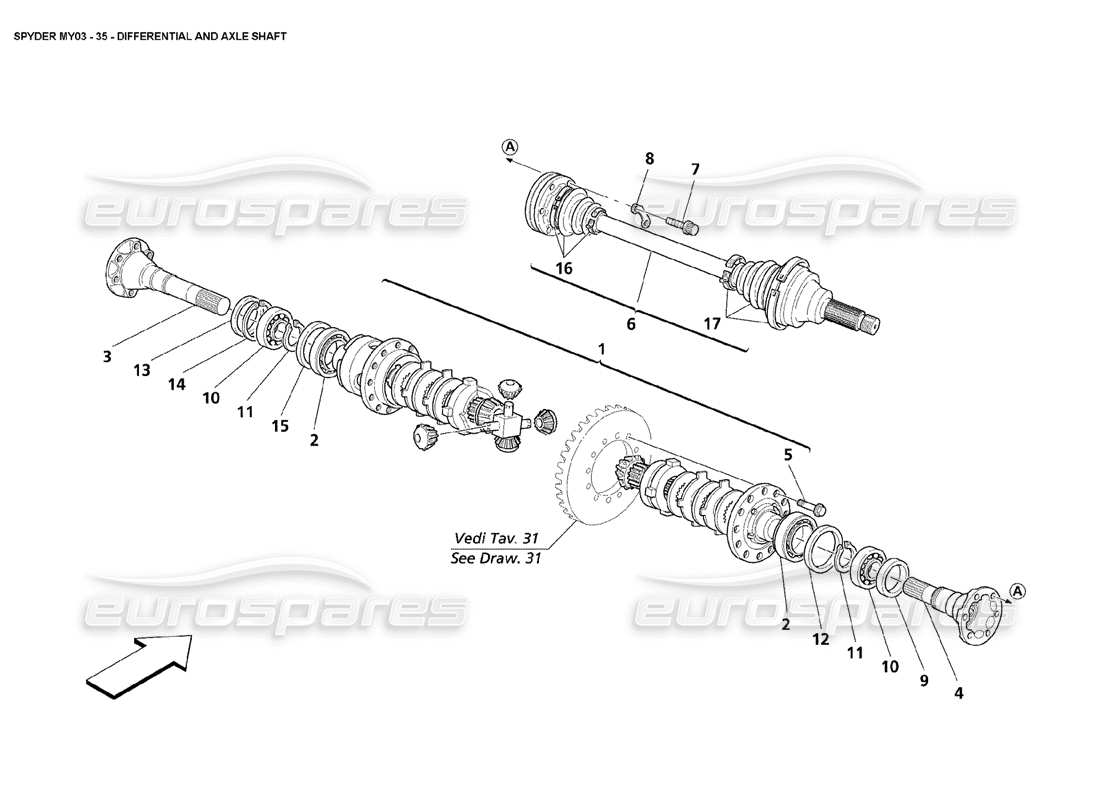

Maserati 4200 Spyder (2003) Differential & Axle Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 192735
COMPLETE SELF LOCKING DIFFERENTIAL
from £1,999.99
from £1,999.99
This part replaces part number 185680
# 002
MPN: 184998
ROLLER BEARING
from £72.36
from £72.36
This part replaces part number 376200124
# 003
MPN: 185014
LH LONG DIFFERENTIAL OUTLET SHAFT
- Valid till stock exhaustion
Supersession
Supersession
# 003
MPN: 199055
LH LONG DIFFERENTIAL OUTLET SHAFT
- Valid after stock exhaustion of 185014
from £618.33
from £618.33
This part replaces part number 185014
# 004
MPN: 182322
RH SHORT DIFFERENTIAL OUTLET SHAFT
- Valid till stock exhaustion
Supersession
Supersession
# 004
MPN: 199056
RH SHORT DIFFERENTIAL OUTLET SHAFT
- Valid after stock exhaustion of 182322
from £615.14
from £615.14
This part replaces part number 182322
# 005
MPN: 183909
SCREW
from £3.28
from £3.28
# 006
MPN: 218163
AXLE SHAFT
from £261.45
from £261.45
This part replaces part number 184540 - and 1 more. Click to view details
# 006
MPN: 218163
AXLE SHAFT
from £261.45
from £261.45
This part replaces part number 184540 - and 1 more. Click to view details
# 007
MPN: 181910
SCREW
from £2.32
from £2.32
This part replaces part number 211027 - and 1 more. Click to view details
# 008
MPN: 149415
PLATE
from £1.08
from £1.08
# 009
MPN: 181618
RH OIL RING
from £28.93
from £28.93
# 010
MPN: 184995
BALL BEARING
from £74.55
from £74.55
# 011
MPN: 184994
SEEGER RING
from £3.63
from £3.63
# 012
MPN: 185026
REGISTER RING
- Thickness mm. 6,8
from £28.42
from £28.42
# 012
MPN: 185027
REGISTER RING
- Thickness mm. 6,4
from £32.80
from £32.80
# 012
MPN: 185028
REGISTER RING
- Thickness mm. 6
from £32.80
from £32.80
# 013
MPN: 185722
LH OIL RING
from £35.87
from £35.87
# 014
MPN: 185723
SEEGER RING
from £2.59
from £2.59
# 015
MPN: 185029
REGISTER RING
- Thickness mm. 3,30
from £26.23
from £26.23
# 015
MPN: 185033
REGISTER RING
- Thickness mm. 2,95
from £26.23
from £26.23
# 015
MPN: 185034
REGISTER RING
- Thickness mm. 2,60
from £26.23
from £26.23
# 016
MPN: 70006022
CLAMP AND PROTECTION REPLACEMENT SET
- Differential side
from £54.95
from £54.95
This part replaces part number 70000867
# 017
MPN: 70000868
CLAMP AND PROTECTION REPLACEMENT SET
- Wheel side
from £67.80
from £67.80
