maserati 4200 spyder (2003) braking system - not for gd parts diagram

037 - Braking System - Not for GD

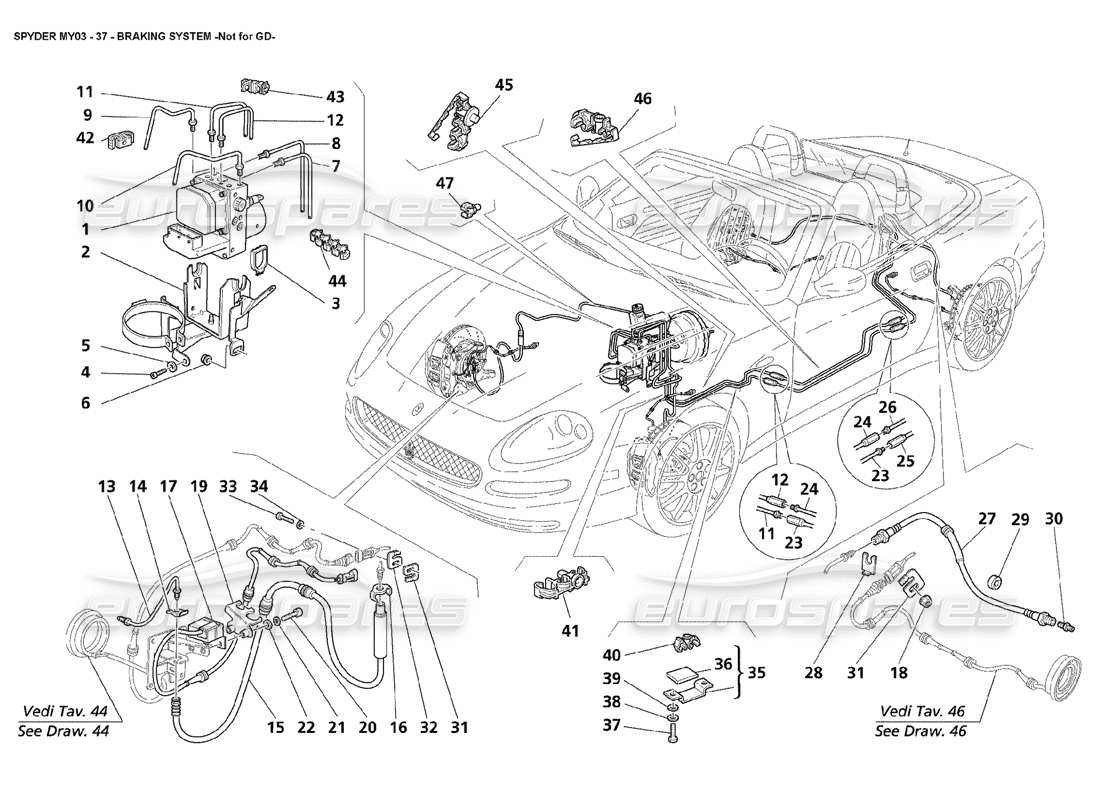

Maserati 4200 Spyder (2003) Braking System - Not for GD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 192444
                                                                                      hydraulic unit
                                                                                      from £2,880.37
                                                                                      from £2,880.37
                                                                                      This part replaces part number 192443
                                                                                      # 002
                                                                                      MPN: 195570
                                                                                      CONTROL UNIT FIXING BRACKET
                                                                                      from £31.25
                                                                                      from £31.25
                                                                                      # 003
                                                                                      MPN: 193877
                                                                                      CONTROL UNIT FIXING CLIP
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 004
                                                                                      MPN: 14433124
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 005
                                                                                      MPN: 12646604
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 006
                                                                                      MPN: 14040611
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 007
                                                                                      MPN: 196616
                                                                                      BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 008
                                                                                      MPN: 195574
                                                                                      RH FRONT BRAKE PIPE
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 009
                                                                                      MPN: 196620
                                                                                      FRONT BRAKE PIPE FROM PUMP TO UNIT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 010
                                                                                      MPN: 196619
                                                                                      REAR BRAKE PIPE FROM PUMP TO UNIT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 011
                                                                                      MPN: 195581
                                                                                      LH REAR BRAKE PIPE
                                                                                      from £18.53
                                                                                      from £18.53
                                                                                      # 012
                                                                                      MPN: 195582
                                                                                      RH REAR BRAKE PIPE
                                                                                      from £15.79
                                                                                      from £15.79
                                                                                      # 013
                                                                                      MPN: 185954
                                                                                      RH FRONT CALIPER RIGID PIPE
                                                                                      from £14.73
                                                                                      from £14.73
                                                                                      # 013
                                                                                      MPN: 185955
                                                                                      LH FRONT CALIPER RIGID PIPE
                                                                                      from £16.63
                                                                                      from £16.63
                                                                                      # 014
                                                                                      MPN: 181897
                                                                                      CLIP
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      This part replaces part number 252814
                                                                                      # 015
                                                                                      MPN: 185956
                                                                                      BRAKE FLEXIBLE PIPE TO FRONT CALIPERS
                                                                                      from £98.99
                                                                                      from £98.99
                                                                                      # 016
                                                                                      MPN: 228185
                                                                                      CLIP
                                                                                      from £2.85
                                                                                      from £2.85
                                                                                      This part replaces part number 387400301
                                                                                      # 017
                                                                                      MPN: 232160
                                                                                      VERTICAL ACCELERATION SENSOR
                                                                                      - Optional - Sport version
                                                                                      from £124.56
                                                                                      from £124.56
                                                                                      This part replaces part number 183580
                                                                                      # 018
                                                                                      MPN: 14084111
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 019
                                                                                      MPN: 185792
                                                                                      RH BRAKE PIPE SUPPORT BRACKET
                                                                                      from £6.42
                                                                                      from £6.42
                                                                                      # 019
                                                                                      MPN: 185793
                                                                                      LH BRAKE PIPE SUPPORT BRACKET
                                                                                      from £6.81
                                                                                      from £6.81
                                                                                      # 020
                                                                                      MPN: 14305324
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 14305321
                                                                                      # 021
                                                                                      MPN: 12604274
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 022
                                                                                      MPN: 14496424
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 14496421
                                                                                      # 023
                                                                                      MPN: 197471
                                                                                      LH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                                                      from £5.57
                                                                                      from £5.57
                                                                                      # 024
                                                                                      MPN: 197472
                                                                                      RH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                                                      from £6.76
                                                                                      from £6.76
                                                                                      # 025
                                                                                      MPN: 190512
                                                                                      LH REAR CALIPER RIGID PIPE
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 026
                                                                                      MPN: 190513
                                                                                      RH REAR CALIPER RIGID PIPE
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 027
                                                                                      MPN: 387401155
                                                                                      BRAKE FLEXIBLE PIPE TO REAR CALIPERS
                                                                                      from £152.55
                                                                                      from £152.55
                                                                                      This part replaces part number 387400155
                                                                                      # 028
                                                                                      MPN: 181897
                                                                                      CLIP
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      This part replaces part number 252814
                                                                                      # 029
                                                                                      MPN: 327456313
                                                                                      SPACER RING
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 030
                                                                                      MPN: 387400330
                                                                                      UNION
                                                                                      from £17.16
                                                                                      from £17.16
                                                                                      This part replaces part number 387400333
                                                                                      # 031
                                                                                      MPN: 162606
                                                                                      CLIP
                                                                                      from £0.75
                                                                                      from £0.75
                                                                                      # 032
                                                                                      MPN: 156198
                                                                                      CLIP
                                                                                      from £10.41
                                                                                      from £10.41
                                                                                      # 033
                                                                                      MPN: 10977687
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 034
                                                                                      MPN: 12638177
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 035
                                                                                      MPN: 187464
                                                                                      PIPES PROTECTION BRACKET
                                                                                      - Not for USA and CDN
                                                                                      from £8.20
                                                                                      from £8.20
                                                                                      This part replaces part number 387400102
                                                                                      # 035
                                                                                      MPN: 197587
                                                                                      PIPES PROTECTION BRACKET
                                                                                      - Valid for USA and CDN
                                                                                      from £20.25
                                                                                      from £20.25
                                                                                      # 036
                                                                                      MPN: 387400402
                                                                                      GASKET
                                                                                      from £1.55
                                                                                      from £1.55
                                                                                      # 037
                                                                                      MPN: 10977824
                                                                                      SCREW
                                                                                      from £1.01
                                                                                      from £1.01
                                                                                      This part replaces part number 16130321 which we have in stock
                                                                                      # 038
                                                                                      MPN: 11181574
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 039
                                                                                      MPN: 14447025
                                                                                      WASHER
                                                                                      from £1.39
                                                                                      from £1.39
                                                                                      # 040
                                                                                      MPN: 379200408
                                                                                      CLIP
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 042
                                                                                      MPN: 169476
                                                                                      CLIP
                                                                                      - (Quantity defined during at assembly)
                                                                                      from £1.56
                                                                                      from £1.56
                                                                                      # 043
                                                                                      MPN: 377430340
                                                                                      BLOCK
                                                                                      - (Quantity defined during at assembly)
                                                                                      from £0.69
                                                                                      from £0.69
                                                                                      # 044
                                                                                      MPN: 198575
                                                                                      CLIP
                                                                                      from £3.63
                                                                                      from £3.63
                                                                                      # 045
                                                                                      MPN: 198574
                                                                                      CLIP
                                                                                      from £2.85
                                                                                      from £2.85
                                                                                      # 046
                                                                                      MPN: 190409
                                                                                      CLIP
                                                                                      - (Quantity defined during at assembly)
                                                                                      from £3.24
                                                                                      from £3.24
                                                                                      # 047
                                                                                      MPN: 377430346
                                                                                      CLIP
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
