maserati 4200 spyder (2003) hand - brake controls parts diagram

040 - Hand - Brake Controls

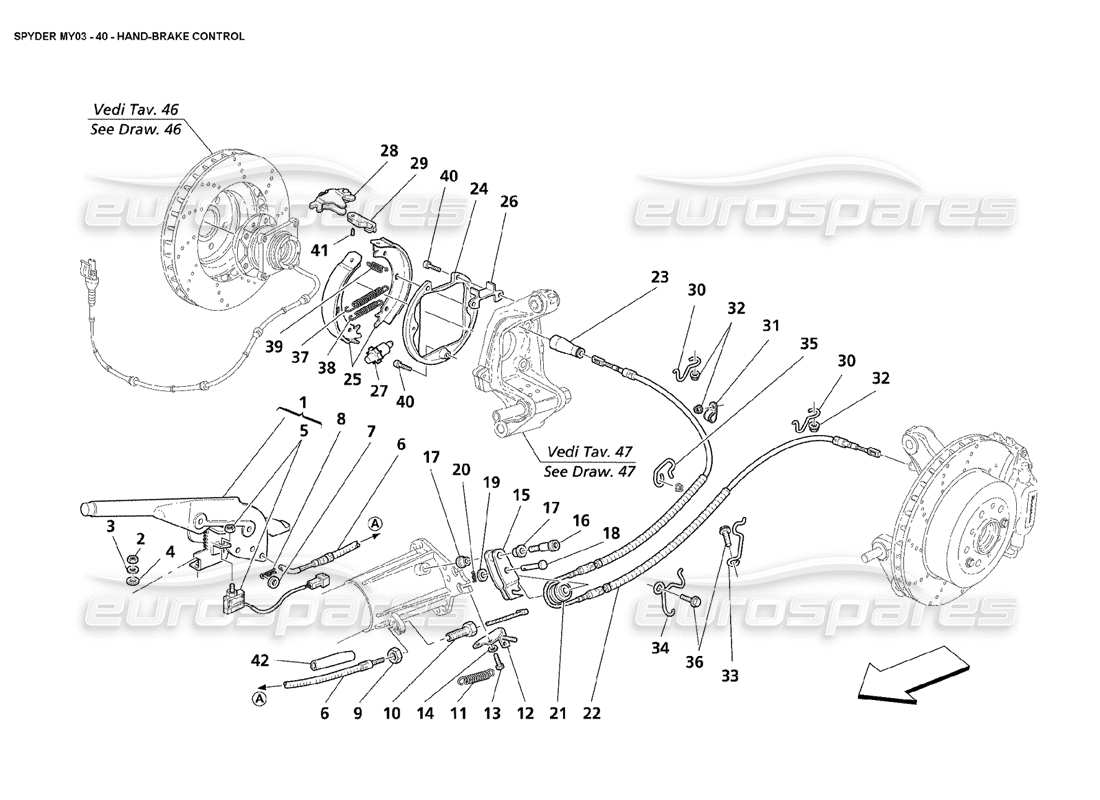

Maserati 4200 Spyder (2003) Hand - Brake Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 188591
                                                                              HAND BRAKE LEVER
                                                                              from £118.97
                                                                              from £118.97
                                                                              # 002
                                                                              MPN: 16104421
                                                                              NUT
                                                                              from £0.81
                                                                              from £0.81
                                                                              # 003
                                                                              MPN: 14496521
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 004
                                                                              MPN: 12628924
                                                                              WASHER
                                                                              from £1.85
                                                                              from £1.85
                                                                              # 005
                                                                              MPN: 383300157
                                                                              MICRO SWITCH
                                                                              from £16.51
                                                                              from £16.51
                                                                              This part replaces part number 980000944
                                                                              # 006
                                                                              MPN: 193302
                                                                              FRONT CABLE
                                                                              from £41.11
                                                                              from £41.11
                                                                              # 007
                                                                              MPN: 12642701
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12642724
                                                                              # 008
                                                                              MPN: 10766301
                                                                              SPLIT PIN
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 009
                                                                              MPN: 10726824
                                                                              NUT
                                                                              from £3.16
                                                                              from £3.16
                                                                              # 010
                                                                              MPN: 185282
                                                                              CABLE TIGHTENER
                                                                              from £11.86
                                                                              from £11.86
                                                                              # 011
                                                                              MPN: 101305
                                                                              SPRING
                                                                              from £5.43
                                                                              from £5.43
                                                                              # 012
                                                                              MPN: 186208
                                                                              BRACKET FOR SPRING
                                                                              from £8.20
                                                                              from £8.20
                                                                              # 013
                                                                              MPN: 10902024
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 010902024
                                                                              # 014
                                                                              MPN: 11199674
                                                                              WASHER
                                                                              from £0.64
                                                                              from £0.64
                                                                              # 015
                                                                              MPN: 188588
                                                                              BRAKE TRANSMISSION LEVER
                                                                              from £14.77
                                                                              from £14.77
                                                                              # 016
                                                                              MPN: 185278
                                                                              TRANSMISSION LEVER PIN
                                                                              from £14.77
                                                                              from £14.77
                                                                              # 020
                                                                              MPN: 10734301
                                                                              SPLIT PIN
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 021
                                                                              MPN: 188587
                                                                              CABLE TRANSMISSION PULLEY
                                                                              from £10.97
                                                                              from £10.97
                                                                              # 022
                                                                              MPN: 194875
                                                                              REAR CABLE
                                                                              from £69.47
                                                                              from £69.47
                                                                              This part replaces part number 186867
                                                                              # 023
                                                                              MPN: 143938
                                                                              CABLE SHEATH
                                                                              from £16.31
                                                                              from £16.31
                                                                              This part replaces part number 388000341
                                                                              # 024
                                                                              MPN: 186574
                                                                              SHOES SUPPORT SPACER
                                                                              from £43.71
                                                                              from £43.71
                                                                              # 025
                                                                              -
                                                                              COMPLETE BRAKE SHOE SET
                                                                              (Set of 4 pcs.)
                                                                              # 025
                                                                              MPN: 248418
                                                                              HAND BRAKE SHOE
                                                                              from £96.31
                                                                              from £96.31
                                                                              This part replaces part number 235894
                                                                              # 026
                                                                              MPN: 190814
                                                                              SMALL BLOCK
                                                                              from £38.16
                                                                              from £38.16
                                                                              # 027
                                                                              MPN: 186572
                                                                              REGISTER FOR HAND BRAKE
                                                                              from £42.46
                                                                              from £42.46
                                                                              This part replaces part number 388000113
                                                                              # 028
                                                                              MPN: 190782
                                                                              HAND BRAKE CONTROL DEVICE
                                                                              from £24.35
                                                                              from £24.35
                                                                              This part replaces part number 388001155
                                                                              # 029
                                                                              MPN: 105270
                                                                              FORK
                                                                              from £14.71
                                                                              from £14.71
                                                                              This part replaces part number 388000364
                                                                              # 030
                                                                              MPN: 186933
                                                                              LH AND RH BRAKE CABLE SPRING
                                                                              from £1.41
                                                                              from £1.41
                                                                              # 031
                                                                              MPN: 10441190
                                                                              BRACKET WITH SHEATH
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 032
                                                                              MPN: 14058411
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 033
                                                                              MPN: 186934
                                                                              BRAKE CABLE SPRING
                                                                              from £1.76
                                                                              from £1.76
                                                                              # 034
                                                                              MPN: 186935
                                                                              BRAKE CABLE FRONT SPRING
                                                                              - Valid for F1
                                                                              from £2.19
                                                                              from £2.19
                                                                              # 035
                                                                              MPN: 186936
                                                                              BRAKE CABLE REAR SPRING
                                                                              - Valid for F1
                                                                              from £2.19
                                                                              from £2.19
                                                                              # 036
                                                                              MPN: 11730624
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 037
                                                                              MPN: 190776
                                                                              RETUTN SPRING FOR BRAKE SHOES
                                                                              from £9.71
                                                                              from £9.71
                                                                              # 038
                                                                              MPN: 190779
                                                                              RETUTN SPRING FOR BRAKE SHOES
                                                                              from £3.43
                                                                              from £3.43
                                                                              # 039
                                                                              MPN: 190780
                                                                              SPRING FOR SHOES
                                                                              from £3.15
                                                                              from £3.15
                                                                              # 040
                                                                              MPN: 190870
                                                                              SCREW
                                                                              from £1.40
                                                                              from £1.40
                                                                              This part replaces part number 193737 - and 1 more. Click to view details
                                                                              # 041
                                                                              MPN: 101282
                                                                              PIN
                                                                              from £7.14
                                                                              from £7.14
                                                                              # 042
                                                                              MPN: 199471
                                                                              SILENCER
                                                                              - Valid for F1
                                                                              from £0.84
                                                                              from £0.84
