045 - Front Suspension - Wishbones and Stabilizers

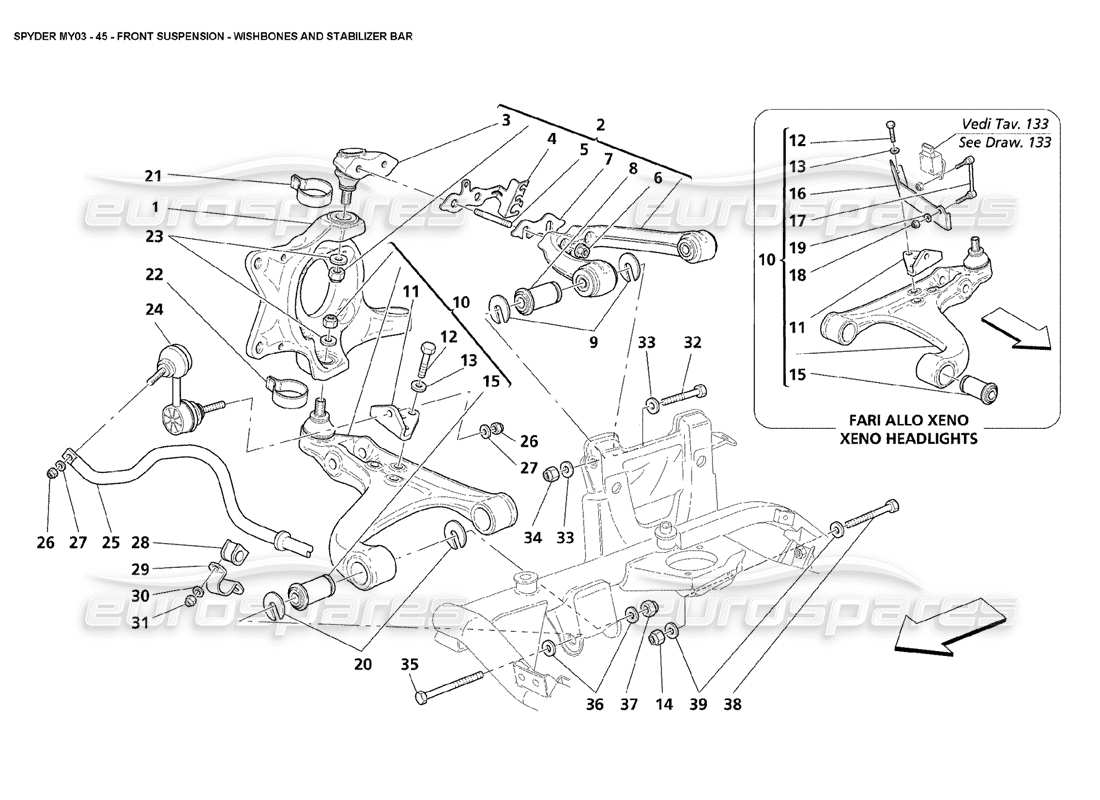

Maserati 4200 Spyder (2003) Front Suspension - Wishbones and Stabilizers Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 197754
RH FRONT HUB HOLDER
from £399.00
from £399.00
# 001
MPN: 197764
LH FRONT HUB HOLDER
from £384.86
from £384.86
# 002
MPN: 185948
COMPLETE LH UPPER LEVER
from £243.64
from £243.64
# 002
MPN: 185949
COMPLETE RH UPPER LEVER
from £513.96
from £513.96
# 003
MPN: 386600129
JOINT FOR UPPER LEVER
from £178.92
from £178.92
# 004
MPN: 190691
RH CABLES SUPPORTING BRACKET
from £10.05
from £10.05
# 004
MPN: 190692
LH CABLES SUPPORTING BRACKET
from £10.97
from £10.97
# 005
MPN: 386600405
STUD
from £9.20
from £9.20
# 006
MPN: 14058521
NUT
from £0.94
from £0.94
# 007
MPN: 386600411
ADJUSTMENT TICKNESS
- MM. 0,5
from £2.85
from £2.85
# 007
MPN: 386600412
ADJUSTMENT TICKNESS
- MM. 1
from £2.85
from £2.85
# 007
MPN: 386600413
ADJUSTMENT TICKNESS
- MM. 2,5
from £2.32
from £2.32
# 008
MPN: 186493
FLANBLOC
from £75.94
from £75.94
# 009
MPN: 386600425
WASHER
- Thickness mm. 0,5
from £5.41
from £5.41
This part replaces part number 66667900
# 009
MPN: 386600426
WASHER
- Thickness mm. 0,75
from £2.32
from £2.32
# 009
MPN: 386600427
WASHER
- Thickness mm. 1
from £1.85
from £1.85
This part replaces part number 66668000
# 009
MPN: 386600428
WASHER
- Thickness mm. 1,75
from £2.32
from £2.32
# 009
MPN: 386600429
WASHER
- Thickness mm. 3
from £1.85
from £1.85
# 010
MPN: 186676
COMPLETE LH LOWER LEVER
- Standard
from £380.08
from £380.08
# 010
MPN: 201778
COMPLETE RH LOWER LEVER
Supersession
Supersession
This part replaces part number 186677
# 010
MPN: 201781
COMPLETE LH LOWER LEVER
- Optional - Xeno headlights - Not for USA and CDN
Supersession
Supersession
This part replaces part number 189052
# 010
MPN: 201784
RH FRONT LOWER LEVER
Optional - Xeno headlights
from £700.79
from £700.79
This part replaces part number 194396 - and 3 more. Click to view details
# 010
MPN: 201787
LH FRONT LOWER LEVER
Optional - Xeno headlights
from £700.79
from £700.79
This part replaces part number 194397 - and 3 more. Click to view details
# 011
MPN: 186347
TORSION BAR TIE ROD SUPPORT
from £25.22
from £25.22
# 012
MPN: 16043621
SCREW
from £0.47
from £0.47
# 013
MPN: 14496524
WASHER
from £0.47
from £0.47
# 014
MPN: 386600441
NUT
from £1.63
from £1.63
# 015
MPN: 386600113
FLANBLOC
Alternative : 169326
from £106.29
from £106.29
# 016
MPN: 190045
BRACKET FOR FRONT POTENTIOMETER
- Valid for opt. Xeno headlights - Not for USA and CDN
from £13.60
from £13.60
# 017
MPN: 188629
TIE ROD
- Valid for opt. Xeno headlights - Not for USA and CDN
from £19.31
from £19.31
# 018
MPN: 12574215
NUT
- Valid for opt. Xeno headlights - Not for USA and CDN
from £1.23
from £1.23
# 019
MPN: 14498805
WASHER
- Valid for opt. Xeno headlights - Not for USA and CDN
from £0.47
from £0.47
# 020
MPN: 377030378
WASHER
- Thickness mm. 0,5
from £3.16
from £3.16
# 020
MPN: 377030379
WASHER
- Thickness mm. 0,75
from £3.86
from £3.86
# 020
MPN: 377030380
WASHER
- Thickness mm. 1
from £17.23
from £17.23
# 020
MPN: 377030381
WASHER
- Thickness mm. 1,75
from £3.86
from £3.86
# 020
MPN: 377030382
WASHER
- Thickness mm. 3
from £4.57
from £4.57
# 021
MPN: 386600416
JOINT UPPER PROTECTION
from £3.63
from £3.63
# 022
MPN: 160019
JOINT LOWER PROTECTION
from £1.92
from £1.92
This part replaces part number 386600419
# 023
MPN: 386600403
WASHER
from £6.04
from £6.04
# 024
MPN: 185914
RH TIE ROD FOR TORSION BAR
from £50.85
from £50.85
# 024
MPN: 185916
LH TIE ROD FOR TORSION BAR
from £50.85
from £50.85
# 025
MPN: 185909
ANTI ROLL BAR
from £110.25
from £110.25
# 026
MPN: 12575621
NUT
from £1.31
from £1.31
This part replaces part number 98095 which we have in stock
# 027
MPN: 13550421
WASHER
from £0.47
from £0.47
# 028
MPN: 208324
BAR BUFFER
from £20.45
from £20.45
This part replaces part number 163212
# 029
MPN: 133802
PAD FASTENING PLATE
from £18.78
from £18.78
# 030
MPN: 14496524
WASHER
from £0.47
from £0.47
# 031
MPN: 104030
NUT
from £0.47
from £0.47
# 032
MPN: 15541521
SCREW
from £2.47
from £2.47
# 033
MPN: 14496721
WASHER
from £0.47
from £0.47
# 034
MPN: 15503811
NUT
from £1.08
from £1.08
# 035
MPN: 196071
SCREW
from £4.24
from £4.24
# 036
MPN: 14496825
WASHER
from £1.18
from £1.18
# 037
MPN: 15503915
NUT
from £1.63
from £1.63
# 038
MPN: 189137
SCREW
from £18.09
from £18.09
# 039
MPN: 13579861
WASHER
from £14.15
from £14.15
